Pakistan will launch a two-seater version of JF-17 - Induction of JF-17B in 2017

[Deino]

Here it is !!!!!



[aftab_s81]

Looks very different from jf-17A. The nose seems to be more like a mig. Looks fat brother of JFt. I wonder how it will look from front.



[aftab_s81]

Do anybody else notice the increased height and somewhat leaned down nose?



[YeBeWarned]

Here it is !!!!!

View attachment 393121

Brother Thank you Sooooooooooooooooooooooooooooooooooooooooooooooooooooooooo much , for the picture
@Quwa @HRK @araz @Bilal Khan 777 @Basel finally the first look of JF-17B
IS it just me or the Spine of the plane looks more like MiG ?



[aftab_s81]

It certainly looks more "miggish"



[Deino]

To admit, I'm a bit disappointed.

Even if I like the look of the J-10-trainer very much with its spine ... here it looks - at least from this angle - more than odd ....

I wish they had designed more something like this design ...



[Tempest II]

Not very different



[Deino]

Not very different

View attachment 393158

But enough to say it's ugly !



[HannibalBarca]

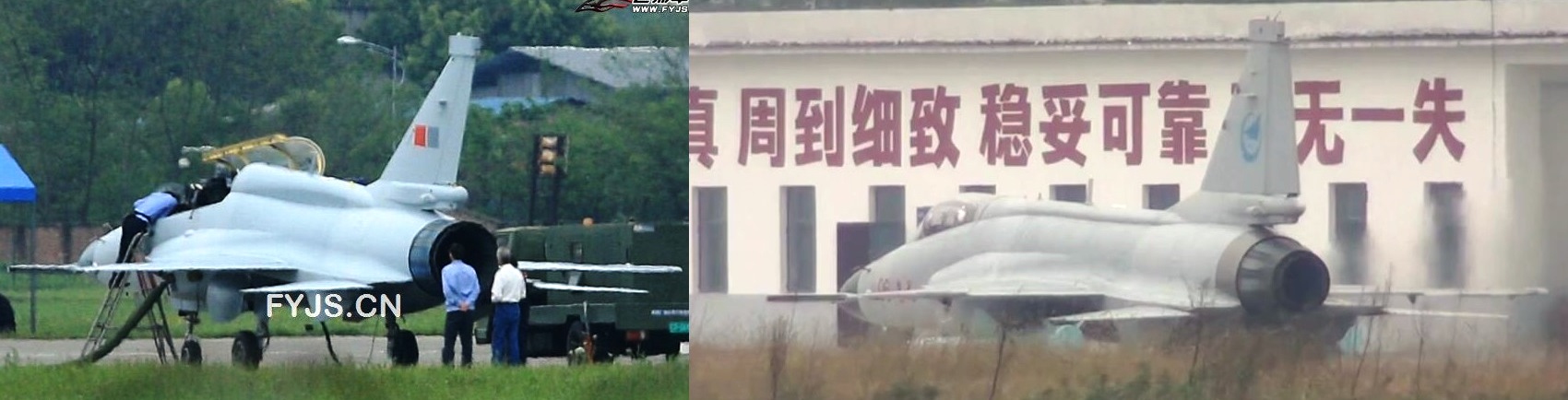

Comparison JF-17B vs JF-17 (Took me a while to find somthing similar.)



[graphican]

After looking at JF-17B, I have thought twice that this plane is too small in size for the burden it is trying to carry. Look at the thickness in the middle and then compare it with wing size to feel what I am saying. JF-17 always felt fat, but JF-17B feels more of it.

But I really hope I am wrong and some expert will tell us why is it the way it is.



[HannibalBarca]

After looking at JF-17B, I have thought twice that this plane is too small in size for burden it is trying to carry. Look at the thickness in the middle and then compare it with wing size to feel what I am saying.

But I really hope I am wrong and some expert will tell us why is it the way it is.

Maybe it's main purpose will be only for Training ... instead of a mixed use...



[CriticalThought]

Here it is !!!!!

View attachment 393121

Masha Allah. Alhamdolillah

Points to be noted:

1.The upper 'spine' is thicker so as to flow more smoothly from the thicker end of the canopy. Sensible aerodynamic design.

2. The LERX look shorter... but the angle is too bad to really tell. I could be wrong on this one. But from initial looks it looks the shorter LERX terminate on a wing that has more surface area. I can see how they achieved lower wing loading. Would be nice to see the frontal/sideways views.

3. Again, bad viewing angle, but the LERX in JF-17 A Block 1/2 were positioned on the middle of the air intake. Here, they seem to be at the very top of the inlet... but again I could be wrong here. Need a better picture.

4. I don't know if I am seeing my fantasies come true in the picture, but this looks like a low wing configuration, meaning instability in the roll axis. If true, it will increase the maneuverability.

5. The bump of the inlet on top of the wings seems somehow broader and shorter? It could signify increased fuel capacity, or in general, increased internal volume. My eyes aren't very good at catching subtle differences I am afraid.

6. Overall, the design seems reminiscent of FA-18... shorter, and more curved in the middle.

7. The tail, as promised, is slightly taller. The parachute tube doesn't seem to extend as much. Could it signify a smaller cute, meaning a shorter landing distance as well?

I need another pair of eyes to reconfirm what I have said above.

@MarvellousThunder@PDC @Oscar @Windjammer @Bilal Khan 777 @The SC



[graphican]

Not very different

View attachment 393158

@Tempest II,
I googled alot to find two resembling angles of JF-17 (A) and JF-17B - but couldn't find as good as yours. Thanks for the effort.



[CriticalThought]

But enough to say it's ugly !

What do you mean ugly? You need to get your eyes checked.



[CriticalThought]

Mate, get reservations for two then, I am also looking to check my eyes for the same reason.

Beauty lies in the eyes of the beholder. A non-mathematician cannot appreciate the beauty of an integral equation, for the mathematician it summarizes a whole world of information into a short space. This is a perfectly beautiful aircraft.
