Iranian Marine products...........Civilian and Naval

[aryobarzan]

I.R.I.N.S " Fateh" submarine

A true pride of Iran..Fateh is the first fully indigenous submarine of the Iranian navy..Designed and built within a span of 9 years the sub entered service in 2019.

Specification

• Type: Semi-heavy sub with conventional hull form with blunt vertical bow and tapered stern. similar to the German Type-206 series deigns.
• Displacement: 600 tons submerged
• Length: 48 m
• Hull diameter: 4.4 m
• Speed: 11 kt surfaced, 14 kt submerged
• Operating Depth: 200 m
• Test Depth: 250 m
• Endurance: 35 days or 6700 km
• Powerplant: diesel-electric
• Sensors:11 retractable sensors, including an electro-optical mast and what appeared to be an optical periscope. Others may include a radar and electronic intelligence sensors for target-acquisition purposes.
• Armament: 4 x 533mm (21") torpedo tubes. Possibly up to two reloads (Tbc),8 sea mines and mission specific armaments
• One in service (Iranian Navy) ,2 under construction, 10 planned

https://twitter.com/x/status/1097055529657122816



[BlessedKingOfLonging]

I.R.I.N.S " Fateh" submarine

A true pride of Iran..Fateh is the first fully indigenous submarine of the Iranian navy..Designed and built within a span of 9 years the sub entered service in 2019.

Specification

• Type: Semi-heavy sub with conventional hull form with blunt vertical bow and tapered stern. similar to the German Type-206 series deigns.
• Displacement: 600 tons submerged
• Length: 48 m
• Hull diameter: 4.4 m
• Speed: 11 kt surfaced, 14 kt submerged
• Operating Depth: 200 m
• Test Depth: 250 m
• Endurance: 35 days or 6700 km
• Powerplant: diesel-electric
• Sensors:11 retractable sensors, including an electro-optical mast and what appeared to be an optical periscope. Others may include a radar and electronic intelligence sensors for target-acquisition purposes.
• Armament: 4 x 533mm (21") torpedo tubes. Possibly up to two reloads (Tbc),8 sea mines and mission specific armaments
• One in service (Iranian Navy) ,2 under construction, 10 planned

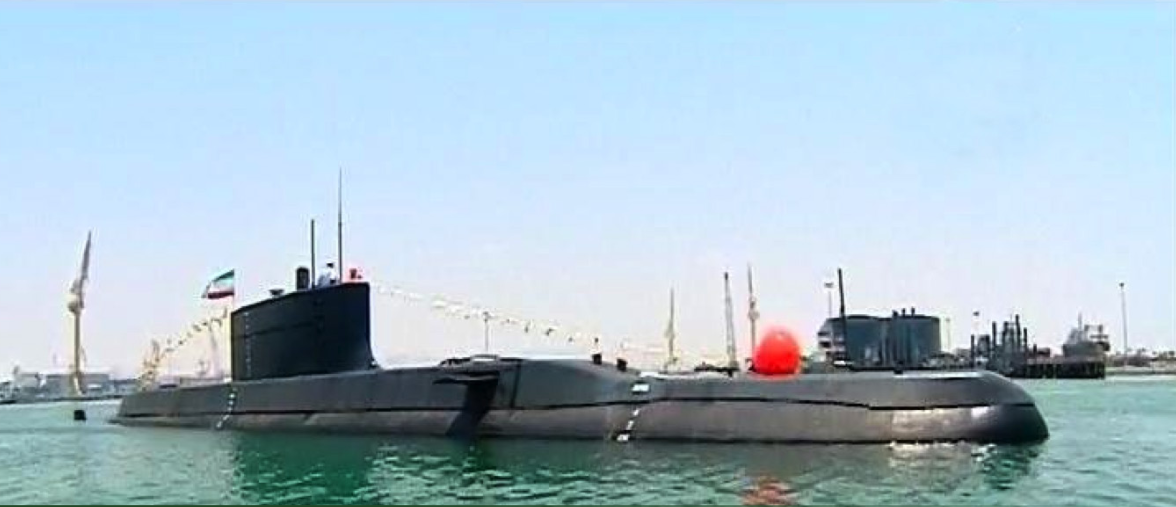

View attachment 865902
View attachment 865903
View attachment 865904
View attachment 865907
View attachment 865906
View attachment 865905
View attachment 865908
View attachment 865909
View attachment 865910
View attachment 865911
View attachment 865912

https://twitter.com/x/status/1097055529657122816

If it only came in service by 2019, then we'll be waiting another decade for a 3,000 tonne boat unless North Korea arrives there first and does a technology transfer.

Man...they ought to boost the defence budget and allocate funds properly AND ensure they're used wisely.



[aryobarzan]

If it only came in service by 2019, then we'll be waiting another decade for a 3,000 tonne boat unless North Korea arrives there first and does a technology transfer.

Man...they ought to boost the defence budget and allocate funds properly AND ensure they're used wisely.

I have said it many times but I repeat myself..Iran is one of the few countries that not only has to design and build the main weapon system (in this case the sub)..but because of sanctions the country has to build all the subsystems that go into a weapon system.. Other countries buy all the subsystems from all around the world..so Iran has to build propulsion, sonar,priscops,torpedos,batteries,propellers...shafts,and the list goes on and on..

On top of that in Iran there is a requirement that each ship has to be more advanced than the previous ship..so our next Fateh will have AIP propulsion..

I would be quite happy if the next fateh takes 4 years.



[aryobarzan]

I.R.I.N.S "Ghadir" submarine

Ghadir is Iran's first attempt to build submarines in serial production. Ghadir is a coastal "midget" submarine ideal for shallow depths of the Persian gulf. Hard to detect because of its size this sub is based on a heavily modified and modernized North Korean MS-29 "yono" class.

• Type: "midget" sub of the "Yono" class
• Displacement: 125 tons submerged
• Length: 29 m
• Hull diameter: 2.7 m
• Speed: 11 kt
• Operating Depth: xx m
• Endurance: 1000 km
• Powerplant: BLDC diesel-electric
• Sensors: Sonar
• Armament: 2 x 533mm (21") torpedo tubes. Sea mines and mission specific armaments
• Crew: 8 to 12
• Reported numbers deployed: 21 to 34
• In service: Iranian navy since 2007



[BlessedKingOfLonging]

I have said it many times but I repeat myself..Iran is one of the few countries that not only has to design and build the main weapon system (in this case the sub)..but because of sanctions the country has to build all the subsystems that go into a weapon system.. Other countries buy all the subsystems from all around the world..so Iran has to build propulsion, sonar,priscops,torpedos,batteries,propellers...shafts,and the list goes on and on..

On top of that in Iran there is a requirement that each ship has to be more advanced than the previous ship..so our next Fateh will have AIP propulsion..

I would be quite happy if the next fateh takes 4 years.

When the Loghman-class destroyer and Besat-class submarine are finally launched, I hope they play this song on the maiden fleet voyage:

(US Navy: Alert! Get the President on the line! We have a new Cuban missile crisis incoming )



[Hack-Hook]

When the Loghman-class destroyer and Besat-class submarine are finally launched, I hope they play this song on the maiden fleet voyage:

(US Navy: Alert! Get the President on the line! We have a new Cuban missile crisis incoming )

be'ethat maybe in next 10 years , loghman when they built another two ship based on moudge design
sadly the one they were building in Bandar Anzali met some accident so it take probably more time .

or perhaps its not that important. Loqman was always supposed to be built in south of Iran. for Makran sea and Indian ocean fleet. perhaps after they finished building Taftan in Bandar Abbas , they will start to build loqman



[BlessedKingOfLonging]

be'ethat maybe in next 10 years , loghman when they built another two ship based on moudge design
sadly the one they were building in Bandar Anzali met some accident so it take probably more time .

or perhaps its not that important. Loqman was always supposed to be built in south of Iran. for Makran sea and Indian ocean fleet. perhaps after they finished building Taftan in Bandar Abbas , they will start to build loqman

Talayieh has been refloated and so far as I know, the damage was relatively minor.



[Hack-Hook]

Talayieh has been refloated and so far as I know, the damage was relatively minor.

even a minor damage , put a project back for some month .
here the question was not that if it afloat again or the damage repairable . after all it happened in dry dock . but rapairing the damage will take time if they want it don't become weak in those areas . they can change the plates there . or they can try fix it by welding some plate over the damaged area . (if they do that the ship will spend half its life at docks being fixed)



[Abu Shaleh Rumi]

In the name of Parvardegar

Off Topic,

We also use this name to refer Allah. Like, when we make dua we use: Ya Allah, Ya Parvardigar.

Anyways, carry on...



[BlessedKingOfLonging]

even a minor damage , put a project back for some month .
here the question was not that if it afloat again or the damage repairable . after all it happened in dry dock . but rapairing the damage will take time if they want it don't become weak in those areas . they can change the plates there . or they can try fix it by welding some plate over the damaged area . (if they do that it the ship will spend half its like at docks being fixed)

I assume a six month delay at most. Truthfully, that's not too bad but the accident was avoidable, it seems.



[aryobarzan]

Iran's "MOUDGE" Class Frigates
"Moudge" class warship is Iran's first serious attempt to design, and serial build a light Frigate. The first steel was cut on Iran's Moudge (wave) class Frigates in 2001. The first ship was launched 6 years later and formally commissioned in 2010.

Within a span of 11 years Iran has build and commissioned 4 ships of the class.

JAMARAN-76 ............2010
DAMAVAND-77.........2015
SAHAND-74...............2018
DENA-75.....................2021

Although the propulsion, sensors and weapons suite in each ship have some difference the general specifications apply to all of them.

Three of the ships are in the southern fleet in the Persian Gulf and one ship "Damavand" serves the northern fleet in the Caspian sea (Damavand was severely damaged in an accident and is being rebuilt)

• Type: FFG- Frigate.
• Displacement:1500 tons
• Length: 95 m
• Beam: 11.1 m
• Draught: 3.25 m
• Speed: 30 knots
• Aviation: Helicopter pad
• crew: 140
• Powerplant: 20,000 hp in two and 4 engine configurations depending on the ship
• Sensors: to be completed
• Armament: to be completed
• 3 in active service (Iranian Navy) ,one under re-build, 7 overal planned planned



[drmeson]

I.R.I.S (IRGCN) "SHAHID SOLEIMANI" REDUCED RCS Corvette

• Type: Two-hull ( catamaran) with marine aluminum alloy
• Year of Operation: 2021 (Sea Trials)
• Build: IRGC naval shipyards (Shahid mahallati shipyard)
• Displacement: 1400 metric tons
• 65 (213 ft) meter long ,14.1 (~50 ft) meter wide
• Function: Helicopter and UCAV carrier, Command, patrol
• Status: Under Sea Trials by IRGC Navy
• Propulsion: Diesel twin-engine with two independent shafts and propellers
• Speed: 45 knots
• Operational Range: 10,000 KM
• Weapons/sensors: Helicopter, UCAV (probably), AESA search and Track radar, 20 mm three-barrel rotating cannon,Torpedos (if required), VLS, AShCM.



[drmeson]

IRGCN XLUUV "UNMANNED" submarine
(Similar to US Navy's Boeing Orca XLUUV)

Specification

• Type: Extra Large Unmanned Underwater Vehicle XLUUV
• Displacement: ~30-40 tons submerged
• Length: ~35 ft
• Hull diameter: ~6ft
• Speed: Unknown
• Operating Depth: Unknown
• Powerplant: diesel-electric
• Sensors: Communications and sensors port, possibly recce. equipment.
• Externally accessible Storage units
• Armament: Unknown, possibly mines.



[aryobarzan]

Iran's first luxury cruise ship​

• Designed and built by private company ARVANDAN shipyards in Khoramshahr
• 220 passengers
• 80 tons of cargo and 10 vehicles
• Double steel haul Catamaran configuration
• launched and in service since 2019
• Operated by tour company from Kish island in Persian gulf.

Construction video.



[aryobarzan]

Iranian submersible boats

Zulfikar:

• modified design based on N-korea Taedong-B.
• Length: 17m (56ft)
• Beam: 3.3m (11ft)
• Height: 3.5m (11.5)
• Displacement: 22 tons
• Speed: 40kt max surfaced, ~3kt submerged
• Endurance: TBC -modest
• Maximum Operating depth: 3m (10ft) with snorkel, 20m (66ft) max
• Personnel: 8 (4x crew, 1-2 escorts, 1-3 infiltrators)
• Payload: 2 x 324mm (12.7") lightweight torpedoes. Possible storage of MANPADS or RPGs and other crew weapons.
• Powerplant: 2 x diesel engines (details TBC) plus two electric motors
• Sensors: Basic Electro-optical (video), basic surface search / navigation radar, echosounder
• In service: 2002 with IRGC naval arm
