It has , Because that increases the off bore sight azimuth massively.
That's something which could have trumped Rafale and it's super maneuvering.

Wow, bro. Now, it's offbore azimuth. And then Supermaneuvering Rafale! Carry on, please. You're invincible.



[Tango101]

Judging by its shape, it might need a redesign of nose cone as follows....

Wouldn't it suck up alot more power as well? The only other such system I know of is the N036 Byelka of the Su-57. The beaming tactic possibility sounds pretty cool but each side panel AESA of that thing has as much as 1/3 T/R modules as of the main radar. If the same kinda system was adopted in the JF-17, the engine power would've been bled dry I think. Do correct me if I'm wrong, here to learn anyway.

No, The Su-57 Isn't 'Junk:' Six Features We like On Russia's New Fighter

The Su-57 is not an F-22, it's not meant to be, but it packs some novel attributes to offset what it lacks in stealth, at least to a limited degree.

www.thedrive.com



[Dazzler]

https://www.facebook.com/100050262738974/posts/378378227180932



[Aesterix]

Wow, bro. Now, it's offbore azimuth. And then Supermaneuvering Rafale! Carry on, please. You're invincible.

Azimuth = arc of the horizon.
Super Maneuvering = in comparison to JF-17. Rafale can run circles around JF-17 any day, and off bore sight capabilities are important for JF-17 against Rafale scenario.

Invincible = No I am not.



[The Eagle]

Wouldn't it suck up alot more power as well? The only other such system I know of is the N036 Byelka of the Su-57. The beaming tactic possibility sounds pretty cool but each side panel AESA of that thing has as much as 1/3 T/R modules as of the main radar. If the same kinda system was adopted in the JF-17, the engine power would've been bled dry I think. Do correct me if I'm wrong, here to learn anyway.

No, The Su-57 Isn't 'Junk:' Six Features We like On Russia's New Fighter

The Su-57 is not an F-22, it's not meant to be, but it packs some novel attributes to offset what it lacks in stealth, at least to a limited degree.

www.thedrive.com

For a starter, I was particularly pointing to the shape of it. Indeed, having more eTRMs and panels, will need more power adding it to the contender list for engine with large power output. Case in point, 5th Gen shape is what it is designed around or at-least such nose.

https://www.facebook.com/100050262738974/posts/378378227180932

Not available



[abdulbarijan]

BLK 52's do have JHMCS along with some MLU's as well.

Correct, however my indication was the combo of Aim-9X along with the JHMCS. PAF operates the older versions of the AIM-9, not the AIM-9X.

Another point that will most likely be overlooked in this discussion is the turn around time of the thunder. As far as sources of well reputed members have reported that thunder does enjoy a relatively low turn around time, if true for the block III, it would mean an advanced platform with AESA and advanced weapons such as the PL-10 & 15, up in the skies to challenge any intrusion.



[iLION12345_1]

BLK 52's do have JHMCS along with some MLU's as well.

JHMCS is basically standard on All PAF F-16s apart from the ADFs. PAF purchased 60+ of those Iirc.



[aziqbal]

can someone post the video ? full video



[HRK]

can someone post the video ? full video

follow the posted link

https://www.facebook.com/100050262738974/posts/378378227180932



[messiach]

AESA are never entirely air cooled. These are monolithic microwave ICs. That would be dangerous. My thoughts are similar to APG-79. We should'nt be over-excited over AESA.

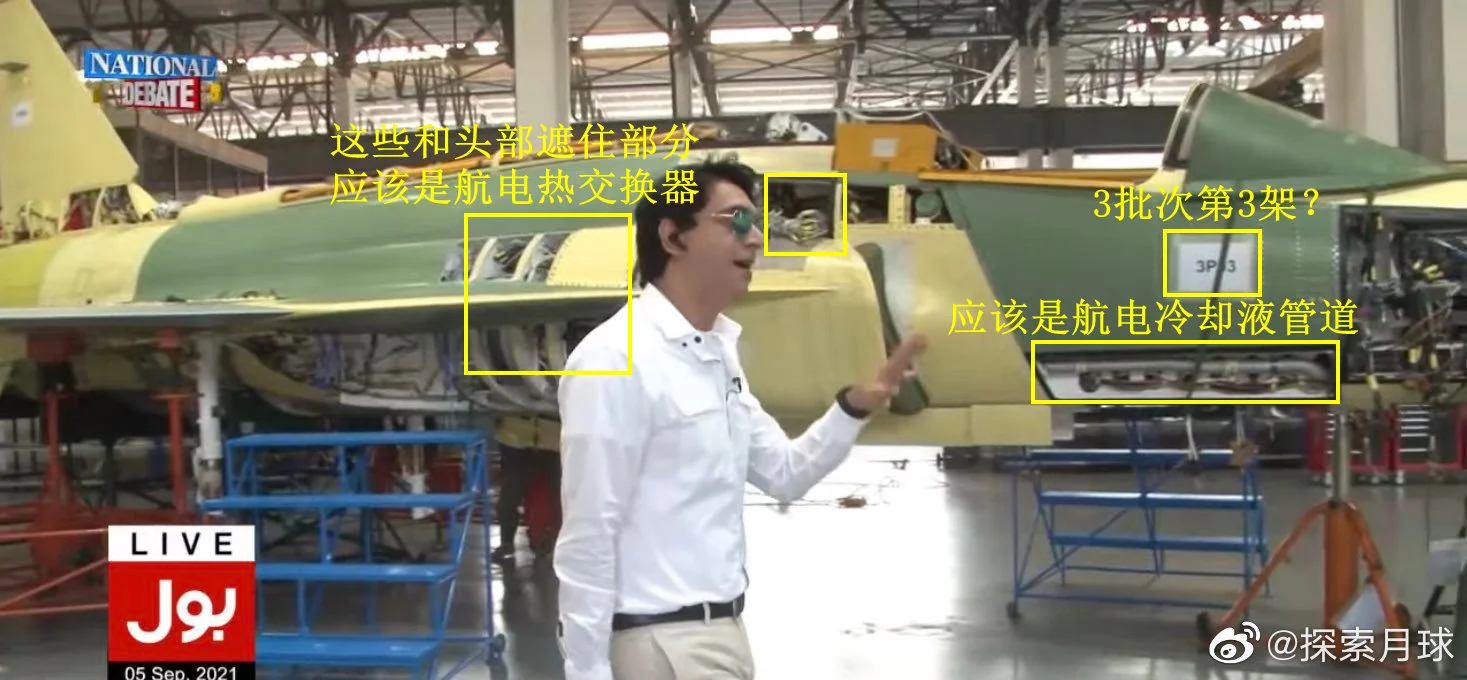

Air to Air refueling line can be seen close to rear of Cockpit. The line under the cockpit goes all the way to the front which doesn't house any IFR connection.
View attachment 776212



[PakFactor]

AESA are never entirely air cooled. These are monolithic microwave ICs. That would be dangerous. My thoughts are similar to APG-79. We should'nt be over-excited over AESA.

Question previously you mentioned you'll be on PDF for a short while, is it due to some members or professional duties?



[The Eagle]

AESA are never entirely air cooled. These are monolithic microwave ICs. That would be dangerous. My thoughts are similar to APG-79. We should'nt be over-excited over AESA.

The new argument came as some sort of hybrid cooling. I was replying to the member specifically in line with that alleged piping goes under cockpit towards nose/front section. However, a question just kicks in that, by looking at shoae and space of Block-III front section and the Technical details you might know about hybrid cooling for an AESA, what do you suggest? A simple Liquid cooled KLJ7A or the hybrid one?????

But, but I must say that we are already up-to a home made AESA be it with the help of friends still ours by many aspects.



[Dazzler]

AESA are never entirely air cooled. These are monolithic microwave ICs. That would be dangerous. My thoughts are similar to APG-79. We should'nt be over-excited over AESA.

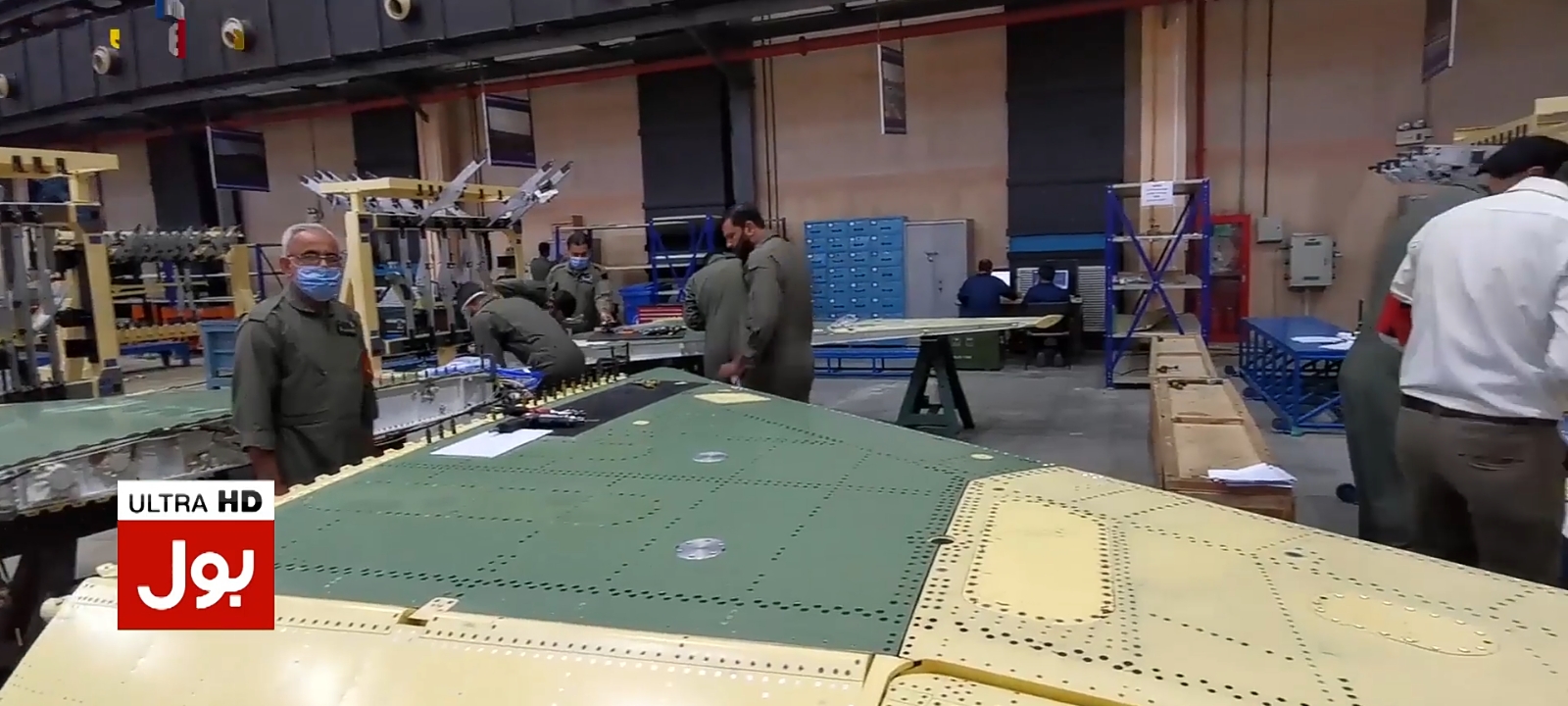

Wing structure up close



[PakFactor]

Wing structure up closeView attachment 776314

Mashallah, honestly looking at this makes me proud of our boys they've come a long way and I'm saying this with tears in my eyes. Be it our corrupt leaders and all, but damn we are good!
Their is no doubt in my mind that Pakistan and our people are meant for a special purpose from Allah and Inshallah we'll fulfill our role in this world.



[The Eagle]

Wing structure up closeView attachment 776314

Picture shows wing rear and am I the one sees different trailing edge flaps? Can't see the leading edge flaps but they are supposed to be bifurcated as discussed long ago.

Also, is that another wing or tail being worked in the far background? Seems like 2nd wing piece?
