IDEF'15 | 5-8 May 2015 | İSTANBUL-TÜRKİYE

[Azeri440]

bmpd



[Azeri440]

bmpd



[Azeri440]

bmpd



[Some1LikeU]

I asked a ROKETSAN engineer... When will you build Hisar-U ? He smiled and said "Decision doesn't belong to us"

Why do they wait somebody' s order? I think they should start to build the project and if they take any order for project it will be finish or nearly finish. They should start independence search- research for improvement.



[Zarvan]

An Aselsan Hisar medium-range air defence missile system launcher at IDEF 2015. Source: Nick de Larrinaga
Turkish military electronics specialist Aselsan has displayed its Hisar range of short- and medium-range surface-to-air missile (SAM) systems for the first time at IDEF 2015 in Istanbul.

The range includes the Hisar-A short-range SAM system, the Hisar medium-range SAM system, and a new fire control system (FCS) for SAM batteries. These have been developed by Aselsan as prime contractor for the programmes under a contract awarded by the Turkish Undersecretariat for Defence Industries (SSM) in 2011.

Hisar-A is based on an FNSS ACV-30 tracked vehicle chassis armed with four Roketsan Hisar-A SAMs. Formerly known as T-Laladmis, the tracked Hisar-A system mounts its own mast-mounted air surveillance radar and an electro-optic/infrared (EO/IR) system, allowing it to operate as an independent standalone system without the need to operate as a battery with a separate FCS. The Hisar-A system is manned by a crew of three: two control personnel and a driver for the vehicle.

Hisar-A is currently in its subsystem test phase, having completed its system definition phase, company representatives told IHS Jane's at IDEF. Full tests of the complete system are expected to begin next year. Currently three prototypes of the Hisar-A system have been completed, with delivery of the first systems to the Turkish military for qualification planned for 2017.

Roketsan officials at the exhibition told IHS Jane's that the Hisar-A missile (previously known as AIHSF) has a maximum altitude of 5 km and a maximum overall range of 15 km (at sea level). Roketsan is subcontractor to Aselsan for both Hisar missiles, responsible for the all-up rounds, including their launch canisters.

An Aselsan Hisar-A short-range air defence missile system (left) and Aselsan Fire Control System (FCS), rear right. (Nick de Larrinaga)

The medium-range Hisar system (previously known as T-Maladmis) is based on a wheeled Mercedez-Benz chassis equipped with six Roketsan Hisar-O missiles.

This system is designed to operate as a battery in concert with the Aselsan FCS, which is equipped with a mobile search radar, EO/IR system, and targeting radar. The Hisar-O missile has a maximum altitude of 10 km and a maximum range of 25 km at sea level.

Development/company trials of the Hisar system are expected to be completed by 2018.

Ballistic flight tests of the Hisar-A missile occurred in October 2013, with Hisar-O following in August 2014. The two missiles have been designed to feature a high degree of commonality, and share the same infrared (IR) seeker (developed by Aselsan), the same high explosive fragment warhead (being developed by Tubitak Sage), and the same impact and proximity fuze.

The missiles also share the same interface with their launch canister and the same umbilical connection. As well, there are high levels of technological commonality in the missiles' motor, control section, power supply, datalink, guidance, and safe/arm device. Both missiles are mid-course guided by radio-frequency datalink and feature terminal IR guidance.

Both missiles are hard launched vertically from their canister and powered by a dual pulse solid propellant motor. This provides an initial pulse for launch and mid-course flight, and a final sprint pulse during the terminal guidance phase for increased speed. They also both feature a hybrid control actuation system, with the missiles' external control surfaces providing midcourse guidance while thrust-vectoring jet vanes within the rocket's nozzle provide additional manoeuvrability in the missiles' terminal phase.

The Hisar-A and Hisar-O missiles will continue their flight test programme over the next two years. While company officials were not able to disclose how many flight tests are planned, the next phases of the trials will include control tests, vertically launched control tests, seeker guidance tests, and qualification tests.

Aselsan officials also said that the Korkut self-propelled anti-aircraft gun (SPAAG) system, also based on the FNSS ACV-30 tracked chassis and unveiled at IDEF 2013, has almost completed its test programme. Field tests have already been conducted against air and ground targets, and customer qualification trials are expected to begin in 2016. The company hopes that a serial production contract for Korkut will be signed in 2015.

Want to read more? For analysis on this article and access to all our insight content, please enquire about our subscription options ihs.com/contact

Concept image of the Hisar-A system. (Aselsan)

Concept image of the Hisar fire unit. (Aselsan)




To read the full article, Client Login
(668 of 806 words)
IDEF 2015: Aselsan displays Hisar air defence systems - IHS Jane's 360
@Hakan @Neptune @Sinan @cabatli_53



[mehmet75]

Order means R&D budget .. these are "san" brothers. No order&money, no RD. (i am talking about big projects. Their r&d budgets are big too. These kind of self-r&d can take the firms to even bankrupt. At the end of the they their benefits are so low for TSK)



[Zarvan]

View attachment 220284 View attachment 220285 View attachment 220286 View attachment 220287 View attachment 220288 View attachment 220289 View attachment 220290 View attachment 220291

bmpd

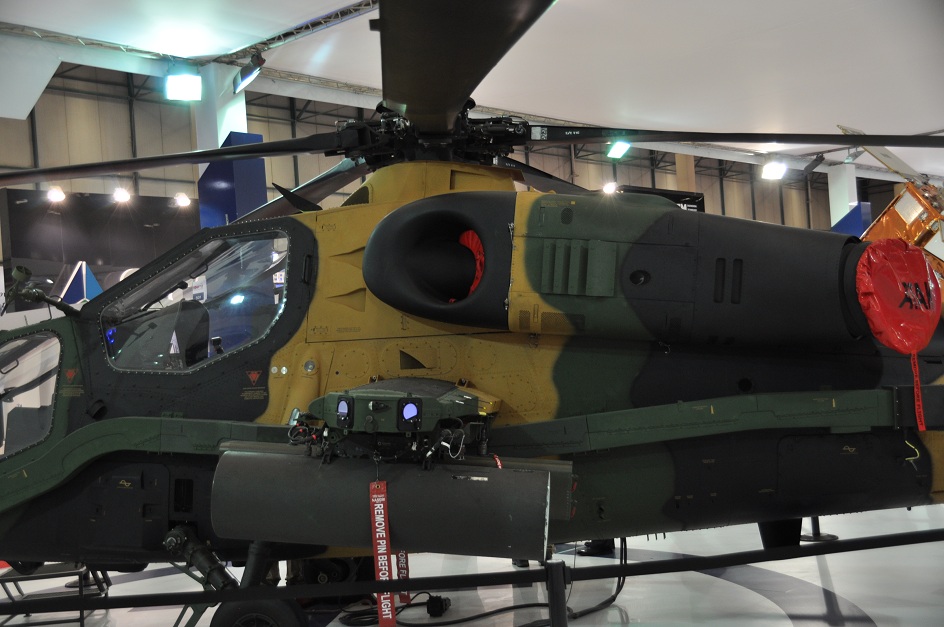

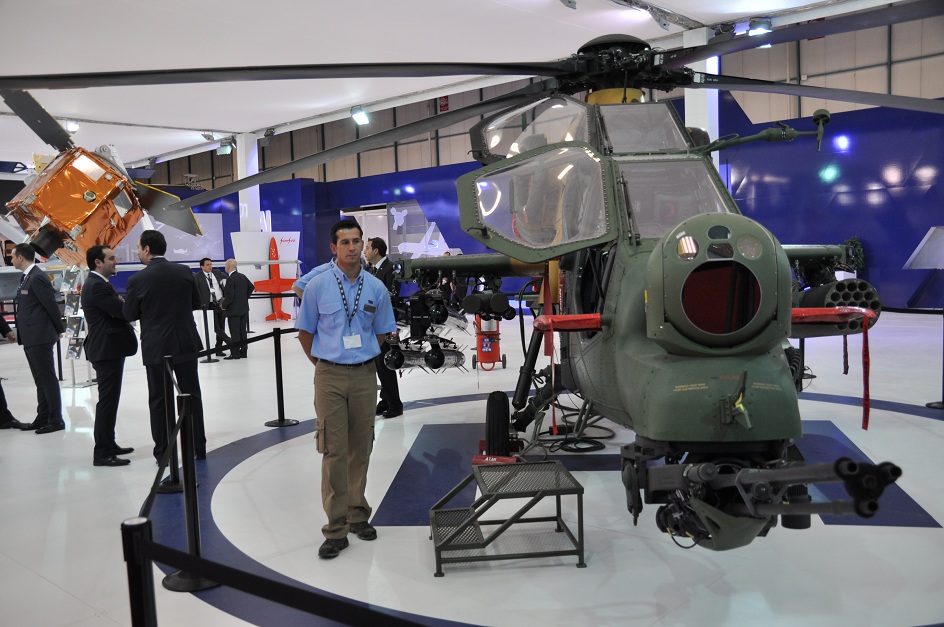

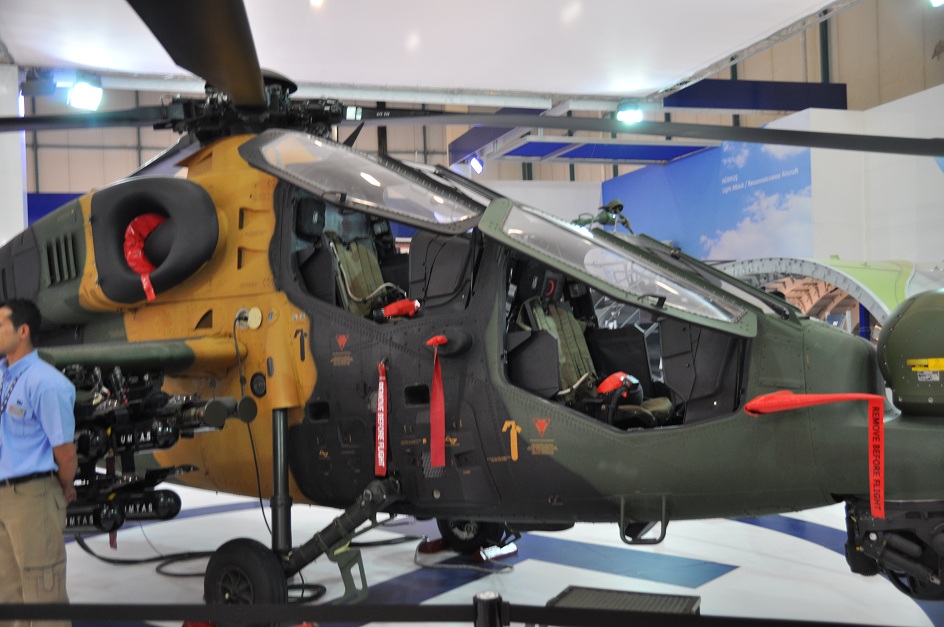

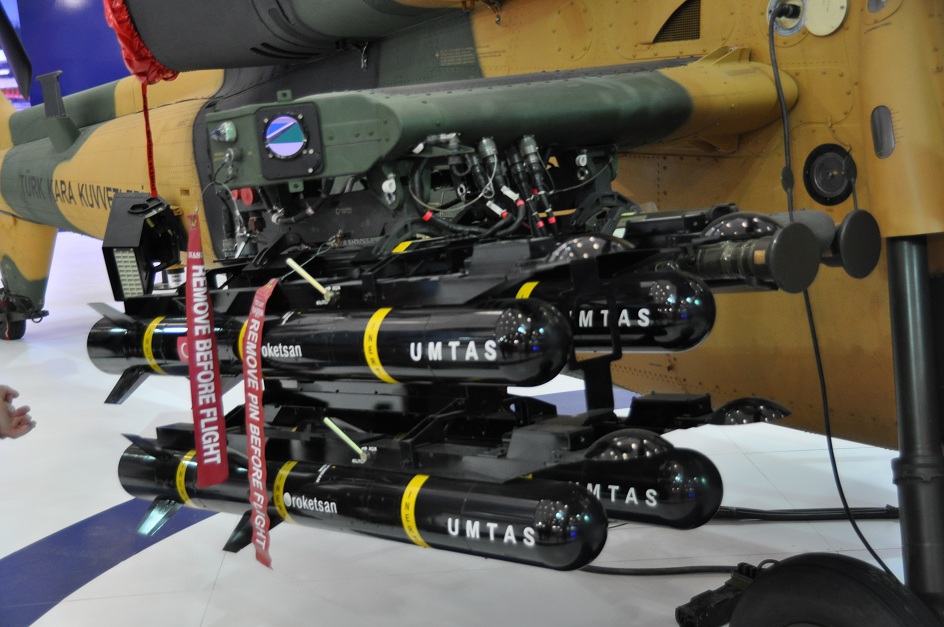

I just like the missiles fitted in that helicopter How good are they and what is the range and other features ?

View attachment 220247

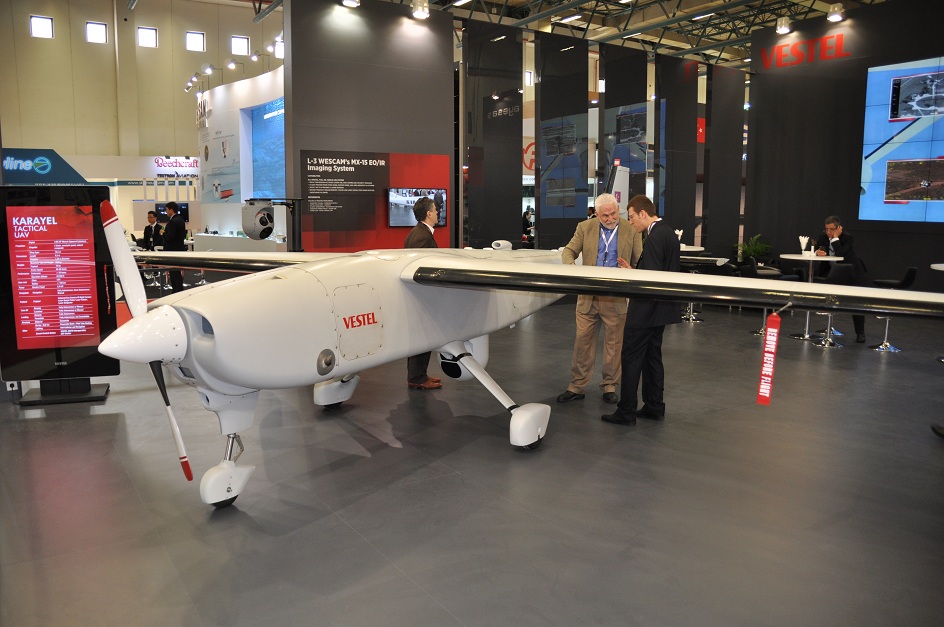

Komutanim Vestel bizim ligimizde degil , Biz TAI'ye dalacagiz. Birakin yapalim su 4 tonluk UCAV'i

Let us build 4 tons UCAV for you

View attachment 220252

Please explain the missile in first picture @Hakan @cabatli_53



[turkbordobereli]



[Azeri440]

I just like the missiles fitted in that helicopter How good are they and what is the range and other features ?


Please explain the missile in first picture @Hakan @cabatli_53

Long Range Anti-Tank Missile UMTAS « Roketsan

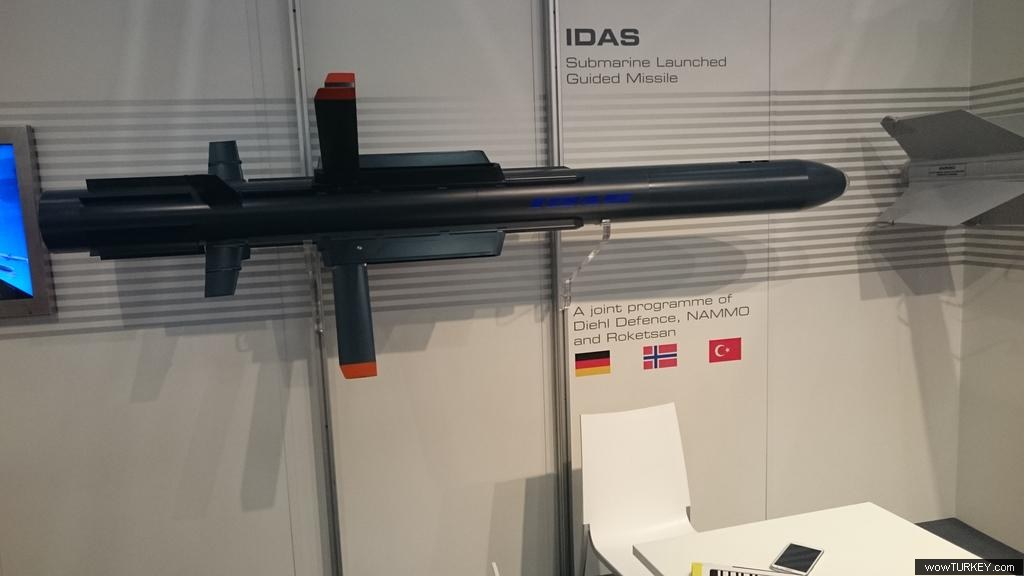

as for IDAS

Diehl Defence: IDAS



[kaonalpha]

Looks similar to Iron Dome.



[Hakan]

View attachment 220276 View attachment 220277 View attachment 220278 View attachment 220279 View attachment 220280 View attachment 220281 View attachment 220282 View attachment 220283

bmpd

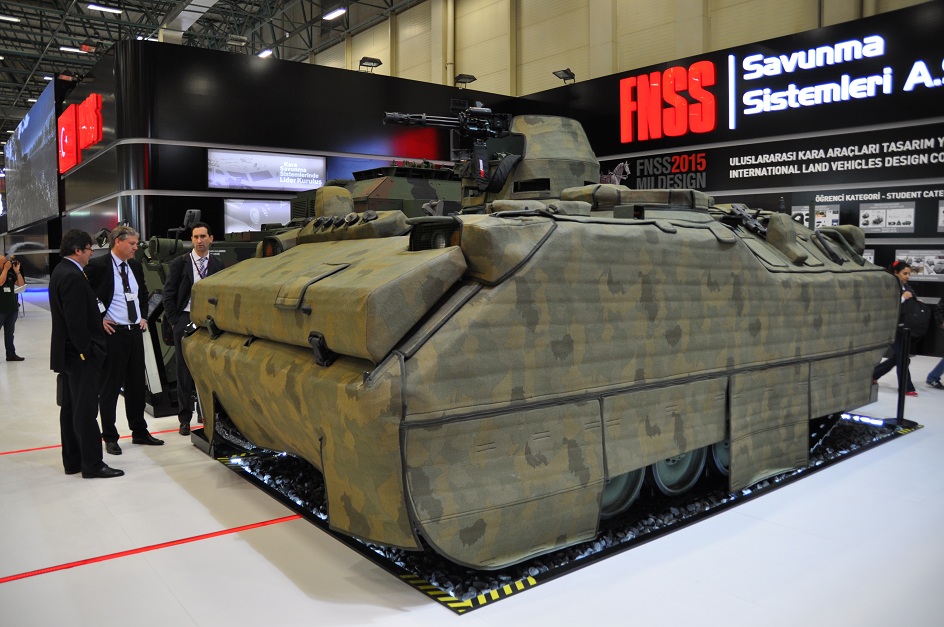

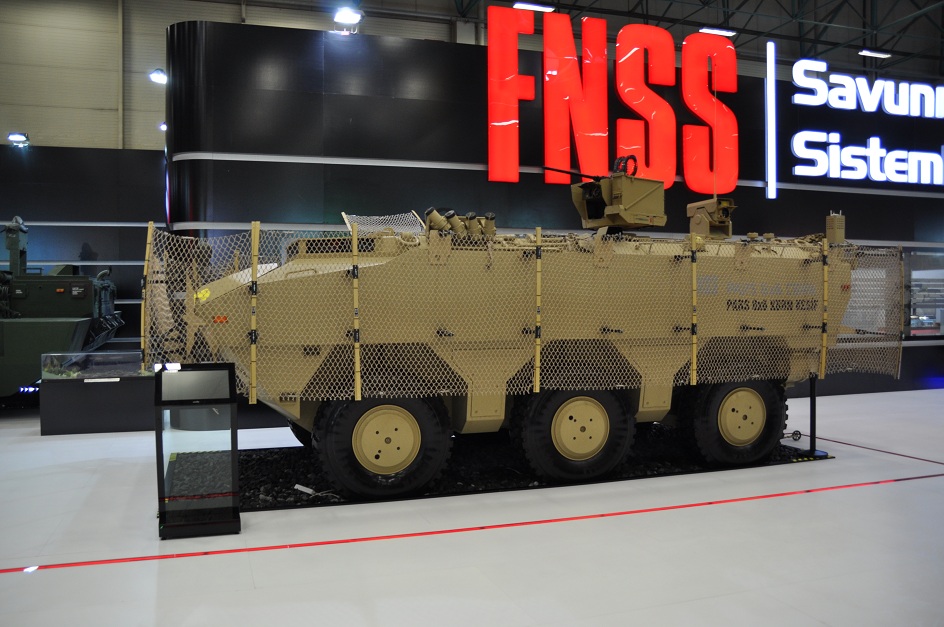

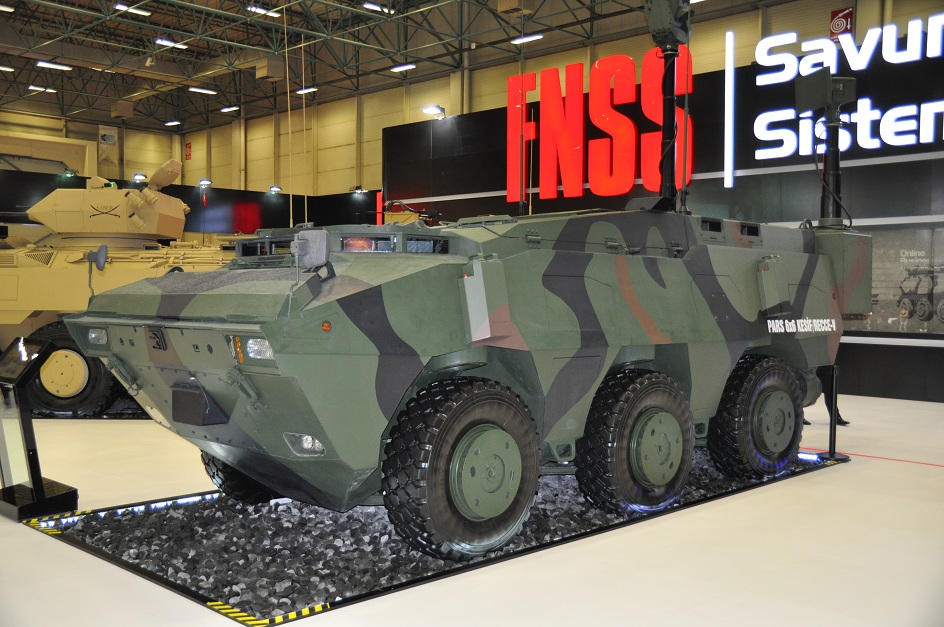

Multispectral camo on the ACV



[xxxKULxxx]

Guys i gave some of my brochures to a shop for scanning... He said he can finish them till weekend... He also said if he finishes before weekend he will call me and i'll upload them here... I hope you will see a few good pieces... Some of them are already here but i hope this time they will have better resolution...



[FutureMe]

Guys i gave some of my brochures to a shop for scanning... He said he can finish them till weekend... He also said if he finishes before weekend he will call me and i'll upload them here... I hope you will see a few good pieces... Some of them are already here but i hope this time they will have better resolution...

Thank you for risking your life for us copying copyrighted materials. You are our hero.



[-SINAN-]

Thank you for risking your life for us copying copyrighted materials. You are our hero.

Brochures are not copyrighted........



[madmusti]

Brochures are not copyrighted........

Kiniyik.
