ZKD-03 AEW Aircraft Model in 2014 Zhuhai Air Show

is china is finding more customers of zdk-03 ?



[Bratva]

@Dazzler @Oscar Found a profile on linkedin of a talented PAC engineer. He worked on some interesting things

Project Manager Aircraft Systems Integration

MoD

December 2005 – February 2010 (4 years 3 months)Pakistan Aeronautical Complex

• I worked as Project Manager Aircraft Systems Integration in a Program Management Office (PMO) which was entrusted the task of Project Management, Contract handling, Product development, commissioning, testing and final acceptance of AWACS Systems from two different OEMs M/s Saab, Sweden & M/s CETC, China

• Finalized technical specifications of Radar, EW and Communication Subsystems of AWACS Systems

• Participated in Product Design Reviews at OEM premises

• Developed Verification Matrices and Acceptance Criteria for Radar, EW & Communication Subsystems of Saab Surveillance System (SSS)

• Conducted Factory Acceptance Tests (FAT) of various Subsystems of SSS

• Participated in Command & Control (C2) Review sessions of SSS

• Lead the team that performed the induction, commissioning and Site Acceptance Tests (SAT) of first five sets of Ground Entry
Stations (GES) of Saab Surveillance System (SSS)

• Participated in EW System MMI Review sessions as EW expert from MoD

• Finalized IP Network requirements for integration of SSS and ZDK-03 Chinese AWACS with user’s ADGE network

• Participated as technical expert of Radar, EW and Communication Subsystems during evaluation trials of Chinese ZDK-03
AWACS

Avionics Systems Engineer
Pakistan Aeronautical Complex

March 2010 – Present (4 years 9 months)Avionics Systems Integration Facility at PAC

I am currently working in Avionics Systems Integration &Test Facility at PAC as Avionics Systems Engineer. My core responsibilities are:

• Performing customer requirements capture, analysis and test of avionics systems comprising of hardware & software, electronic and mechanical subsystems

• Developing Avionics Systems Architecture and Integration Schemes

• Defining and preparing system-level requirements and allocating them to subsystem design teams (software, hardware, mechanical)

• Preparing and reviewing systems documentation, including requirement, design, test procedure, and verification documents

• Preparing Requirement Specifications and Interface Control Documentation

• Preparing System Models in IBM Rhapsody using SysML during Requirements Analysis Phase to Validate the High Level Customer Requirements

• Preparing Acceptance Test Specifications (ATS) and Acceptance Test Procedure (ATP) documents for verification of Implemented Design

• Testing of Integrated Avionics System on Dynamic Simulation and Integration Rigs

• Safety Assessment Process implementation inline with ARP 4761

• Qualification of Avionics System

• Quantitative Analysis of MIL-STD-1553 data

• On Aircraft Verification & Testing of Avionics Subsystems


Projects he worked on.

Integration Design for an Indigenous Tactical Data Link on a Fighter Aircraft

February 2012



[Bratva]

ZKD-03 AEW Aircraft Model in 2014 Zhuhai Air Show

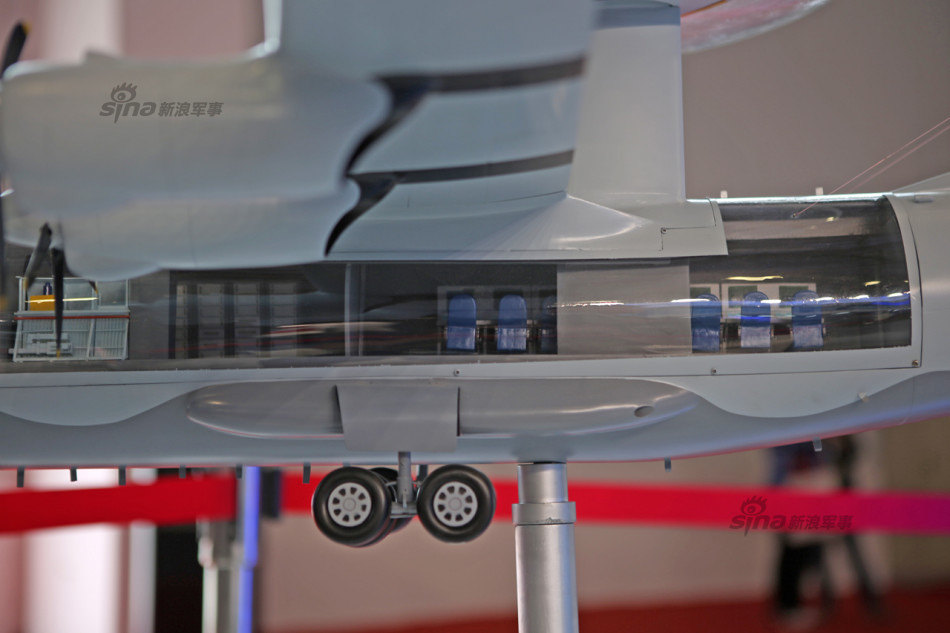

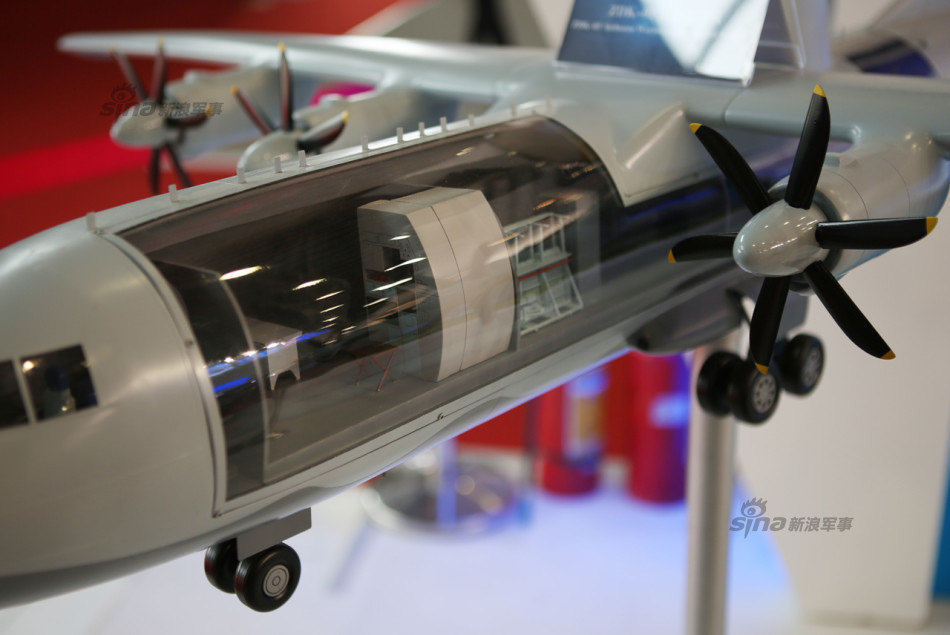

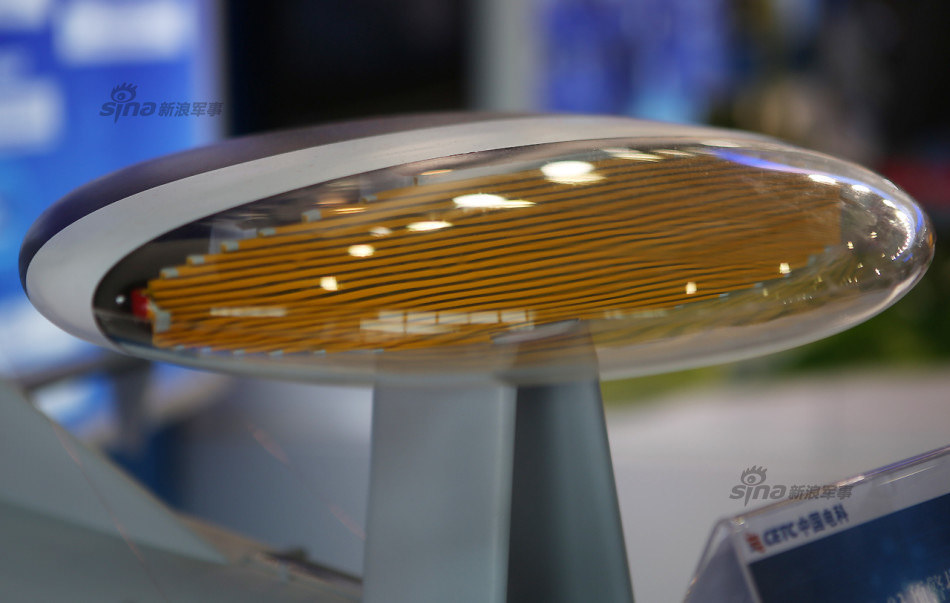

View attachment 151524 View attachment 151525 View attachment 151526 View attachment 151527 View attachment 151528 View attachment 151529 View attachment 151531 is china is finding more customers of zdk-03 ?

ELINT system installed in ZDK-03

CETC KZ800 Airborne Electronic Intelligence System

The KZ800 is a computerised airborne electronic intelligence (ELINT) system designed to be installed on medium- to large-size aircraft to detect, identify and locate hostile land-based or shipborne radar emitters operating within frequency band 1.0-18.0GHz, and accurately measure and analyse the intercepted signal parameters. The analysis of the aforesaid radar information can provide key information on the configurations of hostile air defense radar networks, the distribution of enemy operational airports, and the deployment of enemy artillery and missile troops.



[Dazzler]

ELINT system installed in ZDK-03

CETC KZ800 Airborne Electronic Intelligence System

The KZ800 is a computerised airborne electronic intelligence (ELINT) system designed to be installed on medium- to large-size aircraft to detect, identify and locate hostile land-based or shipborne radar emitters operating within frequency band 1.0-18.0GHz, and accurately measure and analyse the intercepted signal parameters. The analysis of the aforesaid radar information can provide key information on the configurations of hostile air defense radar networks, the distribution of enemy operational airports, and the deployment of enemy artillery and missile troops.

View attachment 151979

thats the original kz-800, the one on zdk is a newer model, a hybrid type with chinese kj-2000 module influence.



[nomi007]

Egyptian Air Force (EAF) may be the 1st customer of zdk-03 with jf-17 thunder



[nomi007]

ZDK-03 Karakoram Eagle
ZDK-03 (Y-8CS?) is an export AWACS system being developed for the Pakistani Air Force. This project was initiated in the early 2000. A Y-8 AWACS testbed (S/N T0518/Y-8CE) based on Y-8 Category II Platform was first discovered at CFTE in early 2006. Unlike KJ-200, this variant carries a traditional rotodome above its fuselage, with a mechanically rotating antenna inside. The PESA radar is thought to scan electronically in elevation but mechanically in azimuth. Therefore the Y-8 AWACS was speculated to be developed for the export market only as it appears less advanced than KJ-200 which features a fixed AESA radar. However this design does provide a true 360° coverage and carry a cheaper price tag. The AEW radar may have been the product of the 38th Institute/CETC, but no details are available. The aircraft also features a solid nose and tail with MAWS sensors on both sides, as well as small vertical stabilizers attached to its tailplanes. Another two MAWS sensors are attached to the tailcone as well. Additional fairings are seen at the wingtips and the tail housing ESM antennas. The Y-8 AWACS prototype flew to Pakistan and was evaluated by Pakistani AF in 2006. After some negotiations a much improved design was developed based on PAF's specifications. The variant is now named ZDK-03 (ZDK means CETC) and is based on the new Y-8 Category III Platform featuring WJ-6C turboprops with 6-blade high efficiency propellers. It was reported in early 2009 that a total of 4 were ordered by PAF in a $278m contract. The first ZDK-03 prototype rolled out in November 2010 at SAC. Since then it has been undergoing test at CFTE (S/N 733). ZDK-03 is expected to serve as the airborne command & control center for the JF-17 fighter fleet currently in service with PAF. However it does not have the secure NATO datalink installed to effectively command western fighter aircraft such as American F-16. Therefore ZDK-03 operates together with Saab-2000 in a "high-low" combination in order to coordinate various Chinese and western made combat aircraft effectively. The first ZDK-03 (S/N 11-001) was delivered to PAF in December 2011. The 2nd (S/N 11-002) was delivered some time later. The third ZDK-03 (12-003) was delivered in 2013.



[fatman17]



[nomi007]

where is ZDK-03 (S/N 11-004)



[Krate M]

@nomi007 interesting information in the post. If that's an article can you post the link please.



[The Deterrent]

The fourth ZDK-03 has been based at Mushaf Air Base (Sargodha) as a new shelter/hangar (similar to the 3 hangars built at Masroor AFB) has been constructed for it at Mushaf AFB.



[kaku1]

The fourth ZDK-03 is based at Mushaf Air Base, Sargodha. A new shelter/hangar (similar to the 3 hangars built at Masroor AFB) has been constructed for it.

When I read first time your sentence, I thought it is Musharaf AFB, lol.



[HRK]

ZDK-03



[fatman17]

where is ZDK-03 (S/N 11-004)

attachment is of 11-001
