Pakistani GIDS TAKBIR Series Satellite Aided Inertially Guided Bomb

[war&peace]

But its so ugly - Why couldn't they make it more sleek - Perhaps with a gun metal color to it !

Since when we started looking for beauty in the bombs?



[JamD]

@Quwa

Since they have put it in the brochure now, I think I feel comfortable sharing this.



[RAMPAGE]

@Quwa

Since they have put it in the brochure now, I think I feel comfortable sharing this.

View attachment 325671

MK-83 with REK?



[Super Falcon]

Pakistan should launch new photo capturing satellites jointly with China to monitor Afghanistan border specially



[JamD]

MK-83 with REK?

I believe so.



[Arsalan]

What is more interesting for me (since i beleive Mk-83 is one of the first weapon systems cleared with JF17 and also because i know about these REK) is a thousand pounder bomb on the outer most wing pylon!! Tells you something about the wing root extensions and the load bearing capability.

@araz @Quwa @Tempest II any thoughts on that?



[Sheikh Rauf]

chota sa ek bomb hai .. per kaam karay ga baray baray....



[Tempest II]

@Quwa

Since they have put it in the brochure now, I think I feel comfortable sharing this.

View attachment 325671

@JamD , Have you got a larger image and maybe I can try and ID if it is a Mk-82 or Mk-83?

Thanks



[JamD]

@JamD , Have you got a larger image and maybe I can try and ID if it is a Mk-82 or Mk-83?

Thanks

No, that's the actual image. It is cropped but it is in the original resolution I have. If I had to put my money I would say mk-82 simply because it is on the outer pylon. I don't think the outer pylon is rated for 1000 lb load. But I may be wrong.



[Tempest II]

No, that's the actual image. It is cropped but it is in the original resolution I have. If I had to put my money I would say mk-2 simply because it is on the outer pylon. I don't think the outer pylon is rated for 1000 lb load. But I may be wrong.

Good point!

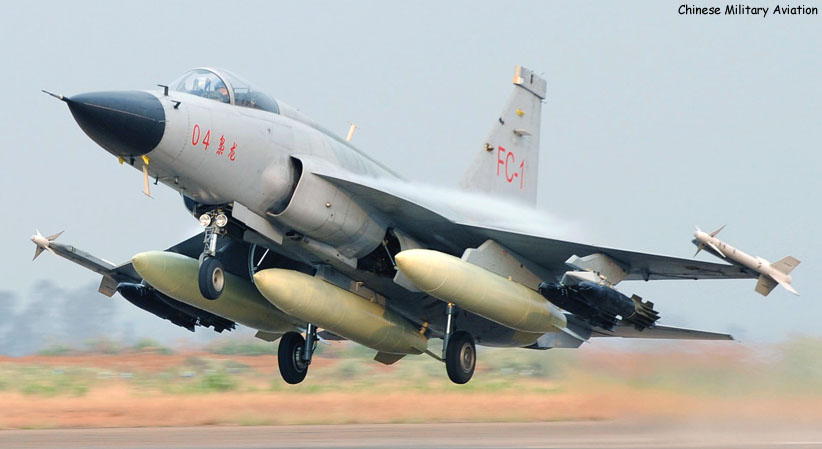

On second thought, the image below has 2 x 500lb on the outer pylons:

Thanks for sharing the image and the reply.



[Bratva]

Good point!

On second thought, the image below has 2 x 500lb on the outer pylons:

View attachment 327136

Thanks for sharing the image and the reply.

or this one



[shah1398]

Pakistan should launch new photo capturing satellites jointly with China to monitor Afghanistan border specially

This one can easily for used for said purpose.

https://defence.pk/threads/satellite-to-be-launched-for-monitoring-cpec-projects.427601/



[Tempest II]

or this one

View attachment 327234

Yes Sir. Thanks



[JamD]

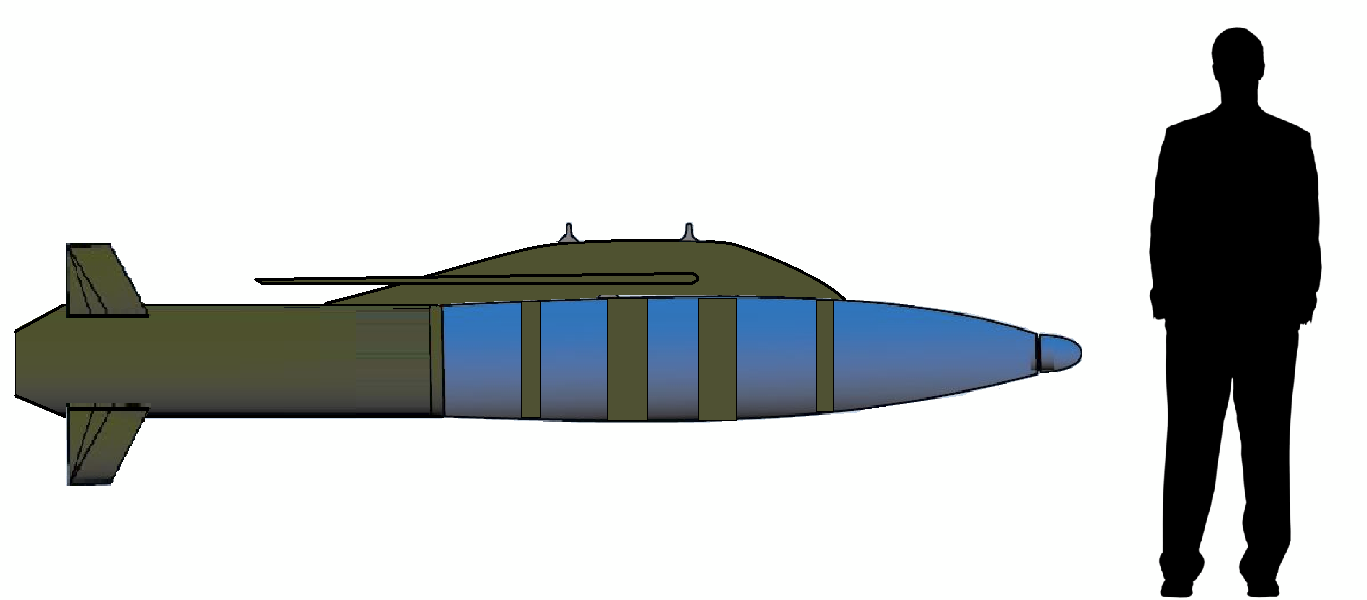

Dimensionally accurate (Javed) Artist's Impression of the FT-12/REK-III

Interestingly, I don't think it's any longer than the IREK. It's just fatter in the back to accomodate the rocket. And the electronics have probably been moved into the wing section, which appears to be taller/fatter. Also, apparently this is mounted right side up (unlike the IREK).

@kursed



[Bilal Khan (Quwa)]

Dimensionally accurate (Javed) Artist's Impression of the FT-12/REK-III
View attachment 751036

Interestingly, I don't think it's any longer than the IREK. It's just fatter in the back to accomodate the rocket. And the electronics have probably been moved into the wing section, which appears to be taller/fatter. Also, apparently this is mounted right side up (unlike the IREK).

@kursed

Any idea how we put an IREK together? Do we (or OEM) manufacture the kits separately and configure the GPB at the base? Or do we pair the kit to the GPB at the production line (meaning we ship complete PGBs to the front)?
