JF-17 Thunder Multirole Fighter [Thread 7]

[Sinnerman108]

A Close look at the new smoke winders on the JFT.

Here is one for the peeps.

How does Thunder's wing design from a Mirage's ?
What advantages does the Mirage have, and why does thunder have the compound delta as it does ?

Hint: Observe the picture very closely.



[hacker J]

Here is one for the peeps.

How does Thunder's wing design from a Mirage's ?
What advantages does the Mirage have, and why does thunder have the compound delta as it does ?

Hint: Observe the picture very closely.

Mirage has better low speed maneuverability and agility but loos momentum on high speeds, compound delta to offer better high as well as slow speed maneuverability and control without bleeding too much energy.

and less air drag as well



[Sinnerman108]

Mirage has better low speed maneuverability and agility but loos momentum on high speeds, compound delta to offer better high as well as slow speed maneuverability and control without bleeding too much energy.

and less air drag as well

Really ?



[mshan44]



[GumNaam]

View attachment 615768 View attachment 615769 View attachment 615767

DCS pic?



[StormBreaker]

DCS pic?

Yes



[Deino]

View attachment 615768 View attachment 615769 View attachment 615767

Oh please ... do not post misleading CGs onlh to proove your wishes.



[khanasifm]

View attachment 615768 View attachment 615769 View attachment 615767

Assuming block three may have additional couple of hundred litres of internal fuel ~2500/2700 kg total so one centerline drop tank in a2g role plos internal will give it a reasonable range, this will be due to B model additional tanks in block 3 as well



[GumNaam]

Oh please ... do not post misleading CGs onlh to proove your wishes.

DCS is about as realistic as it can get given the information available...



[Deino]

DCS is about as realistic as it can get given the information available...

No, so far we haven't seen any real JF-17 with twin PL-12 rails.



[GumNaam]

No, so far we haven't seen any real JF-17 with twin PL-12 rails.

yeah we have...just not flying...yet.



[Adam_Khan]

View attachment 615768 View attachment 615769 View attachment 615767

So it can carry more fuel externally than internally, doubt it.

yeah we have...just not flying...yet.

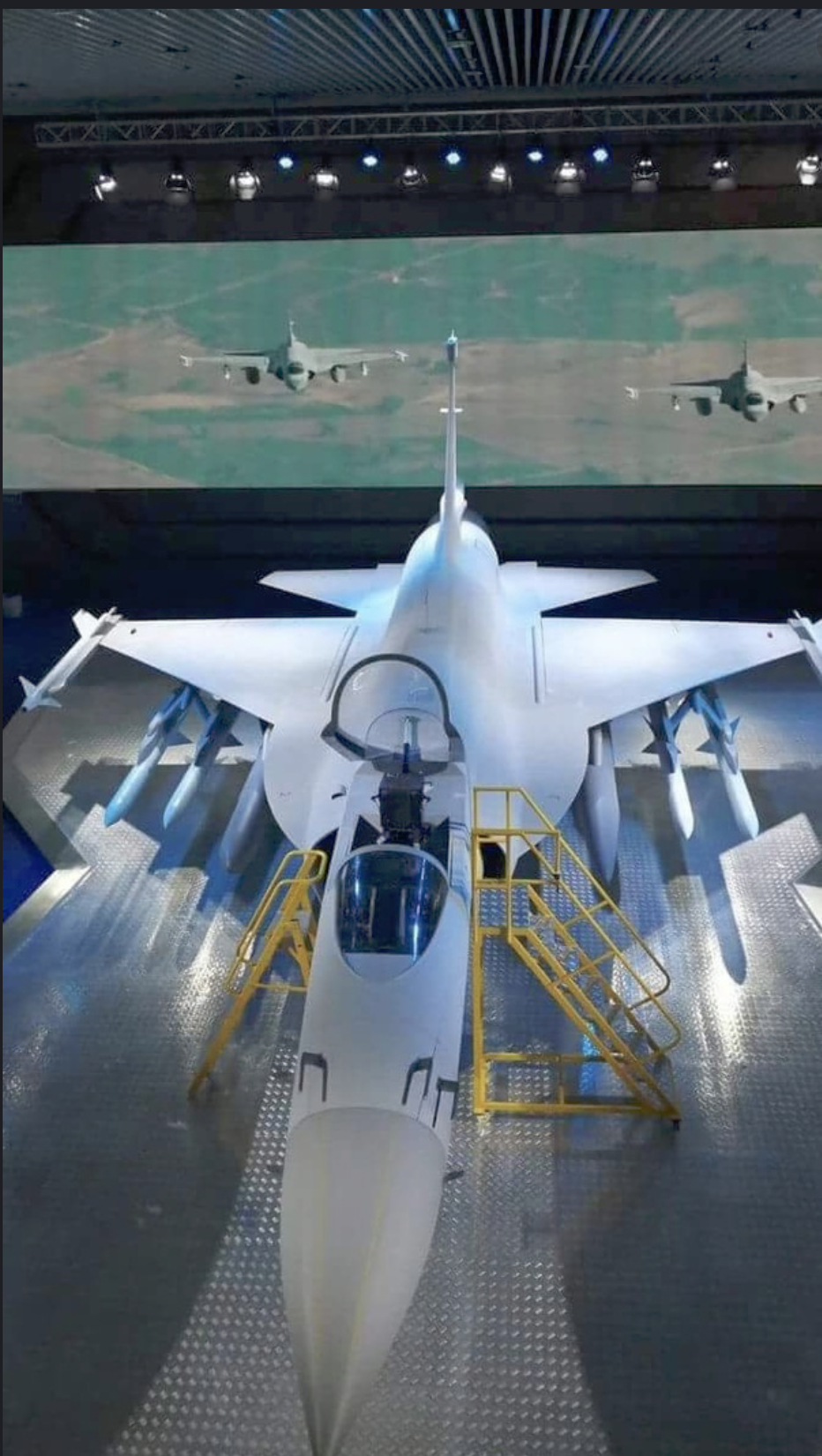

View attachment 615771

This is just a mock up.



[Deino]

...

This is just a mock up.

But we all know, facts and arguments are irrelevant to those who only believe.



[GumNaam]

But we all know, facts and arguments are irrelevant to those who only believe.

dude...they made a "mock up" for a reason...besides, JF17 is already flying while carrying 4 500lb bombs, 2 per dual rack, what makes you think it can't carry 4 400lb PL12/SD10s, 2 per rack?

^^^ this one ain't no mockup.



[Rana4pak]

dude...they made a "mock up" for a reason...besides, JF17 is already flying while carrying 4 500lb bombs, 2 per dual rack, what makes you think it can't carry 4 400lb PL12/SD10s, 2 per rack?

View attachment 615781
^^^ this one ain't no mockup.

Bro deino will not accept your argument bcz it will hurt it’s little ego.he think he has all the knowledge.
