Which place of JFT airframe is capable of accommodating a meaningful amount of load while having almost no drag penalty?
In my opinion dorsal spine like that on Mig-21bison,Mig 29SMT and F-16D is more practical since we have seen it on JFT-B.

Can you give an example with a pic since I am new to these matters?of dorsal spine.

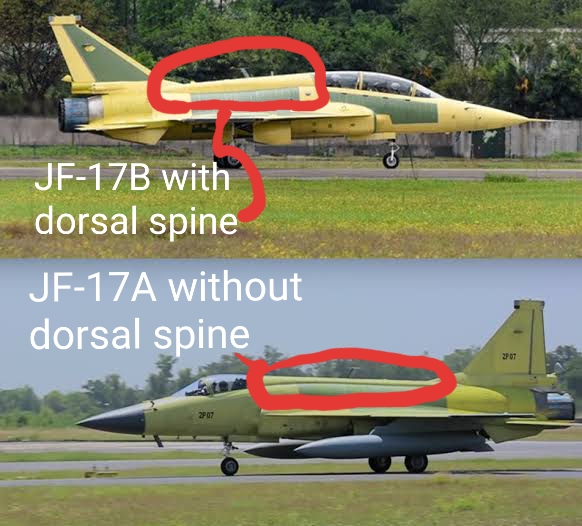

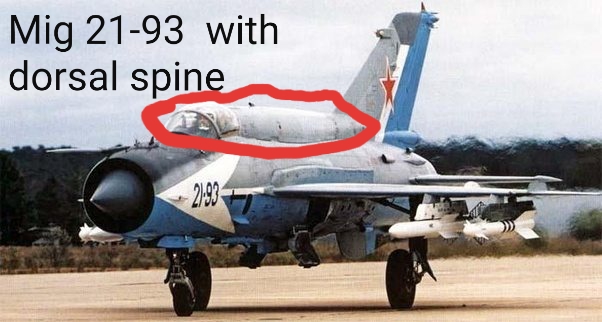

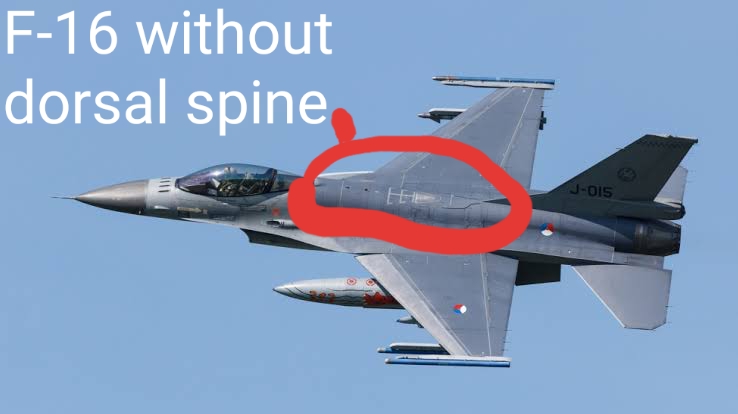

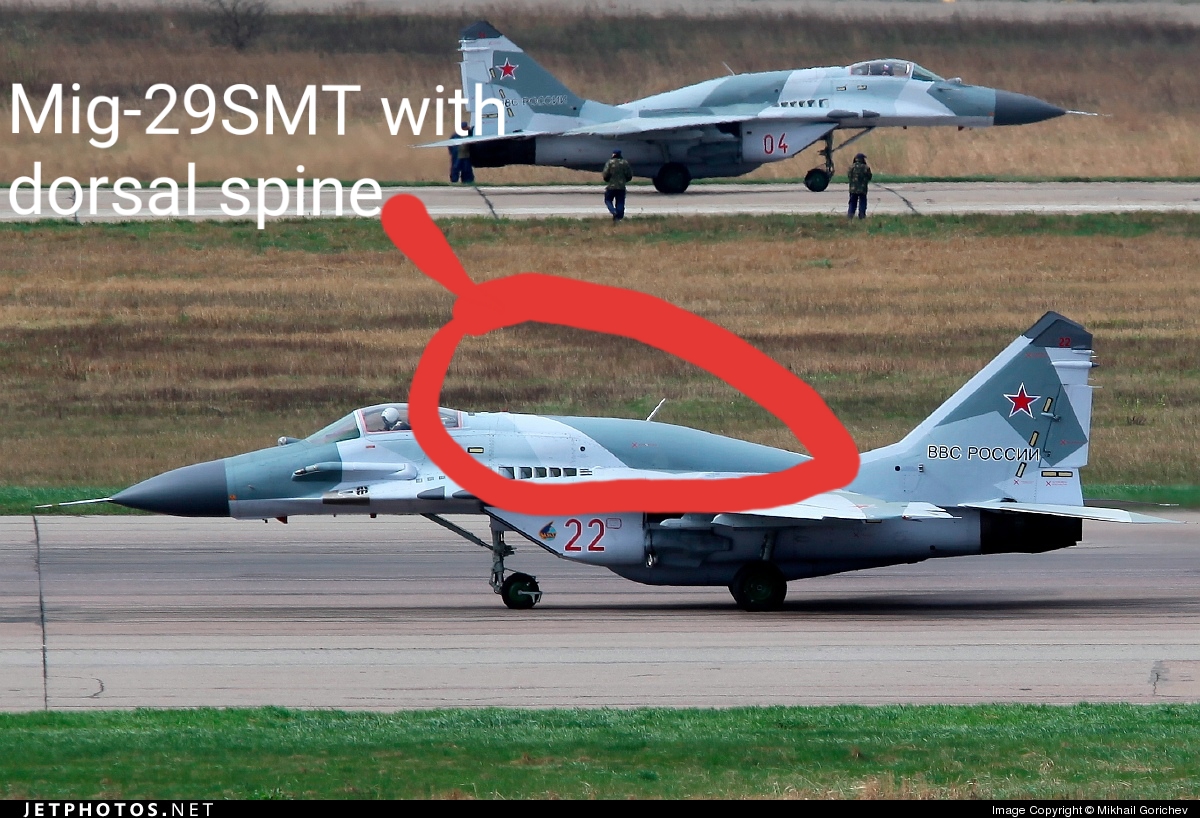

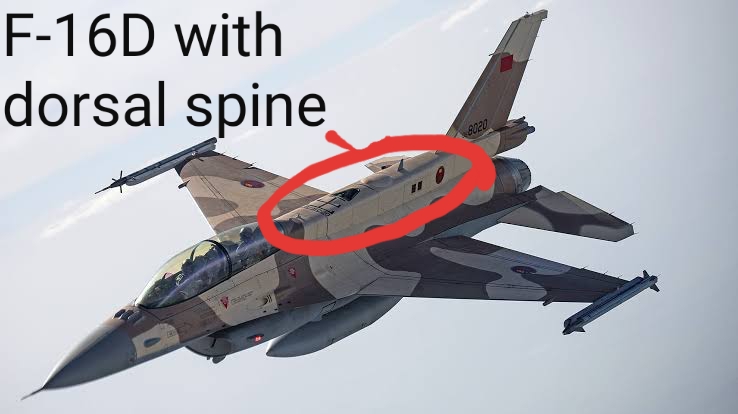

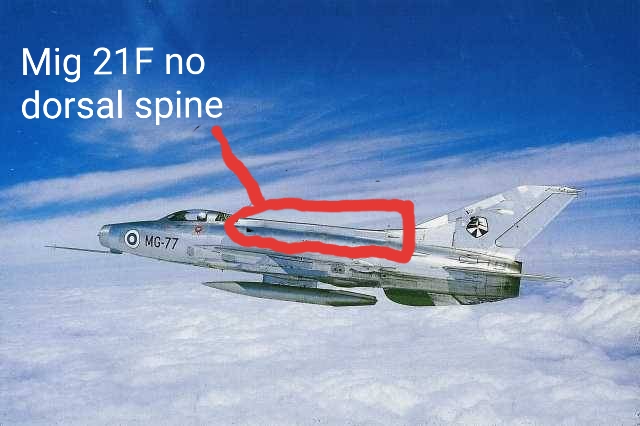

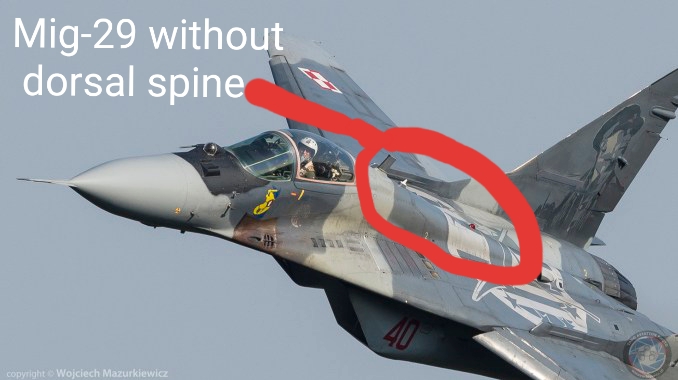

View attachment 578147 View attachment 578148 View attachment 578149 View attachment 578150 View attachment 578151 View attachment 578152 View attachment 578153
Dorsal spine contains avionics,fuel,chaff-flare dispenser system etc.Each fighter manufacturer has chosen this for different usage.In case of Mig-29SMT,JFT-B & Mig-21-93 it is used for fuel.In case of Migs this feature was added to increase fuel capacity+chaff-flare dispenser system.


Fuel tanks do add lot of drag and almost 50% of fuel carried by them is used to overcome that.

JF-17B Dorsal Spine don't carry fuel. Check JF-17B under manufacturing in this video.
