good development


ideally it needs 4 BVR AAM

paf kindly install Infra-red search and track on thunders



[khanasifm]



[The Eagle]

View attachment 334113

Multiple rack on wing pylon???? Interesting



[The SC]

Can the JF-17 (any block) get something equivalent to the Spectra electronic suite we find on the rafale?
I think an inovative Electroniv suite with a lot of sensors and some potent EM/ECM systems plus AESA and IRST nd some potent per mission pods will make it very competetive against any other 4G or ++ fighter..



[Deino]

Multiple rack on wing pylon???? Interesting

But that's only a CG !



[Dazzler]

But that's only a CG !

yes but note that the poster is from the PAC itself, which is a hint that the aircract will house it inevitably.



[The Eagle]

But that's only a CG !

Exactly as PAC official never come up with something which is not housed, in pipeline or opted hence PAC poster showing such dual rack also, it was a long due as a solution. You know the practice that only possible and feasible things would be shared.

yes but note that the poster is from the PAC itself, which is a hint that the aircract will house it inevitably.



[khanasifm]

PAC Brochure at an Airshow



[Sulman Badshah]

But that's only a CG !

Exactly as PAC official never come up with something which is not housed, in pipeline or opted hence PAC poster showing such dual rack also, it was a long due as a solution. You know the practice that only possible and feasible things would be shared.

JF-17 scale model displayed with multi rack pylon SD10 in Doha Qatar



[Deino]

JF-17 scale model displayed with multi rack pylon SD10 in Doha Qatar

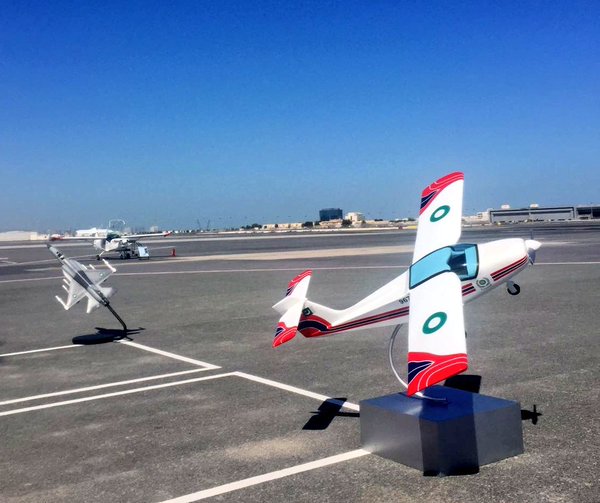

View attachment 334337

Maybe my eyes are too bad already, but on this tiny image it looks as if there are only two PL-12 per wing ??



[khanasifm]

Basically same pylons as J-10



[Deino]

Basically same pylons as J-10
View attachment 334344

I do not deny that these twin-rails exist, I only question if it is possible to use them since IMO the pylons are simply too close and all images presented showing them on a JF-17 are either a CG or showing only the standard single rail.

Deino



[Sulman Badshah]

Maybe my eyes are too bad already, but on this tiny image it looks as if there are only two PL-12 per wing ??

it carries total 4 SD10 and 2 PL5 .... Which means it contain multi rack pylon



[Tempest II]

it carries total 4 SD10 and 2 PL5 .... Which means it contain multi rack pylon

Not multi-rack



[Sulman Badshah]

Not multi-rack

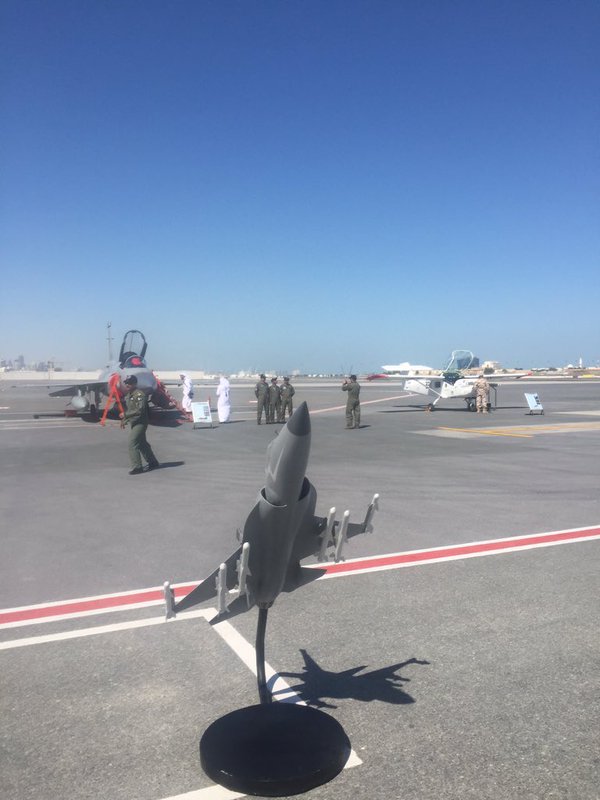

View attachment 334414

My bad .. got confused from different angle
