JF-17 Block-3 -- Updates, News & Discussion

[M.AsfandYar]

Explained by PAC engineer in the video posted above. Green areas are fuel storage.

They always say that. What about green under the cockpit?



[khanasifm]

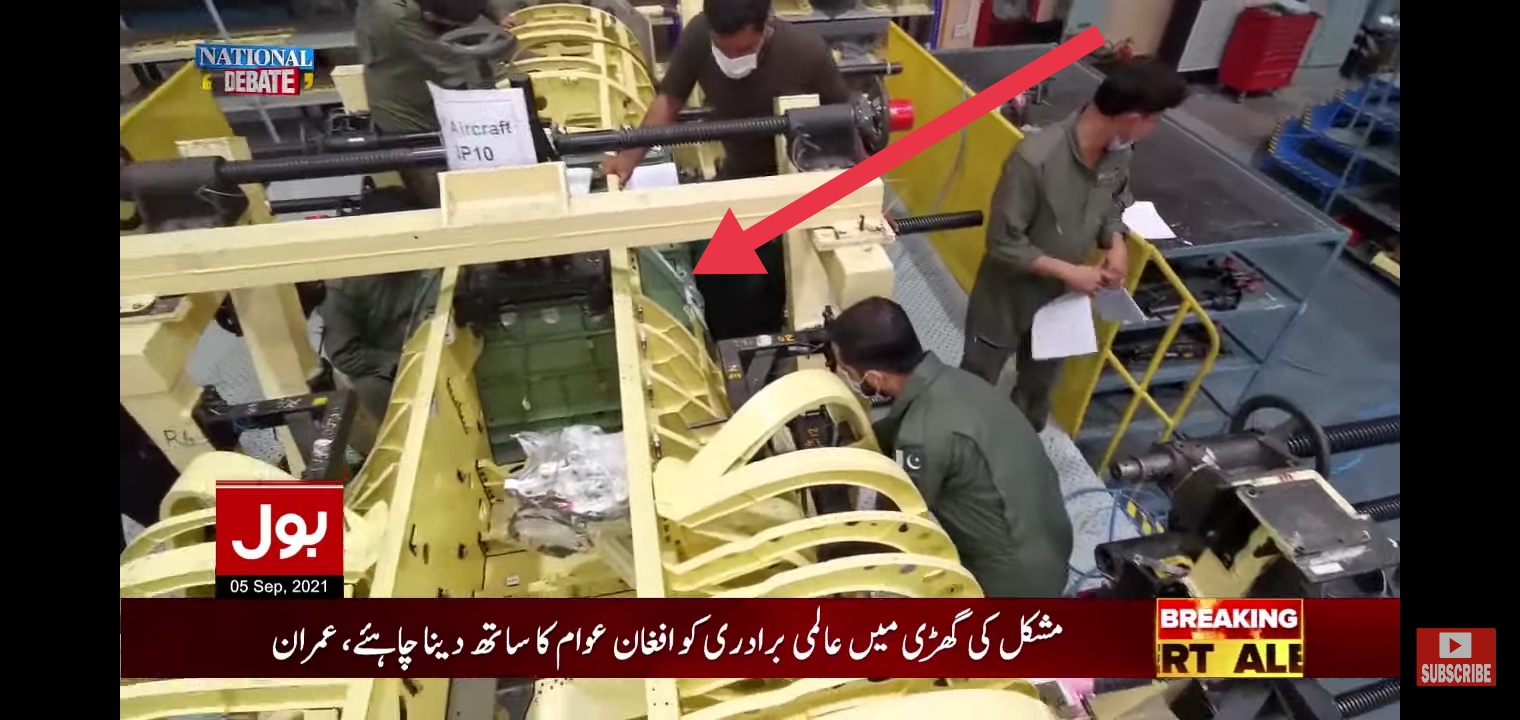

View attachment 775853
An internal frame piece in alleged green coating of frontal fuselage ( inverted )....

3p10



[Bilal.]

View attachment 775854
Ignore my contribution

My bad. And you too

They always say that. What about green under the cockpit?

now what needs to be established is why different surface treatment/primer on those panels. What purpose does it serve…



[khanasifm]

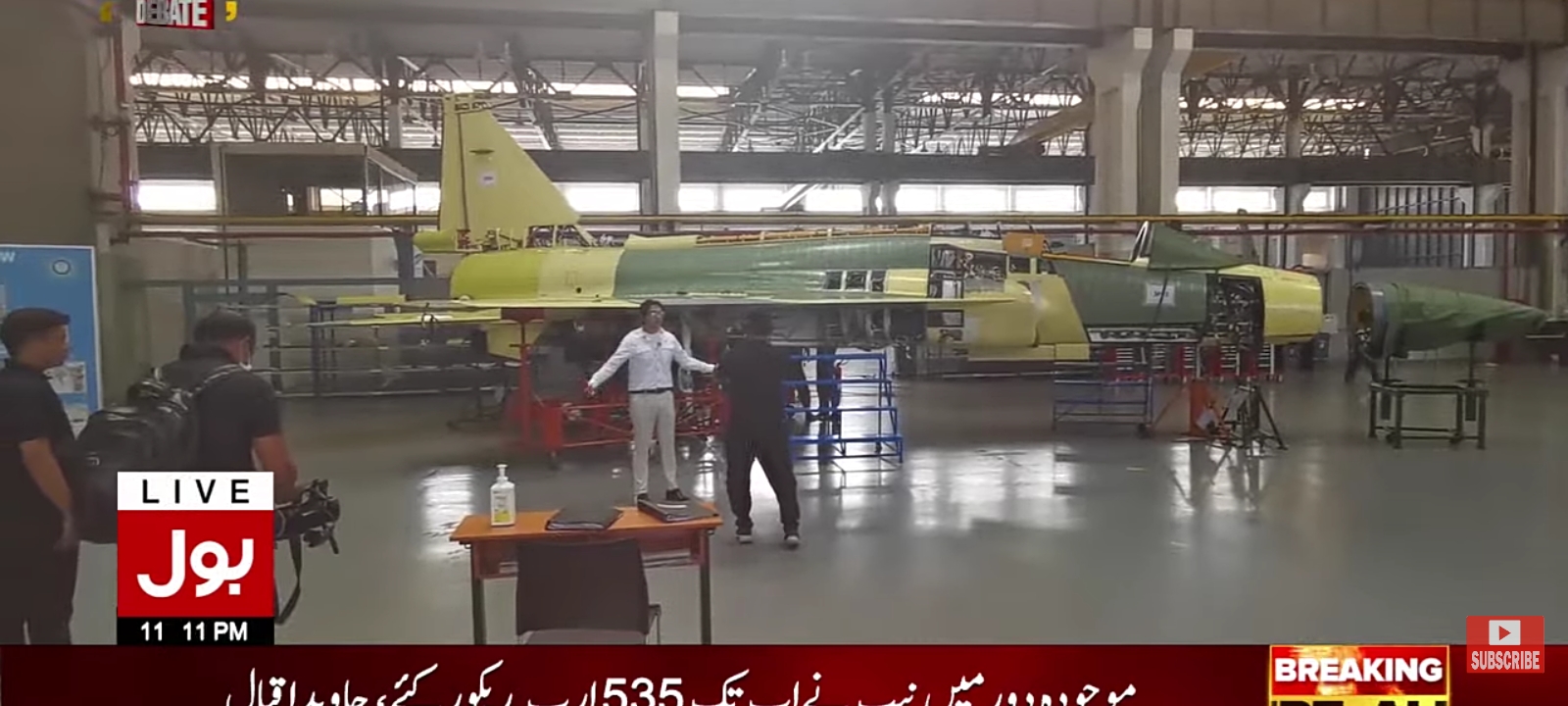

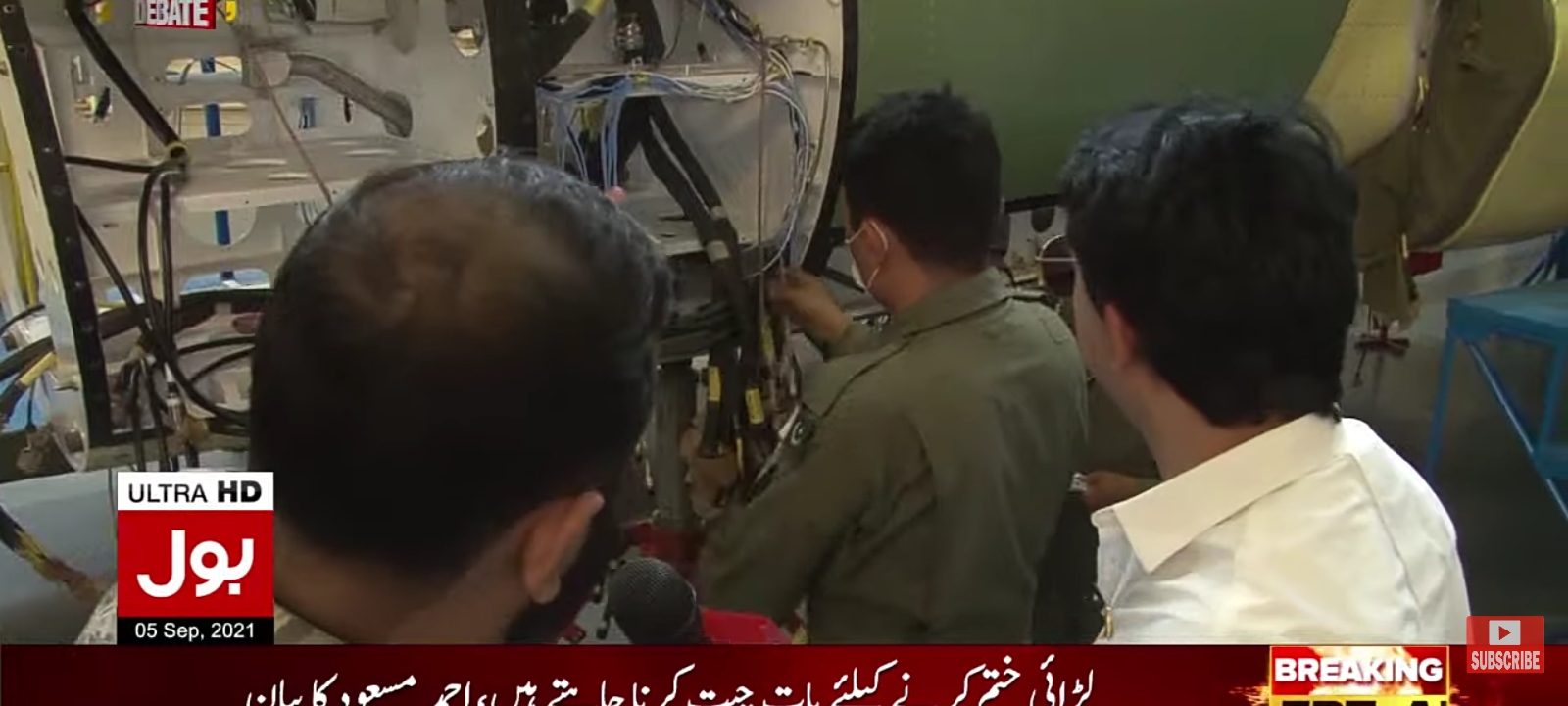

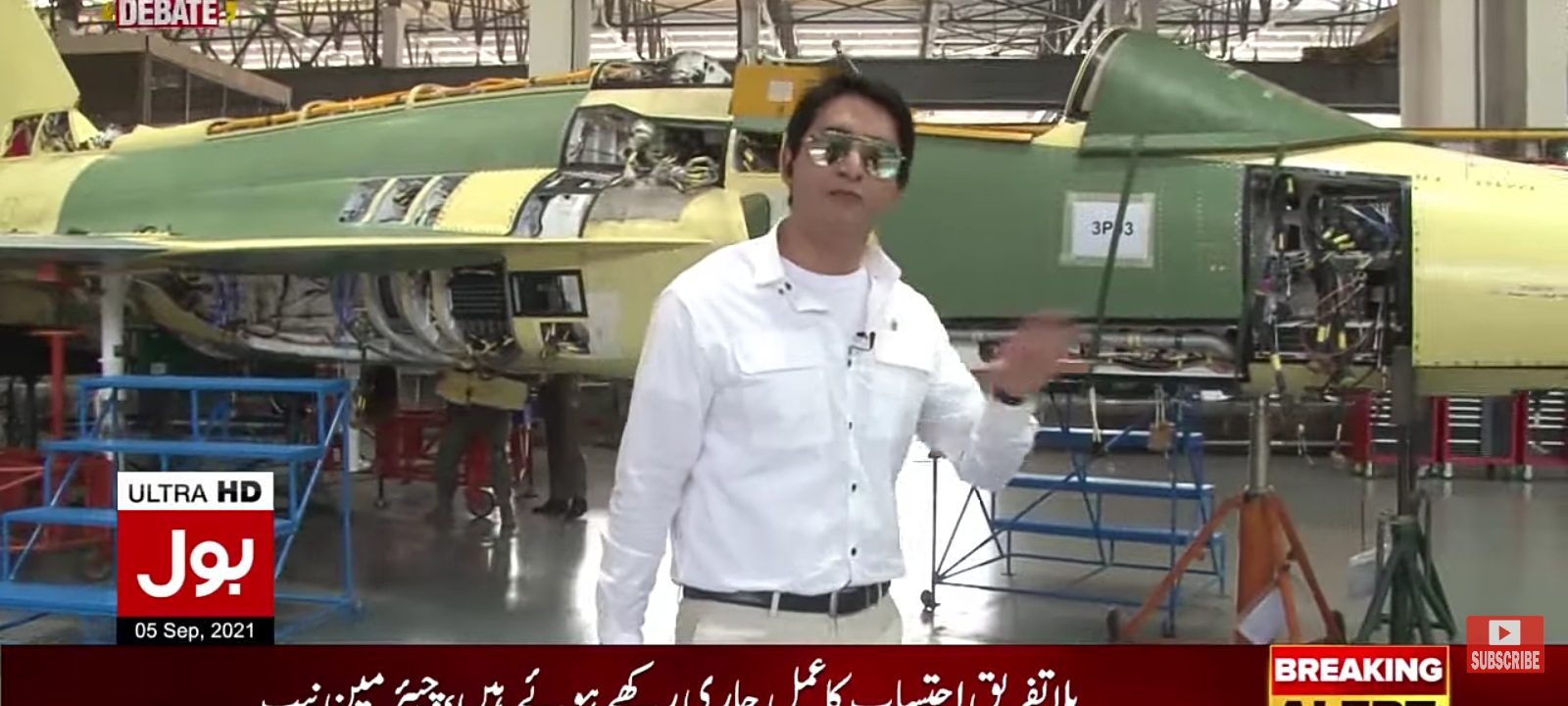

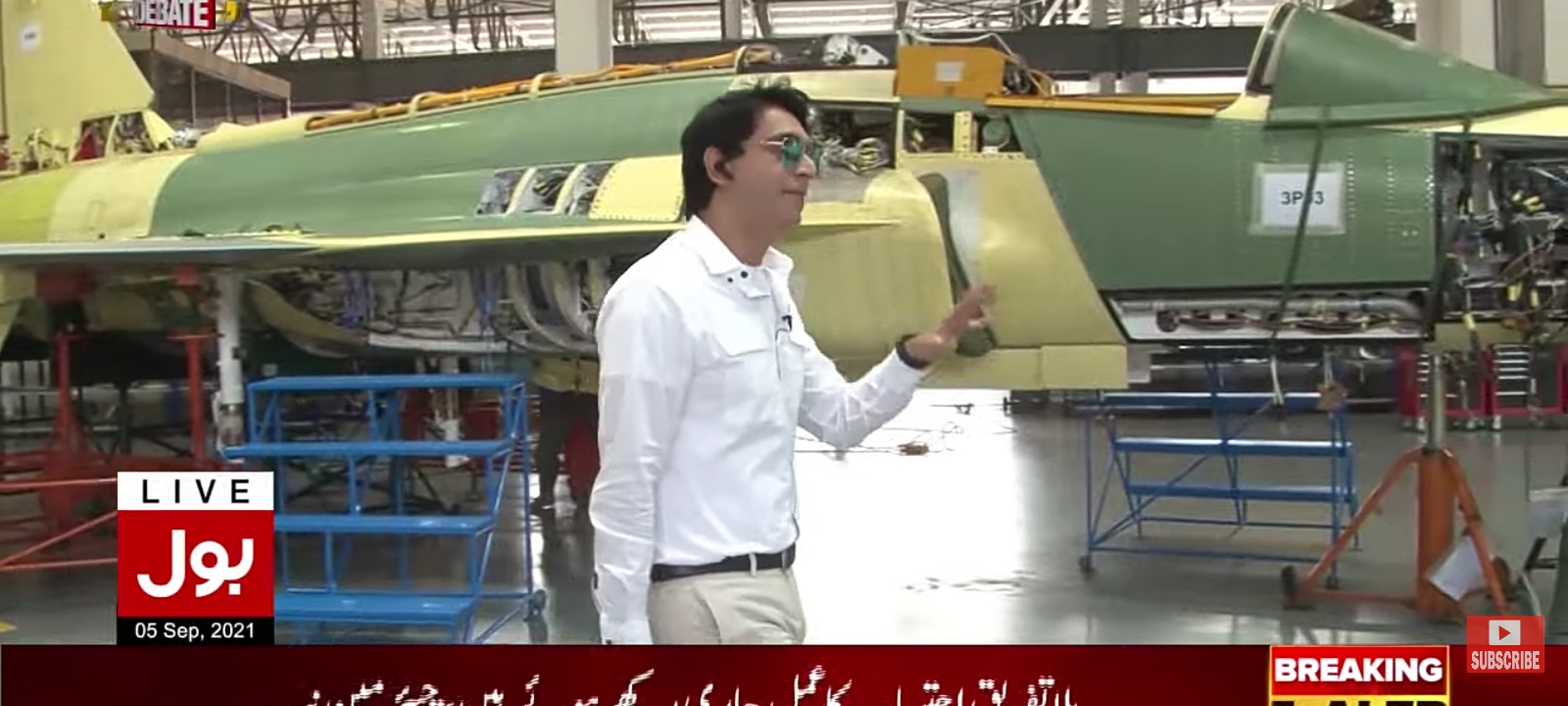

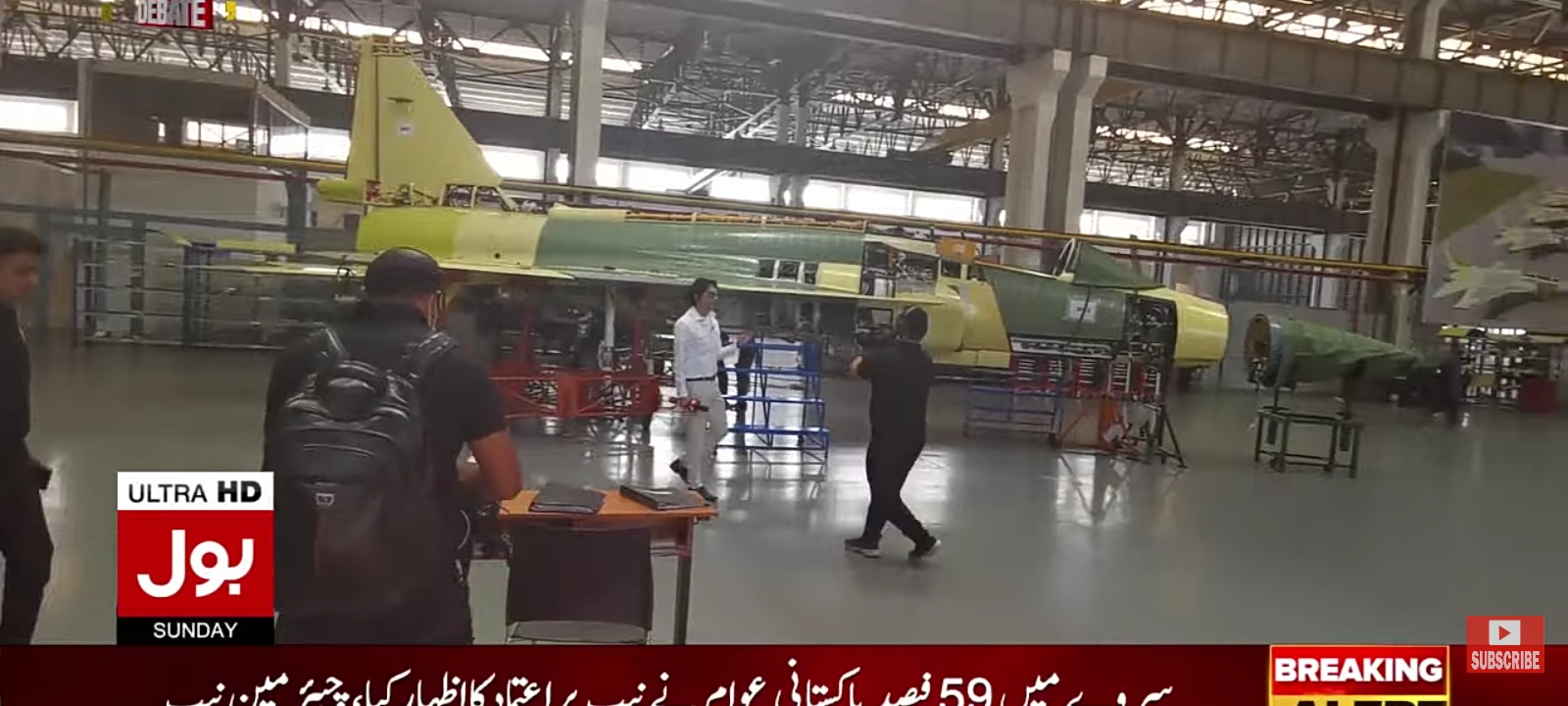

View attachment 775843View attachment 775844View attachment 775845View attachment 775846View attachment 775847
The host was more interested in B than 3. Sigh

3P03 so third production aircraft



[Iron Shrappenel]

Parts mentioned are a) sheet metal and b) structural part only ?

Sir, if you were referring to me please explain the start/end side of the craft in the picture above your comment... I couldn't make much of it... I wanted to know if the green part was just start of fuel compartment or a special material to increase structural integrity ( some kind of composite )...
Thanks in advance...

3P03 so third production aircraft

Or aircraft " 0 " in whole numbers....



[M.AsfandYar]

host was actually behaving like a child in a candy shop ..... running, posing, interrupting technicians and engineers during talk .....

Ajeeb hai ye loog factory main sunglasses laga ker ghoom rah tha .....

host was actually behaving like a child in a candy shop ..... running, posing, interrupting technicians and engineers during talk .....

Ajeeb hai ye loog factory main sunglasses laga ker ghoom rah tha .....

There is an internship going on there this very moment. Any of those kids wouldve done a far better job then this. @JamD

My bad. And you too

now what needs to be established is why different surface treatment/primer on those panels. What purpose does it serve…

Dont know. I had asked during my internship. He didnt know either....



[Ali_Baba]

Is this video available on Youtube yet/at all ? Would like to see it.



[Iron Shrappenel]

Is this video available on Youtube yet/at all ? Would like to see it.

Yes it was live on bol tv channel from 10 to 12 am



[ziaulislam]

Possible BLk3 Pictures

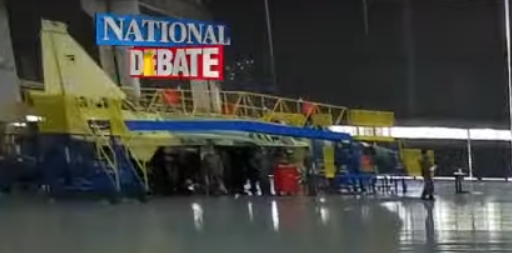

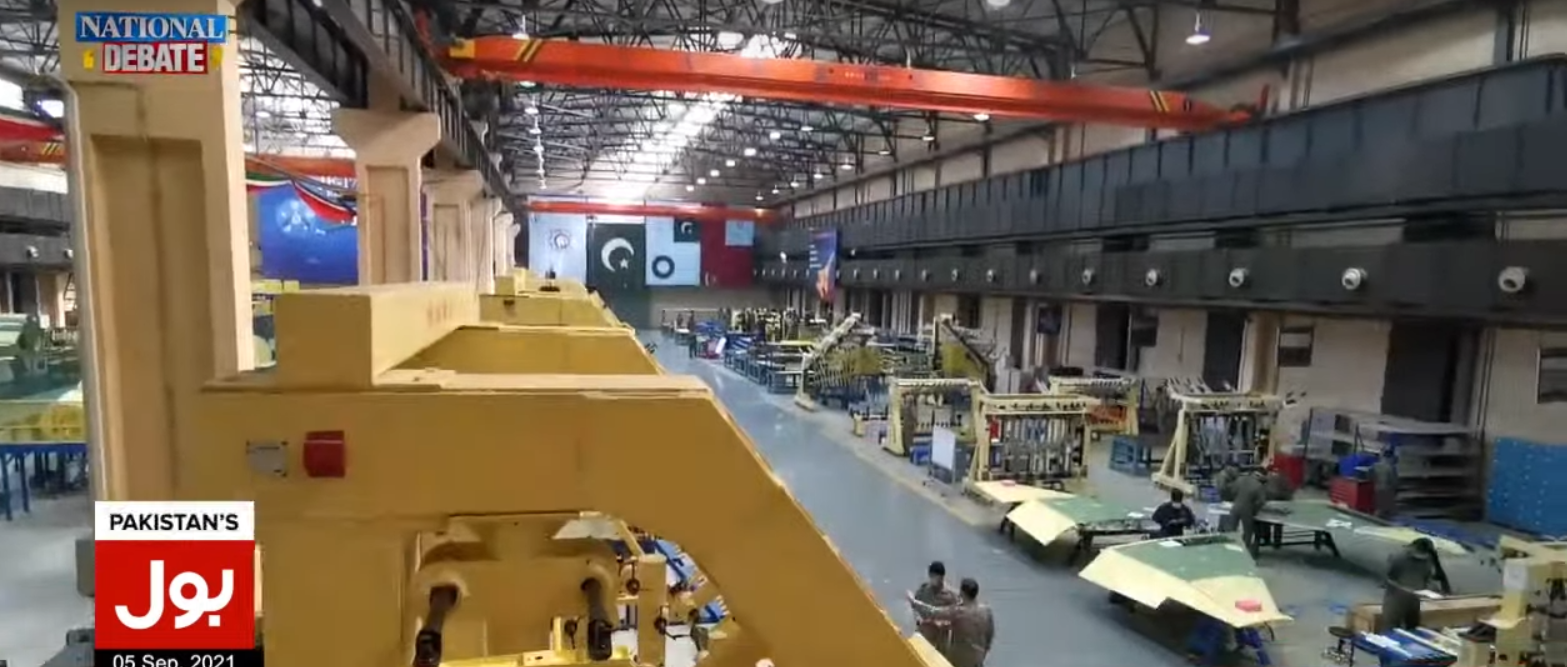

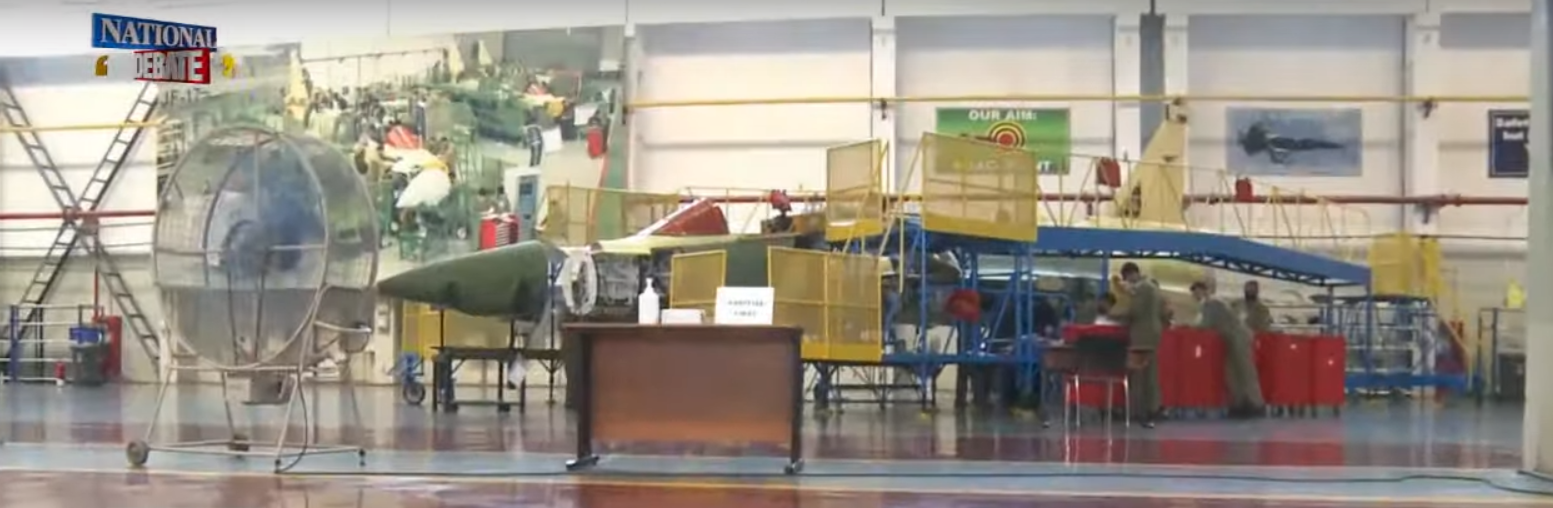

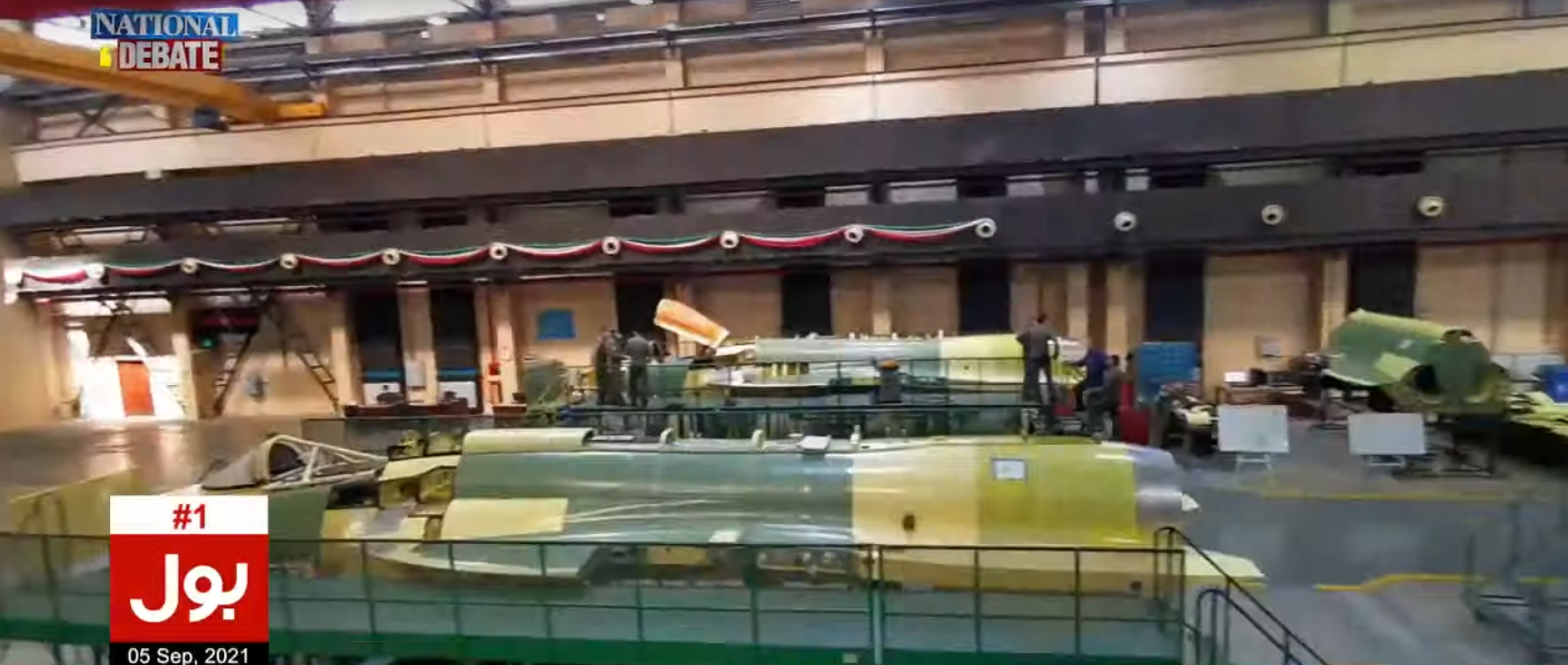

View attachment 775780View attachment 775781View attachment 775782View attachment 775783

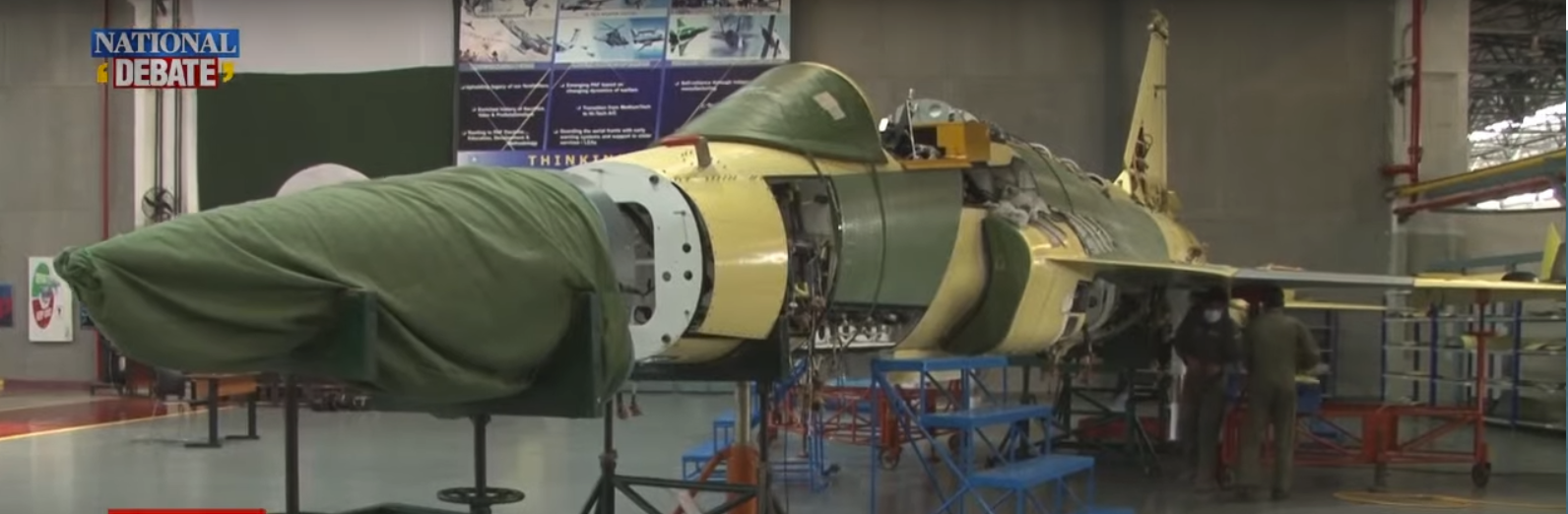

View attachment 775784

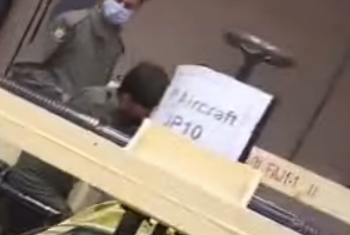

3P10?????

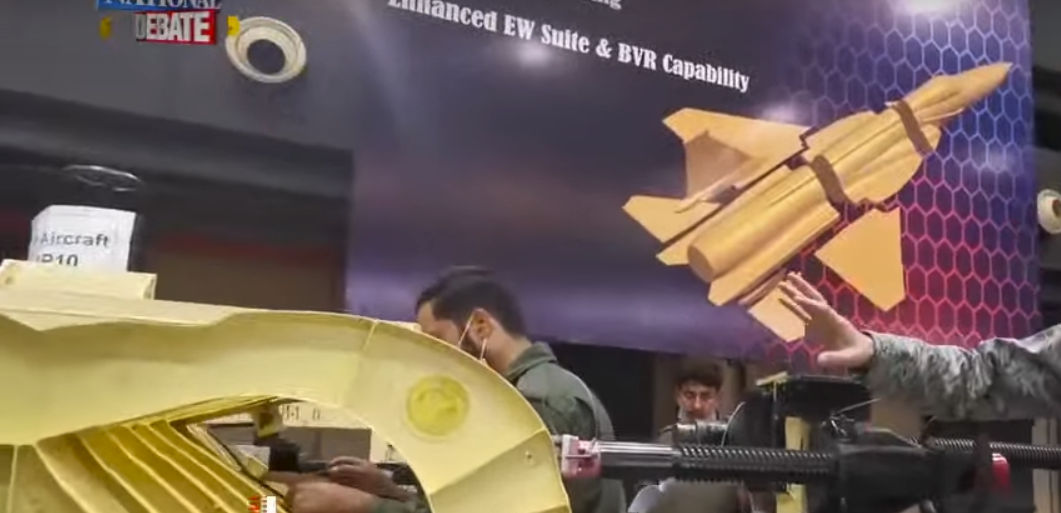

View attachment 775806
View attachment 775807

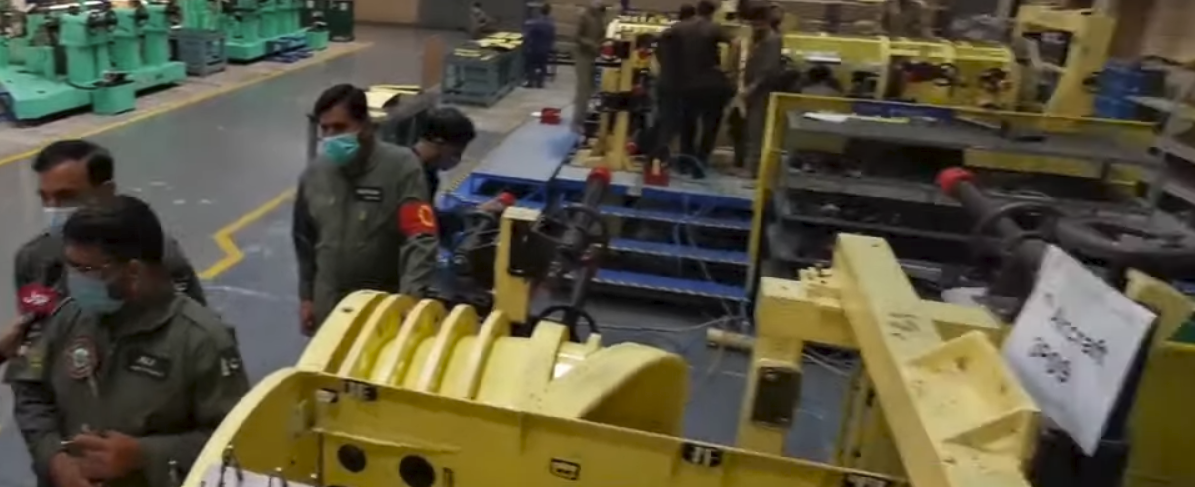

3P9:
View attachment 775808

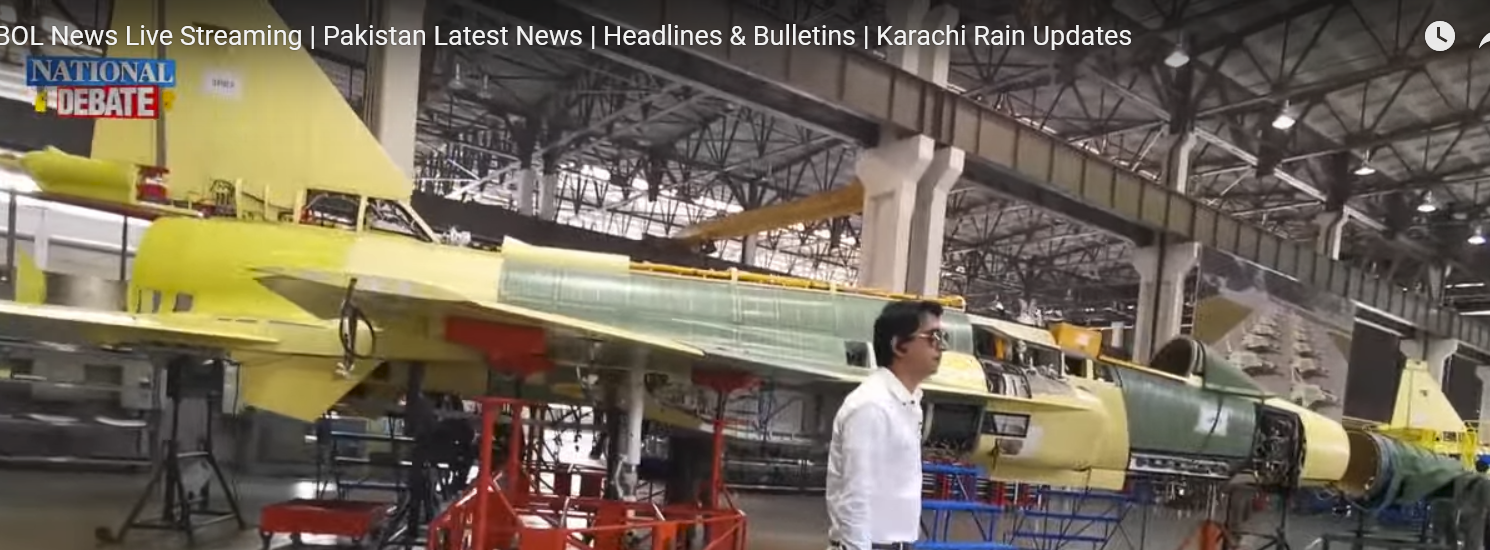

View attachment 775813


3P3 or 3P13?????

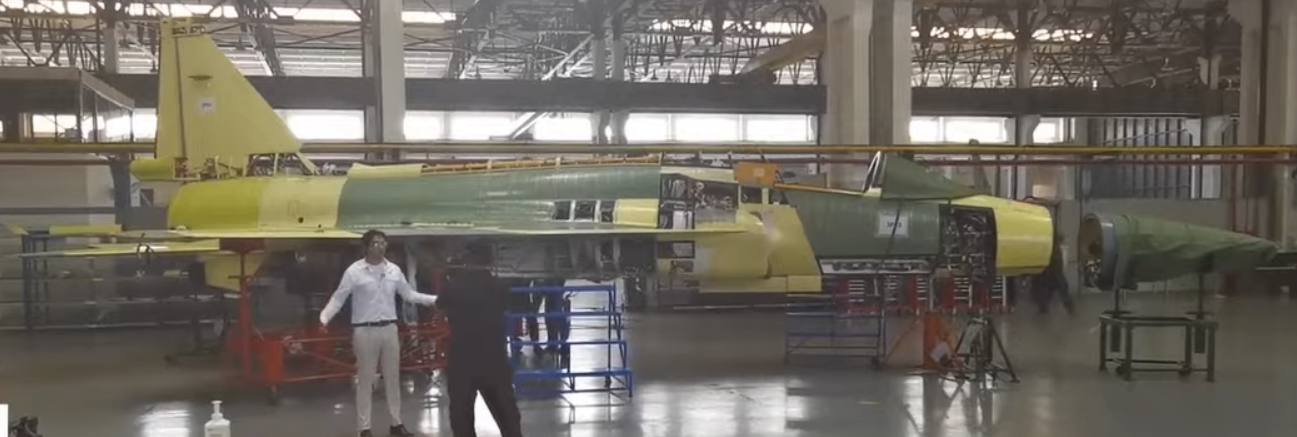

View attachment 775814

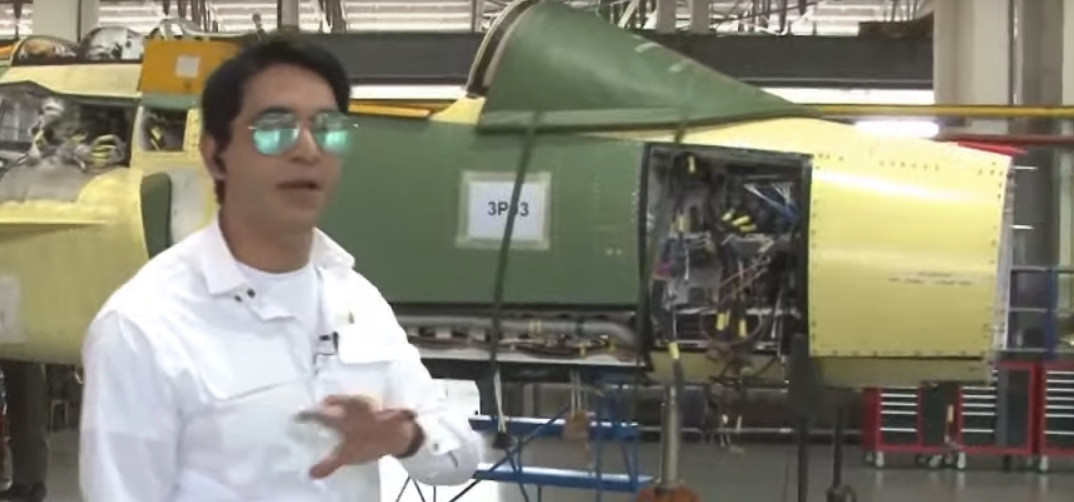

3P13:?????
View attachment 775816

As expected block 3 in full tempo

Green area are fuel cells/tanks. Now confirmed.

Shh...you will be called an idiot again..



[ziaulislam]

We may get 12ish b3 by march next yr inducted



[TsAr]

View attachment 775843View attachment 775844View attachment 775845View attachment 775846View attachment 775847
The host was more interested in B than 3. Sigh

It was on purpose, questionnaire are vetted and edited version is shown to concerned authorities before being on air.

host was actually behaving like a child in a candy shop ..... running, posing, interrupting technicians and engineers during talk .....

Ajeeb hai ye loog factory main sunglasses laga ker ghoom rah tha .....

He wanted to look and feel like a pilot by wearing glasses...



[Dazzler]

Optic fiber databus in blue and black



[Aesterix]

The PAF engineer has clearly said that twin seaters are all 2B. Block three has only A version.

There was an article by Alan Warnes, in which he mentioned Block 3 twin seaters.



[SQ8]

My bad. And you too

now what needs to be established is why different surface treatment/primer on those panels. What purpose does it serve…

https://aerospacemetalsllc.com/what-is-aluminum-chromate-conversion-coating/



[Akh1112]

So this looks very much like 3P13:
View attachment 775818


That's a LOT of a BLK3s

ok, this is even more interesting because i recall them stating the line would be reduced to 12 aircraft a year and then the rest of the capacity would be left for export.

i wonder if we have now also increased our orders???

nvm i read the rest, my day is ruined and my disappointment is immeasurable. the children are crying JamD, this is on you

There was an article by Alan Warnes, in which he mentioned Block 3 twin seaters.

i haven't watched the video, however, remember, block 2bs will/are being upgraded so you might be seeing that.
