CONFUSION of TEJAS'S RADAR

[Blue Marlin]

so here it is like LCA MK1a with new air intakes(i hope DSI Type ) with single screen MFD , latest version of DASH HMDS , EL-2052 , El/L 8222, Lightning 3 G3 LDP , IFR,IRST,Ge414 engine & Python5-R73-Derby-IDerbyER& paveway and other israeli & indian LBGs , smart & dump boms gonna make LCA Mk1a most feared multi role fighter in sub continent skies agaisnt whome even worlds best trained fighter pilots in there F-16 Bkl52 will wet there pants

i thought Dassault will give india know how on air-intake designs which will feature y ducts and flaps as opposed to the dsi.it maybe y ducts or the s ducts with a merge at the end, im not sure i will have find out and get back to you on that.
but i do have a hunch its y ducts as they easy and cheap and s ducts are mainly for twin engined jets

Nope. Just wait to to roll out first Mk.1A


Here the flyable Darin-3 variant.

yes testing...... the plane which you showed has not got a refueling arm, where as the one i showed did. meaning it was for testing. the plane your showing is an operation jet.



[Gen Padmanabhan]

so here it is like LCA MK1a with new air intakes(i hope DSI Type ) with single screen MFD , latest version of DASH HMDS , EL-2052 , El/L 8222, Lightning 3 G3 LDP , IFR,IRST,Ge414 engine & Python5-R73-Derby-IDerbyER& paveway and other israeli & indian LBGs , smart & dump boms gonna make LCA Mk1a most feared multi role fighter in sub continent skies agaisnt whome even worlds best trained fighter pilots in there F-16 Bkl52 will wet there pants

Dont forget Astra, which is designed to arm LCA.

yes testing...... the plane which you showed has not got a refueling arm, where as the one i showed did. meaning it was for testing. the plane your showing is an operation jet.

Maybe this solve your problem.

yes testing...... the plane which you showed has not got a refueling arm, where as the one i showed did. meaning it was for testing. the plane your showing is an operation jet.

This is retractable refueling pod, not fixed.



[Blue Marlin]

Dont forget Astra, which is designed to arm LCA.


Maybe this solve your problem.

This is retractable refueling pod, not fixed.

the refueling pod is to the side of the jets where as the one im showing is on the front of the jet.



[Gen Padmanabhan]

the refueling pod is to the side of the jets where as the one im showing is on the front of the jet.

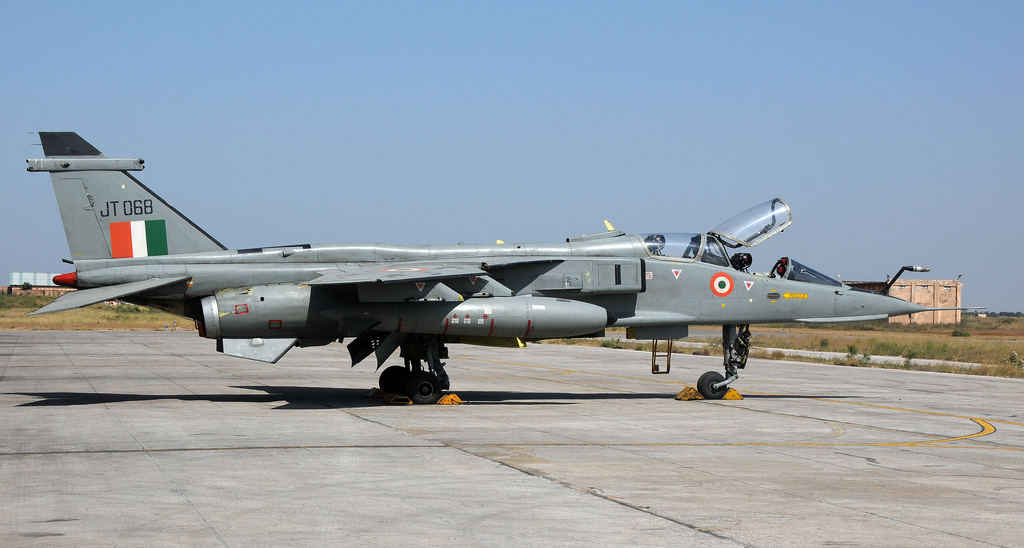

View attachment 276004

Yes, this was tested by the HAL, but that doesnt means this is final variant of DARIN-3 program.



[Saurabh jindals]

Sorry to ruin your party but the problem is IAF quote their range for 2m2 RCS (Due to PAF use of small aircrafts.
So
Tejas range - 80 km for 2m2 target
JF-17 Range - 130 km for 5m2 target.

Plz check your source is Actual.
JF 17 range -105 km for 5m2 target.
130 Km is claimed by one PAF member while giving an Interview to Chinese magazine but Company never confirmed his claim. Officially company claim is 105 km for 5m2 target. So why are you quoting an unconfirmed claim ?



[Gen Padmanabhan]

the refueling pod is to the side of the jets where as the one im showing is on the front of the jet.
View attachment 276004

BTW, the same HAL also showcased this.



[Blue Marlin]

Yes, this was tested by the HAL, but that doesnt means this is final variant of DARIN-3 program.

i did not say it was the final thing , i too did say it was for testing.



[GURU DUTT]

Plz check your source Actual.
JF 17 range -105 km for 5m2 target.
130 Km is claimed by a one PAF member while giving an Interview to Chinese magazine but Company never confirmed his claim. Officially its 105 km for 5m2 target. So why are you quoting an unconfirmed claim ?

to keep there egos satisfied



[Blue Marlin]

BTW, the same HAL also showcased this.

now your wasting my time, thats the original picture i quoted



[Gen Padmanabhan]

now your wasting my time, thats the original picture i quoted

So, what you say about this? And please If you want to believe then believe it otherwise STFU.



[Blue Marlin]

So, what you say about this? And please If you want to believe then believe it otherwise STFU.

what about it?



[Saurabh jindals]

the refueling pod is to the side of the jets where as the one im showing is on the front of the jet.
View attachment 276004

Now Kids will say this is a Drawing .....



[Gen Padmanabhan]

what about it?

Seriously? You are so much pathetic in analysis that not able to understand what this pic speaking?



[GURU DUTT]

what about it?

einstine its the final testing prototype of the new upgraded jaguar and it has the side type IFR rest you can speculate yourself



[zebra7]

No. Jaguar has two refueling probe positions. Single seater Jaguar IS/IM have a retractable refueling probe that comes out at the side of the cockpit.

The double seater Jaguars IB have a nose mounted refueling probe.
