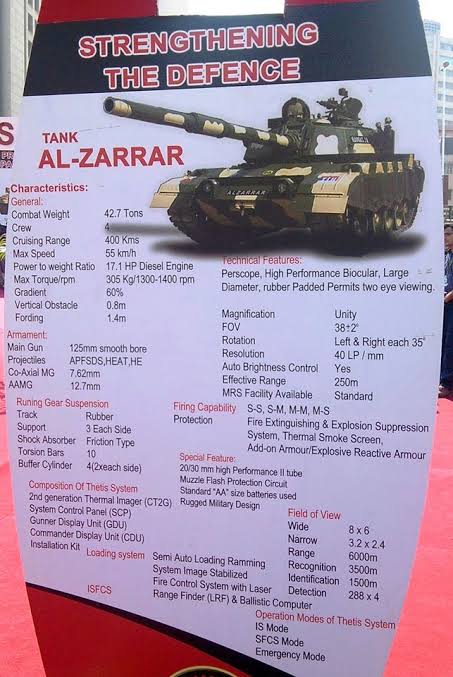

The Al Zarrar Turret (Turret only) is actually based on Type 88C later version turret. Of course the Hull is similar to the Type 59 (aka Soviet Type 54B).
The picture I posted earlier with a cast turret was a Type 88 early version (A) which was the last tank in PLA service to see the use of a 105mm gun, later tank versions (even Type 88 later versions, such as Type 88C) all use a 125mm smoothbore gun which was inspired by a foreign design.
Also - Type 88C uses a new welded turret identical to the Al-Zarrar, maybe that was the inspiration for AZ tank turret, as can be seen with the AZ turret minus ERA. Here is the complete writeup from TanknutDave, see where the 125mm has THREE tube sections aft of the fume extractor piece for the Type 88C welded turret, as opposed to the TWO tubes aft of the fume extractor for the 105mm (look at various images below).
The Chinese Type 88 Tank
View Our new and expanded Chinese Type 88 Tank page 0n Fighting-vehicles.com
Type 88 Tank
The Original Type 88 Entered Service with the Peoples Liberation Army in 1988
The Type 88 Description
The Type 88 is the Peoples Liberation Army designation for the Chinese Type 80-II Prototype, that was accepted into service in 1988 with some small modifications, namely a different bank of smoke grenade launchers and different external turret stowage racks. This was done so that ERA (FY Seriesl like that on the Type 59D) could be fitted to the turret front. It was the last tank produced for the PLA that was fitted with a 105mm calibre Main Gun. It has been upgraded several times into new Marks.
The Chinese Type 88 Tank
The Chinese Type 88 Tank – Click to enlarge
The Type 88 uses a 4 man crew, Driver sits front left of the hull, the Gunner is front left of the turret, the Commander sat behind him and the Loader is stationed on the right of the turret. The vehicle originally used the 105mm rifled Type 83 main gun. It could be identified by counting the sections of the thermal sleeve. The Type 83 gun has 2 sections in front of the fume extractor and a further 2 after it. The tank was also fitted by some form of composite armour across its hull front.
The Type 88 & Type 88B Type 83 Main Gun
The Chinese Type 88B Tank
The Chinese Type 88B Tank
The Chinese Type 88B Tank
In terms of tank upgrades, a Mark B would supersede a Mark A. However the Type 88B was implemented first in PLA service. It still retained the Type 83 Main Gun but had an improved Fire Control System (called 212) and could also be recognised by the protective shroud over the Gunners sight.
The Chinese Type 88A Tank
The Chinese Type 88A Tank
The Type 88A was the third upgrade for the vehicle and was most recognisable by its longer 105mm rifled main gun, the Type 83-I aka Type 83 Improved. It could be spotted by the front of the thermal sleeve having 3 sections between the bore and fume extractor.
The increased barrel length, aka calibre Length meant great range and round penetration over the old model as the round had a long distance to travel allowing the energy from the case charge to build up and push the round out harder.
A number of online publications wrongly state that the Type 88A has 12 smoke grenade launchers (6 either side of the turret). All images show that it retains the 2 pairs of banks each with x2 launchers either side of the turret. It was infact the Type 88C that had 12 launchers.
The Chinese Type 88C Tank
The Chinese Type 88C Tank
The Type 88 originated from the Type 80 prototype as did the Type 85. At some point in time all earlier Type 88 were upgraded with a new turret and hull modifications from a later model of the Type 85 Tank. The new turret had a 125mm smoothbore main gun and autoloader reducing the crew to 3. It retained the same Fire Control System as the 88B and later recieved a 1000hp engine.
The Chinese Type 88 Tank Specifications
Crew: 4
Weight: 39.5 tonne
Engine: 730hp 12150L-7BW diesel
Transmission: Mechanical, planetary
Track: Metallic, later variants have RMSh, with rubber-tyred road wheels
Suspension: Torsion bar
Radio: Receive/transmit, telephone
Dimension: Length: 10.65m; Height: 2.3m; Width: 3.3m
Cruising range: 430km , or 600km with external tanks
Speed: Max road 57km/h
Fording depths: N/A
Main gun: 105mm Type 83 or 83-I rifled gun (48 rounds stored)
Rate of fire: 7 rounds/min
Elevation/depression: +18/-4.3 degree
Auxiliary weapon: One coaxial 7.62mm machine gun; one 12.7mm air-defence machine gun
Fire control: (Type 80/88) Type 37A light spot fire control system; or (Type 88A/B) JSFCS-212 ISFCS
Chinese Type 88 Tank Operators
Myanmar – 230+ Type-88B
People’s Republic of China – All secondary role training & reserve units
___________________________________________________________
By the way, as TanknutDave notes, the Type 85 (which was derived from the Type 80 later versions, just like the later type 88 version 88C) also uses a welded turret and the 125 mm smoothbore similar to the Al-Zarrar. You can see that the turret bustle is different than the Al-Zarrar.
I say 'similar' because there will be minor differences based on the hull mating for the smaller Type 59 Hull. Turret to hull traverse mechanism will be different and there will be differences on ammunition storage and electronic/optical components that mount on the much smaller cramped hull for the Type 59.
Type 85 PLA China
Don't stick your nose where it does not belong.
not sure about that, maybe this is an over statement, it has its own doctrine, not designed to stand still and 1v1 enemy heavy mbt, penetrate or not is another problem.
