Turkish Sensor and Detector Programs

[-------]

what is that at 5:56, no pitot tube



[xxxKULxxx]

what is that at 5:56, no pitot tube

First subject was "What is that pitot tube?"

Now "without pitot tube"

So it is our AA missile... We understand that pitot tube was for tests... am i right ?..



[xxxKULxxx]

Domestic Surveillance Radar (MGR) is in service...

MİLLİLEŞME ATAĞI | Bilim, Sanayi ve Teknoloji Bakanlığı

For more info.

MGR - Hava Trafik Gözetleme Radarı | BİLİŞİM ve BİLGİ GÜVENLİĞİ İLERİ TEKNOLOJİLER ARAŞTIRMA MERKEZİ

KABUL TESTLERİ TAMAMLANAN MGR`NİN HAVALİMANLARIMIZA KURULMASI ve YURTDIŞINA PAZARLANMASI HEDEFLENİYOR

Bakan Işık Milli Gözetleme Radarı'nı yerinde inceledi - Anadolu Ajansı

MGR / Air Traffic Surveillance Radar

This primary surveillance radar (PSR) system is an S-Band solid state pulse Doppler radar. It has been developed for civil or military air traffic control and rain status determination. The system has been designed in accordance with ICAO and EUROCONTROL standards and guidelines. By using coherent advanced signal processing, aircrafts up to 60 nautical miles under different weather conditions can be detected and tracked. The system can simult aneously track up to 1,000 targets via Moving Target Detection (MTD) and Clutter Reduction capability by using low/high beam selection, sensitivity time control (STC), adaptive clutter map and Doppler filters. Also, the rain channel can provide 6 levels of rain strength information at 4° to 2 nautical miles resolution and 2D location of rain zones. The system has a clear spectrum output in accordance with the limits defines by NTIA.

TECHNICAL PROPERTIES

• S-Band solid state pulse Doppler radar
• Coherent signal processing
• Pulse compression (Nonlinear FM)
• PRI / PRF St aggering
• Frequency Staggering
• Doppler filter banks and MTI
• Rain status channel (6 levels of rain status reporting)
• Antenna beam (cosecant squared -45° ver tical (low and high beam), 2° horizontal)
• Circular and linear polarization
• Antenna rotation speed: 12 rpm
• Max. Range: 60 nmi
• Range resolution < 200 m
• Power: 15 kW peak
• PRF: staggered PRF (830 Hz average)
• Doppler processing: > 4 bank Doppler filtering
• Target tracking speed interval > 2 m/s
• Maximum number of targets < 1,000
• Rain channel resolution 4° -2 nmi / 6 levels rain information
• Operational temperature range -20°C to 50°C
• Interface PPI console
• System interface ASTERI X CAT240 video, CAT34 service messages, ASTERI X CAT48 plot/track

CAPABILITIES

• Detection and tracking of airborne targets
• Detection of rain strength and rain zones
• Visual interface
• Static (ground) clutter reduction
• Radar remote management and monitoring
• Video recording and playback
• Output reporting in ASTERI X format

MGR / Air Traffic Surveillance Radar | INFORMATICS AND INFORMATION SECURITY RESEARCH CENTER



[Azeri440]

credits to 7Skies from mp.net



[-SINAN-]

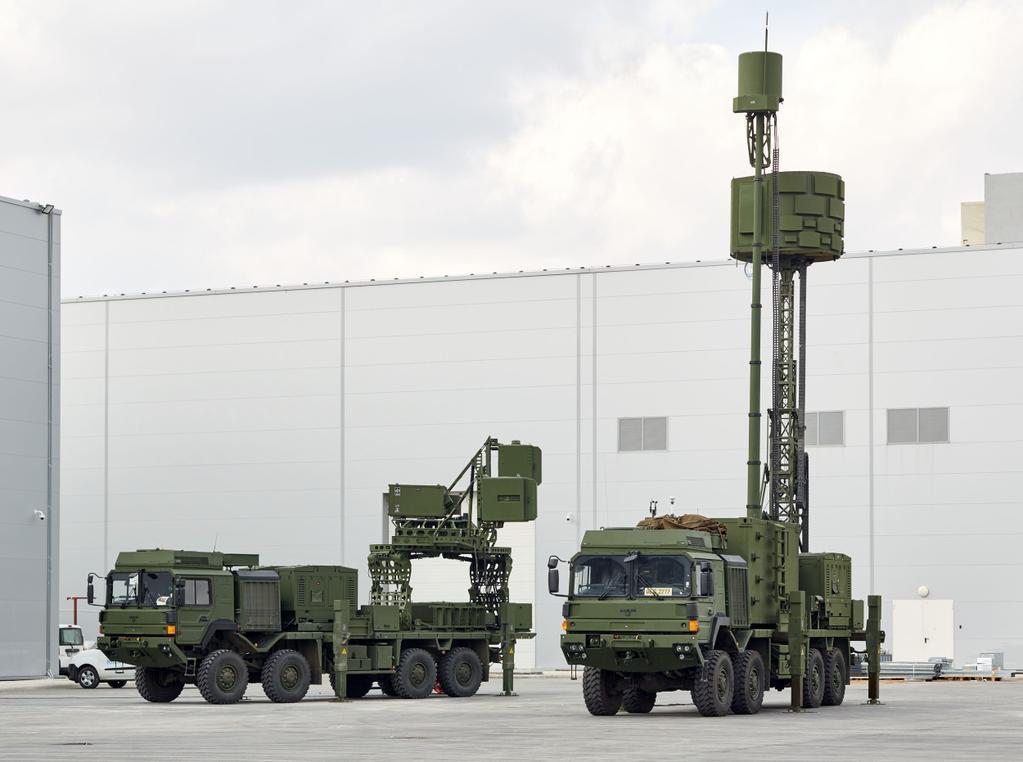

View attachment 217793

credits to 7Skies from mp.net

Most probably, he linked Casus Belli's photo.. https://defence.pk/threads/idef15-5-8-may-2015-İstanbul-tÜrkİye.371036/page-4#post-7092032

More to it..If you go over this site. Aselsan to Unveil New Technologies at the IDEF 2015

Right click on the image and open image in a new tab.

In the Adres Bar it writes

"http://sdarabia.com/rounded_corner.php?src=admin/news/uploads/1430209389-sdarabiaASELSAN%20KORAL%20Landbased%20Radar%20Electronic%20Warfare%20Sys tem.jpg&radius=8&imagetype=jpeg&backcolor=ffffff"

Seems like we managed to unveil it before Aselsan can do.



[-------]

Most probably, he linked Casus Belli's photo.. https://defence.pk/threads/idef15-5-8-may-2015-İstanbul-tÜrkİye.371036/page-4#post-7092032

More to it..If you go over this site. Aselsan to Unveil New Technologies at the IDEF 2015

Right click on the image and open image in a new tab.

In the Adres Bar it writes

"http://sdarabia.com/rounded_corner.php?src=admin/news/uploads/1430209389-sdarabiaASELSAN%20KORAL%20Landbased%20Radar%20Electronic%20Warfare%20Sys tem.jpg&radius=8&imagetype=jpeg&backcolor=ffffff"

Seems like we managed to unveil it before Aselsan can do.

Guess you missed this,,



[-SINAN-]

Guess you missed this,,



[golgelerprensi]

KORAL

Teşekkürler RAK



[AUz]

So no new ground-breaking weapon programs were revealed, eh?



[golgelerprensi]

PİRİ İnfrared Arama ve Takip Sistemi (IRST) Thanks R.A.K



[-------]

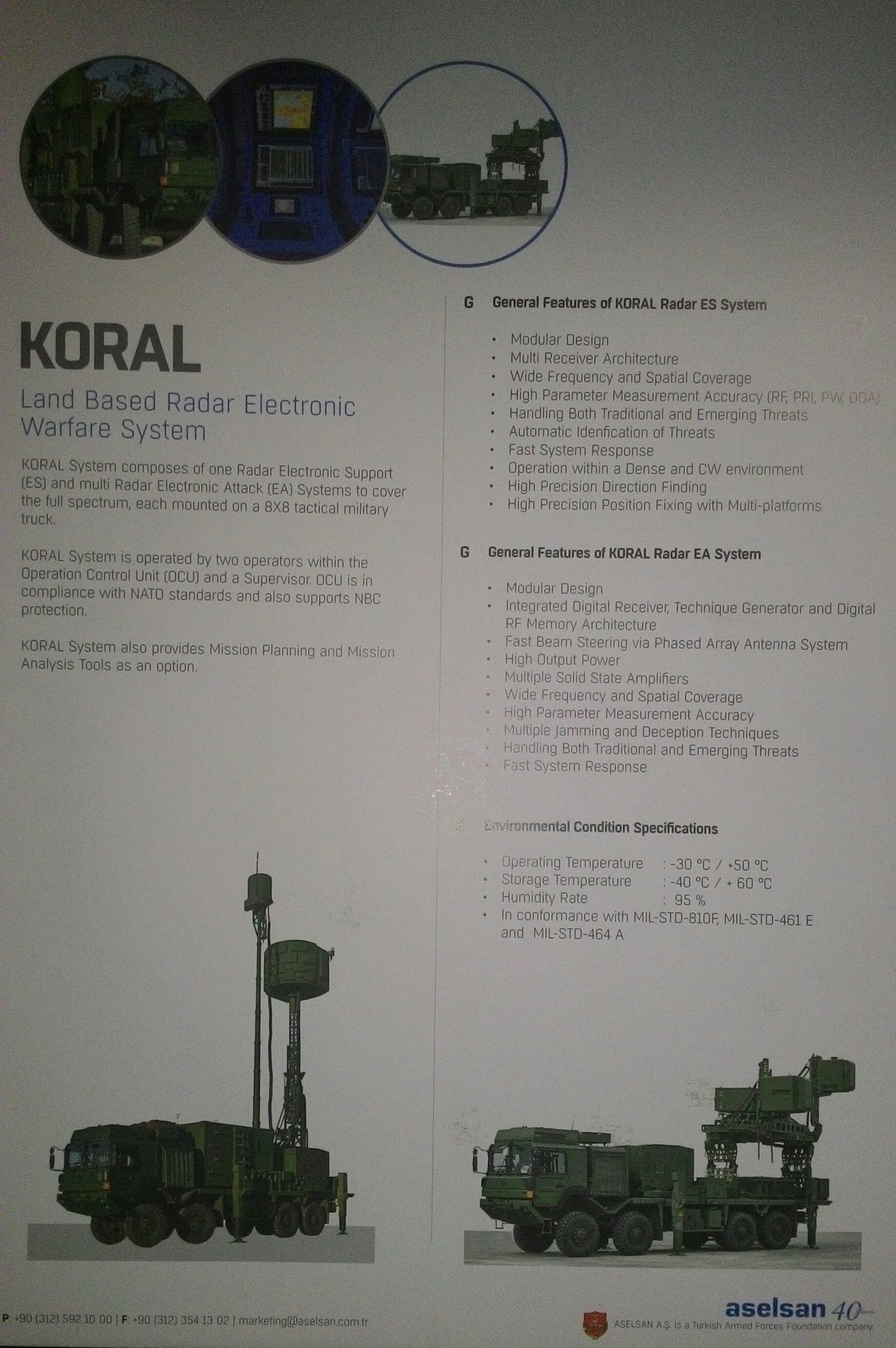

View attachment 219954
KORAL

Teşekkürler RAK



[DEFENCETURK]

View attachment 219954
KORAL

Teşekkürler RAK

You're welcome,

Effective range of a KORAL is a few hundred km.

Early Warning Radar System's rance: 500 km



[Some1LikeU]

Is the early warning radar equivalent of Green Pine radar?



[Bubblegum Crisis]

Is the early warning radar equivalent of Green Pine radar?

Yes !

See old link :

IDEF'15 | 5-8 May 2015 | İSTANBUL-TÜRKİYE | Page 35


...



[ziya]

naval radar up to corvettes
