JF-17 Thunder's Armament

[Manticore]

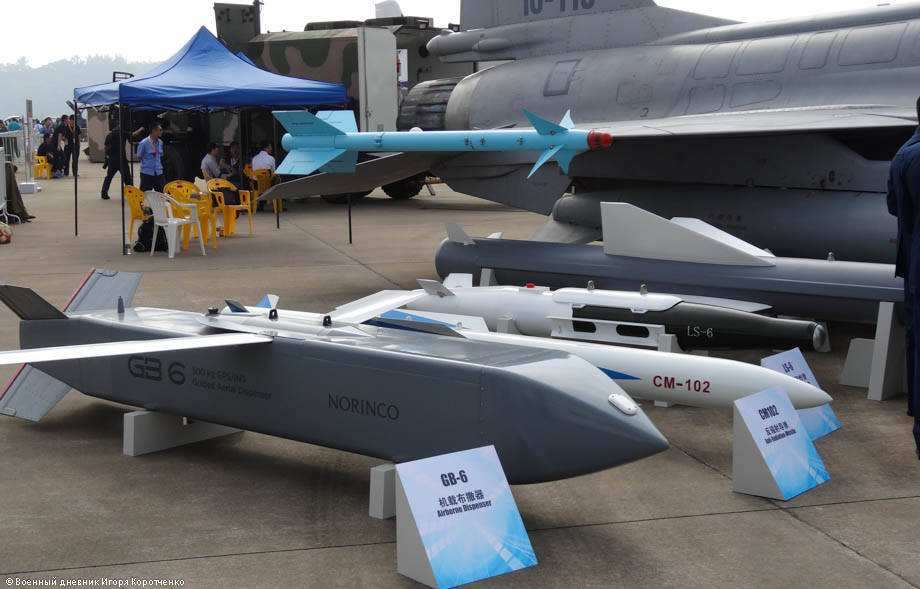

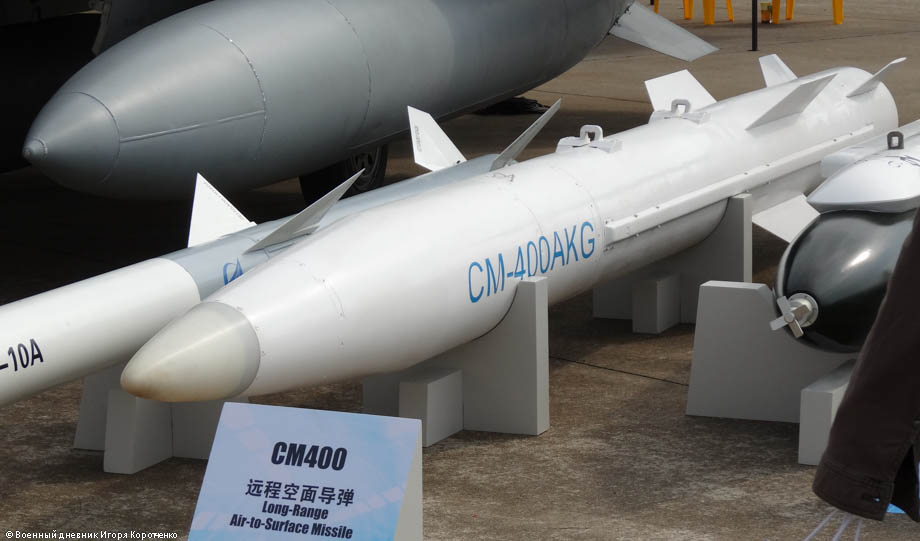

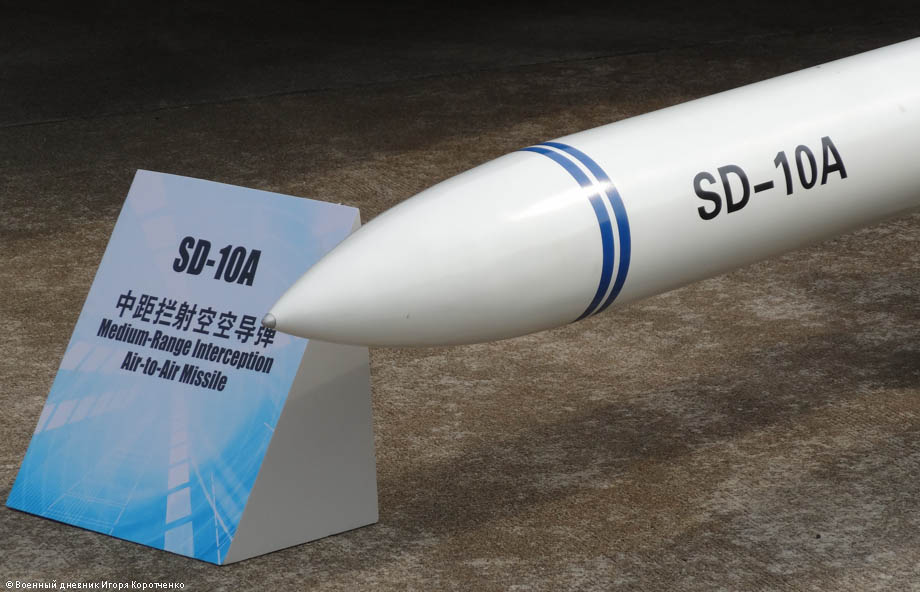

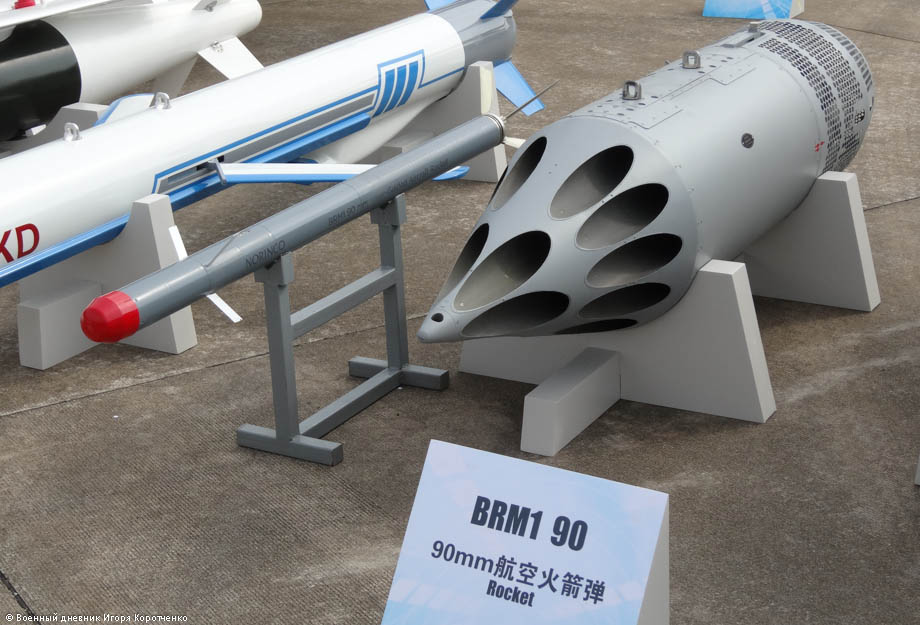

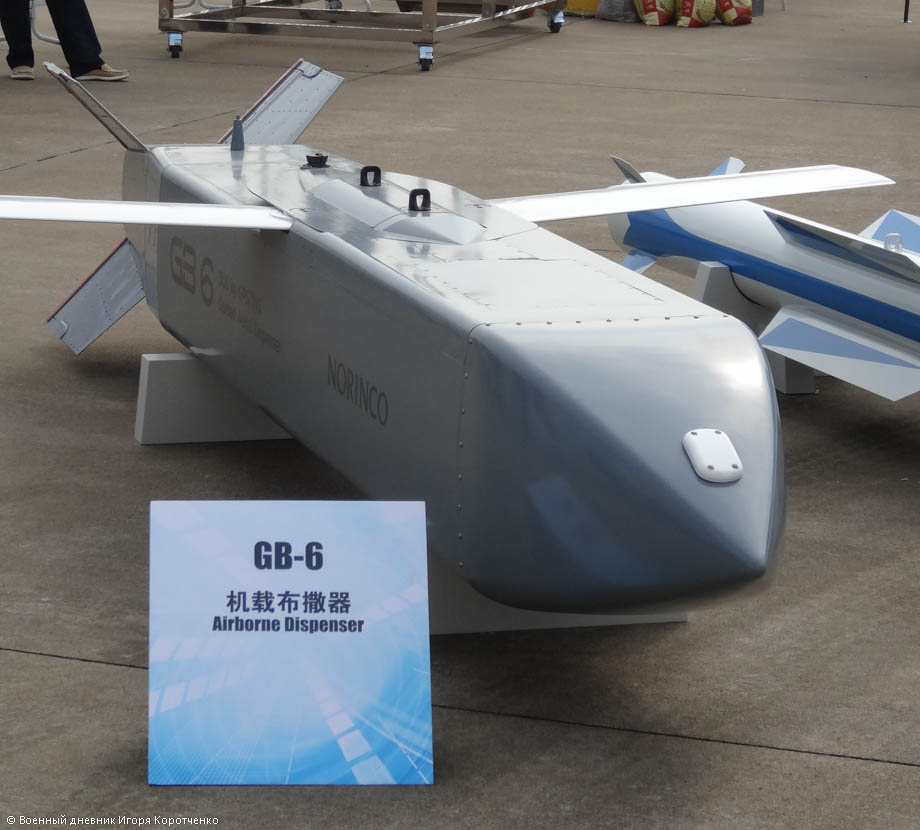

View attachment 154237 View attachment 154238 View attachment 154239 View attachment 154240 View attachment 154241 View attachment 154242



[Manticore]



[Manticore]

Data Figure: C705KD base type, C705 anti-ship missile had been successfully exported to Indonesia, the Indonesian Navy Pictured KCR-40 missile test-fired a missile C705

Zhuhai Airshow on Aerospace Science and Industry Corporation debuted C705KD missile weapon system, which is the first land attack C705 anti-ship missile modifications.
C705KD空对地导弹：重量轻巧威力射程不减_新闻_腾讯网
C705 series is one of CASIC Third Naval Institute focuses on offensive and defensive combat system construction and development of a series of medium-range anti-ship missiles.According to Science and Industry Hospitals planning, anti-ship missile a complete coastal anti-ship combat system contains mainly by C701 / C704 range anti-ship missiles, C705 / C802A medium-range anti-ship missiles, C602 anti-ship missiles and other remote constitute missile, with a range covering almost, in the remote transmitter platform covers shore, ship-based, submarine-based, air-based, multi-platform work together to achieve all-round precision strikes.

Which, C705 and C802A, although both belong to medium-range anti-ship missiles, but both the power differently. C802A anti-ship missile is mainly responsible for the standoff enemy surface ships and medium-sized fleet, a launch mass of 800 kg (air-launched 600 kg), with a range of 180 km and can carry 190 kg warhead large. Out of the water to hit the 4,000-ton ships.Belonging to medium-range anti-ship missile in the heavy ammunition.

But for medium and small countries, they are also enemies of the basic strength with their neighbors rather, its navy is little more than 4,000 tons of ships, the main displacement ships in these countries tend to have about 2,000 tons, more the small vessels of 1000 tons, speedboats. Powerful and high purchase price of C802A is obviously not the best, not to play both arms of maximum performance, but also increased defense spending. Hospitals Aerospace Science and Industry is aimed at the needs of these small countries, developed and C802A considerable range (up to 140 kilometers), but moderate power of light C705 anti-ship missiles. C705 anti-ship missile combat weight of about 320 kg, only half of the C-802A air-launched quality. The new high-performance warhead mass of about 130KG, reaching 70% C802A warhead quality and accounted for half the weak quality of missiles. Such a light anti-ship missile carrying a warhead components such excellent visibility C705 turbojet engine performance, while maintaining a certain range of the premise of this quality can carry warhead. According to public information and previous reports, because the use of the new charge technology, to combat the effect of the warhead to be between C802 and C802A missile that can hit once or sunk below the middle 1500-3000 ton ships.

C705 anti-ship missile guidance system uses inertial navigation system. According to R & D personnel, this new inertial navigation system uses a "digital models inject" the guidance system than the earlier "inertial platform - the computer" or similar type inertial navigation module, the accuracy of both the significantly improved to meet modern warfare munitions SMEs "precision strike" needs.

C705 air-launched anti-ship missile launch way outstripped launchers, which outstripped the aircraft missiles at a distance from the start of the auto-ignition. And the show's debut C705KD space attack cruise missile developed from the C705 is the air-launched version, based on its use of infrared imaging seeker, TV multi-mode imaging guidance system, respectively, for the night / fog different combat environment and good weather conditions during the day and when. To further improve the missile hits, the designer introduced the "man in the loop" missile flight control mode, the data link between man and machine will be connected together through the installation of missiles image command. When the missile, guided by the members of the chain back to the image data to accurately identify the target, and then operate the missile maneuvers until it hit the target. This avoids the land terrain recognition under complex conditions, topography and other issues, relying on human judgment greatly improve the hit rate of the missile. In addition, the missile can also re-select the target in flight, to some extent, improved the problems repeatedly hit the same target. In addition, the missile also has a multi-point route planning capabilities, you can automatically select the attack line, reducing pilot workload.

C705 in Indonesia had already successfully exported and deployed on the Indonesian Navy KCR-40 type fast patrol boats, this model has a certain reputation in the international community. Indonesia and other countries and a large number of Air Force light attack aircraft equipped with slight improvements also can carry multiple pieces C705KD land attack missiles. Due to the modular design of the missile C705 series, just dress different seeker assembly can change the type of the missile strike. Therefore, the state purchased nearly C705 anti-ship missiles can be purchased only IR / TV imaging seeker assembly can have a ground attack capability. Thus pushing, the export of road space C705KD attack cruise missiles should be smooth some.
==
https://i.imgur.com/X8m9Pr1.jpg

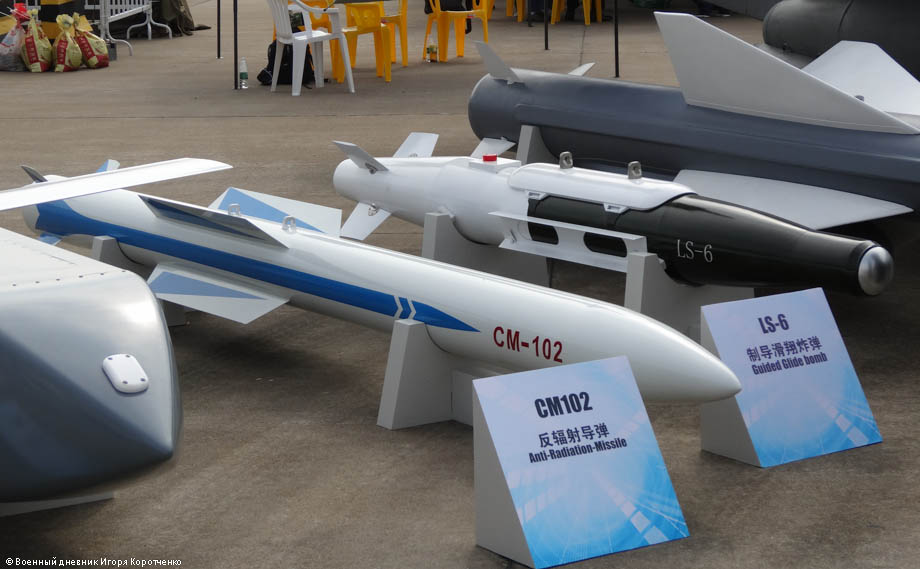

cm102

==
https://i.imgur.com/qzh4IY4.png

https://i.imgur.com/Xe1EHSO.jpg



[Wolfhound]

Data Figure: C705KD base type, C705 anti-ship missile had been successfully exported to Indonesia, the Indonesian Navy Pictured KCR-40 missile test-fired a missile C705

Zhuhai Airshow on Aerospace Science and Industry Corporation debuted C705KD missile weapon system, which is the first land attack C705 anti-ship missile modifications.

C705 series is one of CASIC Third Naval Institute focuses on offensive and defensive combat system construction and development of a series of medium-range anti-ship missiles.According to Science and Industry Hospitals planning, anti-ship missile a complete coastal anti-ship combat system contains mainly by C701 / C704 range anti-ship missiles, C705 / C802A medium-range anti-ship missiles, C602 anti-ship missiles and other remote constitute missile, with a range covering almost, in the remote transmitter platform covers shore, ship-based, submarine-based, air-based, multi-platform work together to achieve all-round precision strikes.

Which, C705 and C802A, although both belong to medium-range anti-ship missiles, but both the power differently. C802A anti-ship missile is mainly responsible for the standoff enemy surface ships and medium-sized fleet, a launch mass of 800 kg (air-launched 600 kg), with a range of 180 km and can carry 190 kg warhead large. Out of the water to hit the 4,000-ton ships.Belonging to medium-range anti-ship missile in the heavy ammunition.

But for medium and small countries, they are also enemies of the basic strength with their neighbors rather, its navy is little more than 4,000 tons of ships, the main displacement ships in these countries tend to have about 2,000 tons, more the small vessels of 1000 tons, speedboats. Powerful and high purchase price of C802A is obviously not the best, not to play both arms of maximum performance, but also increased defense spending. Hospitals Aerospace Science and Industry is aimed at the needs of these small countries, developed and C802A considerable range (up to 140 kilometers), but moderate power of light C705 anti-ship missiles. C705 anti-ship missile combat weight of about 320 kg, only half of the C-802A air-launched quality. The new high-performance warhead mass of about 130KG, reaching 70% C802A warhead quality and accounted for half the weak quality of missiles. Such a light anti-ship missile carrying a warhead components such excellent visibility C705 turbojet engine performance, while maintaining a certain range of the premise of this quality can carry warhead. According to public information and previous reports, because the use of the new charge technology, to combat the effect of the warhead to be between C802 and C802A missile that can hit once or sunk below the middle 1500-3000 ton ships.

C705 anti-ship missile guidance system uses inertial navigation system. According to R & D personnel, this new inertial navigation system uses a "digital models inject" the guidance system than the earlier "inertial platform - the computer" or similar type inertial navigation module, the accuracy of both the significantly improved to meet modern warfare munitions SMEs "precision strike" needs.

C705 air-launched anti-ship missile launch way outstripped launchers, which outstripped the aircraft missiles at a distance from the start of the auto-ignition. And the show's debut C705KD space attack cruise missile developed from the C705 is the air-launched version, based on its use of infrared imaging seeker, TV multi-mode imaging guidance system, respectively, for the night / fog different combat environment and good weather conditions during the day and when. To further improve the missile hits, the designer introduced the "man in the loop" missile flight control mode, the data link between man and machine will be connected together through the installation of missiles image command. When the missile, guided by the members of the chain back to the image data to accurately identify the target, and then operate the missile maneuvers until it hit the target. This avoids the land terrain recognition under complex conditions, topography and other issues, relying on human judgment greatly improve the hit rate of the missile. In addition, the missile can also re-select the target in flight, to some extent, improved the problems repeatedly hit the same target. In addition, the missile also has a multi-point route planning capabilities, you can automatically select the attack line, reducing pilot workload.

C705 in Indonesia had already successfully exported and deployed on the Indonesian Navy KCR-40 type fast patrol boats, this model has a certain reputation in the international community. Indonesia and other countries and a large number of Air Force light attack aircraft equipped with slight improvements also can carry multiple pieces C705KD land attack missiles. Due to the modular design of the missile C705 series, just dress different seeker assembly can change the type of the missile strike. Therefore, the state purchased nearly C705 anti-ship missiles can be purchased only IR / TV imaging seeker assembly can have a ground attack capability. Thus pushing, the export of road space C705KD attack cruise missiles should be smooth some.

Are the counter measures and defenses these cruise missiles are facing aginst aircraft carries and normal frigates and destroyers effective or are the missiles more effective?



[Shabi1]

Data Figure: C705KD base type, C705 anti-ship missile had been successfully exported to Indonesia, the Indonesian Navy Pictured KCR-40 missile test-fired a missile C705

Zhuhai Airshow on Aerospace Science and Industry Corporation debuted C705KD missile weapon system, which is the first land attack C705 anti-ship missile modifications.
C705KD空对地导弹：重量轻巧威力射程不减_新闻_腾讯网
C705 series is one of CASIC Third Naval Institute focuses on offensive and defensive combat system construction and development of a series of medium-range anti-ship missiles.According to Science and Industry Hospitals planning, anti-ship missile a complete coastal anti-ship combat system contains mainly by C701 / C704 range anti-ship missiles, C705 / C802A medium-range anti-ship missiles, C602 anti-ship missiles and other remote constitute missile, with a range covering almost, in the remote transmitter platform covers shore, ship-based, submarine-based, air-based, multi-platform work together to achieve all-round precision strikes.

Which, C705 and C802A, although both belong to medium-range anti-ship missiles, but both the power differently. C802A anti-ship missile is mainly responsible for the standoff enemy surface ships and medium-sized fleet, a launch mass of 800 kg (air-launched 600 kg), with a range of 180 km and can carry 190 kg warhead large. Out of the water to hit the 4,000-ton ships.Belonging to medium-range anti-ship missile in the heavy ammunition.

But for medium and small countries, they are also enemies of the basic strength with their neighbors rather, its navy is little more than 4,000 tons of ships, the main displacement ships in these countries tend to have about 2,000 tons, more the small vessels of 1000 tons, speedboats. Powerful and high purchase price of C802A is obviously not the best, not to play both arms of maximum performance, but also increased defense spending. Hospitals Aerospace Science and Industry is aimed at the needs of these small countries, developed and C802A considerable range (up to 140 kilometers), but moderate power of light C705 anti-ship missiles. C705 anti-ship missile combat weight of about 320 kg, only half of the C-802A air-launched quality. The new high-performance warhead mass of about 130KG, reaching 70% C802A warhead quality and accounted for half the weak quality of missiles. Such a light anti-ship missile carrying a warhead components such excellent visibility C705 turbojet engine performance, while maintaining a certain range of the premise of this quality can carry warhead. According to public information and previous reports, because the use of the new charge technology, to combat the effect of the warhead to be between C802 and C802A missile that can hit once or sunk below the middle 1500-3000 ton ships.

C705 anti-ship missile guidance system uses inertial navigation system. According to R & D personnel, this new inertial navigation system uses a "digital models inject" the guidance system than the earlier "inertial platform - the computer" or similar type inertial navigation module, the accuracy of both the significantly improved to meet modern warfare munitions SMEs "precision strike" needs.

C705 air-launched anti-ship missile launch way outstripped launchers, which outstripped the aircraft missiles at a distance from the start of the auto-ignition. And the show's debut C705KD space attack cruise missile developed from the C705 is the air-launched version, based on its use of infrared imaging seeker, TV multi-mode imaging guidance system, respectively, for the night / fog different combat environment and good weather conditions during the day and when. To further improve the missile hits, the designer introduced the "man in the loop" missile flight control mode, the data link between man and machine will be connected together through the installation of missiles image command. When the missile, guided by the members of the chain back to the image data to accurately identify the target, and then operate the missile maneuvers until it hit the target. This avoids the land terrain recognition under complex conditions, topography and other issues, relying on human judgment greatly improve the hit rate of the missile. In addition, the missile can also re-select the target in flight, to some extent, improved the problems repeatedly hit the same target. In addition, the missile also has a multi-point route planning capabilities, you can automatically select the attack line, reducing pilot workload.

C705 in Indonesia had already successfully exported and deployed on the Indonesian Navy KCR-40 type fast patrol boats, this model has a certain reputation in the international community. Indonesia and other countries and a large number of Air Force light attack aircraft equipped with slight improvements also can carry multiple pieces C705KD land attack missiles. Due to the modular design of the missile C705 series, just dress different seeker assembly can change the type of the missile strike. Therefore, the state purchased nearly C705 anti-ship missiles can be purchased only IR / TV imaging seeker assembly can have a ground attack capability. Thus pushing, the export of road space C705KD attack cruise missiles should be smooth some.
==
https://i.imgur.com/X8m9Pr1.jpg
cm102

==
https://i.imgur.com/qzh4IY4.png
View attachment 161298

https://i.imgur.com/Xe1EHSO.jpg

Those are twin missile rails for SD-10s in the picture.



[592257001]

''iron brother'' is often translated or bar iron

lol indeed, Pakistan(巴基斯坦） is most widely known in China by its nick name, "巴铁"（Pak Steel).

The reason for such name is because the public opinion in China is that the Sino-Pak relationship is strong as steel.

There is absolutely no other nation in the history of PRC that has gotten such high standard name.



[Manticore]



[The SC]

LD 10
lauch platform JF 17
weight 234kG
size： diameter 203mm，4060mm long
rang:60kilometer
inertial guidance +passive radar
lethal radius 15m
translation credits itaskol

Wouldn't that be 15 km for the lethal radius?



[Manticore]

Wouldn't that be 15 km for the lethal radius?

JF-17 Thunder Multirole Fighter [Thread 4] | Page 573

@itaskol



[The SC]

JF-17 Thunder Multirole Fighter [Thread 4] | Page 573

@itaskol

That should be 15 miles then... No actually they use Km but not enough print place for the K in the last line, but they could have started one symbole to the left. let's say it is 15 km since 15 m does not make sense.



[Manticore]



[MastanKhan]

Wouldn't that be 15 km for the lethal radius?

What is it----a nuc warhead----lethal radius is----when the war head explodes---it destroys stuff in the 15 M radius---



[The SC]

What is it----a nuc warhead----Dummies----lethal radius is----when the war head explodes---it destroys stuff in the 15 M radius---

You are right, thought lethal range, but that must be the 60km. Sorry, could not read Chinese.
As 15 m did not make any sense for a missile range, I thought it would be rather 15 km and still found it too short, but it makes all sense when it is about the lethal detonation radius. Thanks.



[datalibdaz]

That should be 15 miles then... No actually they use Km but not enough print place for the K in the last line, but they could have started one symbole to the left. let's say it is 15 km since 15 m does not make sense.

This is 15 Meters... Not Miles or Km's... 15 Meters is the CEP or Circular Error Probability for LD-10 ARM. The Range of Missile is 60 KM's.



[The SC]

This is 15 Meters... Not Miles or Km's... 15 Meters is the CEP or Circular Error Probability for LD-10 ARM. The Range of Missile is 60 KM's.

It is about the lethal radius (LR) which is diffrent than the CEP that describes the detonation point versus the position of the target, meaning the precision of the warhead or lack of it, that it can miss the target by a maximum of 15 meters upon which the explosive power effectiveness is based.
The LR is where everything within that radius will be destroyed upon the explosive detonation of the warhead. So it is (The LR) 15 m for the LD-10 ARM.
