JF-17 Block-3 -- Updates, News & Discussion

[GumNaam]

Any pic of actual WS13 nozzle?

Not on hand bro, but they do look different...



[PakShaheen79]

Yeh tu Block-1 jesa hi hai ... Wings are wider it seems.



[Sabretooth]



[Ultima Thule]

It would if it has distributed camera system like DAS. The undernose EO sensor is not part of that system, DAS is many small cameras distributed all over the airframe.

And J-20 IIR cameras all through out its fuselage just like DAS, if you wanna research it go to J-20 discussion thread on China section



[GumNaam]

If grey material is composite, then most of the wing seems to be composite material.



[Bilal.]

S740 IIR MAWS sensor.

So the position of rear maw has been changed.



[Alpha BeeTee]

Not on hand bro, but they do look different...

ok



[Ultima Thule]

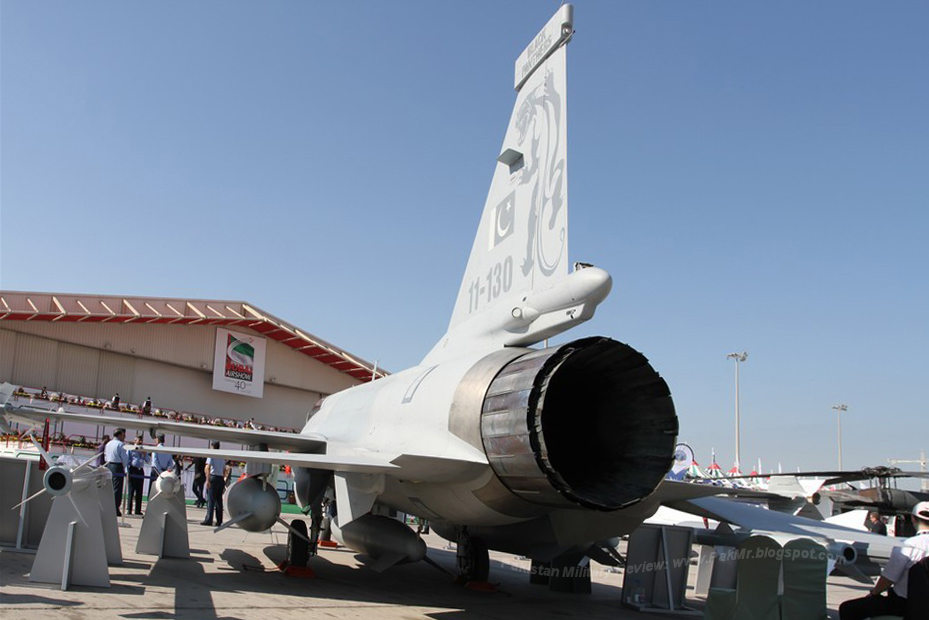

They do look pretty same thoughView attachment 596246 View attachment 596247

No look at the distance of both pics



[Dazzler]

So the position of rear maw has been changed.

Yes. As I said, blk3 is essentially a j10c for paf.

Ws13 was tested on pt06 for years in China



[NA71]

take this ...full image



[Deino]

Shape is different to me from block-2

Swept tail is missing and pitot heads are also fewer

Wait and see

i have to say longer/ thinner and similar nose like L-15

IMO nothing of the so far rumored or hyped things and as I and many other reasonable ones expected, only minor but important changes: No swept tail, no larger wing, no flatter nose - and the prototype surely has no AESA fitted yet - no mayor additional changes but new sensors and systems.

The most important changes are under the skin, which is more or less the same.



[NA71]

MashAllah ....Best ....beautifully designed...cool



[Haris Ali2140]

IMO nothing of the so far rumored or hyped things and as I and many other reasonable ones expected, only minor but important changes: No swept tail, no larger wing, no flatter nose - and the prototype surely has no AESA fitted yet - no mayor additional changes but new sensors and systems.

The most important changes are under the skin, which is more or less the same.

Swept Tail was expected as B3 is based on dual seater.



[kursed]

MashAllah ....Best ....beautifully designed...cool

That hud looks gigantic in this cockpit.
