none-export, PLAAF, radar images are very hard to find. there are more of the export radars.
but there are some things we can infer.

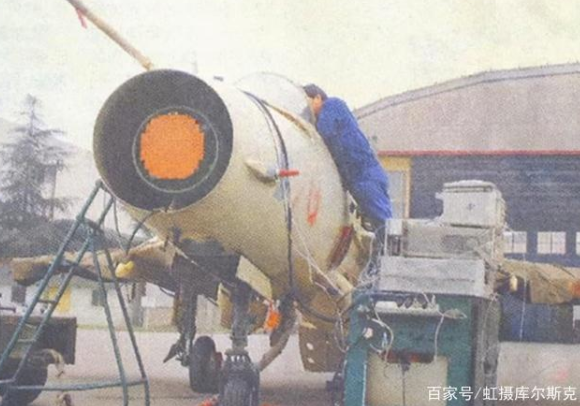

This is the SY-80 for the j-7, its pretty much the same visually to the KLJ-6E which itself is similar visually to the KLJ-6F
As you can see, its pretty small, because of the limitations of the radar dome for the j-7/mig-21 , one of the reason why china builts the j-8 with the intakes at the side allowing for a bigger radar.
View attachment 819402

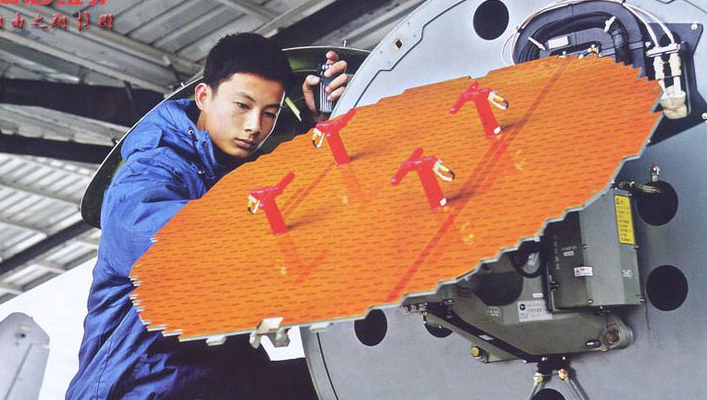

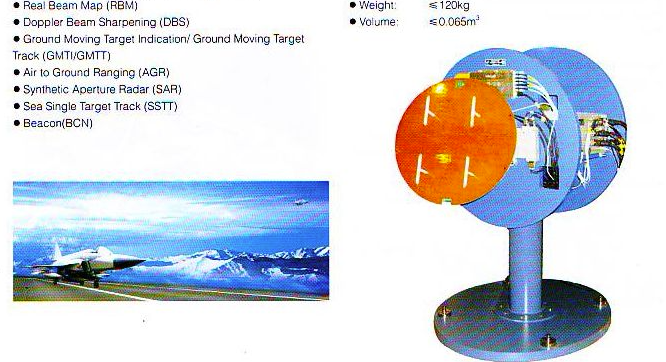

KJL-7, with a clearly far larger size than what can fit on the j-7
View attachment 819403
View attachment 819408
View attachment 819404
KLJ-7A , diameter is going to be roughly the same as the kjl-7, because its for the same plane.

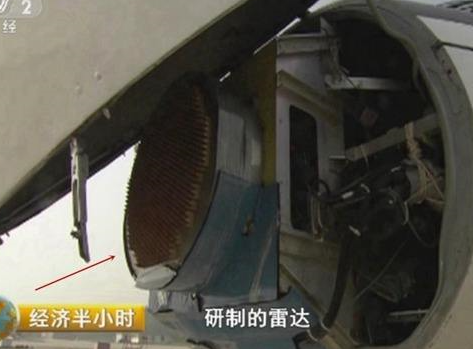

testing in a Y-7 test plane
View attachment 819406

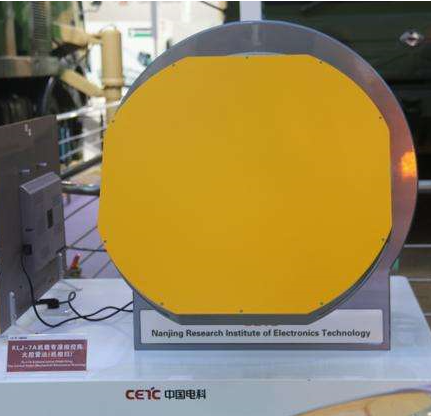

with the cover on
View attachment 819407

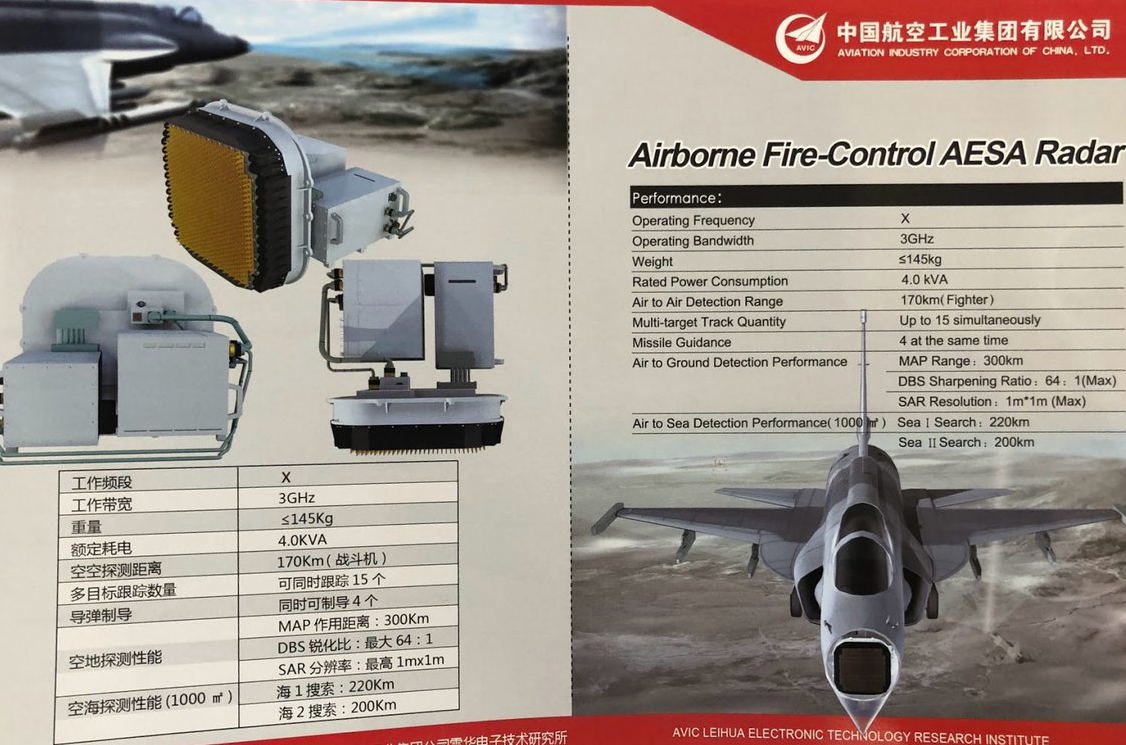

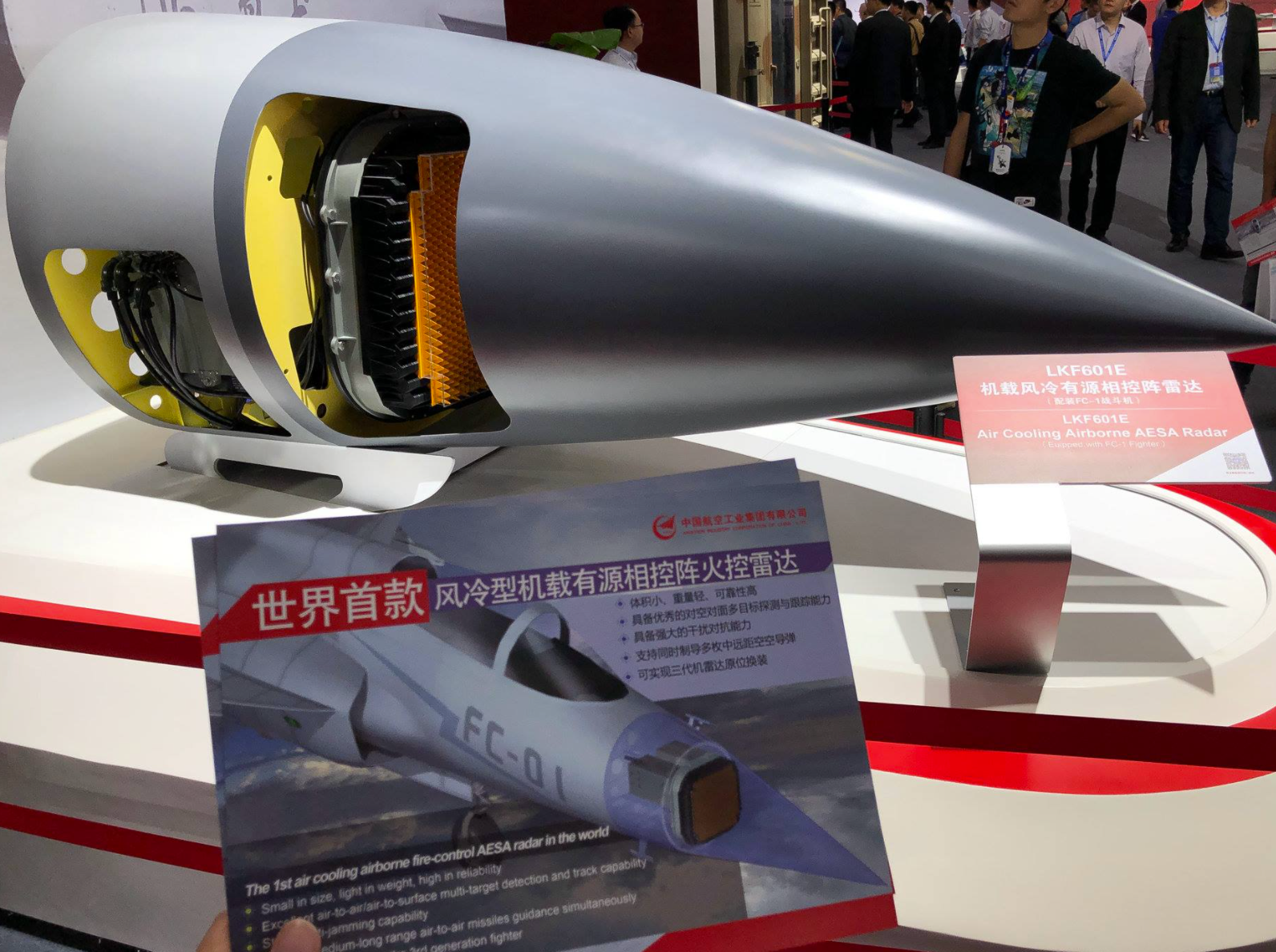

LKF-601E, which lost against the KJL-7A
View attachment 819409
View attachment 819410

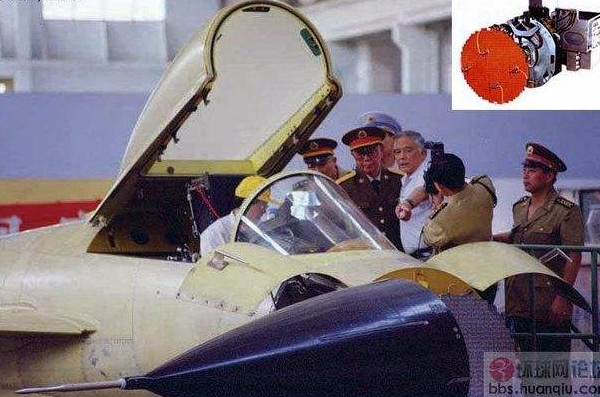

earlier KLJ-3 on the first models of the j-10A

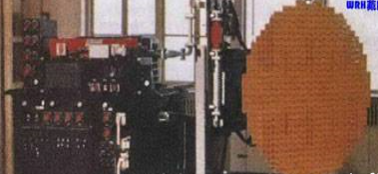

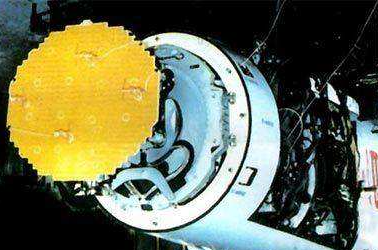

KLJ-3
View attachment 819415
View attachment 819416
View attachment 819417
it isnt confirmed what the KLJ-10/A looks like but there are some images

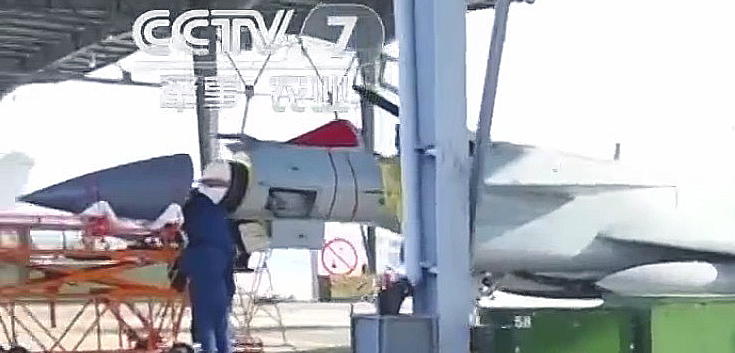

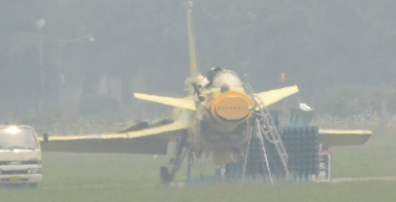

j-10B, people thought this was PESA, but later chinese published media said its ASEA. this might be the KLJ-10
notice that the nose was entirely redesigned and flattened, this design then carried over to the j-10C
View attachment 819420
View attachment 819423

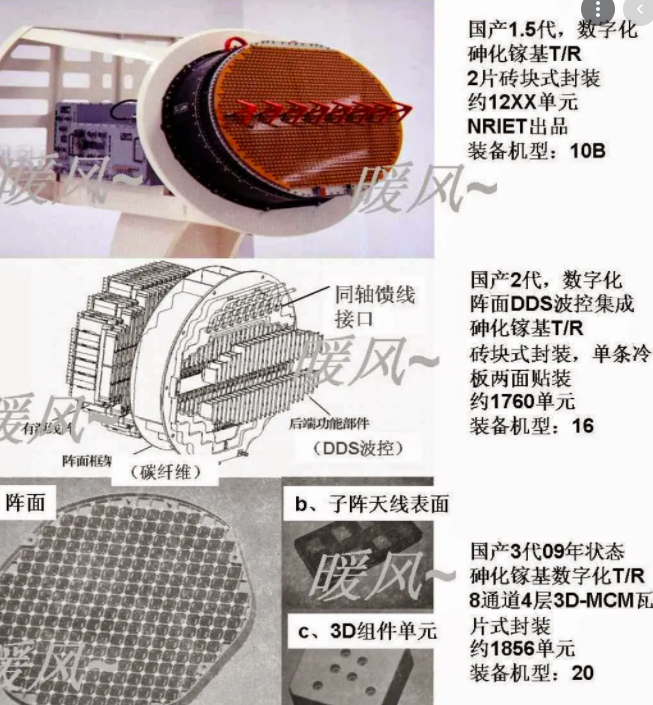

Later this popped up, which is where people got the 1200 T/R count for the j-10C from, it states that this is gen 1.5 of chinese AESAs from NRIET, the middle one being gen 2 for j-16 and bottom one being gen 3 for j-20(also where people got 1800+ T/R for the j-20 from). while this radar is clearly the one on the j-10B image but we have no reason to think the j-10C would have a lesser count.
View attachment 819421

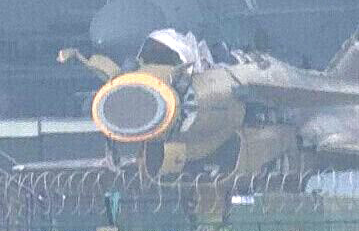

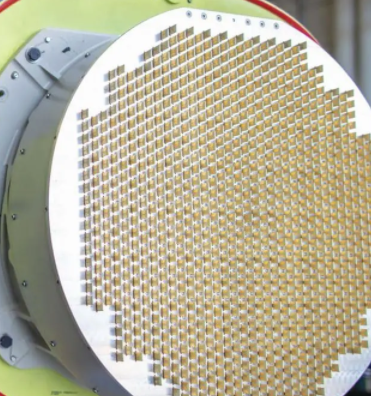

Regardless, most think this is a image of the j-10C radar which should be the KLJ-10A, it would have benefited from the development of the j-16 and j-20 radars.
View attachment 819424
still waiting on your proof that the su-35 in chinese hands has something other the the Ibris-E
Thanks alot.
What do you think is this one? We know it's Chinese and proper BVR capable but it was never disclosed which exact radar from the Chinese sources equips IRIAF F-4E.
It was revealed as Baynaat Fire control SAR radar with close to 150 km range.
