Iranian Air Defense Systems

[TruthHurtz]

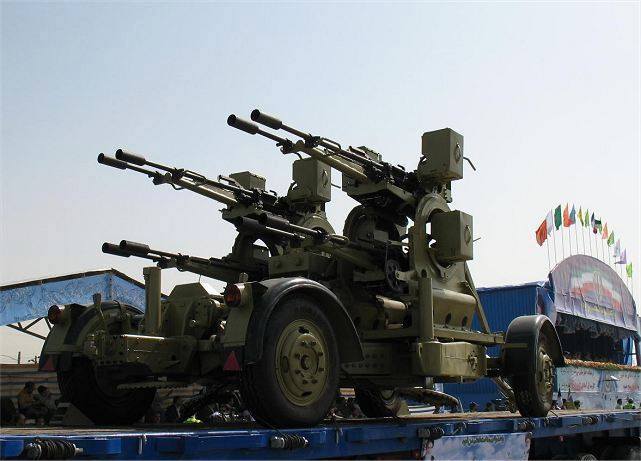

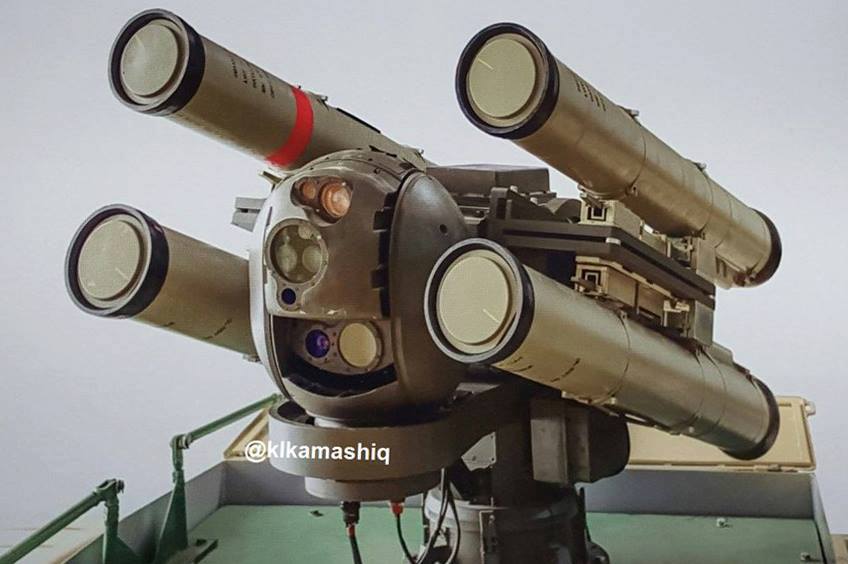

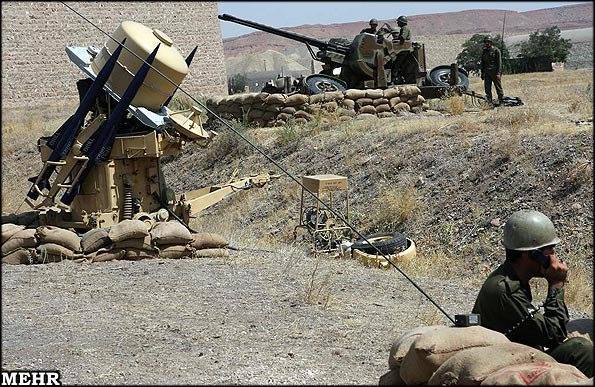

One could imagine an alter Mesbah system that could have an improved Pirooz system or an improved Rapier that sits between the guns in its center. Several configurations can be imagined
View attachment 576105 View attachment 576106 View attachment 576108

All the components are already there. Time for Iran to decide which combination will best suit its purposes.



[arashkamangir]

All the components are already there. Time for Iran to decide which combination will best suit its purposes.

not quite, i think we need faster missile to deal with super fast supersonic and eventually hypersonic treats that fly low. Also against saturation attacks like those carried by the zionists, the faster you can take out a target, the more time you would have to prepare another firing solution and generally open up tracking channels for other targets.

Iran definitely needs a relatively compact, high volume VLS system that is atleast as fast as Tor or faster like Pantsir. I also agree with other folks here to have a separate AAA unit. A separate AAA module will add a layer of redundancy in addition to mechanical simplicity of the designs. You can also diversify AAA calibers as you would have the necessary room.



[Hack-Hook]

wouldn't this design sacrifice firing in motion?

no system actually fire in motion
it depend on how fast you can prepare the missiles



[arashkamangir]

no system actually fire in motion
it depend on how fast you can prepare the missiles

look into Tor system?



[Bahram Esfandiari]

Ogab would also be Ideal to equip Iranian Navy frigates, Corvettes and fast attack missile boats with.



[PeeD]

Some Russian systems like the Tor-M2 have the requirement to fire on the move.
I don't think its really necessary for the Oghab.

Morfey is the layout of a effective next gen. system and from the subsystems it seems Iran is also going for that layout. Pantsir and Tor are legacy layouts by 2019, very high performance but also expensive.
Irans system will get rid of the second radar and employ a single multi-role AESA. If the Oghab is a more primitive design more similar to the Tor or a next gen. system akin to the Morfey, or that the Morfey-like system is a still unknown IRGC-ASF asset.



[arashkamangir]

Some Russian systems like the Tor-M2 have the requirement to fire on the move.
I don't think its really necessary for the Oghab.

Morfey is the layout of a effective next gen. system and from the subsystems it seems Iran is also going for that layout. Pantsir and Tor are legacy layouts by 2019, very high performance but also expensive.
Irans system will get rid of the second radar and employ a single multi-role AESA. If the Oghab is a more primitive design more similar to the Tor or a next gen. system akin to the Morfey, or that the Morfey-like system is a still unknown IRGC-ASF asset.

@PeeD do you have a candidate for the radar in mind?



[PeeD]

@PeeD do you have a candidate for the radar in mind?

Yes, otherwise my speculation would not be so detailed.
But too many enemy "eyes" in here, so no first direct publish policy applies. Information is officially released by Iran, open source.



[Hack-Hook]

look into Tor system?

Tor have a 3min mobility time

But the reaction time of newer generation of tor is around 10sec the system can detect and track while moving but it can't fire while moving it has too stop completely first and then fire the missiles .

Perhaps that may finally answer the mystery of this wind tunnel model.

Somehow look like rapier



[arashkamangir]

Tor have a 3min mobility time

But the reaction time of newer generation of tor is around 10sec the system can detect and track while moving but it can't fire while moving it has too stop completely first and then fire the missiles .


Somehow look like rapier

Dude what are you talking about:



[SubWater]

Dude what are you talking about:

Not only Tor even pantsir have ability to fire when its moving.



[Myself]

Not only Tor even pantsir have ability to fire when its moving.

Enough footages of Soviet-era SAM-8 and 9 exist on Youtube to show the same thing.



[Hack-Hook]

Dude what are you talking about:

Well tor m1-2u do that . the rest must stop fitst



[Mithridates]

Tor have a 3min mobility time

But the reaction time of newer generation of tor is around 10sec the system can detect and track while moving but it can't fire while moving it has too stop completely first and then fire the missiles .


Somehow look like rapier

with an extra booster.



[skyshadow]

Bavar-373 Long Range Air defense system

So Bavar-373 is for export


وی توضیح داد: در غرفه امسال ایران یک نمونه هواپیمای جت آموزشی، چند نمونه هواپیمای بدون سرنشین نزدیک پرواز و دورپرواز و چند نمونه موتور هواپیما عرضه خواهیم کرد.

بنی طرفی در واکنش به این پرسش که آیا سامانه پدافند موشکی جدید ایران با عنوان باور ۳۷۳ نیز در این نمایشگاه به نمایش در خواهد آمد؟، اظهار داشت: این سامانه به تازگی در کشور رونمایی شده است و در نمایشگاه امسال هوا و فضای مسکو شرکت ندارد ، اما قطعا غرفه ایران در این نمایشگاه و نمایشگاه های بعدی در هر کجا جزو بهترین ها خواهد بود.

https://www.irna.ir/news/83453740/نمایشگاه-بین-المللی-هوافضای-روسیه-با-حضور-ایران-آغاز-به-کار-کرد
