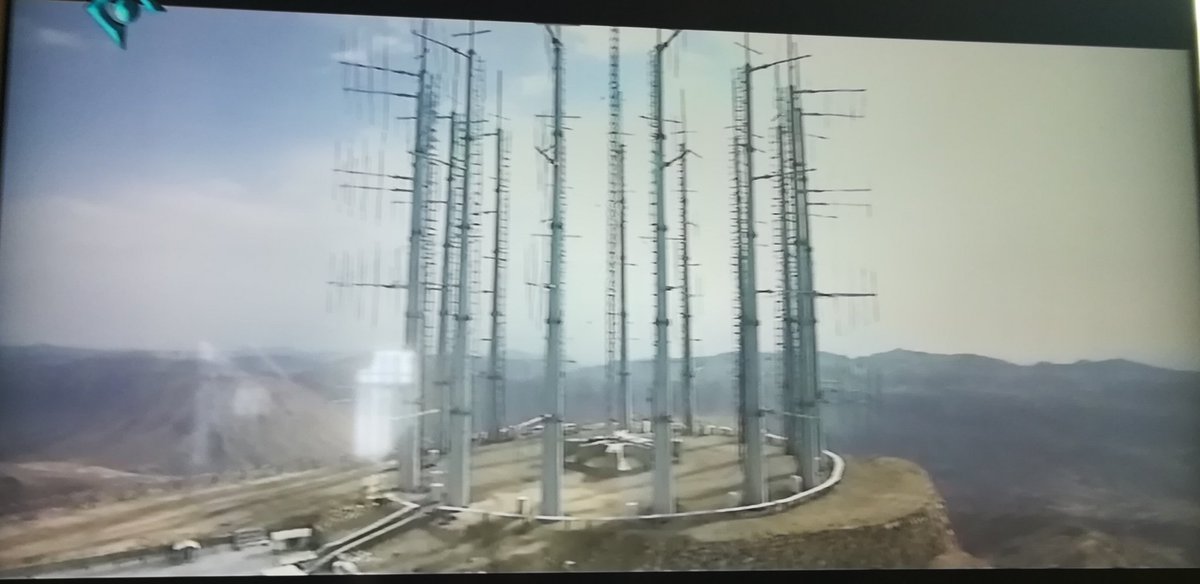

Looks like scenes out of sci-fi movies. Is this a new design?
WinterNights
BANNED
- Joined
- Aug 19, 2018
- Messages
- 1,222
- Reaction score
- -8
- Country
- Location
That's an interesting design, it does not look like what we thought was Sepehr. According to Janes, they thought this was Sepehr:
Looks like alarger version of ghadir radars.
But I love this new design if it is the real Seperh. There's something about it. Looks somehow futuristic like @Arminkh said.
Looks like alarger version of ghadir radars.
But I love this new design if it is the real Seperh. There's something about it. Looks somehow futuristic like @Arminkh said.
WinterNights
BANNED
- Joined
- Aug 19, 2018
- Messages
- 1,222
- Reaction score
- -8
- Country
- Location

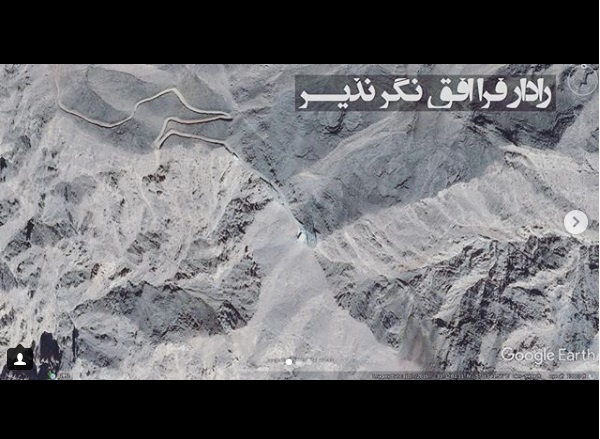

I think you are right, it fits the description, especially it being on a high altitude land
Old vid about Nzir:
TheImmortal
SENIOR MEMBER
- Joined
- Mar 11, 2017
- Messages
- 7,091
- Reaction score
- -12
- Country
- Location
Intresting, what about the south and the West? Iran needs coverage in those areas.
Also it needs to increase the range of their OTH radars.
PeeD
FULL MEMBER
- Joined
- Nov 28, 2014
- Messages
- 1,510
- Reaction score
- 21
- Country
- Location
The Nazir is the second known multi-static radar system in the world of this kind. It is not an OTH-B radar, the Iranian OTH radar in operation is still unknown.
The closest system to it is the Russian Struna-1, but the Nariz Bina combi have a much larger range.
It is kind of a path to a solution for Irans biggest problem and advantage: Mountainous terrain.
OTH-B is one solution, a multi-static network radar another solution.
The Nazir is in so far unique that it is kind of the first "hardened" radar. The circle pattern emitter site can take the punch of enemy weapons and still remain operational or partially so. Almost no other radar offers this and it is a important improvement for a large early warning radar.
The Kayhan radar does the same job, is mobile but lower ranged.

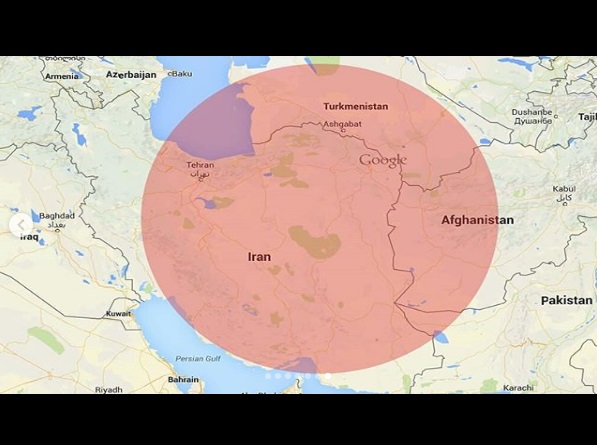

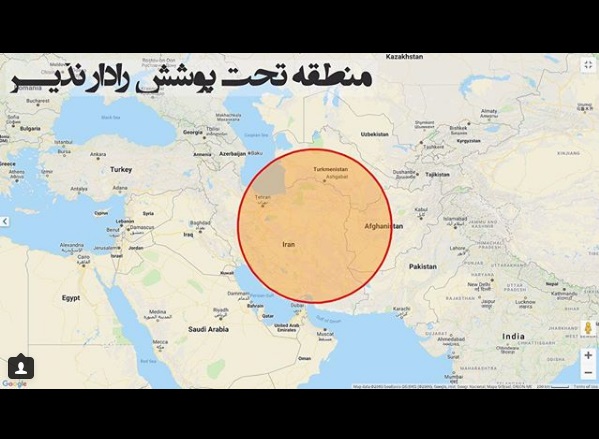

Its low level and anti-stealth capabilities are its most important ones. Each Nazir node could cover a circle of 300-600km. With a dozen Nazir and Binas most of Iranian terrain could be covered.
Honestly speaking, I thought the Keyhan is the mysterious OTH-B operating in Iran. It is not the Ghadir and the Sepehr should be a future ballistic missile early warning radar, not a OTH-B.
The closest system to it is the Russian Struna-1, but the Nariz Bina combi have a much larger range.
It is kind of a path to a solution for Irans biggest problem and advantage: Mountainous terrain.
OTH-B is one solution, a multi-static network radar another solution.
The Nazir is in so far unique that it is kind of the first "hardened" radar. The circle pattern emitter site can take the punch of enemy weapons and still remain operational or partially so. Almost no other radar offers this and it is a important improvement for a large early warning radar.
The Kayhan radar does the same job, is mobile but lower ranged.
Its low level and anti-stealth capabilities are its most important ones. Each Nazir node could cover a circle of 300-600km. With a dozen Nazir and Binas most of Iranian terrain could be covered.
Honestly speaking, I thought the Keyhan is the mysterious OTH-B operating in Iran. It is not the Ghadir and the Sepehr should be a future ballistic missile early warning radar, not a OTH-B.
ashool
FULL MEMBER
- Joined
- Nov 12, 2016
- Messages
- 363
- Reaction score
- -2
- Country
- Location
آزمایش موفق سامانه موشکی باور 373
برد این سیستم 200 کیلومتر و سقف پروازی موشک آن 27 کیلومتر است، موشک این سیستم، ورزیده، چابک و با تکنولوژی نوین ساخت داخل است.
The successful testing of the Missile System bavar 373
برد این سیستم 200 کیلومتر و سقف پروازی موشک آن 27 کیلومتر است، موشک این سیستم، ورزیده، چابک و با تکنولوژی نوین ساخت داخل است.
The successful testing of the Missile System bavar 373
