Single observer passive locating and tracking (SOPLAT) system deployed on J-20

Three hurrays。



[Deino]

Single observer passive location and tracking (SOPLAT) system deployed on J-20

Three hurrays。

Honestly, I've never heard of such a system !!! how does it work ??



[cirr]

Honestly, I've never heard of such a system !!! how does it work ??

It is for the long-range detection of stealth targets。

If my memory still serves，several Chinese research teams，including one from the NUDT，have been hard at work on the technology for years，if not decades。

Do a google search。



[Zarvan]

A Luoyang Electro Optic Research Institute (LEOC) PL-10 5th generation air-to-air missile on a Shenyang J-11. Source: Chinese internet
The Luoyang Electro-Optical Research Institute (LEOC) has largely competed development of its fifth-generation PL-10 short-range air-to-air missile (AAM), according to comments by the missile's designer on a Chinese TV show broadcast in late August.

The PL-10 AAM was first seen on Chinese websites in 2013 being carried on a retractable/covered pylon on the Chengdu Aircraft Corporation (CAC) J-20 fifth-generation fighter. More recently it has been seen on the wingtip pylon of the Shenyang Aircraft Corporation J-11 fighter.

The TV report featured an interview with the PL-10's chief designer, Liang Xiaogeng. According to Mark Stokes of the Project 2049 research institute, Liang also served as the deputy chief designer of LEOC's PL-9C infrared/helmet-sighted AAM and as chief designer of the PL-12 self-guided medium-range AAM.

The report was unusual in that it provided significant historic and performance data about a new weapon before its unveiling at a major arms show or exhibition. For example, the report noted that the PL-10 weighs 89 kg, has a length of 3 m, and a range of 20 km. It has been in development for seven years, a prototype was completed in 2013, and since then has been test-fired 30 times.

The report also noted that the PL-10 has "world class" capabilities that include a "multi-element imaging infrared seeker with anti-jamming capabilities" and indicated that it is capable of high off-boresight attacks and has super manoeuvrability.

Images from 2013 and more recently confirm that the PL-10 uses thrust vectoring vanes in its motor exhaust. These, plus unique large aft fins with a slight forward sweep, likely confer super manoeuvrability.

Like comparable AAMs, the PL-10 probably also uses a new helmet-mounted display (HMD) sighting system.

Want to read more? For analysis on this article and access to all our insight content, please enquire about our subscription options ihs.com/contact




To read the full article, Client Login
(301 of 356 words)

Chief designer reveals data on China's new Luoyang PL-10 AAM - IHS Jane's 360



[bdslph]

j20 will improve a lot on the way wish to see oneday in PAF and BAF color



[cirr]

2016 made its maiden flight at 15:35pm Beijing Time on 18.09.2015.



[Deino]

2016 made its maiden flight at 15:35pm Beijing Time on 18.09.2015.

IMAGES PLEASE !!!!!! ... anyway, congrats to CAC.



[SOHEIL]

2016 made its maiden flight at 15:35pm Beijing Time on 18.09.2015.

PIX



[cirr]

PIX

The first flight lasted some 20 mins。

Pics when available。

IMAGES PLEASE !!!!!! ... anyway, congrats to CAC.

when available，when available。

A J-10B/C has been seen taking test flights with the 14-ton WS-10G（Taihang Gai）



[Deino]

Ohh PLEASE give us more ... both the J-20 '2016' as well as the J-10C with WS-10G !!!

Tatatata ...



[SOHEIL]

14000-ton



[cirr]

14-ton or 14000kgf。



[cirr]

old pic。deleted。



[Deino]

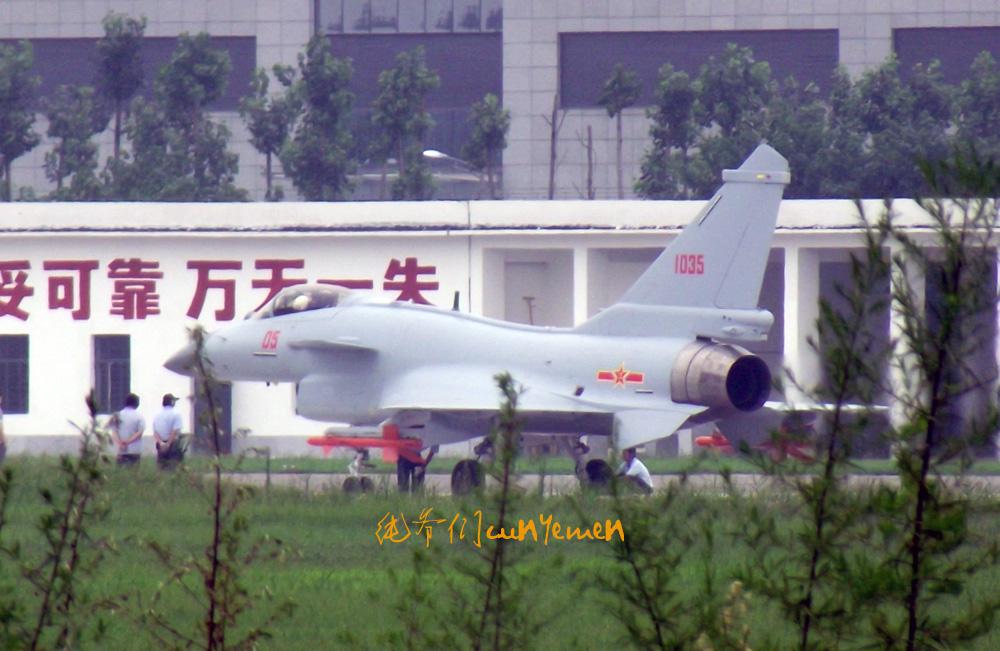

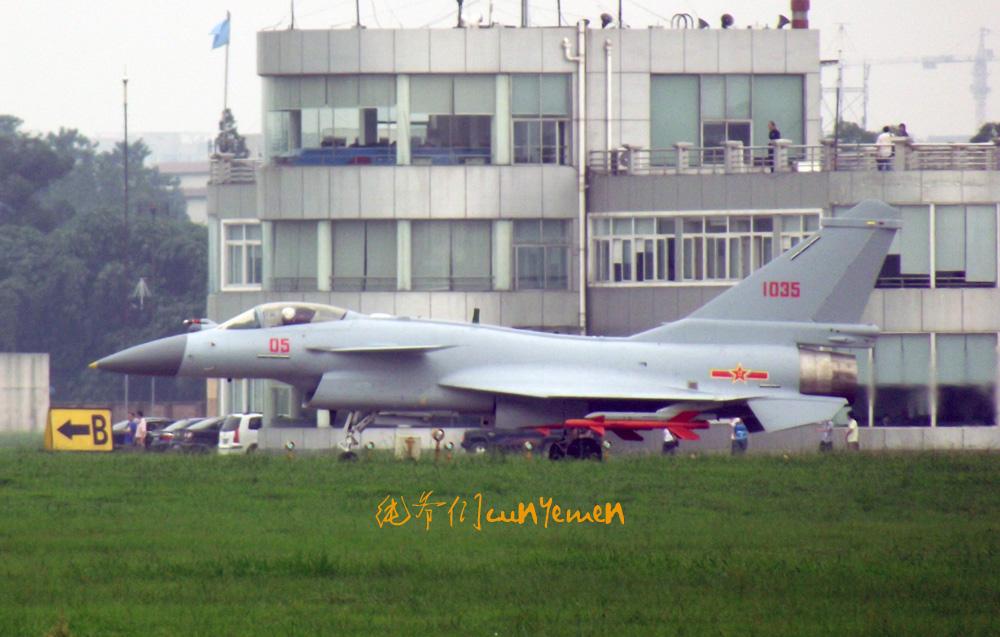

But this is an old image from a series of images taken on 30. July 2011 ... all are J-10B prototype no. 5 serialled '1035' !



[cirr]

But this is an old image from a series of images taken on 30. July 2011 ... all are J-10B prototype no. 5 serialled '1035' !

View attachment 258024 View attachment 258026 View attachment 258027 View attachment 258028
