Chengdu J-20 5th Generation Aircraft News & Discussions

[313baberali]

q chaiiee garam thia



[Deino]

I just tried to find a few similar shots of the other J-20 prototypes ... and quite interesting, '2016' is again more similar to the early birds '2001' & '2002" than to the last four. Biggest change IMO is however that the engine itself seems to be positioned deeper into the airframe ... or that serrated ring is longer !



[ChineseTiger1986]

The old silver nozzled engine used by the prototype 2011.

And the new engine on both 2011 and 2016.



[Deino]

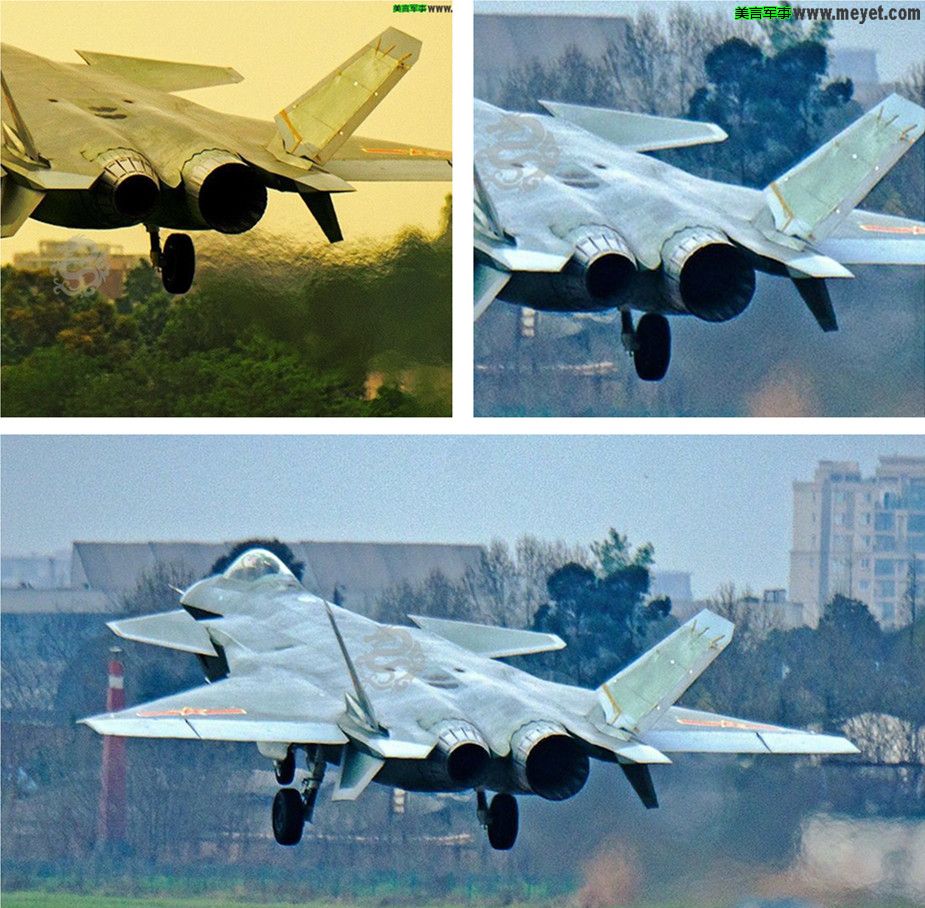

The old silver nozzled engine used by the prototype 2011.

View attachment 257137

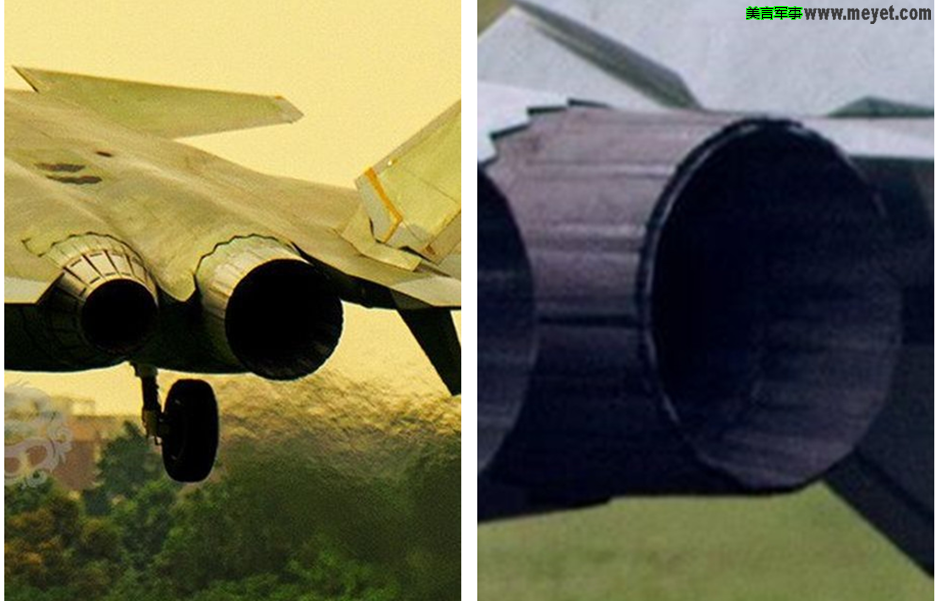

And the new engine on both 2011 and 2016.

View attachment 257138

Nice ... indeed it seems as if that "new" type of engine - or at least '2016's configuration - was already tested before ...

By the way '2016' was already out at CAC in June !



[SOHEIL]

؟؟؟



[Deino]

؟؟؟

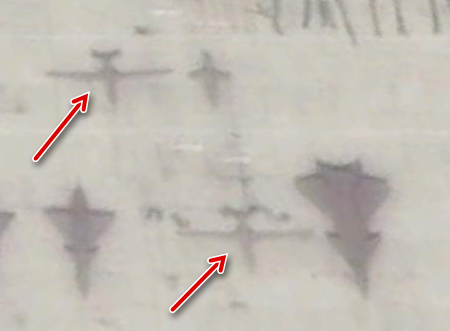

View attachment 257290

These are GJ-1 Wing Loong UAVs manufactured at CAC ! ... but what's that small thing right to the one in the second row ?



[SOHEIL]

@Deino



[cirr]

Beginning this year，practical verification will be carried out on a new thrust-vectoring engine intended for the J-20：



[kuge]

Nice ... indeed it seems as if that "new" type of engine - or at least '2016's configuration - was already tested before ...

By the way '2016' was already out at CAC in June !

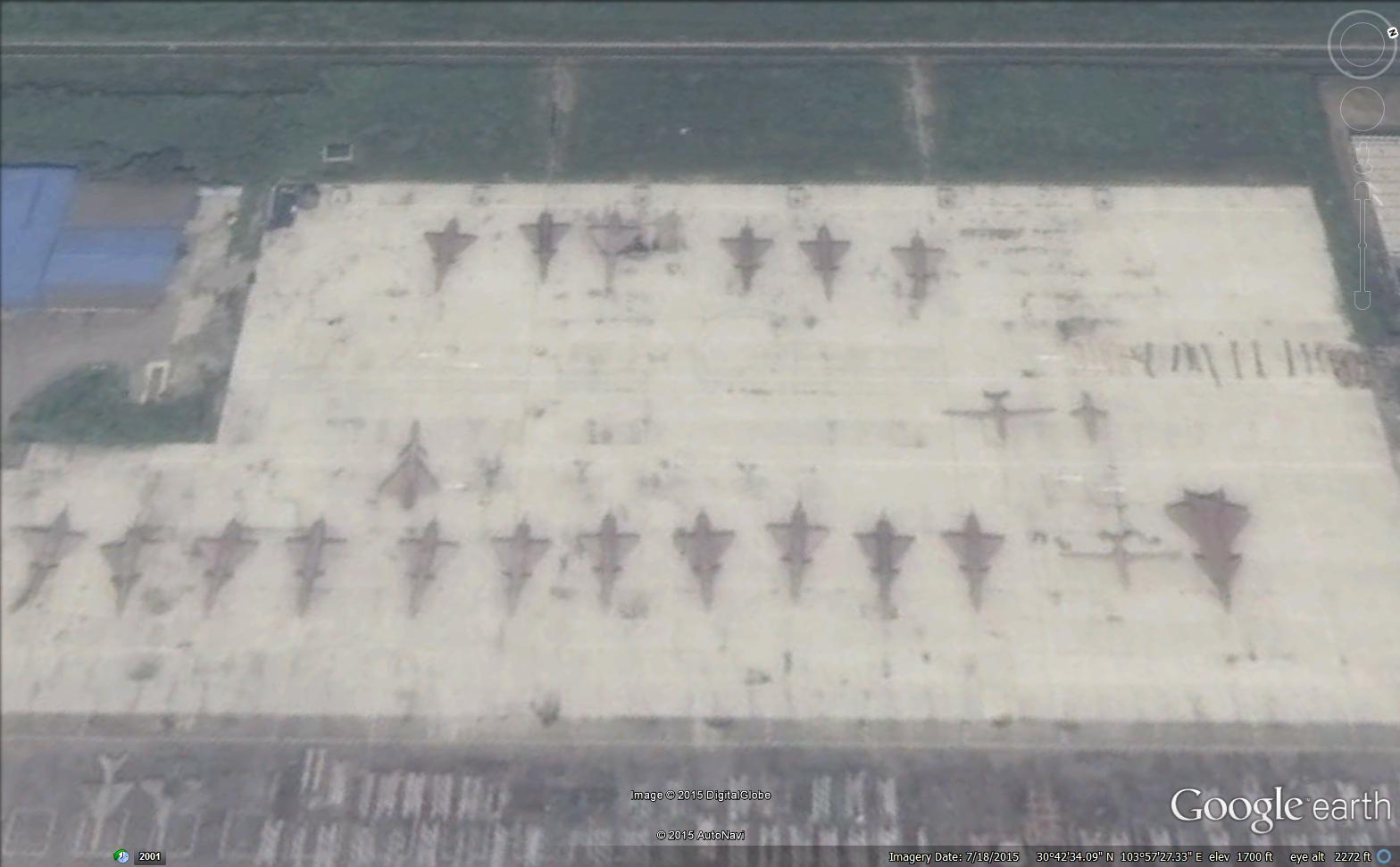

View attachment 257287

how do u tell that it was 2016 in the pic?

The old silver nozzled engine used by the prototype 2011.

View attachment 257137



And the new engine on both 2011 and 2016.

View attachment 257138

is that take off or landing?



[Deino]

how do u tell that it was 2016 in the pic?

Not really a 100%-knowing ... but an assumption based on the fact the all other prototypes have long left Chengdu and at least from what I know, no prototype came back during July.

Deino



[ChineseTiger1986]

is that take off or landing?

Not sure.



[Akasa]

Beginning this year，practical verification will be carried out on a new thrust-vectoring engine intended for the J-20：

The rumor is the WS-15.



[kuge]

Not sure.

i asked that becoz after-burner was not visible. apparently it was landing



[cirr]

Stealthier Stealth? Seventh Upgraded Chinese Stealth Fighter Prototype Aims to take Flight | Popular Science



[Deino]

But we want images !!! ... and even more images showing that beast in the air.

Deino
