Ok let us see the cost of similar size ship with roughly similar capability
Korean Sejong class is 923 million US dollars a ship so and the Type 055 could easily be in the 750-800
million US dollar range.
Two ex PLAN navy frigate joining in 2018 to Bangladesh Navy.
- Thread starter monitor
- Start date
Ok let us see the cost of similar size ship with roughly similar capability
Korean Sejong class is 923 million US dollars a ship so and the Type 055 could easily be in the 750-800
million US dollar range.
monitor
ELITE MEMBER
- Joined
- Apr 24, 2007
- Messages
- 8,570
- Reaction score
- 7
- Country
- Location
The Bangladesh Navy will get its first pair of Type 053H3 guided missile frigates direct from PLAN in 2018. More frigates of the same class will be purchased until BN takes delivery of the indigenously built frigates.
SAM: 1x 8-cell HHQ-7, Command to Line-Of-Sight (CLOS) + electro-optical tracking, 12 km slant range [3]
SSM: 2x 4-cell YJ-83, active radar homing, Mach 0.8 to 180 km range
Guns:
1x H/PJ-33A dual-100 mm/56-calibre, 18 rounds/minute, 8.5 km (against air target) or 15 km (against surface target) range [2]
2x Type 76A dual-37 mm AAA, 180 rounds/minute to 8.5 km range [10]
ASW:
2x 3-cell Type 7424 324 mm torpedo launcher. Yu-7 active/passive acoustic-homing, 45 kg warhead, 28 knots speed, 7.3 km range
2x 6-cell Type 87 240 mm anti-submarine rocket launcher, firing Type 81G rocket-propelled depth charge, 34 kg warhead, 1,200 m range [1]
2x depth charge racks and launcher
Radar:
1x H/LJP-345 SAM / main gun fire-control, J-band [4]
1x electro-optical director (EOD) for SAM target tracking [4]
1x H/LJQ-352 ‘Square Tie’ AShM fire-control [5]
1x H/LJQ-360 air/surface search, E/F-band [7]
1x Type 517H-1 ‘Knife Rest’ 2D long-range air search, A-band [8]
2x H/LJP-347G ‘Rice Bowl’ AAA fire-control, I-band [9]
2x Racal-Decca RM1290 navigation, I-band [6]
Sonar:
Unknown type hull-mounted medium-frequency for active/passive search and attack
Countermeasures:
WD-8 ‘Jug Pair’ interceptor
Type 981-3 jammer
SR-210 radar warning receiver
TM-053 laser warning receiver
HZ-100 electronic intelligence (ELINT) system
Type 651A IFF
2x Type 946/PJ-46 15-barrelled decoy flare/chaff launcher
Propulsion: CODAD
2x Shaanxi Diesel 18E390VA diesel producing 14,000 hp (17.6 kW)
2x MTU diesel producing 8,715 hp (6.5 MW)
Aviation: Stern flight deck and hangar to accommodate one Harbin Z-9C
Type 053H3 / Jiangwei II Class Frigates, China
The Type 053H3 or Jiangwei-II (NATO codename) is a multi-role frigate operated by the People's Liberation Army Navy (PLAN). It is preceded by the Type 053H2G (Jiangwei-I Class) and succeeded by the Type 054 frigates.
Ten Type 053H3 ships were built by Hudong Shipyard and Guangzhou Huangpu Shipyard between 1996 and 2005. Construction of the first frigate, Jiaxing (521) began at the Hudong Shipyard in 1996.
The frigate was entered into service in November 1998. The last ship in its class, Mianyang (528), was launched in May 2004 and entered into service in 2006. The F-22P Class frigates of the Pakistan Navy are based on the Type 053H3.
The Type 053 frigate is primarily intended for a coastal patrol role. It can be deployed in anti-air warfare (AAW) and anti-submarine warfare (ASW) missions too.
The Type 053H3 or Jiangwei-II (NATO codename) is a multi-role frigate operated by the People's Liberation Army Navy (PLAN). It is preceded by the Type 053H2G (Jiangwei-I Class) and succeeded by the Type 054 frigates.
Ten Type 053H3 ships were built by Hudong Shipyard and Guangzhou Huangpu Shipyard between 1996 and 2005. Construction of the first frigate, Jiaxing (521) began at the Hudong Shipyard in 1996.
The frigate was entered into service in November 1998. The last ship in its class, Mianyang (528), was launched in May 2004 and entered into service in 2006. The F-22P Class frigates of the Pakistan Navy are based on the Type 053H3.
The Type 053 frigate is primarily intended for a coastal patrol role. It can be deployed in anti-air warfare (AAW) and anti-submarine warfare (ASW) missions too.
Ideas_R_Bulletproof
FULL MEMBER
- Joined
- Sep 7, 2013
- Messages
- 810
- Reaction score
- 0
- Country
- Location
I love the Type 517H-1 ‘Knife Rest’ 2D A-band long-range air search radar....
that frequency in today's battlefield is awesome....
that frequency in today's battlefield is awesome....
BanglarBagh
FULL MEMBER
- Joined
- May 16, 2017
- Messages
- 205
- Reaction score
- 0
- Country
- Location

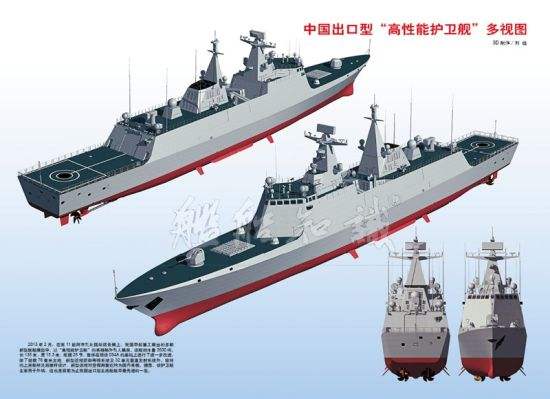

the design looks awesome! if we are getting it this will become the backbone of our naval power projections!! can you share some detailed specifications of the frigate?!!
btw great going BD China friendship!!!
Reichsmarschall
ELITE MEMBER
- Joined
- Feb 16, 2016
- Messages
- 12,109
- Reaction score
- 3
- Country
- Location
what are your Aims for us when we'll buy biggies??
BanglarBagh
FULL MEMBER
- Joined
- May 16, 2017
- Messages
- 205
- Reaction score
- 0
- Country
- Location

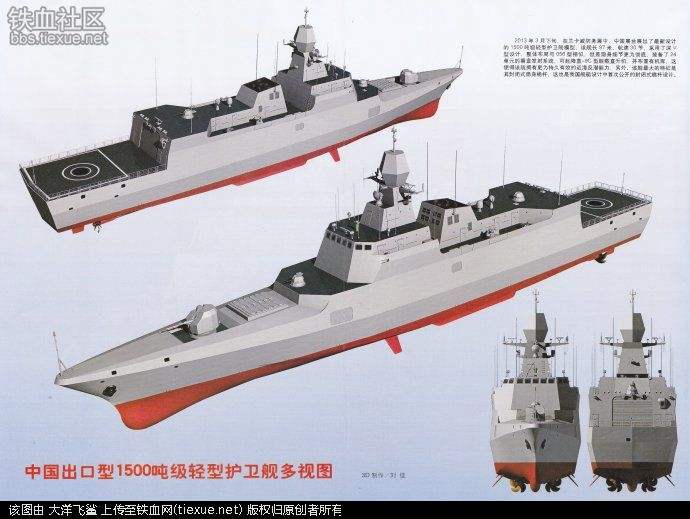

In wiki it says BN wants to procure 8 more next generation corvettes after completing the 8 C-13B corvettes. And the new program states a corvette of 1500 tons. Maybe, this is the design mentioned there!!!
帅的一匹
ELITE MEMBER
- Joined
- Jan 6, 2012
- Messages
- 12,820
- Reaction score
- -3
- Country
- Location
Type 052D
Reichsmarschall
ELITE MEMBER
- Joined
- Feb 16, 2016
- Messages
- 12,109
- Reaction score
- 3
- Country
- Location
lol who will pay for this
