Turkish Air Force - Weapons and Capabilities ( News and Updates )

150 km CAKIR next gen Cruise Missile


Weight : 245 kg
Range : 150 km
Speed : mach 0.9

10 AKINCI UCAV to carry 40 CAKIR Cruise Missiles for swarm attack on enemy Warship
and Game Over !



CAKIR Missile use indigenous KTJ-1750 turbojet Engine




100+ km SIPER block1 Air Defense Missile


Last edited:
KIZILELMA's advantages against F-16 block70 in BVR combat


-- GaN based AESA Radar , EOTS , sensor fusion
-- Stealth design for much lower RCS
-- Internal weapon stations for stealth flight capability
-- No risk to lose Pilot


Lenght
F-16 : 15.06 m
KIZILELMA : 14.70 m

RCS ( m2 )
RAFALE : 1
F-16 Block70 : 1
KIZILELMA : 0.3

1664167921497-jpeg.882576



According to retired Air Pilot major General BEYAZIT KARATAS

KIZILELMA can engage on F-16 Block70 from 90 km away while F-16 Block70 can engage on KIZILELMA from 67 km away and RAFALE can do it from 81 km away

Range of engagement
KIZILELMA : from 90 km
RAFALE : from 81 km
F-16 Block70 : from 67 km

first-look, first-shot, first-kill capability
Even 20 km is impressive when you realize the KIZILELMA has already killed the 4th gen Fighters F-16V a couple times before you visually IDed him.


SELCUK BAYRAKTAR ( Chairman of BAYKARTech )
" When the latest generation sensors and weapons are integrated, KIZILELMA has the potential to shoot down a 4,5 generation fighter jets ""

KIZILELMA to carry 100+ km GOKDOGAN air to air Missiles in internal weapon bays



even in the worst case scenario , KIZILELMA will win the conflict , because of quantity

cost effectiveness ... 4 KIZILELMA in price of 1 RAFALE


Greece buys 24 RAFALE Fighter Jets
and Turkiye can produce 100 KIZILELMA in price of 24 RAFALE


KIZILELMA and F-16 in formation flight
30.04.2023


The first time in the world
Unmanned fighter jet and manned fighter jet flew together at the same time

KIZILELMA to help F-16 for air to air combat
A new era in aviation

1 Turkish KIZILELMA + 1 F-16 against 1 Greek F-16 or RAFALE
1682919623446-jpeg.927151


Technologies planned in the design of the KAAN but not in the F-35


• Directional Infrared Counter Measures .. ( Aselsan YILDIRIM DIRCM)
• Supercruise ..... ( Supersonic flight without afterburner )
• 360° AESA Radar coverage
• IRST infrared search and track system .. ( DAS on the F-35 can not mark )



Directed Infrared Countermeasure System

Directional Infrared Counter Measures (DIRCM) are a class of anti-missile systems produced to protect Aircraft from infrared homing missiles


F-22 : NO
F-35 : NO
J-20 : NO
KF-21 : NO
SU-57 : 101KS-O DIRCM
TF-23 KAAN : YILDIRIM DIRCM

Aselsan YILDIRIM Directional Infrared Counter Measures (DIRCM)

KIZILELMA's advantages against F-16 block70 in BVR combat


-- GaN based AESA Radar , EOTS , sensor fusion
-- Stealth design for much lower RCS
-- Internal weapon stations for stealth flight capability
-- No risk to lose Pilot


Lenght
F-16 : 15.06 m
KIZILELMA : 14.70 m

RCS ( m2 )
RAFALE : 1
F-16 Block70 : 1
KIZILELMA : 0.3

1664167921497-jpeg.882576



According to retired Air Pilot major General BEYAZIT KARATAS

KIZILELMA can engage on F-16 Block70 from 90 km away while F-16 Block70 can engage on KIZILELMA from 67 km away and RAFALE can do it from 81 km away

Range of engagement
KIZILELMA : from 90 km
RAFALE : from 81 km
F-16 Block70 : from 67 km

first-look, first-shot, first-kill capability
Even 20 km is impressive when you realize the KIZILELMA has already killed the 4th gen Fighters F-16V a couple times before you visually IDed him.

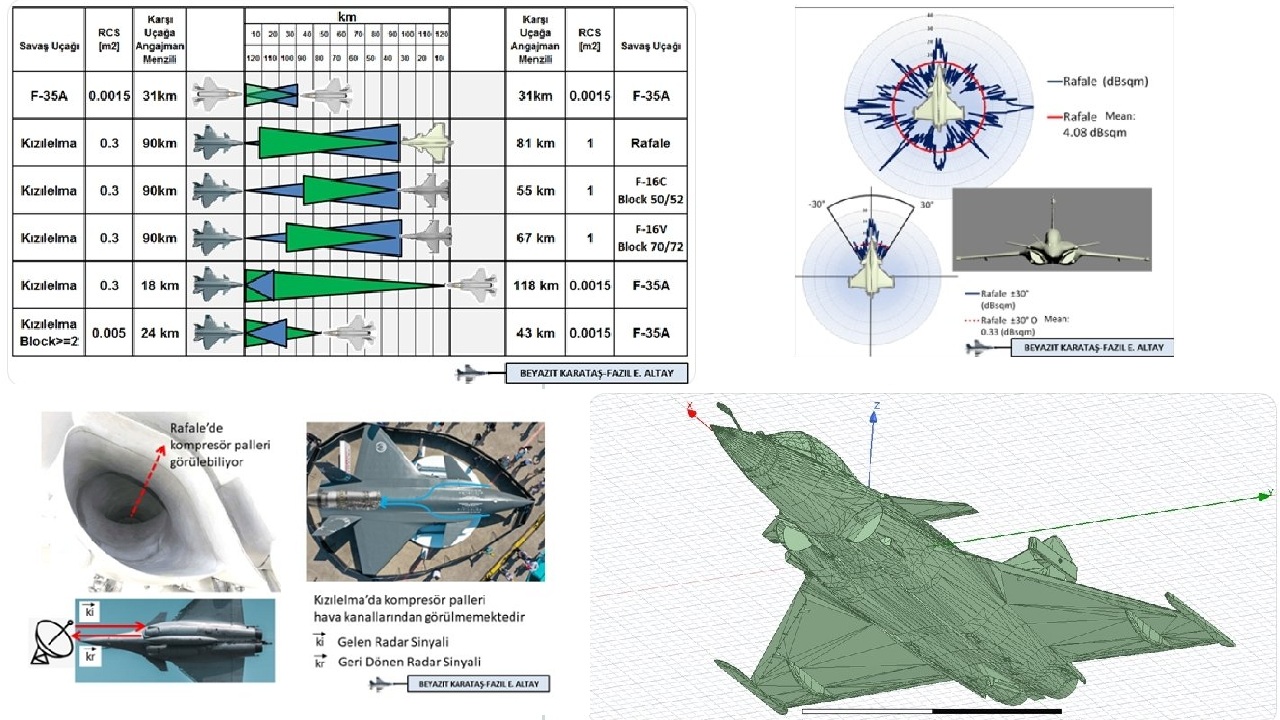

View attachment 933133

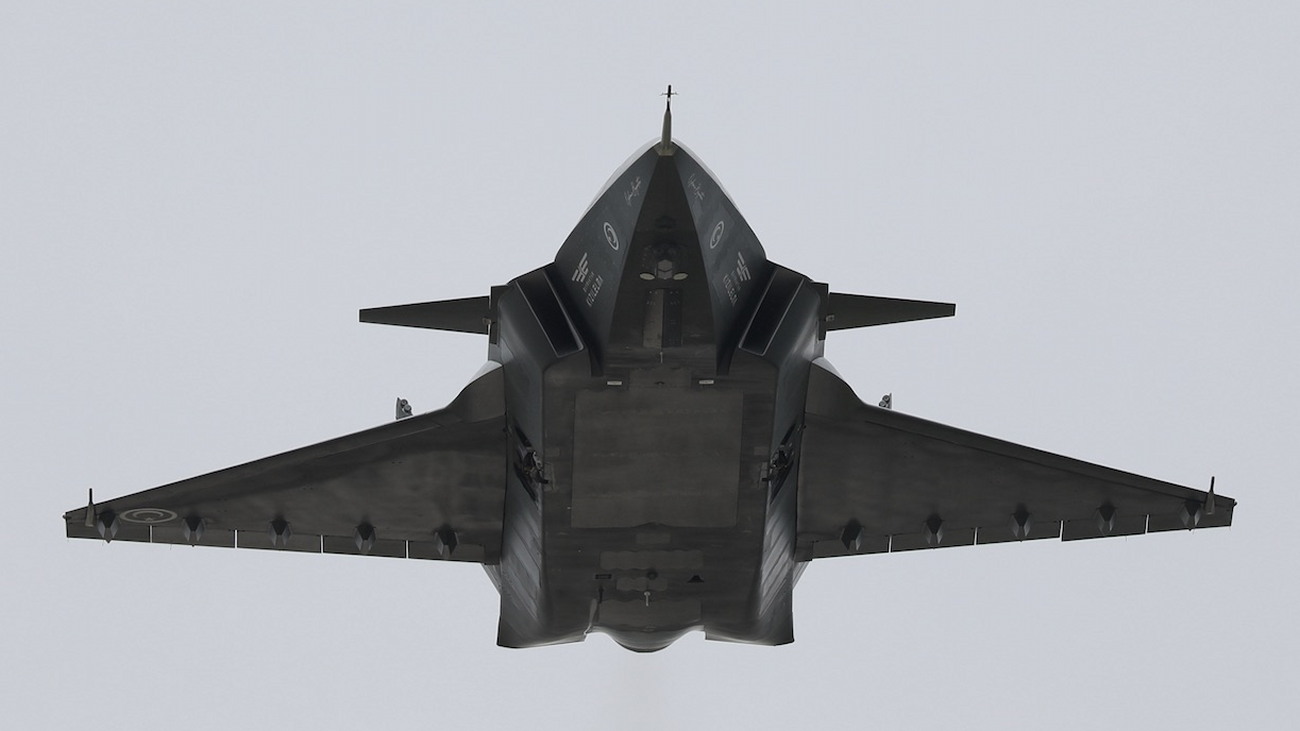

SELCUK BAYRAKTAR ( Chairman of BAYKARTech )
" When the latest generation sensors and weapons are integrated, KIZILELMA has the potential to shoot down a 4,5 generation fighter jets ""
View attachment 933132

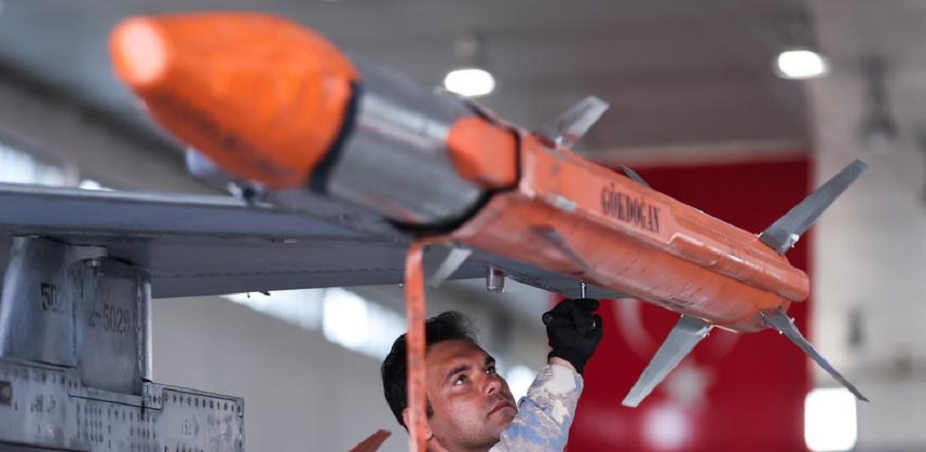

KIZILELMA to carry 100+ km GOKDOGAN air to air Missiles in internal weapon bays
View attachment 933134


even in the worst case scenario , KIZILELMA will win the conflict , because of quantity

cost effectiveness ... 4 KIZILELMA in price of 1 RAFALE


Greece buys 24 RAFALE Fighter Jets
and Turkiye can produce 100 KIZILELMA in price of 24 RAFALE


KIZILELMA and F-16 in formation flight
30.04.2023


The first time in the world
Unmanned fighter jet and manned fighter jet flew together at the same time

KIZILELMA to help F-16 for air to air combat
A new era in aviation

1 Turkish KIZILELMA + 1 F-16 against 1 Greek F-16 or RAFALE
1682919623446-jpeg.927151

You're doing this again. And then you wonder,why people reply to your posts.

You've been boasting that Turkey is only comparable to bigger countries and that Greece,Egypt,Israel etc. are nothing for you.

YET what you do,once again and in a provocative manner like always.....is comparing your new products with the HAF.

You're doing this again. And then you wonder,why people reply to your posts.

You've been boasting that Turkey is only comparable to bigger countries and that Greece,Egypt,Israel etc. are nothing for you.

YET what you do,once again and in a provocative manner like always.....is comparing your new products with the HAF.

change your profile pick back, I couldn't even recognize you. lol

HURJET next gen Trainer and light combat Aircraft


HURJET stayed in the air for a total of 6 hours and 16 minutes
and performed flight control system, air data system and aircraft system tests


Length : 13 m
Wingspan : 9.8 m
Maximum speed : Mach 1.4
Range : 2,222 km
Payload : 2,700+ kg
Service ceiling : 13,716 m (45,000 ft)
G limits: +8/-3 g
Powerplant : 1 × F404-GE-102 afterburning turbofan, 78 kN (17,600 lbf) thrust

Capabilities
-- air-to-air refuelling
-- fly-by-wire with parameter limiting
-- night vision goggle-compatible cockpit
-- head-up display
-- integrated helmet display system





HURJET will be equipped with AESA Radar and Missiles for close air support.

Modern Cockpit

Aircraft modernization between ASELSAN and TAI two contracts with a total value of $2 billion were signed



The deal could be like this

the first contract 2,618,751,172 TL and 132,078,069 USD for F-16 block30s
the second contract 20,692,040,818 TL and 1,197,381,949 USD for F-16 block40s and block50s


Turkish Air Force has 237 F-16 Fighter Jets
-- 35 F-16 block 30
-- 102 F-16 block 40
-- 71 F-16 block 50
-- 29 F-16 block 50+




Aselsan MURAD GaN based AESA Radar



Aircraft modernization between ASELSAN and TAI two contracts with a total value of $2 billion were signed



The deal could be like this

the first contract 2,618,751,172 TL and 132,078,069 USD for F-16 block30s
the second contract 20,692,040,818 TL and 1,197,381,949 USD for F-16 block40s and block50s


Turkish Air Force has 237 F-16 Fighter Jets
-- 35 F-16 block 30
-- 102 F-16 block 40
-- 71 F-16 block 50
-- 29 F-16 block 50+

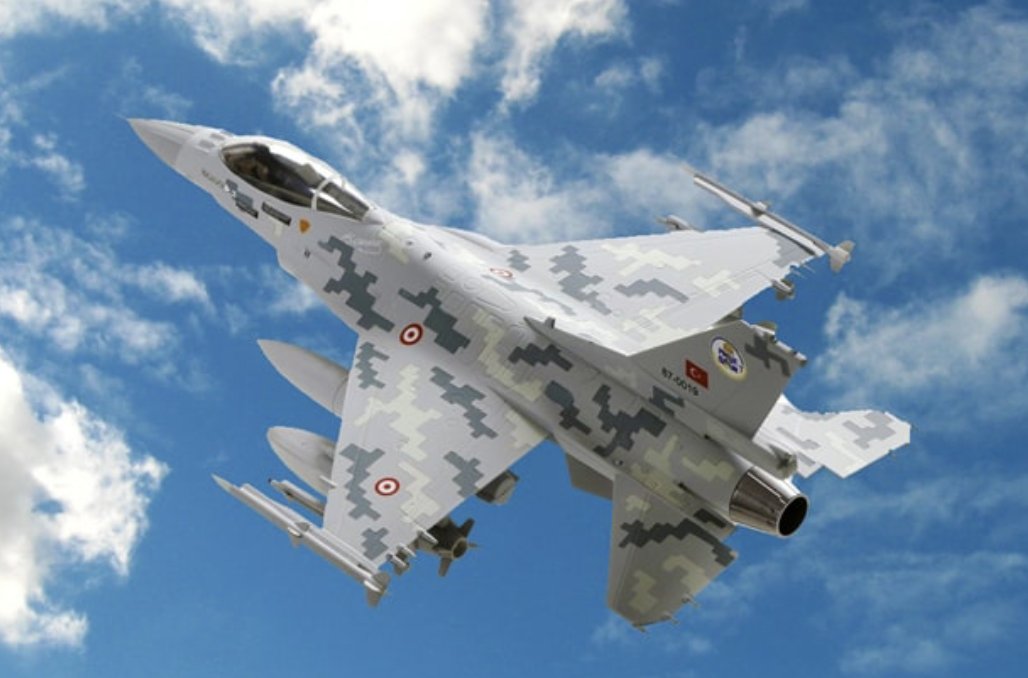

View attachment 938922

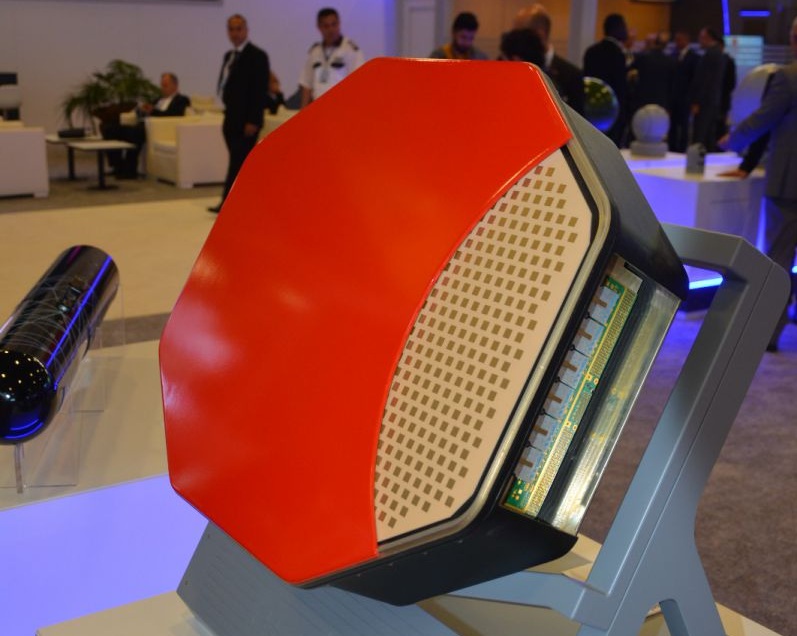

Aselsan MURAD GaN based AESA Radar
View attachment 938923


So which planes are getting the Viper upgrade from the US and which planes are getting the Ozgur upgrades? and what is the difference between those two upgrades?

OZGUR-2 modernization will be more capable than Hellenic Air Force VIPER modernization



-- MURAD AESA Radar ( GaN )
-- FEWS Fighter Electronic Warfare Suite
-- IFF System
-- T Link
-- 9681 V/UHF air radio
-- ASELPOD Targeting Pod
-- Havelsan EHSIM RF expendable decoy
-- SOM-J next gen stealth Cruise Missile
-- GOKHAN ramjet powered long range networked a2a missile


EHSIM RF expendable decoy to provide protection against RF guided missiles





SSB President Prof. Dr. Haluk Görgün: (F-16 modernization)

OZGUR-2 modernization will be more capable than VIPER


Ahmet Akyol, General Manager of ASELSAN:

With the F-16 modernization, we will offer our F-16s more than 20 technologies.

The Turkish Air Force will gain a very serious capability


The Future Expectations of The Turkish Air Force
( 2030 )




-- Egyptian Air Force lacks AIM-120 for F-16s and METEOR for Rafales

-- Greece aims to establish airspace superiority against Turkiye with new aircraft purchases in a short time until 2027

but , it will take 3 years to regain airspace superiority against the Hellenic Air Force


This is how the Air Forces in the region in 2030

Russia : MIG-35 , SU-34 , SU-35 , SU-57
Israel : F-15 , F-16 , F-35
Egypt : F-16 , MIG-29M2 , Rafale ... ( F-15 and Eurofighter on agenda )
Greece : F-16 , Mirage-2000 , Rafale ... ( F-35 on agenda )
Iran : buys 24 SU-35s

In 2030 Turkish Air Force will be one of the best in the world
-- 200 F-16 block70 ( OZGUR-1/2 modernization ) Fighter Jets
-- 20 KAAN Fighter Jets in 2028 and 24 units per year
-- Dozens of KIZILELMA unmanned stealth Fighter Jets
-- Dozens of ANKA-3 flying wing deep strike stealth UCAVs
-- 700 km SUPER SIMSEK kamikaze Drones with speed of mach 0.85
-- GOKHAN ramjet powered long range a2a missile which will be superior to METEOR
-- AKINCI strategic strike UCAVs and HURJET Fighter Jet for CAS mission
-- REDET-II next gen Radar Electronic Warfare System
-- 4 HAVASOJ stand off jammer Aircraft
-- 4 Boeing E-7T AEWCs with 600 km MESA Radar
-- Superior Radar Systems ,, QUANTUM Radar , 450-600 km ERALP early warning AESA Radar
-- Superior Air Defense capability with S400 , HISAR-O , GOKDEMIR and SIPER



1 -- 200 F-16 block70 ( OZGUR-1/2 modernization ) Fighter Jets

OZGUR-2 modernization will be more capable than Hellenic Air Force VIPER modernization

-- MURAD AESA Radar ( GaN )
-- FEWS Fighter Electronic Warfare Suite
-- Digital Cockpit
-- National Friend-Foe Identification (IFF) System
-- National Mission Computer
-- T Link ... Link-16 data link
-- 9681 V/UHF air radio
-- Night Vision Cueing and Display (NVCD)
-- Multifunction Cockpit Center Display Active Matrix Liquid Crystal Display
-- Inertial Navigation System
-- National Sound Safety Device
-- TULGAR Helmet-Mounted Display System (HMDS)

-- BOZDOGAN WVR Air to Air Missile
-- GOKDOGAN BVR Air to Air Missile

-- ASELPOD Targeting Pod
-- Havelsan EHSIM RF expendable decoy
-- SOM-J next gen stealth Cruise Missile
-- AKBABA anti-radiation Missile
-- GOKHAN ramjet powered long range networked Air to Air Missile

after OZGUR modernization
Turkish F-16s will be the deadliest VIPERs in the World



2 -- 29 F-16 block50+


-- Joint Helmet Mounted Cueing Systems (JHMCS)
-- AIM-9x WVR Air to Air Missile
-- AIM-120C7 BVR Air to Air Missile
-- HARM anti-radiation Missile
-- SLAM-ER land attack Cruise Missile



3 -- AKINCI strategic strike UCAV and HURJET Fighter Jet for CAS mission

AKINCI UCAV and HURJET armed with most modern missiles/guided munitions to hunt enemy Tanks , Howitzers , MLRS , AD Systems and Warships

-- 30 km MAM-T laser guided munition
-- 50 km MAM-T IIR+TV , RF datalink
-- 60 km KGK-SIHA-82 guided Bomb with active radar homing and RF datalink
-- 80 km TOLUN IIR guided munition
-- 150 km IHA-230 supersonic missile
-- 150 km CAKIR cruise missile
-- 180 km KUZGUN-TJ missile with IIR or RF seeker
-- 275 km SOM cruise missile with IIR seeker



and Turkish UCAVs have great electronic countermeasure technology which is highly resistant to EW Systems

HURJET
Length : 13 m
Wingspan : 9.8 m
Maximum speed : Mach 1.4
Range : 2,222 km
Payload : 2,700+ kg
Service ceiling : 13,716 m (45,000 ft)
G limits: +8/-3 g

-- AESA Radar
-- air-to-air refuelling
-- fly-by-wire with parameter limiting
-- night vision goggle-compatible cockpit
-- head-up display
-- integrated helmet display system




4 -- 20 KAAN Fighter Jets as of 2028

and production capability of 24 units per year

stealth design , internal weapon bay , AESA Radar , IRST , EOTS , TULGAR HELMET
and GOKHAN ramjet powered long range networked Air to Air Missile

No need even dogfight .. to hunt MIG-29M2 , SU-35 , Rafale , F-15 and F-16Vs in BVR combat




5 -- KIZILELMA unmanned stealth Fighter Jet


KIZILELMA has same advanced characteristics as 5th-generation Fighters

-- High situational awareness with EOTS and AESA Radar
-- Stealth design featuring a low radar signature
-- Internal weapon bay for stealth flight capability
-- Smart fleet autonomy equipped with artificial intelligence

there will be 2 engined supersonic variant

Stealth capability , AESA Radar and 100+ km GOKDOGAN air to air missile to turn KIZILELMA into lethal platform


LENGTH
JF-17 : 14.32 m
Mirage-2000 : 14.36 m
JAS-39D GRIPEN : 14.80 m
F-16 : 15.06 m
Rafale : 15.27 m
KIZILELMA : 14.70 m

RCS ( m2 )
RAFALE : 1
F-16 Block70 : 1
KIZILELMA : 0.3

Range of engagement
KIZILELMA : from 90 km
RAFALE : from 81 km
F-16 Block70 : from 67 km

first-look, first-shot, first-kill capability
Even 20 km is impressive when you realize the KIZILELMA has already killed the 4th gen Fighters F-16V a couple times before you visually IDed him





6 -- ANKA-3 flying wing deep strike stealth UCAV

Speed : mach 0,7
Altitude : 40.000 feet
MTOW : 6.500 kg
Payload : 1.200 kg
Endurance : 10 hours

AESA Radar
LoS/BLOS (Satellite Control) capabilities

SEAD/DEAD role
Strategic strike
Deep strike

-- Full of composite material
-- Internal weapon bay
-- The exhaust will be inside the body to reduce its RCS
-- The infrared trace will be reduced by mixing the cold air with the hot air of the engine
-- The V-shaped aircraft does not have horizontal and vertical stabilisation to reduce RCS

A total of 7 weapon stations, one under the fuselage, 2 internal and 4 under the wings




7-- GOKHAN ramjet powered long range networked Air to Air Missile

RaMjet powered GOKHAN will be superior to the METEOR in speed and in technological capability with the next generation seeker , two-way datalink , expanded no-escape envelope, improved high angle off-boresight capability , etc




8 -- SUPER SIMSEK kamikaze Drone

Super SIMSEK will be able to perform air-to-ground, air-to-air attack missions, to be equipped with electronic warfare systems within its own capacity, to detect enemy systems on the ground and to suppress them.

also SUPER SIMSEK as a cruise missile in one of its latest versions. with a range of over 700 km

Range : 700 km
Weight : 200 kg
Warhead : 35-50 kg
Speed : up to mach 0.85




9-- REDET-II next gen Radar Electronic Warfare System

to jam and paralyze enemy Radars from 200 km away




10 -- 4 HAVASOJ stand off jammer Aircraft

The HAVA SOJ will be able to detect, identify , deceive and blind enemy communication systems and radars (air defense, early warning, etc )

to jam and paralyze enemy Radars from 400 km away

Airborne version of land based REDET-2 Radar Electronic Warfare System




11-- Superior Radar Systems

450-600 km ERALP early warning AESA Radar


Aselsan ERALP is a new generation S-Band radar developed for long range early warning, with its AESA and digital beamforming antenna architecture. EIRS has the ability to detect and track air breathing targets, ballistic missiles, anti-radiation missiles and stealth/low RCS targets from very long ranges


4 Boeing E-7T AEWCs with 600 km MESA Radar

The radar is capable of simultaneous air and sea search, fighter control and area search, with a maximum range of over 600 km (look-up mode)

The radar antenna array is also doubled as an ELINT array, with a maximum range of over 850 km at 9,000 metres (30,000 ft) altitude




12 -- Superior Air Defense capability with S400 , HISAR-O , GOKDEMIR and SIPER

Turkish airspace and EEZ under production


S400
The S-400 air defense system is universal for destroying all types of aerodynamic targets and Ballistic Missiles with range of up to 3,000 km

Turkiye bought 36 Launchers with 192 missiles for $2,5 billion

-- 91N6E Big Bird Radar without the Russian IFF
-- 96L6E Cheese Board

Turkish IFF and radar software

Max Radar range : 600 km

380 km 40N6E Missile
250 km 48N6E3 Missile

HISAR-0 RF

GOKDEMIR

SIPER

Last edited:
Upcoming Great A2/AD capability of the Turkish Armed Forces




Enemy Air Force can not cross the 25th meridian in the Agean



S400 Air Defense System to block all Aegean against enemy Air Forces

250 km 48N6E3 Missile with speed of mach 5.9
380 km 40N6E Missile with speed of mach 3,5

600 km BIG BIRD Radar

36 Launchers with 192 missiles





SIPER Air Defense System

150 km SIPER Block-2 Missile
450+ km AESA Radar





LeGenD


Your post is unfair

HISAR O+ shot down a drone in a test.
SIPER shot down a drone in a test.

These showings prove that HISAR O+ and SIPER can take care of NATO standard weapon systems?

Seriously man.

Every Air Defense System in the World shot down target Drone in tests


Franco-Italian SAMP-T shot down a Fighter Jet in a test ? NO
Franco-Italian SAMP-T shot down a Fighter Jet in a real conflict ? NO
then SAMP-T
can take care of NATO standard weapon systems ?


All Turkish Weapons have NATO standard ..
even better in some fields .. for example UCAV technology


sooner or later Turkish AD Systems will be battle proven in Syria , Libya or in the Aegean and in the Eastern Mediterranean as like Turkish UCAVs

Everybody can see high quality in Turkish Weapon Systems

HISAR-O/RF

-- State of the art IIR and RF seekers
-- Vertical Launch Capability with 360° Effectiveness
-- Dual-Stage Rocket Motor
-- Thrust Vector Control System
-- Impact and Proximity Fuze
-- Hit to kill technology
-- One-Way Data Link


TRMOTOR
General Manager Prof. Dr. Osman Saim Dinç

"We aim to install KAAN's domestic engine in 2029"

We are working with all our strength, there are over 650 design engineers, some in Ukraine, some in Eskişehir, some in TR Motor Ankara..."


We have been working with TEI and Ukraine (Ivchenko Progress) on the engine of the National Combat Aircraft KAAN for 1,5 years.





Military Forum Latest Posts

Back
Top Bottom
