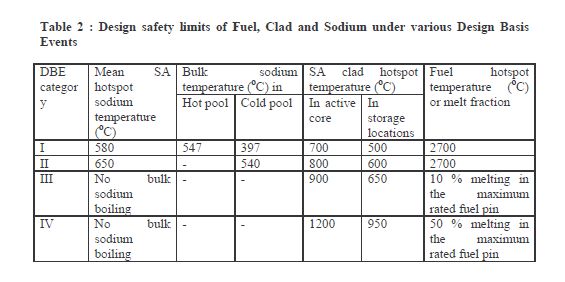

View attachment 314927

and some article that appeared in swrajyamarg
http://swarajyamag.com/magazine/building-the-fbr


i am paging @anant_s
He is the best man when it comes to reactors... and also @Chanakya's_Chant

Hopefully they can give more updates

Thanks but i was interested in FBR not Prototype. Whether the proposal for next FBR has been put up or some preliminary work done on sight selection. PFBR is a TD and has more less validated the design. I wish they could take help on certain things but with the NSG thingie still pending let's see. The problem is that there is not much interest int'ally and Indian design still has a lot of question marks with scalablity.

.
Project pralay
The process of dissolution and destruction of the universe...

I have a gut feeling its a high speed Anti Radiation Missile (HARM). Since, its being made by RCI...

On top its shaping.. see this

images


upload_2016-6-30_22-29-20-png.314907


and

.
Thanks but i was interested in FBR not Prototype. Whether the proposal for next FBR has been put up or some preliminary work done on sight selection. PFBR is a TD and has more less validated the design. I wish they could take help on certain things but with the NSG thingie still pending let's see. The problem is that there is not much interest int'ally and Indian design still has a lot of question marks with scalablity.
Sir,
PFBR is designed as a commercial technology demonstrator and proposed to put following design concepts into practice:
1. Use of Metal oxide fuel (UO2+PuO2) inside ferrite Stainless steel clad sheaths.
2. Qualification and reliable running of liquid Sodium piping including valves, EM pumps and Heat Exchangers.
3. Post irradiation fuel analysis.
-----------------------------------------------------------------------------------------------------------------------------
With your permission, i would like to write a bit about fuel configuration.
Breeder reactors are called so because they have excess neutrons (n) which is significantly larger than what you get from thermal reactors (v (average number of neutrons generated per fission): 2.91 for fast reactors against 2.4-2.5 for thermal reactors)
Now we require one n per fission reaction to be available for next generation fission and effectively what it means is for fast fission we have 1.91 additional n available for non fission use and ~1.4-1.5 n in thermal regime.
These additional n can then be used for either converting or breeding fuel. the difference here is if same fuel is generated, the assembly is called Breeder (example if 94Pu239 is used as fuel and 94Pu239 is produced using 92U238) or Convertor if a different fuel is produced (example 94Pu239 is used as fuel and 92U233 is produced from 90Th232) or Burner if the reactor burns (reduces radio toxicity) of long lived actinides wastes.
--------------------------------------------------------------------------------------------------------------------------------
Now coming back to your query.
FBTR was designed as a Metal carbide assembly to study and develop components (metallurgical part), controls (software included), in core flux monitoring and overall steam cycle structure.
With good experience gained, the design of assembly is extrapolated and a metal oxide assembly with 500 MWe net output is developed. this initial reactor is called Prototype fast Breeder Reactor (PFBR) and it is a precursor for 600 and later Metal fuel 1000 MWe assemblies.
PFBR

The basic migration philosophy is that when you use a metal oxide in a core, number of fissile (94Pu239) and fertile (92U238) atoms are lower (other being oxygen atoms), so the additional neutrons available would have a lower statistical probability (expressed as capture cross section area, measured in Barns 1 barn = 10e-24 sq cm) of striking an atom of Plutonium to undergo fission or get radiatively captured in U238 to form Plutonium. So a metal fuel has better characteristics as far as neutron use economy is concerned. Further to this, a term used a s doubling time is used which expresses time in years for a reactor to generate a mass of fuel equal to that of its original feed inventory. metal reactors have lower doubling time as compared to oxide or carbide fuel and hence metal is preferred.
Challenge:
As you know, oxides of metal have a higher melting point than pure metals, the basic engineering challenge is to set the safety limits with metal fuel. As i said above metal fuel is better but owing to lower melting point, poses chalenge to set power limits in design.

Future



It is planned to upgrade the design to first 600 MWe and then to 1000 MWe in steps. in future we will have large capacity 1000 MWe designs operating in India.
@PARIKRAMA @Abingdonboy @nair @SpArK @ranjeet

[QUOTE="Spectre, post: 8426682, member: 169484"]Whether the proposal for next FBR has been put up[/QUOTE]

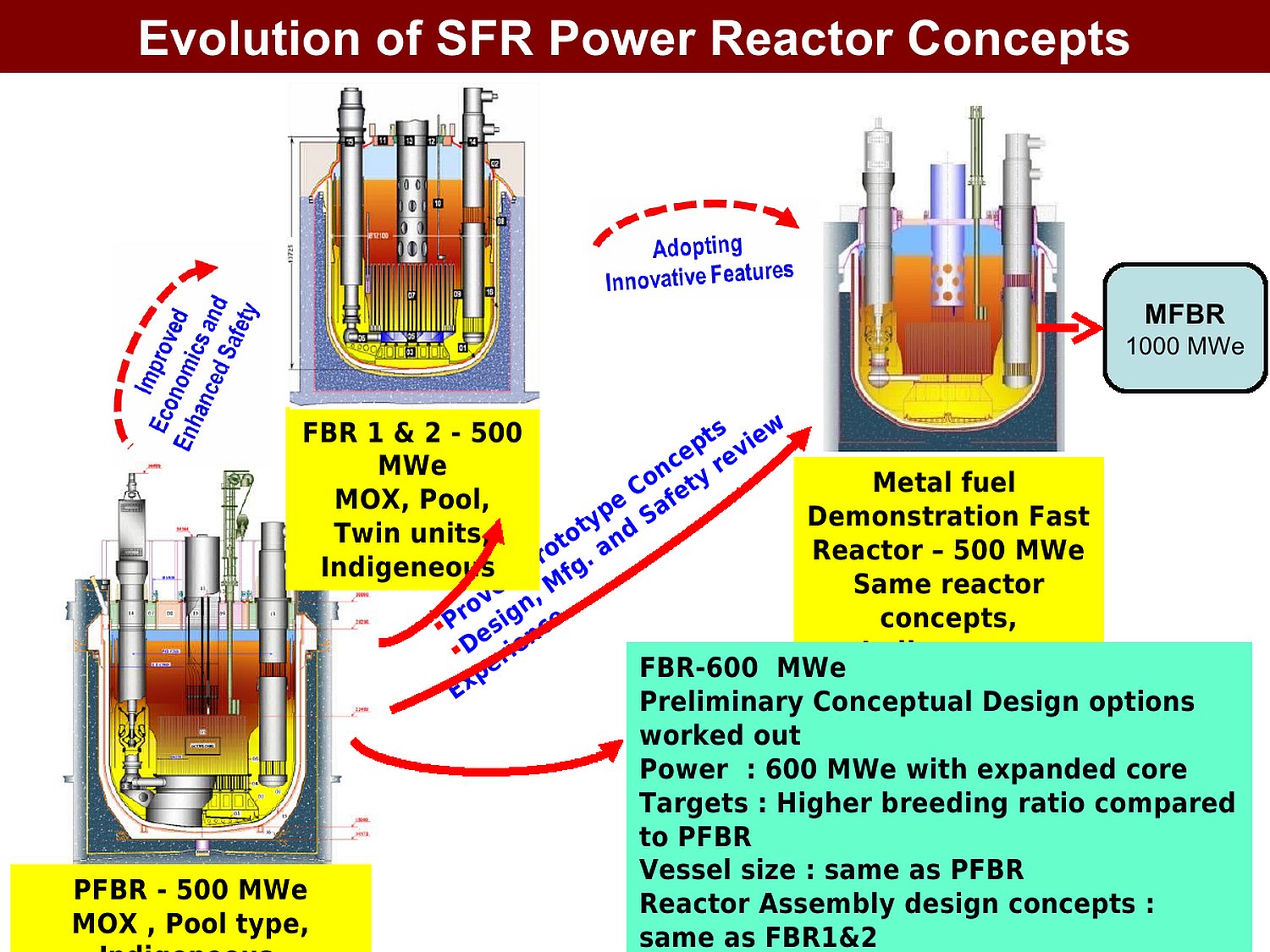

[ATTACH=full]315153[/ATTACH]


Attachments

  • upload_2016-7-1_19-17-28.png
    47.2 KB · Views: 2,402
.
Sir,
PFBR is designed as a commercial technology demonstrator and proposed to put following design concepts into practice:
1. Use of Metal oxide fuel (UO2+PuO2) inside ferrite Stainless steel clad sheaths.
2. Qualification and reliable running of liquid Sodium piping including valves, EM pumps and Heat Exchangers.
3. Post irradiation fuel analysis.
-----------------------------------------------------------------------------------------------------------------------------
With your permission, i would like to write a bit about fuel configuration.
Breeder reactors are called so because they have excess neutrons (n) which is significantly larger than what you get from thermal reactors (v (average number of neutrons generated per fission): 2.91 for fast reactors against 2.4-2.5 for thermal reactors)
Now we require one n per fission reaction to be available for next generation fission and effectively what it means is for fast fission we have 1.91 additional n available for non fission use and ~1.4-1.5 n in thermal regime.
These additional n can then be used for either converting or breeding fuel. the difference here is if same fuel is generated, the assembly is called Breeder (example if 94Pu239 is used as fuel and 94Pu239 is produced using 92U238) or Convertor if a different fuel is produced (example 94Pu239 is used as fuel and 92U233 is produced from 90Th232) or Burner if the reactor burns (reduces radio toxicity) of long lived actinides wastes.
--------------------------------------------------------------------------------------------------------------------------------
Now coming back to your query.
FBTR was designed as a Metal carbide assembly to study and develop components (metallurgical part), controls (software included), in core flux monitoring and overall steam cycle structure.
With good experience gained, the design of assembly is extrapolated and a metal oxide assembly with 500 MWe net output is developed. this initial reactor is called Prototype fast Breeder Reactor (PFBR) and it is a precursor for 600 and later Metal fuel 1000 MWe assemblies.
PFBR

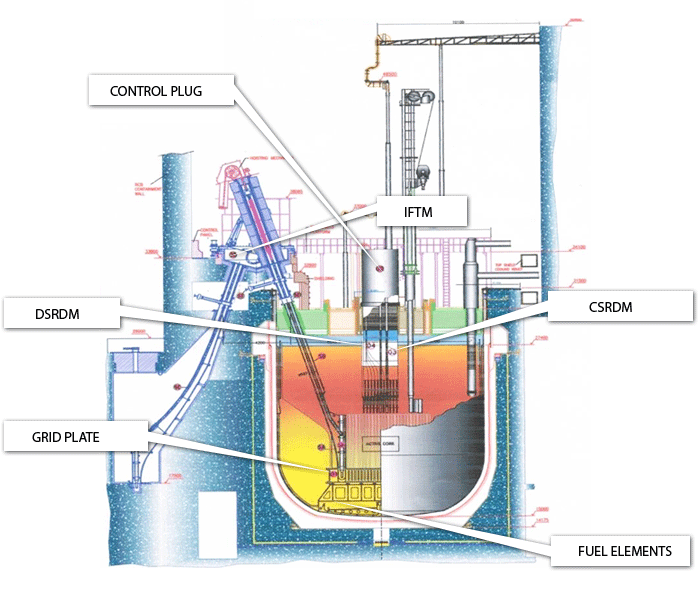

View attachment 315148
The basic migration philosophy is that when you use a metal oxide in a core, number of fissile (94Pu239) and fertile (92U238) atoms are lower (other being oxygen atoms), so the additional neutrons available would have a lower statistical probability (expressed as capture cross section area, measured in Barns 1 barn = 10e-24 sq cm) of striking an atom of Plutonium to undergo fission or get radiatively captured in U238 to form Plutonium. So a metal fuel has better characteristics as far as neutron use economy is concerned. Further to this, a term used a s doubling time is used which expresses time in years for a reactor to generate a mass of fuel equal to that of its original feed inventory. metal reactors have lower doubling time as compared to oxide or carbide fuel and hence metal is preferred.
Challenge:
As you know, oxides of metal have a higher melting point than pure metals, the basic engineering challenge is to set the safety limits with metal fuel. As i said above metal fuel is better but owing to lower melting point, poses chalenge to set power limits in design.

Future

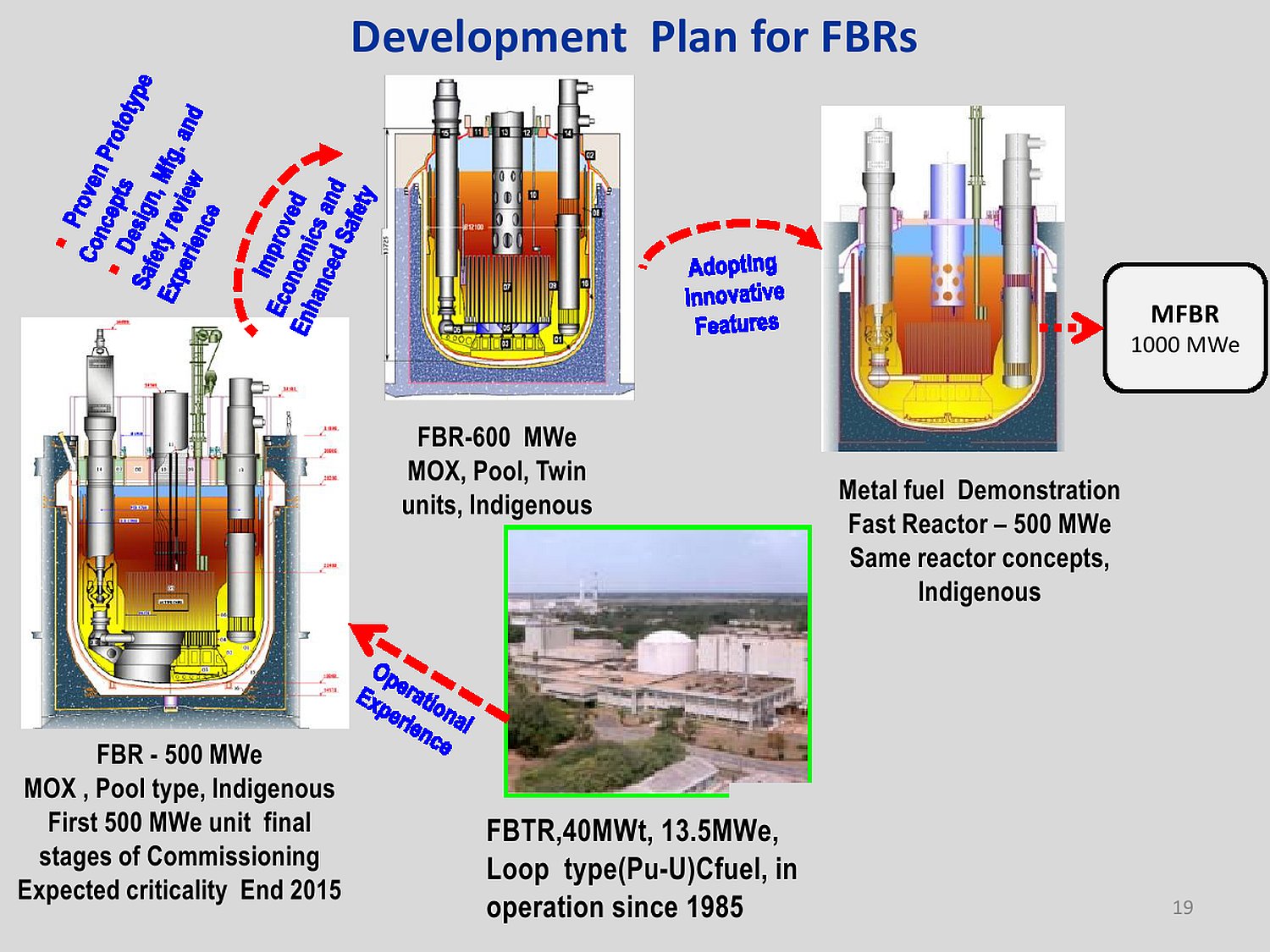

View attachment 315150

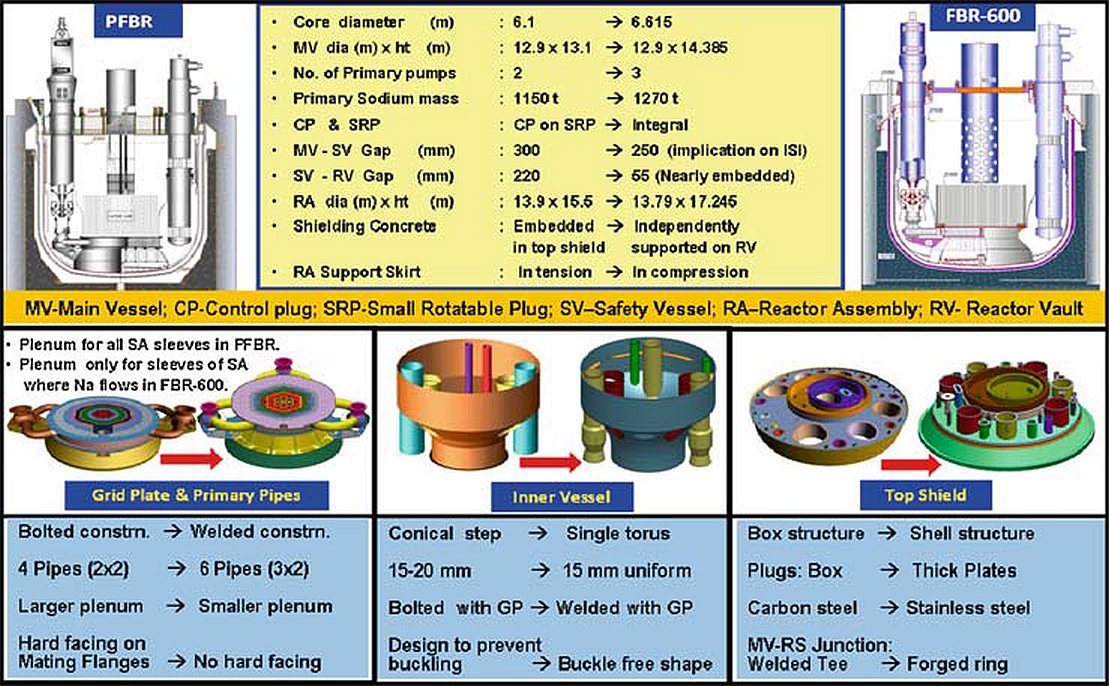

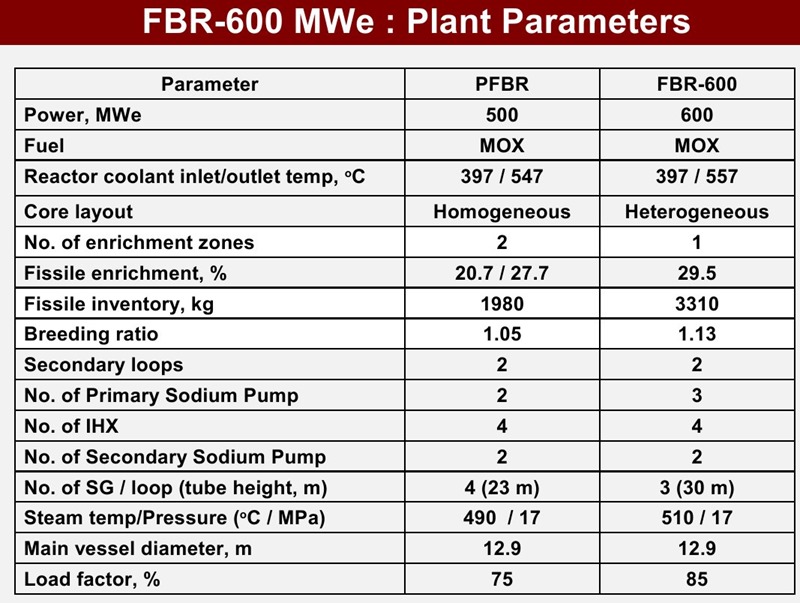

View attachment 315147 View attachment 315146
View attachment 315151
It is planned to upgrade the design to first 600 MWe and then to 1000 MWe in steps. in future we will have large capacity 1000 MWe designs operating in India.
@PARIKRAMA @Abingdonboy @nair @SpArK @ranjeet


[ATTACH=full]315153[/ATTACH]

Dada thank you but I have a done a project on FBR so I know about the details to the marrow. I ll give you a brief idea about the associated challenges which have resulted in failure of commercialization of Breeder tech. Tech is not knew - Everything has been validated since the late 40s/50s by GEH and Soviets. Lot of other countries tried and then gave up. We have to understand why

Let's examine the rationale behind FBR not going mainstream

Common reasons for given adoption of FBR are

- Scarcity of uranium and the fear it would be depleted if Nuclear energy is used widely
- FBR would be commercially competitive with light water reactor
- FBR would be developed to be as safe as LWR
- Proliferation risks would be reduced

Now i will attempt to illustrate what went wrong

1. Uranium is cheap and abundant - Price of Uranium is currently $130/kg and is estimated to drop to $50 per kg as more and more sources are found. New discovery estimates put the new supply to greater that 5 million tonnes per annum. Infact Uranium is supposed to account for only 10-20% of the cost per KWH in newer breed LWR

2. FBR are much more costlier to build and operate -

US has spent 15 Billion $, Russia 12 Billion, UK 8 Billion, Germany 6 Billion and Italy 5 Billion on FBR research and each country gave up on it due to lack of financial feasibility.

Existing data suggest Liquid sodium cooled reactors cost as much as two times per KW to operate than water cooled ones. Capital costs are 25% higher.

3. Safety and reliability concerns -

You have touched on the safety concerns, I can go in much more detail but for now in this forum that would suffice.

I would like to talk about reliability and maintenance problems

- Large amount of time is spent on the FBR in repairing hardware instead of producing electricity. Various studies including the Indian experience has shown that the hardware parts immersed in sodium degrade much more rapidly. In contrast modern LWR operate at 80% efficiency

- During maintenance a. Fuel has to be removed. b. Sodium has to be drained C. entire system flushed. This process can take upto 1-2 years. In contrast LWR top the vessel is removed and reactor cavity flooded which is a much easier process. Repairs can also be now guided using imaging tech and automated systems

4. Proliferation

It would suffice to say that all reactors have plutonium involved but FBR have a plutonium cycle which involves seperation of plutonium from radioactive spent fuel. This weapons grade plutonium has lot of naughty uses. India's FBR alone is estimated to produce 90 kg of weapons grade plutonium.

@Joe Shearer @nair @SpArK @PARIKRAMA @MilSpec

Now that India has signed multiple treaties ensuring uninterrupted supply of uranium, FBR seems like an exercise of folly just aimed at boosting national ego. We would spend more than two times to produce energy. Doesn't seem viable for poor country such as India, That is why such emphasis is on securing Uranium supply and non on FBR.

As per privileged information - India would too put it in the cold basket after usual hurrays.
