JF-17 Thunder with EW Jamming Pod

[LKJ86]

Indeed, and what surprises me even more I know images of the KG-700 mounted on J-10B'Cs with the intake facing forward and to the rear.

It has intake on each side.



[GriffinsRule]

It looks like the Chinese pod imo



[Deino]

It has intake on each side.

Yes I know, but why

intake opening facing forward:

intake opening facing rearward:



[LKJ86]

Yes I know, but why

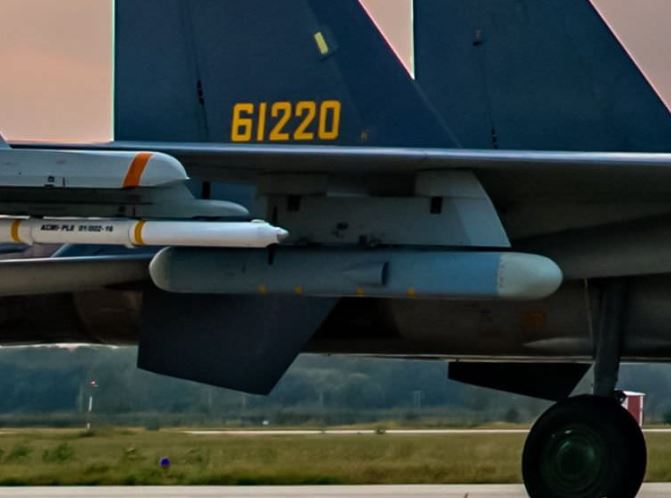

intake opening facing forward:
View attachment 564374

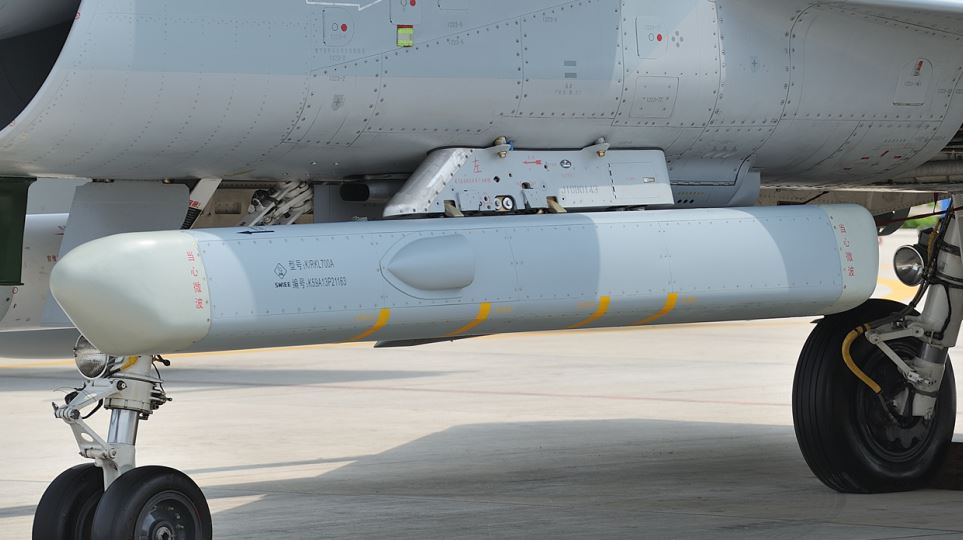

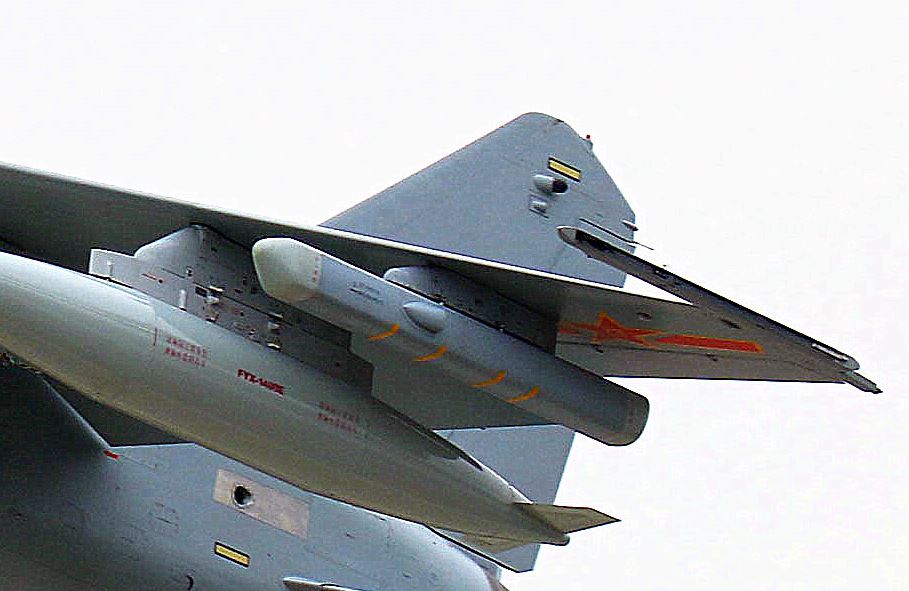

intake opening facing rearward:
View attachment 564372

View attachment 564373

One in, one out, maybe.



[Deino]

One in, one out, maybe.

Indeed, a good explanation. ... here the same J-10B: On the one side its open in front and on the other side to the rear.



[Dazzler]

Two things i should add,

The ALQ-500P is in service for some time. I have seen a block 2 mounted with it at an airbase in Karachi some time ago.

If the pod in the pic is indeed RKL-700A, then that would surprise me. That ecm/esm pod is equipped on almost all PLAAF/PLANAF fighters/ strike platforms. Heck, i even saw it on H-6 bombers.

Is it cleared for export already??



[LKJ86]

Two things i should add,

The ALQ-500P is in service for some time. I have seen a block 2 mounted with it at an airbase in Karachi some time ago.

If the pod in the pic is indeed RKL-700A, then that would surprise me. That ecm/esm pod is equipped on almost all PLAAF/PLANAF fighters/ strike platforms. Heck, i even saw it on H-6 bombers.

Is it cleared for export already??



[Pakistani Fighter]

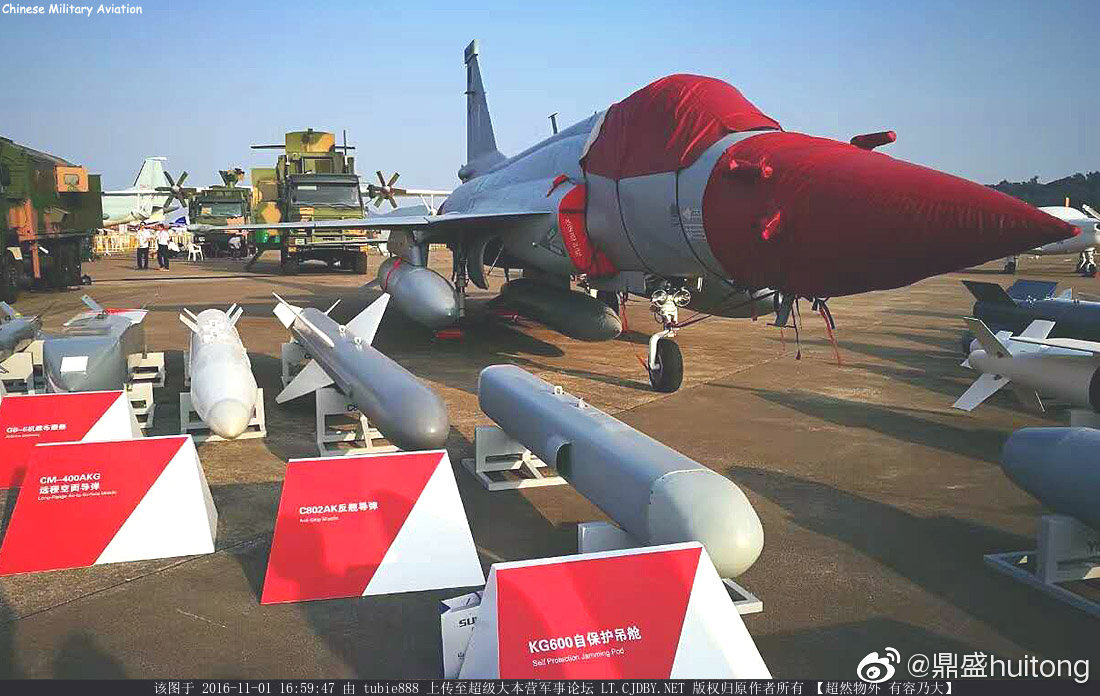

View attachment 564408

Which anti ship missile JF 17 uses? CM 400AKG or C 802?



[Dazzler]

View attachment 564408

What is the difference between KG-600 and RKL-700A? They both look identical.

What features do they offer?



[LKJ86]

What is the difference between KG-600 and RKL-700A? They both look identical

KG-600 is the name for export.

Just like LY-80 and HQ-16.



[Dazzler]

KG-600 is the name for export.

Just like LY-80 and HQ-16.

Any product brochure or list of features available?



[LKJ86]

Any product brochure or list of features available?

Such EW jamming pods are very sensitive in China.



[Dazzler]

Such EW jamming pods are very sensitive in China.

Then why do i see the information of a supposedly bigger, more capable KG800 pod available on the internet?



[LKJ86]

Then why do i see the information of a supposedly bigger, more capable KG800 pod available on the internet?

And then?



[Dazzler]

And then?

Info should be available somewhere.

KG-800..

KG800 self defense jamming pod

The KG800 airborne electronic warfare system is carried by combat planes to disrupt enemy airborne fire control radars and SAM search and fire-control/illumination radars. It also increases the combat plane's survivability against AESA threats that are launched against the plane (probably meaning AESA seekers on missiles)"

Special Points:

- Broad jamming spectrum (radar bands)
- High ERP (effective radiated power)
- Advanced Jamming Technologies
- Effective/Useful (against) multiple threats
- Fast response time
- Modularity
- High reliability
