JF-17 Block-3 -- Updates, News & Discussion

[Dazzler]

And how do you so confirmed that these are MAWS, these could be any thing

Same IIRMAWS and similar HUD can be found on j-10C. This particular HUD appeared at ZAS 2018 as well.



[Ultima Thule]

Same IIRMAWS and similar HUD can be found on j-10C. This particular HUD appeared at ZAS 2018 as well.

OK sir can we assume that block-3 will have somehow miniature version of J-20's ETOS



[3030]

Similarly in photos of post # 3349, also observe that the LERX leading edge on 3000 is attached to the outer intake at second row of rivets. On 225 the attached leading edge is only one row of rivets aft of the intake lip. Also on 225 it has a chemically milled or sheet form doubler at the LERX leading edge attachment point on the intake outer structure, this feature is altogether missing on 3000 since the leading edge of LERX is attaching to the structure further aft on stronger structure. Any comments?



[Pakistani Fighter]

And rafle will be stationed near Bangladesh border because rafle was purchased for tashan & politics

No. Near Pak or/and China



[DrWatson775]



[Trango Towers]

Sir they are well aware of capabilities of JF 17 block II since feb 27 although we credited our f16 later officially announced. But JF17 proved it self very nicely now we warping off our JF17 block III it is very clear they will fly their jets far from the border. And rafle will be stationed near Bangladesh border because rafle was purchased for tashan & politics. No doubt Rafale is very potent and cable aircraft but Indians.......

You have valid points.
Rafael and other aircraft in the indian inventory Mirage 2k and su30mki are great machines but a machines is only as good as its operators. The best pair of football boots dont make a great footballer



[Dazzler]

OK sir can we assume that block-3 will have somehow miniature version of J-20's ETOS

Unlikely, but lets see



[3030]

Please comment on my observations about larger intake area. This means a lot about the engine being used on 3000 or this was required to be enlarged for the existing engine but better utilization of fuel burnt which will still translate in lesser fuel consumption and altimately longer time on the required station in the air?



[Haris Ali2140]

OK sir can we assume that block-3 will have somehow miniature version of J-20's ETOS

whats ETOS???

Please comment on my observations about larger intake area. This means a lot about the engine being used on 3000 or this was required to be enlarged for the existing engine but better utilization of fuel burnt which will still translate in lesser fuel consumption and altimately longer time on the required station in the air?

No buddy. Inatake seems same to me.



[Ghessan]

it wold be really helpful if you post that image of block-2/1 and this latest image of block-3 for comparison in your single post, thanks

you can compare now



[Ultima Thule]

whats ETOS???

these are optical and infrared senors throughout the fuselages of J-20/F-35 to dectect and attack ground targets at night and guide infrared short ranged air to air missiles to targets

you can compare now

your post is not showing block-2 picture for comparison



[Ghessan]

these are optical and infrared senors throughout the fuselages of J-20/F-35 to dectect and attack ground targets at night and guide infrared short ranged air to air missiles to targets


your post is not showing block-2 picture for comparison

sorry check now



[Ultima Thule]

sorry check now

can't tell the difference because angle is different



[Dazzler]

updated with different picture to compare

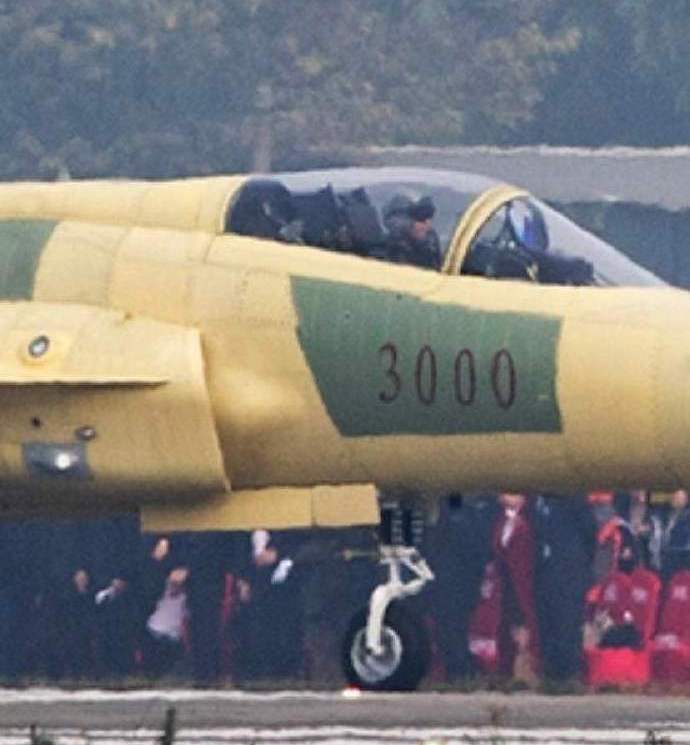

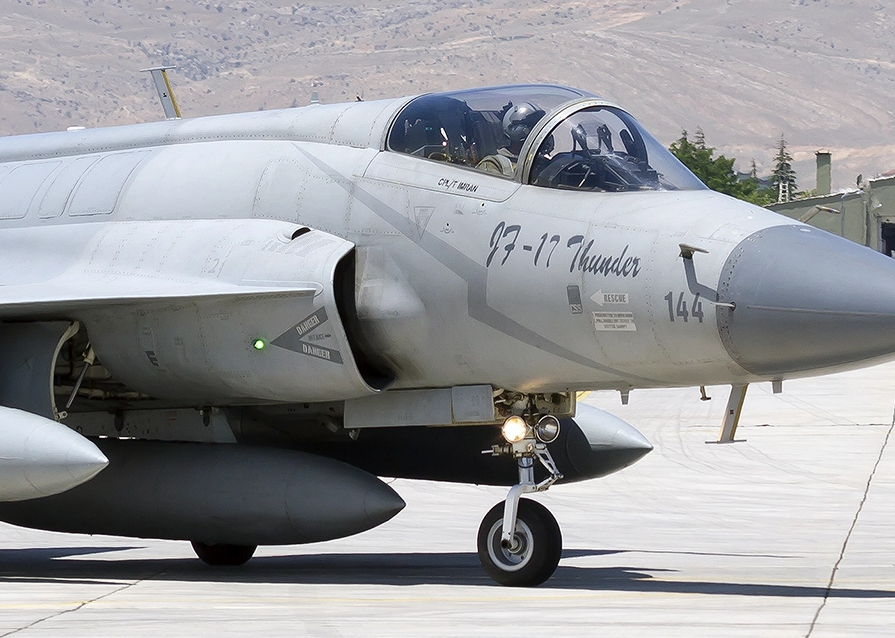

View attachment 596199 View attachment 596197

None of you notice the intakes. Clearly bigger in blk 3



[Bilal.]

None of you notice the intakes. Clearly bigger in blk 3

doesn’t seem like.
