JF-17 Block-3 -- Updates, News & Discussion

its ground clearance or is it because of pic it looks like it

hud looks like a round circle

Bigger wider head-up display. Does that mean new radar with a bigger viewing/targetting angle? No expert - but does that mean JF-17 can now launch missiles even when it is not directly looking at the enemy?




Last edited:
Bigger wider head-up display. Does that mean new radar with a bigger viewing/targetting angle? No expert - but does that mean JF-17 can now launch missiles even when it is not directly looking at the enemy?
AESA is known to move radio beams electronically 13 degree with respect center line of AESA

Are we certain about these? The shot of the actual jet looks photoshopped to me. Overcase seems enough that you should not have so significant a glare that you cant see through the front windshield or top of the canopy but they are grayed out.

InshAllah Im wrong, that HUD reminds of of the one on F-22 or J-20.

Hi,

Even if it is a fake---it has been a great day for the people of pakistan---.

Bigger wider head-up display. Does that mean new radar with a bigger viewing/targetting angle? No expert - but does that mean JF-17 can now launch missiles even when it is not directly looking at the enemy?

Let's roast some enemies without even looking at them.

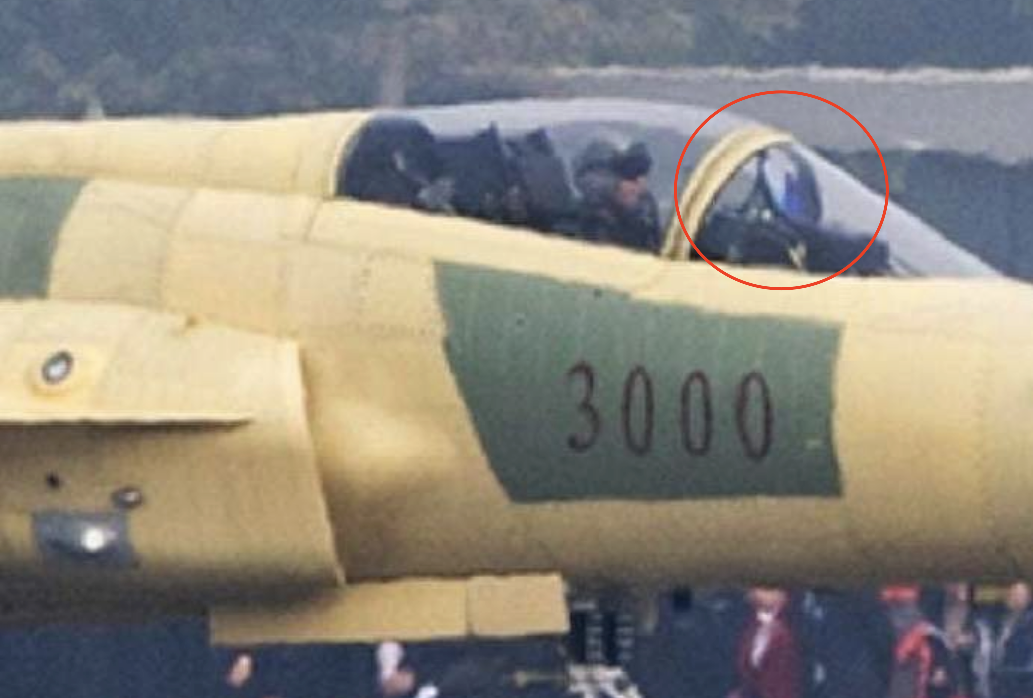

View attachment 596172

Along with the new wide angle HUD, it seems there is an additional MAW on the intake, under the LERX.

Bigger wider head-up display. Does that mean new radar with a bigger viewing/targetting angle? No expert - but does that mean JF-17 can now launch missiles even when it is not directly looking at the enemy?



View attachment 596172
Some are calling it fake because the helmet is not used by Chinese

Hot

Boom Salon

It was reported that JF 17 BLOCKIII flew for the first time. The obvious changes were replaced by a relatively large size diffractive display. A missile approach warning system was added. The overall aerodynamic layout should not change significantly (pictures are from the network, intrusion and deletion)

  • 632b7966gy1gac97j7l89j20n01ds0vd.jpg
  • 632b7966gy1gac97jnj1cj20n01ds42m.jpg

Today at 11:04

  • Favorite
  • Forward 72

from weibo

Some are calling it fake because the helmet is not used by Chinese
I feel it's legit look landing gear front light are LED lights seems HUD is inspired from J10 this plane seems more bigger and bulky than previous blks that's what I feel.
