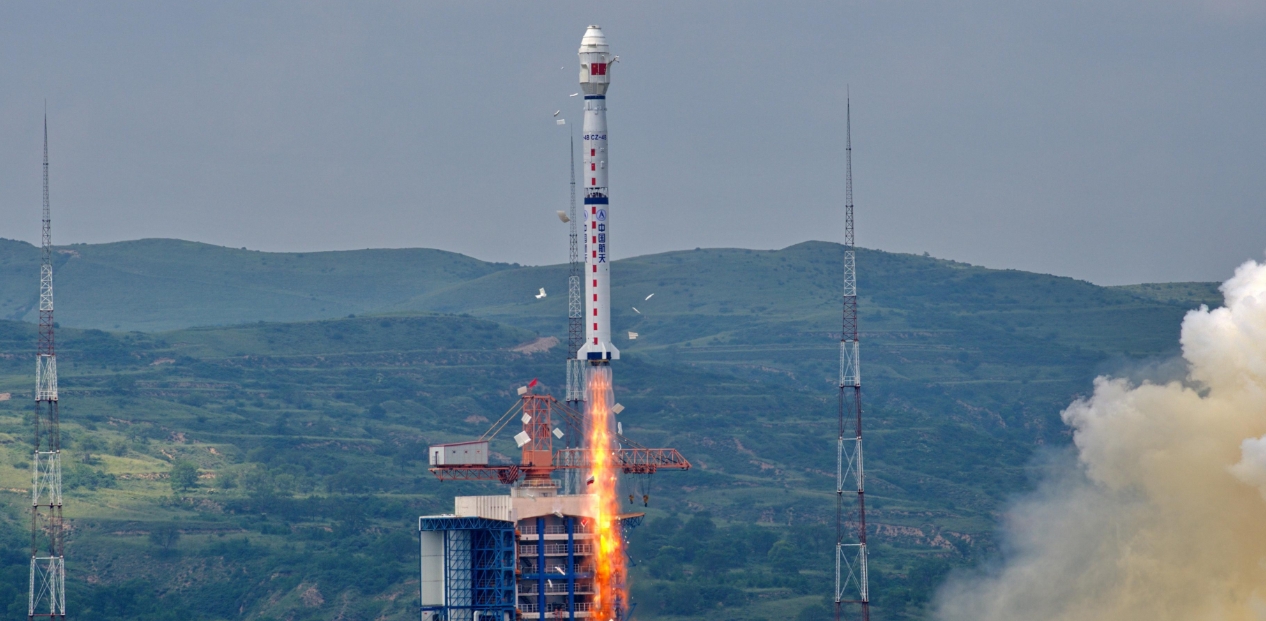

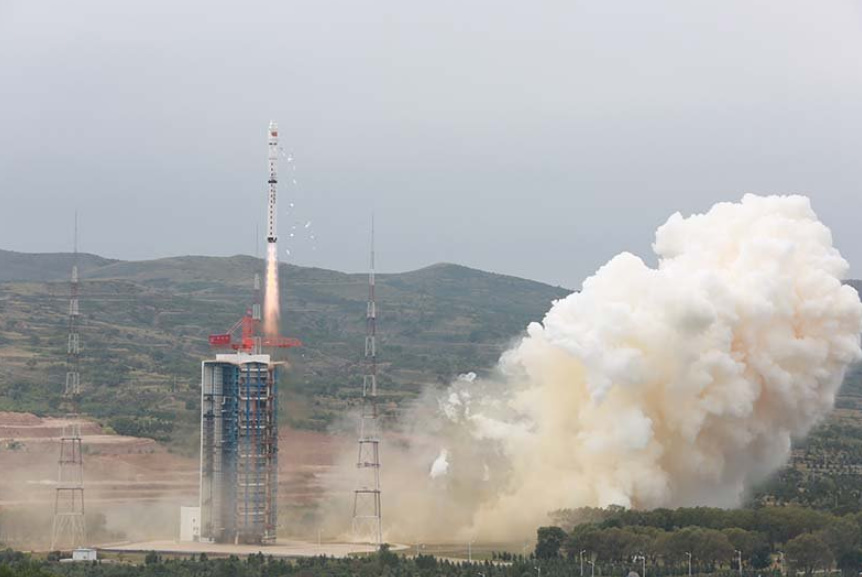

China launched a new remote sensing satellite using a Long March 4B launch vehicle from the Taiyuan Satellite Launch Center on Thursday. Launch of the Ziyuan-2D (Ziyuan-2 04) satellite took place around 4:30 UTC from the LC9 Launch Complex.
The launch returns the Long March 4 to flight after an issue with “structural resonance” between the third stage and the payload on a Long March 4C led to the loss of the Yaogan Weixing-33 mission on May 22.
Onboard were also the BNU-1 / Jingshi-1 satellite and the small Naxing-3 satellite.
The Ziyuan-2 (ZY-2) satellites are remote sensing vehicles capable of obtaining images and other data that can be used for planning, monitoring, crop yield monitoring and monitoring of natural disaster areas, as well as conducting field experiments in space sciences.
Information from various sources in China indicates that cameras aboard the Ziyuan-2 have a higher resolution than cameras used on the Ziyuan-1 / CBERS satellite launched in 1999. Ziyuan-2 vehicles are one of the largest satellites developed by China and its stabilization technology on its three space axes represented one of the biggest advances in Chinese space technology.
However, Western military intelligence sources point out that while China states that the Ziyuan-2 are civilian application satellites, these were the first high-resolution military vehicles under the code name Jian Bing-3 (JB -3).
One of the salient features of this statement is that the first Ziyuan-2 was placed in a much lower orbit than the first Ziyuan-1. US intelligence services believe the first Ziyuan-2 was a photo recognition vehicle used exclusively for military purposes, such as the location of US and Taiwan military forces.
These satellites can also maneuver in Earth orbit, adjusting it after launch. Chinese scientists have countered these claims by saying that the Ziyuan-2 only has a resolution of 60 – 100 meters and is useless for military purposes.
In fact, the purpose of the Ziyuan-2 may have a dual civil and military application.
The satellites were designed and built by the Chinese Academy of Space Technology and were developed indigenously based on the Phoenix-Eye-2 bus.
The first ZY-2 satellite ‘Ziyuan-2 01’ (26481 2000-050A) was launched on September 1, 2000, at 03:25UTC using the Long March (Y3) rocket from the LC7 Launch Complex of the Taiyuan Satellite Launch Center. The second satellite of the series, Ziyuan-2 02 (27550 2002-049A) would be launched at 03:17UTC on October 27, 2002, using the Long March-4B (Y6) rocket departing also from the LC7 Launch Complex of the Taiyuan Satellite Launch Center. Ziyuan-2 03 (28470 2004-044A) was launched at 03:10UTC on November 6, 2004, using the Long March-4B (Y8) also from Taiyuan’s LC7 Launch Complex.
The “Three-pole Remote Sensing Constellation Observing System” – Ice Pathfinder (developed code “Beijing Normal University-1 BNU-1” and also known as “Jingshi-1”) was initiated by scientists from Beijing Normal University and jointly invested by the Ministry of Science and Technology and Beijing Normal University. It was developed by Shenzhen Aerospace Oriental Red Sea Satellite Co., Ltd.
After a year of design and development, the project will be run by the Southern Marine Science and Engineering Guangdong Laboratory (Zhuhai). As the first test satellite of the system, BNU-1 will conduct all-weather polar climate and environmental observations in Earth orbit.

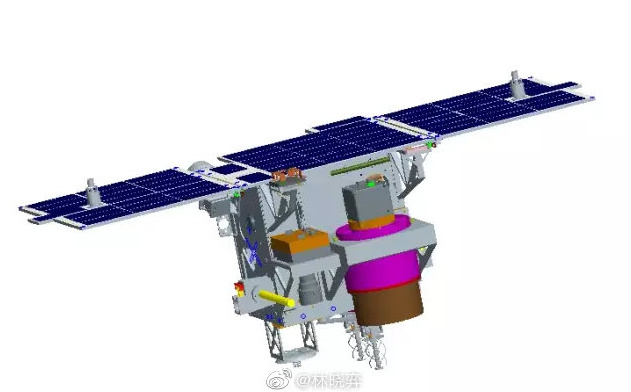

BNU 1 – posted on Chinese social media
BNU-1 will completely cover the Antarctic and the Arctic within 5 days and to monitor sea ice drift and ice shelf collapse, which will greatly improve China’s remote sensing capability. The technical dependence makes up for the shortcomings of China’s polar observation data.
According to Mr. Cheng Xiao, the chief scientist of BNU-1, satellite data will also be used to study global climate change, while monitoring the middle and low latitudes to assist in expanding the Arctic shipping route to the Qinghai-Tibet Plateau or the Third Polar Region.
The satellite is a 16 kg micro-nano satellite equipped with a camera with a resolution of 80m at 739km and a width of 745km, an optical camera with a resolution of 8m at 739km and a width of 25km, and an AIS payload. The covered spectrum is full color, blue, green, red, and red.
There is not much information regarding the Naxing-3 small satellite. Previous satellites on this series were developed by the Tsinghua University to evaluate various new satellite components like micro star trackers, micro sun sensors, MEMS gyroscopes and magnetometers, quartz tuning fork sensors and GPS/BDS navigation receivers.
The feasibility study of the CZ-4 Chang Zheng-4 began in 1982 based on the FB-1 Feng Bao-1 launch vehicle. Engineering development was initiated in the following year. Initially, the Chang Zheng-4 served as a backup launch vehicle for Chang Zheng-3 to launch China’s communications satellites.
After the successful launch of China’s first DFH-2 communications satellites by Chang Zheng-3, the main mission of the Chang Zheng-4 was shifted to launch sun-synchronous orbit meteorological satellites. On the other hand, the Chang Zheng-4B launch vehicle was first introduced in May 1999 and also developed by the Shanghai Academy of Space Flight Technology (SAST), based on the Chang Zheng-4.

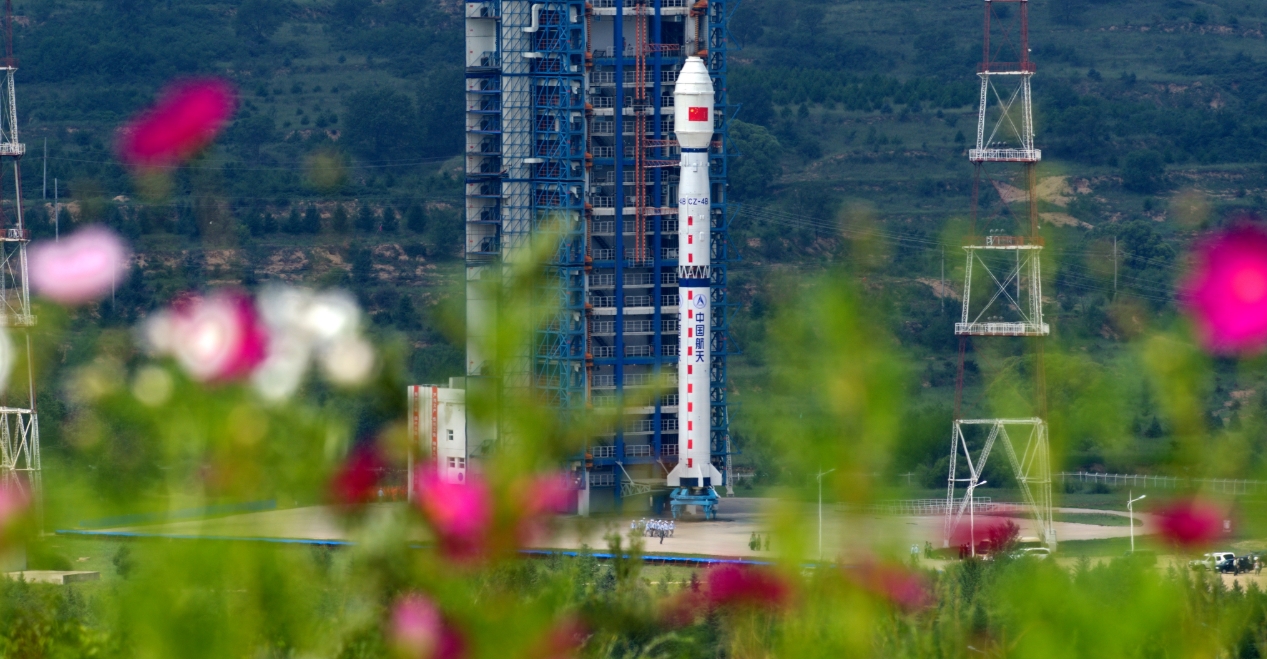

Long March 4B via Chinese media
The rocket is capable of launching a 2,800 kg satellite into low Earth orbit, developing 2,971 kN at launch. With a mass of 248,470 kg, the CZ-4B is 45.58 meters long and has a diameter of 3.35 meters.
SAST began to develop the Chang Zheng-4B in February 1989. Originally, it was scheduled to be commissioned in 1997, but the first launch didn’t take place until late 1999. The modifications introduced on the Chang Zheng-4B included a larger satellite fairing and the replacement of the original mechanical-electrical control on the Chang Zheng-4 with electronic control.
Other modifications were an improved telemetry, tracking, control, and self-destruction systems with smaller size and lighter weight; a revised nozzle design in the second stage for better high-altitude performance; a propellant management system for the second stage to reduce the spare propellant amount, thus increasing the vehicle’s payload capability and a propellant jettison system on the third-stage.
The first stage has a 24.65 meter length with a 3.35 meter diameter, consuming 183,340 kg of N2O4/UDMH (gross mass of the first stage is 193.330 kg). The vehicle is equipped with a YF-21B engine capable of a ground thrust of 2,971 kN and a ground specific impulse of 2,550 Ns/kg. The second stage has a 10.40 meter length with a 3.35 meter diameter and 38,326 kg, consuming 35,374 kg of N2O4/UDMH.
The vehicle is equipped with a YF-22B main engine capable of a vacuum thrust of 742 kN and four YF-23B vernier engines with a vacuum thrust of 47.1 kN (specific impulses of 2,922 Ns/kg and 2,834 Ns/kg, respectively).
The third stage has a 4.93 meter length with a 2.9 meter diameter, consuming 12,814 kg of N2O4/UDMH. Having a gross mass of 14,560 kg, it is equipped with a YF-40 engine capable of a vacuum thrust of 100.8 kN and a specific impulse in a vacuum of 2,971 Ns/kg.
Situated in the Kelan County in the northwest part of the Shanxi Province, the Taiyuan Satellite Launch Center (TSLC) is also known by the Wuzhai designation. It is used mainly for polar launches (meteorological, Earth resources and scientific satellites).
The launch center has two single-pad launch complexes, a technical area for rocket and spacecraft preparations, a communications center, a mission command and control center, and a space tracking center.
The stages of the rocket were transported to the launch center by railway and offloaded at a transit station south of the launch complex. They were then transported by road to the technical area for checkout procedures.

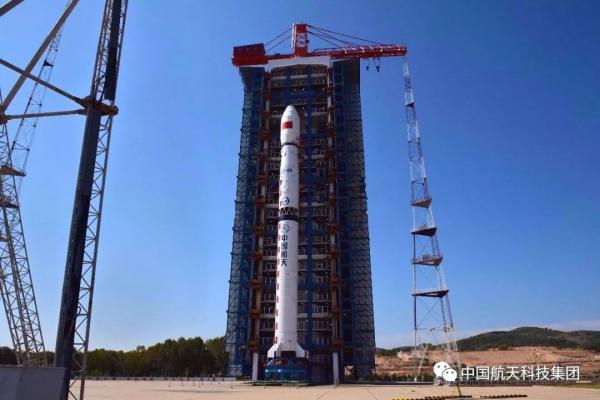

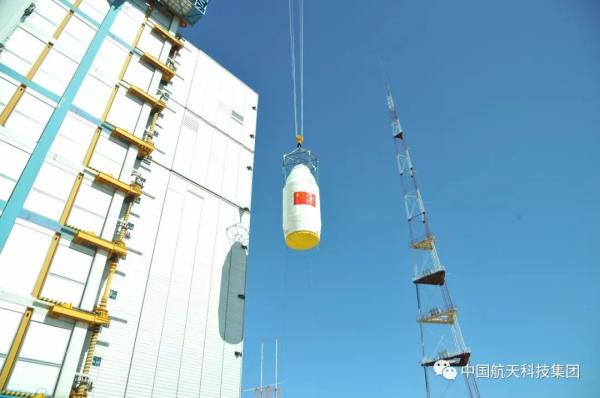

The launch vehicles were assembled on the launch pad by using a crane at the top of the umbilical tower to hoist each stage of the vehicle in place. Satellites were airlifted to the Taiyuan Wusu Airport about 300km away and then transported to the center by road.
The TT&C Centre, also known as Lüliang Command Post, is headquartered in the city of Taiyuan, It has four subordinate radar tracking stations in Yangqu (Shanxi), Lishi (Shanxi), Yulin (Shaanxi), and Hancheng (Shaanxi).
What’s next?
While the speculation continues about the return to flight of the heavy Long March-5 launch vehicle – the major piece for the short medium-term future of its space program – China continues with its surge of launches. Next in line is the launch of two new navigation satellites from the Xichang Satellite Launch Center that will probably take place on September 24 using the Long March-3B/YZ-1 (Y65) rocket.
Also in September, we can expect the launch of multiple satellites (the Zhuhai-1 Group 03 satellites and some Tianyi small birds) using a Long March-11 launch vehicle from the Jiuquan Satellite Launch Center.
China also plans to conduct nine Kuaizhou-1A launches before the end of 2019, with four of them to be launched in sequence in December.
