Akinci & Aksungur and Turkish Unmanned Fighter Aircraft Program
- Thread starter mshoaib61
- Start date
Deino
INT'L MOD
- Joined
- Nov 9, 2014
- Messages
- 12,780
- Reaction score
- 22
- Country
- Location
BAYKAR
The annual production capacity will increase with the new facility
-- 360 TB-2
-- 36 AKINCI
-- 36 KIZILELMA
It once again attracted attention with the export of 664 million dollars of UCAVs in 2021
The number of Countries which contracts were signed for Bayraktar TB2 is 22.
also AKINCI UCAV has been purchased by 4 Countries
Ukraine
Poland
Pakistan
Azerbaijan
Qatar
Libya
Morocco
Niger
Djibouti
Kyrgyzstan
Turkmenistan
Somalia
Ethiopia
Nigeria
Bangladesh
( In other words, if a country places a new order from Baykar, 3 years later is given to deliver the product )
For first time in the world, Turkey used Drones as primary element in air strikes
Turkiye’s extensive deployment of Armed Drones in its fight against Syrian Regime Forces in Idlib province has put forward a "new military doctrine" in the world

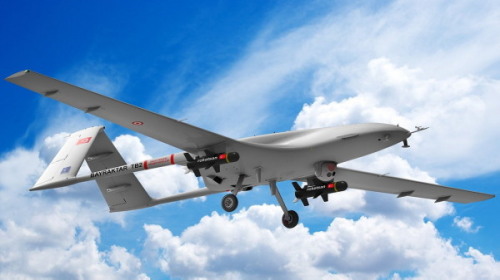

Bayraktar TB-2 UCAVs are intended to be used as close air support
Operational History
-- Turkiye's counterterrorism operations
-- Syria
-- Libya
-- Azerbaijan and 2020 Nagorno-Karabakh war
-- Ukraine and 2022 Russian invasion
-- Ethiopia and Tigray

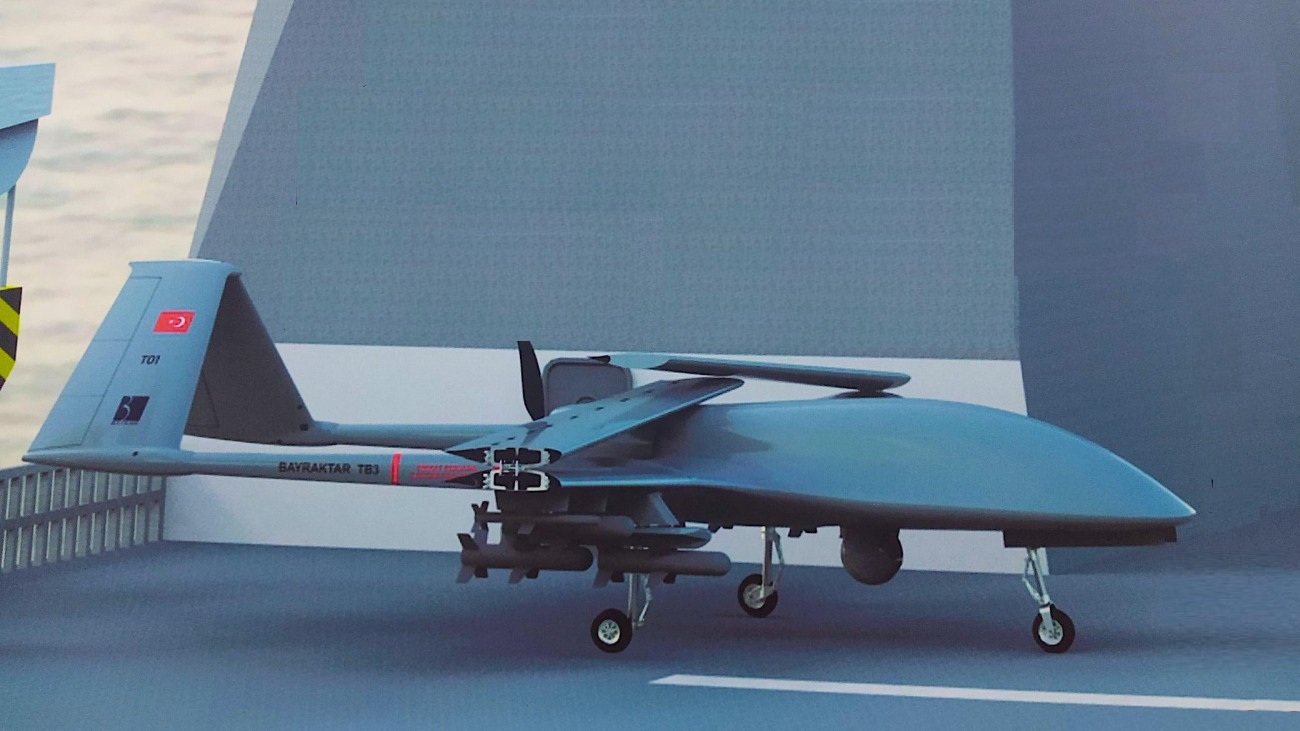

Bayraktar TB-3
It is currently being developed due to the lack of aircraft to be deployed on the TCG ANADOLU Amphibious Assault Sship
Length: 8.35 m
Height: 2.6 m
Wing span: 14 m
Max take-off weight: 1,450 kg
Payload capacity: 280 kg
Powerplant: 1 × TEI PD170
View attachment 870294

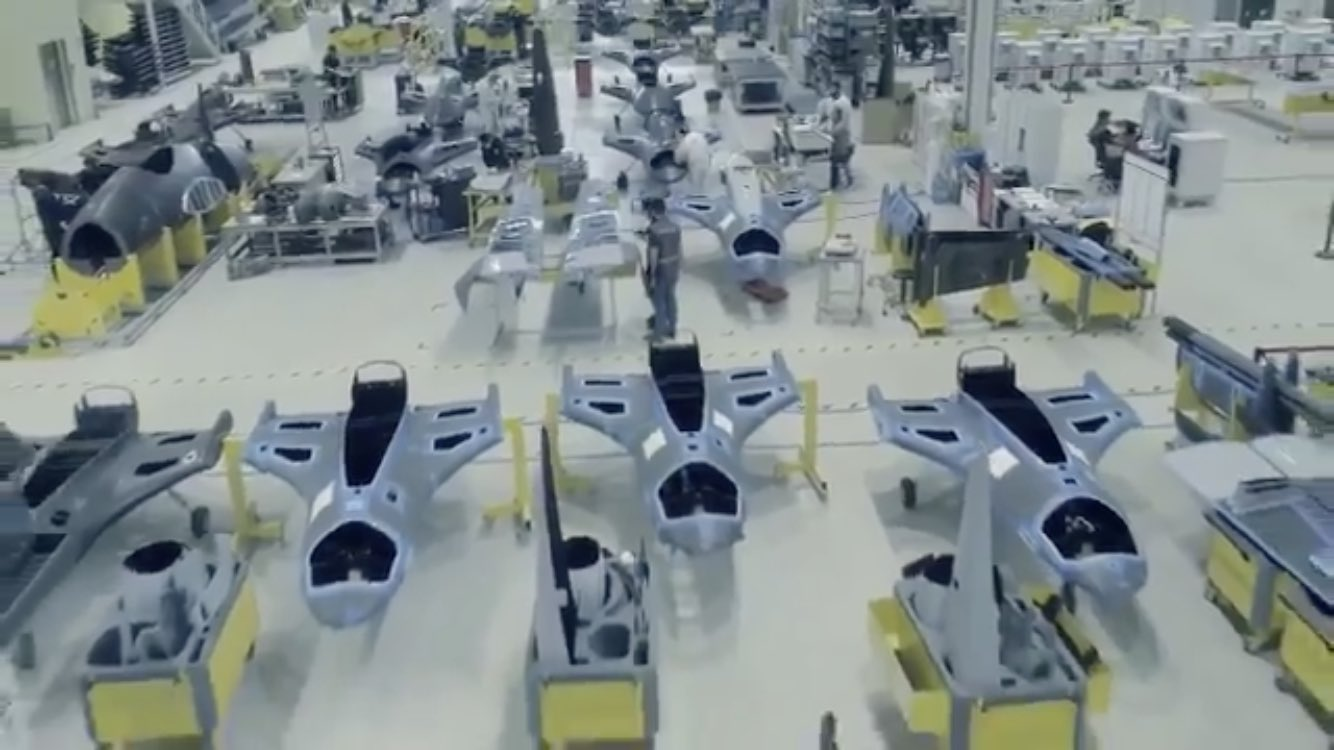

PRODUCTION CAPACİTY
Initially, only 1 Bayraktar TB2 was built per month
now Baykar has the level to produce 20 TB2s per month ( 240 TB2s per year )
The production line has been reserved for 3 years. This shows that 720 UCAVs have already been ordered
View attachment 870279
View attachment 870301
The annual production capacity will increase with the new facility
-- 360 TB-2
-- 36 AKINCI
-- 36 KIZILELMA
View attachment 870281
View attachment 870280
View attachment 870282

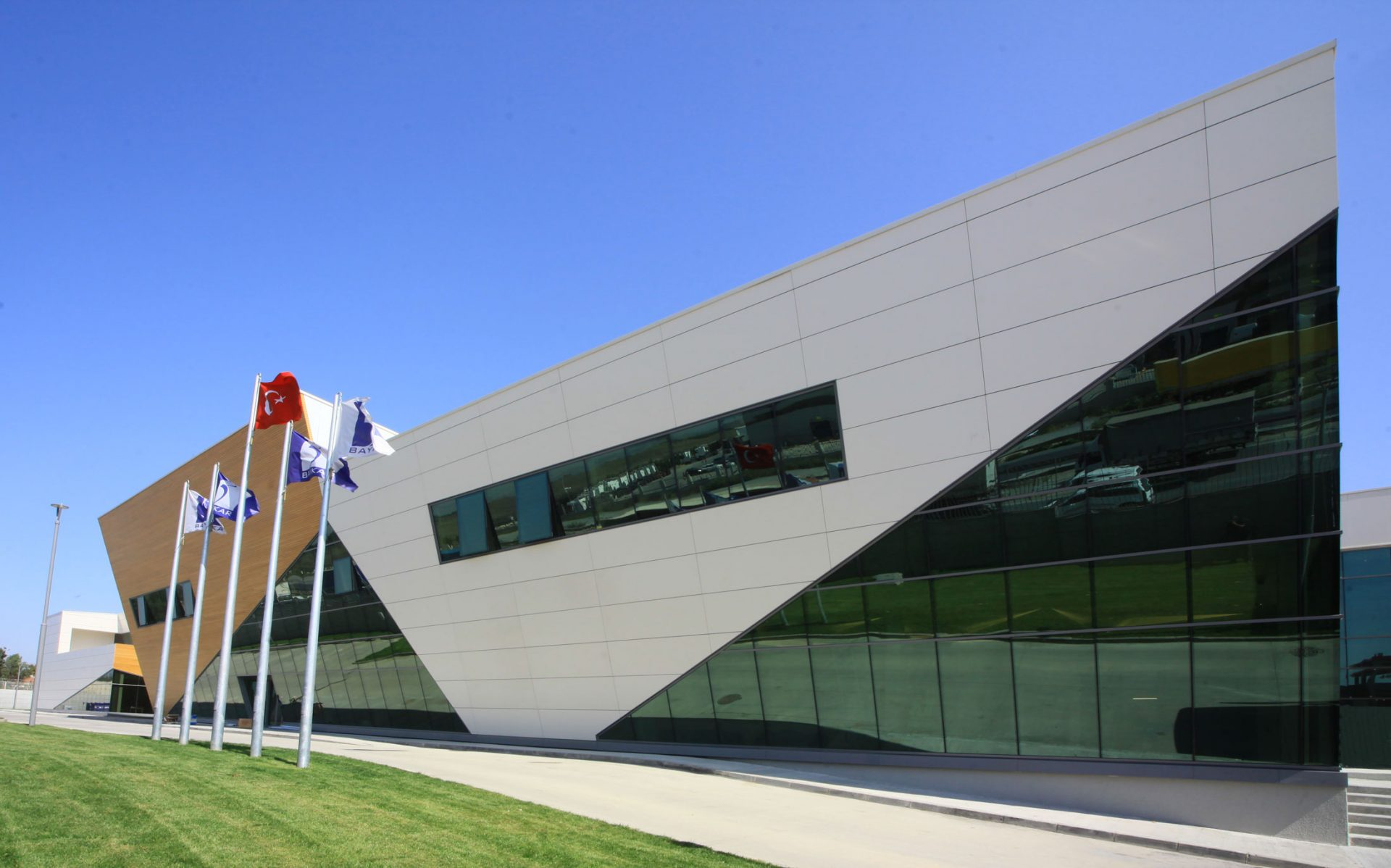

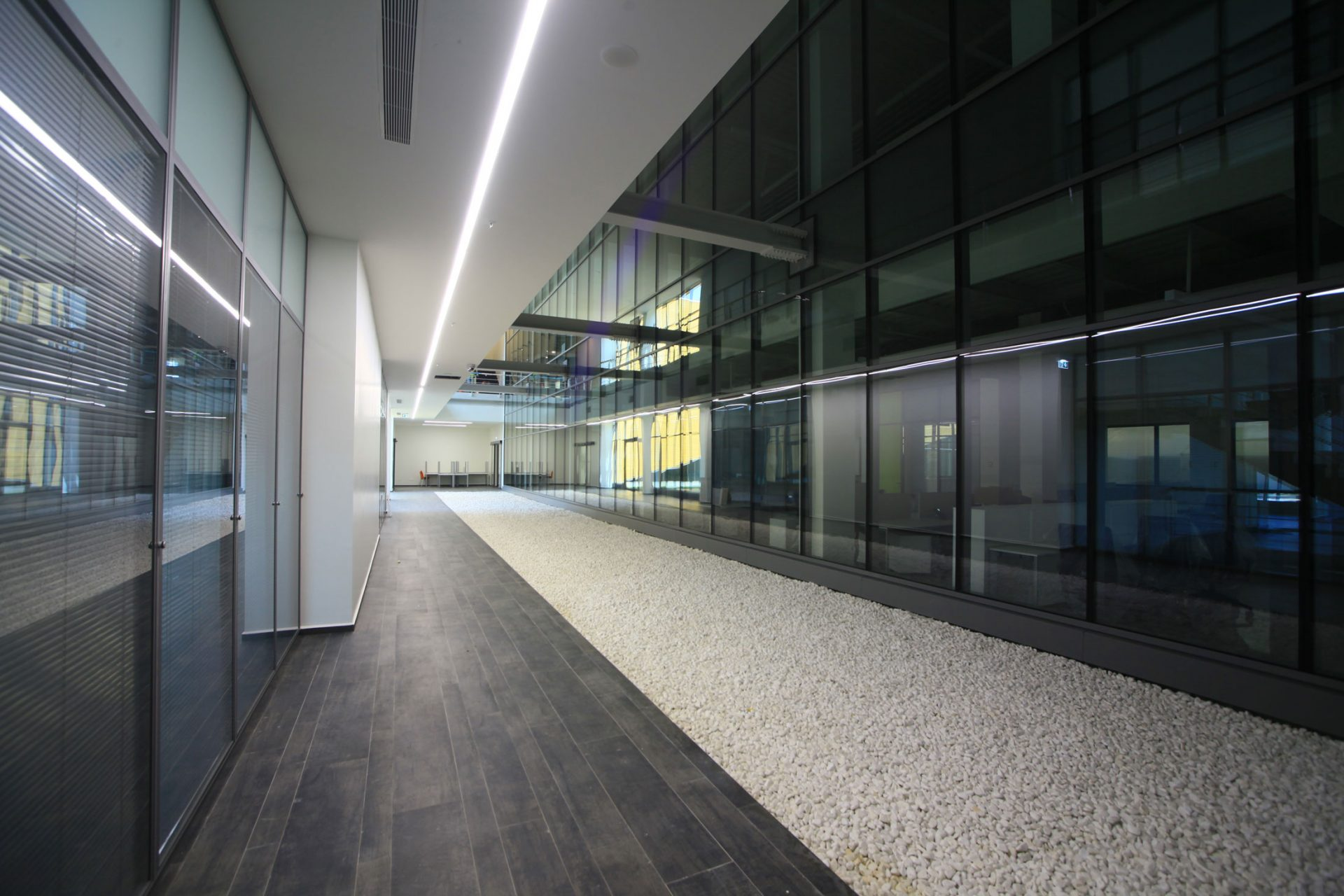

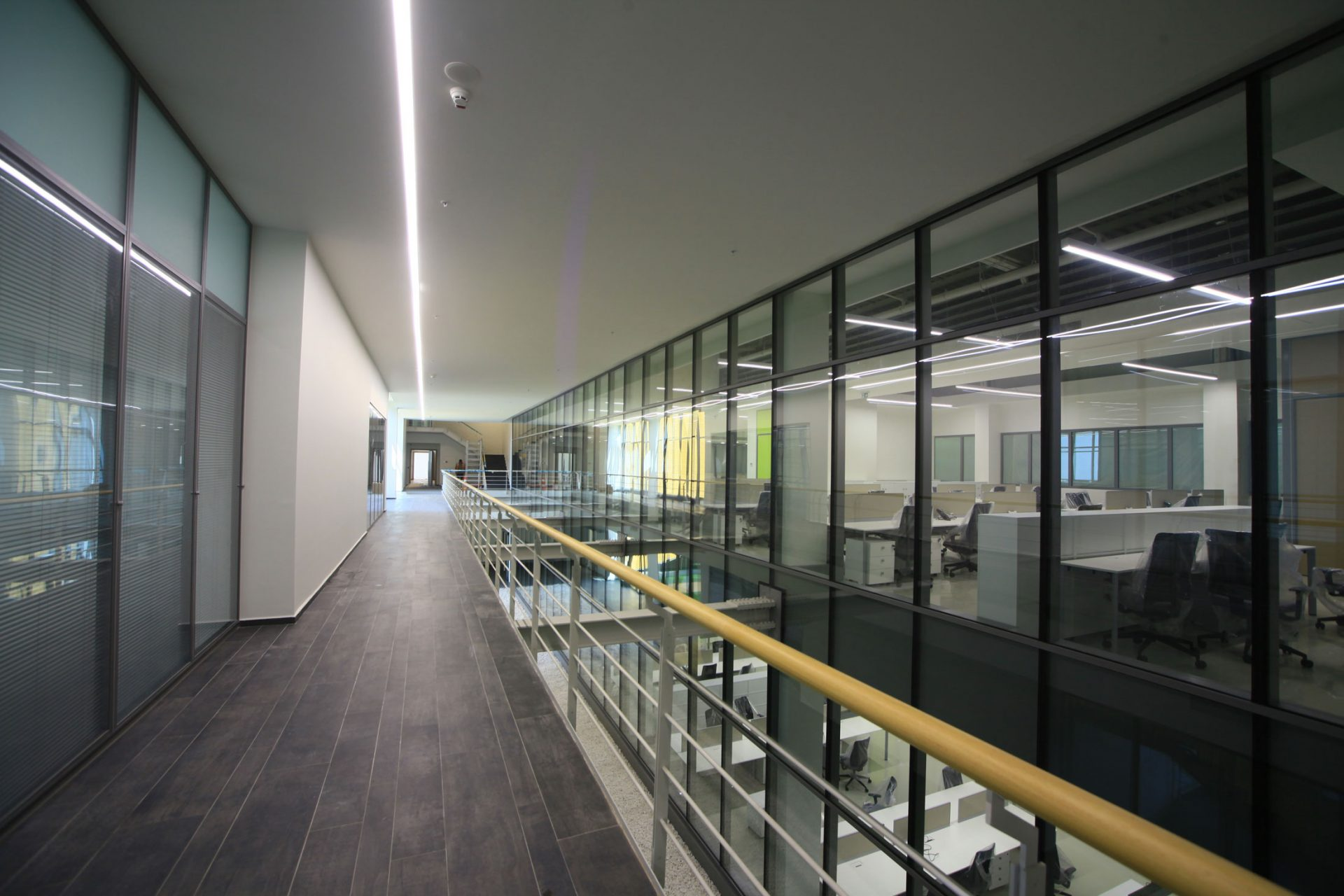

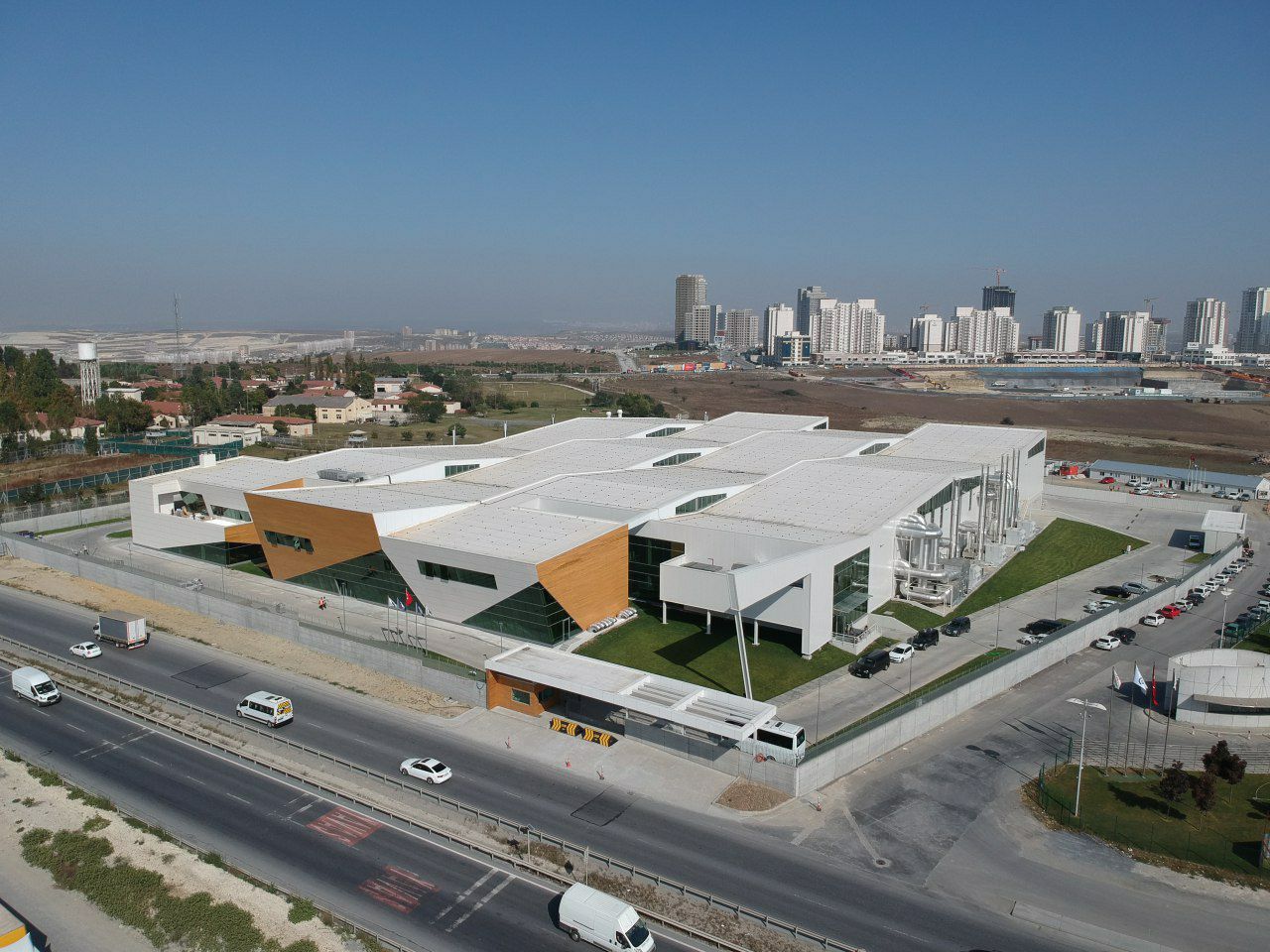

BAYKAR New R&D Center ( 46.200 m² ) Esenyurt/ISTANBUL
View attachment 870276
View attachment 870272
View attachment 870274
View attachment 870275

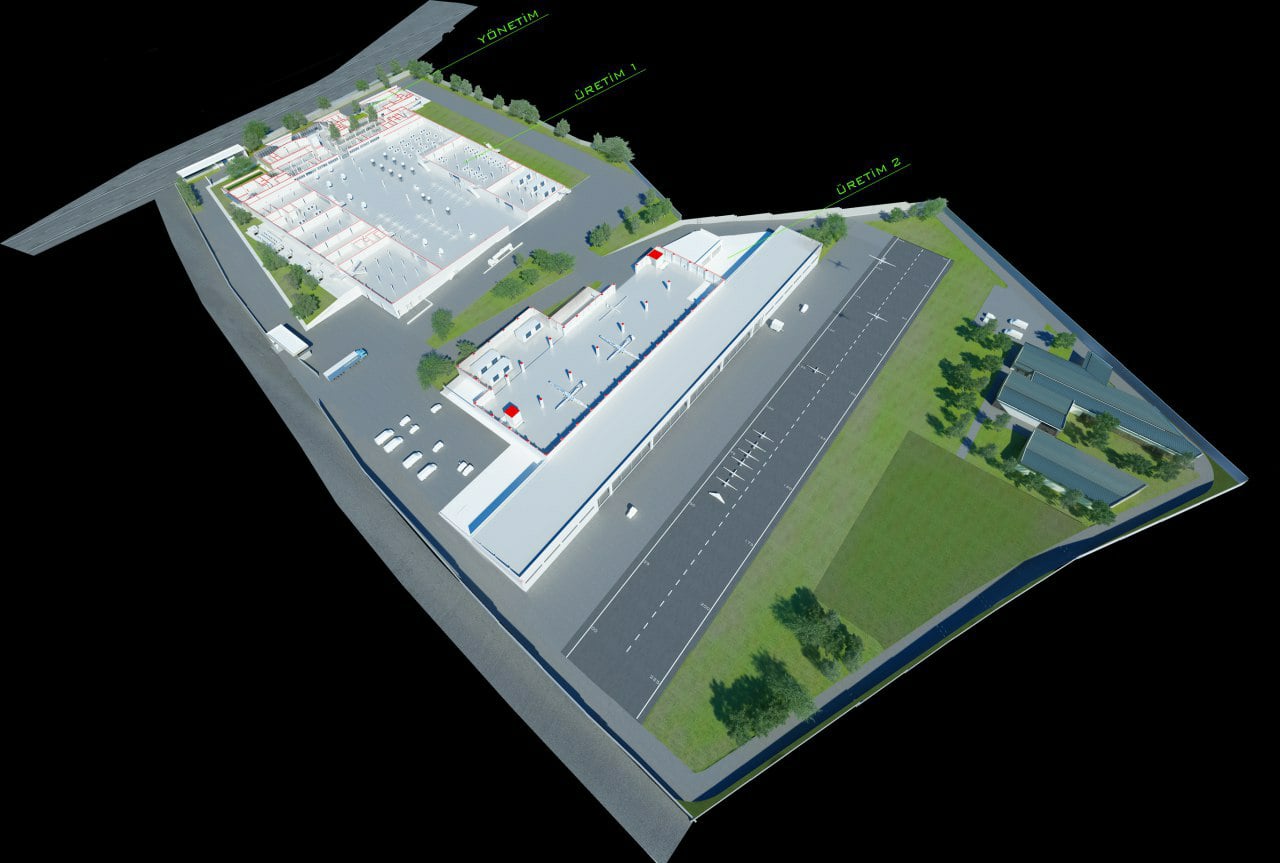

Baykar new UAV Factory ( 54.235 m² ) Hadımköy/ ISTANBUL
View attachment 870277
View attachment 870278

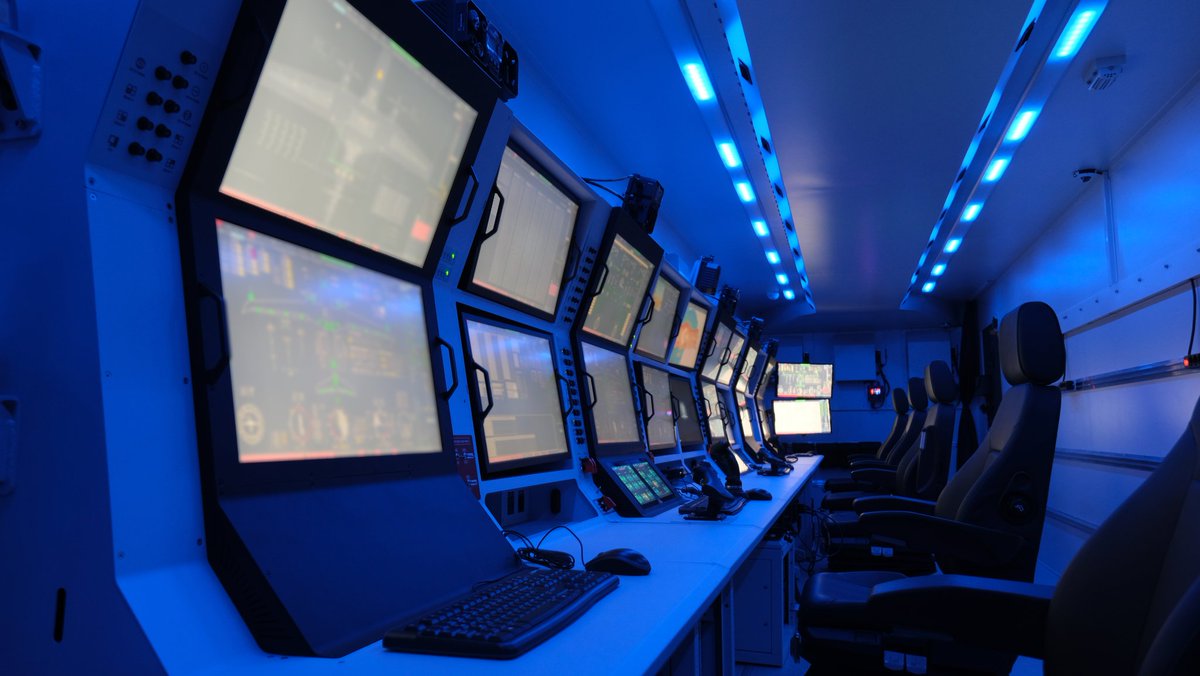

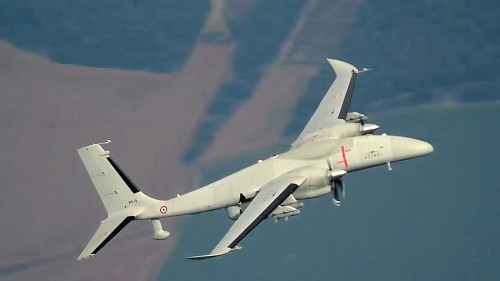

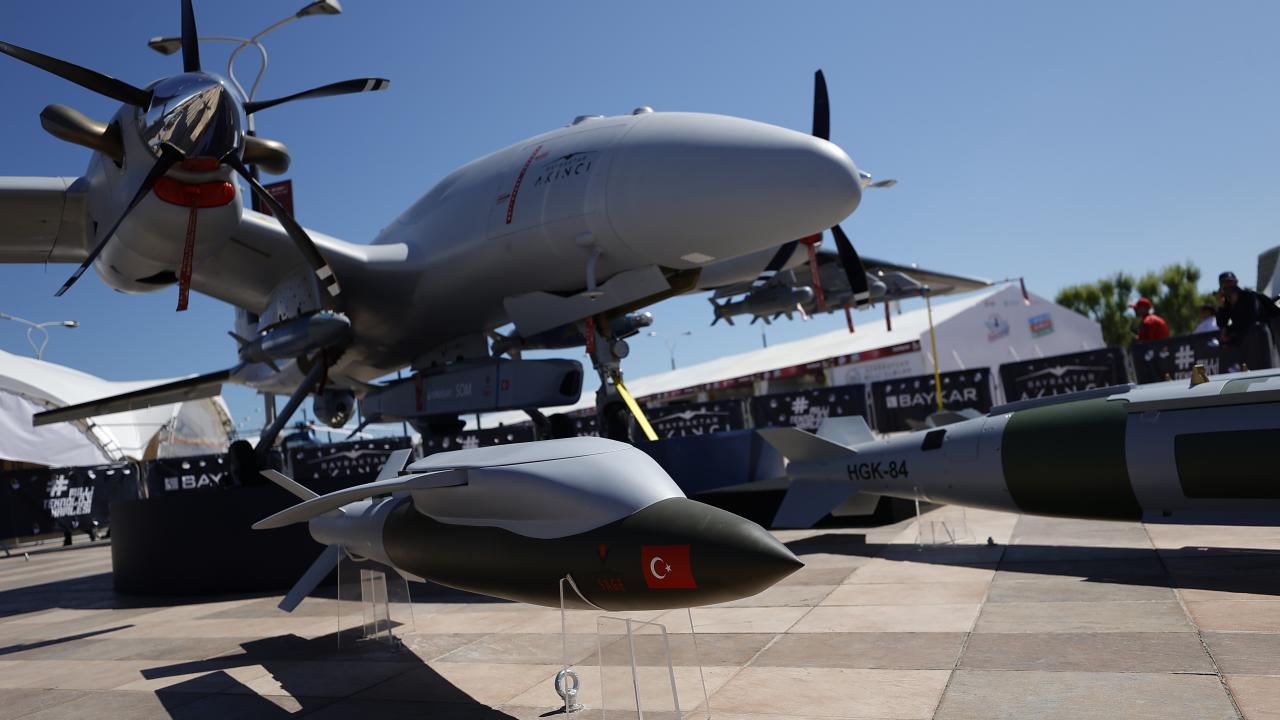

Baykar AKINCI UCAV
Length : 12,3 m
Height : 4,1 m
Wingspan : 20 m
MTOW : 5.500 kg
Max speed : 360 km/h
Combat range : 2.000+ km
Payload : 1350 kg
Endurance : 24 hours
Service ceiling : 40.000 feet
-- AESA Radar
-- SATCOM
-- Electronic Data Gathering ( ELINT / COMINT )
-- 6 multi-core Artificial Intelligence Computers
-- 275 km SOM Cruise Missile
-- 250 km KUZGUN-TJ joint strike Missile with IIR seeker
-- 150 km CAKIR Cruise Missile with IIR seeker
-- 65 km GOKDOGAN and 25 km BOZDOGAN air to air missiles
-- 40 km KUZGUN-KY Missile
-- 30 km MAM-T laser guided Munition
-- 15 km MAM-L laser guided Munition
-- 12 km UMTAS anti Tank Missile with top attack capability
Also NEB , TEBER , KGK-82 guided Bombs
View attachment 870295
View attachment 870296
View attachment 870297
View attachment 870298

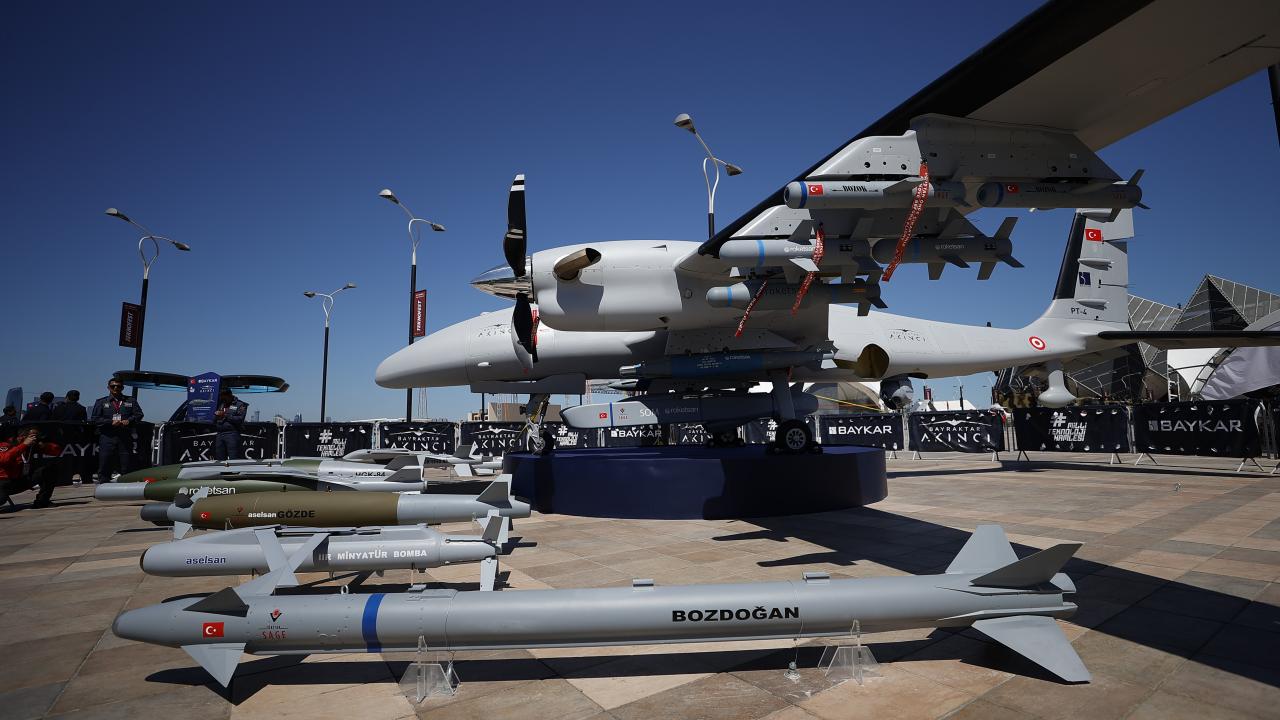

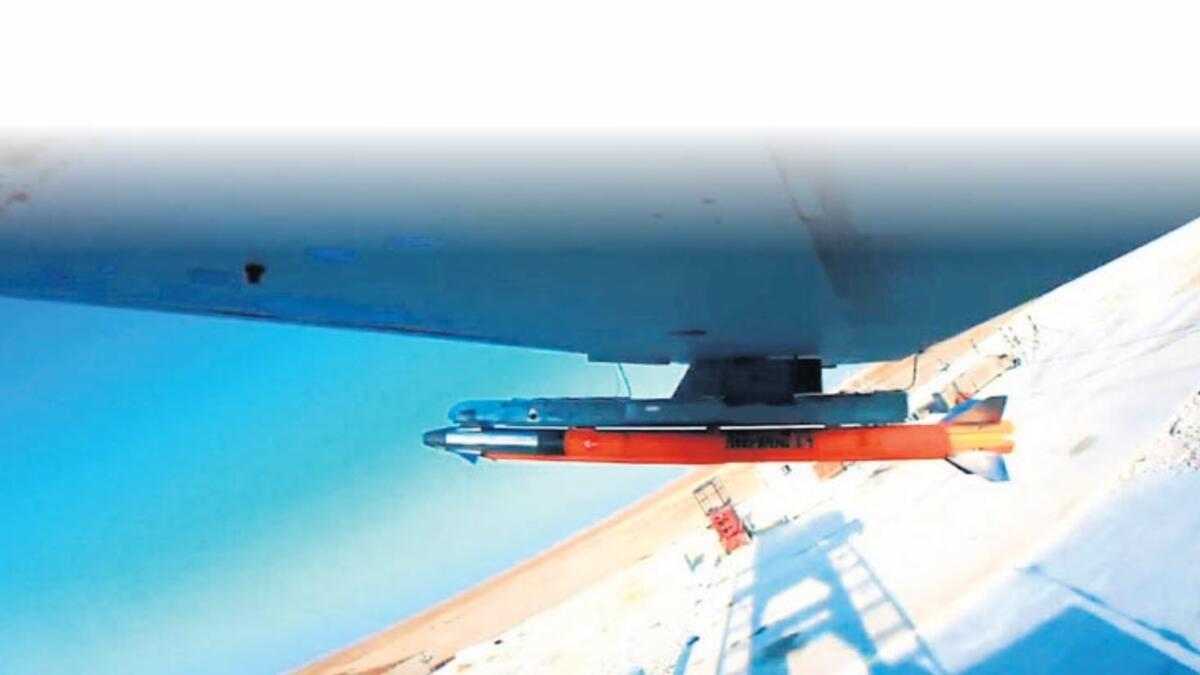

AİR TO AİR combat CAPABILITY
AKINCI UCAV will carry AESA Radar with Air to Air Missiles
25 km BOZDOGAN air to air Missile
100+ km GOKDOGAN air to air Missile
View attachment 870302
AIR-TO-GROUND high precision strike CAPABILITY
-- 275 km SOM Cruise Missile
-- 250 km KUZGUN-TJ joint strike Missile with IIR seeker
-- 150 km CAKIR Cruise Missile with IIR seeker
-- 40 km KUZGUN-KY Missile
-- 30 km MAM-T laser guided Munition
-- 15 km MAM-L laser guided Munition
-- 12 km UMTAS anti Tank Missile with top attack capability
Also NEB , TEBER , KGK-82 guided Bombs

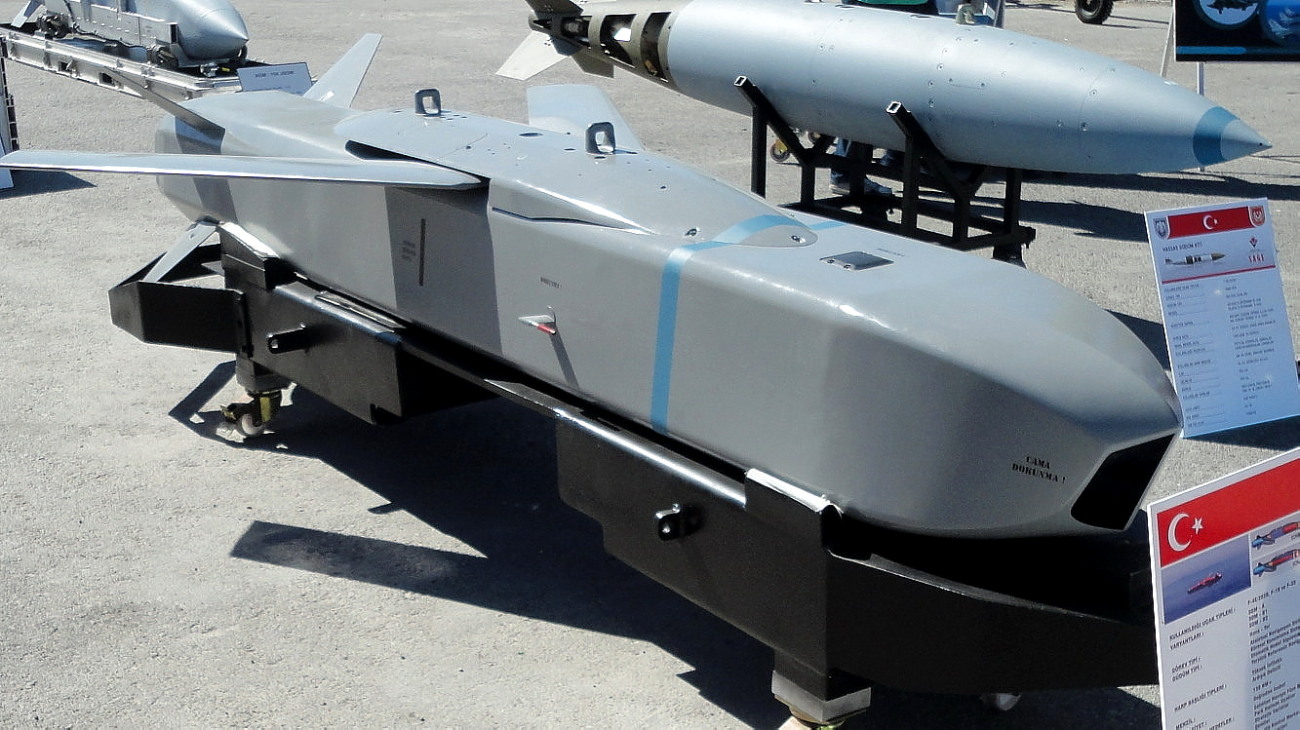

AkINCI will be the first UCAV in the World that capable of launching a Cruise Missile
Warhead : 230 kg
Range : 275 km
Guidance : INS+GPS+TRN+IBN+ATR+DL
Seeker : IIR
Speed : 0.94 mach
Network enabled capability : YES
Capability : land attack and anti-ship
View attachment 870303

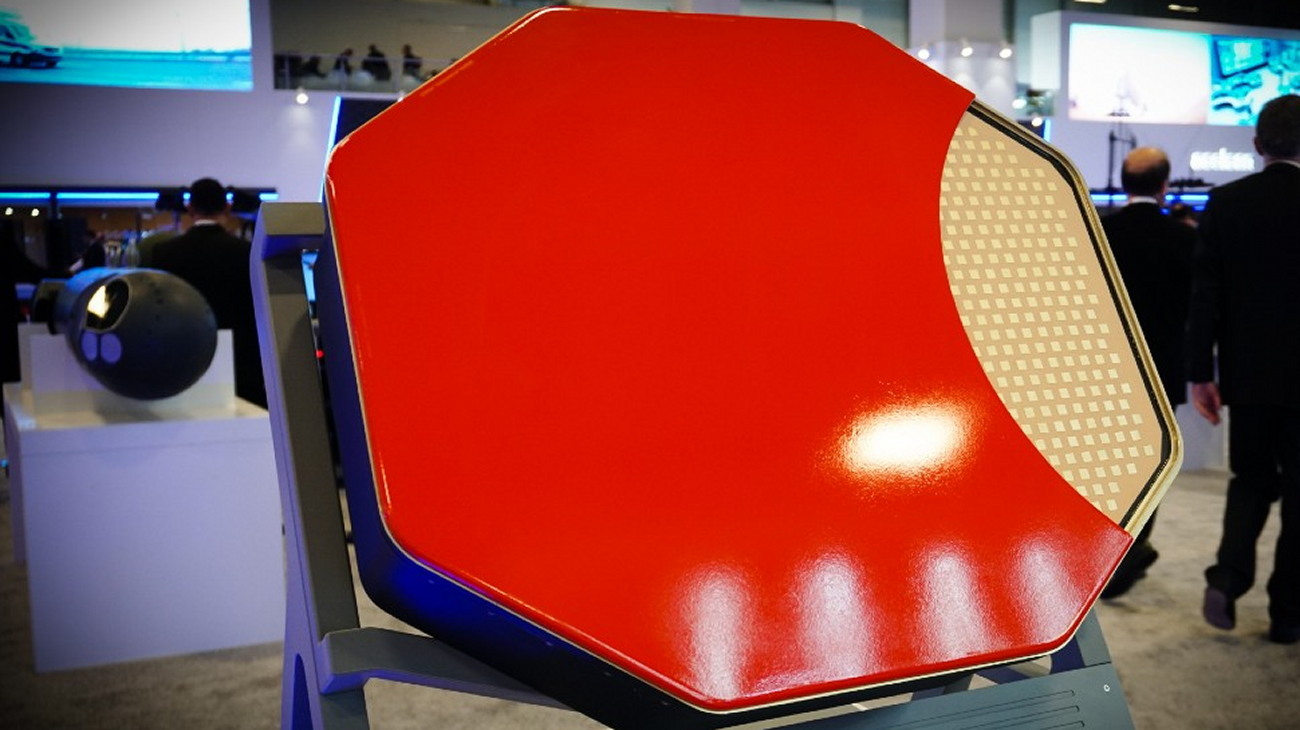

AESA Radar will be putted into AKINCI UCAV in 2022
View attachment 870299
View attachment 870300
"ASELSAN Söz Verdi, AKINCI'ya AESA Radarı Bu Yıl Koyacağız"
Cumhurbaşkanlığı Savunma Sanayii Başkanı Prof. Dr. İsmail Demir, ASELSAN tarafından yürütülen AESA Radar Projesi hakkında açıklamalarda bulundu.www.savunmasanayist.com
Please as much I like your news posts, there is no need to always post the whole history, specifications and future plans for each UAV in every post .
dBSPL
SENIOR MEMBER
- Joined
- Mar 2, 2018
- Messages
- 7,661
- Reaction score
- 28
- Country
- Location
Deliveries continue quickly. A total of 6 AKINCI systems were transferred to the air force within a month. 3+3 AKINCI was delivered in the transfers that took place with an interval of 20 days.
The total number of Akıncı delivered was 12. Six to the Land Forces Command and six to the Air Forces Command. There is no clear information about the total number of AKINCI-Bs planned to be delivered to the Air Force, but the completion of the deliveries in August, which is due until October, shows that there will be production in very high numbers.
The total number of Akıncı delivered was 12. Six to the Land Forces Command and six to the Air Forces Command. There is no clear information about the total number of AKINCI-Bs planned to be delivered to the Air Force, but the completion of the deliveries in August, which is due until October, shows that there will be production in very high numbers.
Last edited:
dBSPL
SENIOR MEMBER
- Joined
- Mar 2, 2018
- Messages
- 7,661
- Reaction score
- 28
- Country
- Location

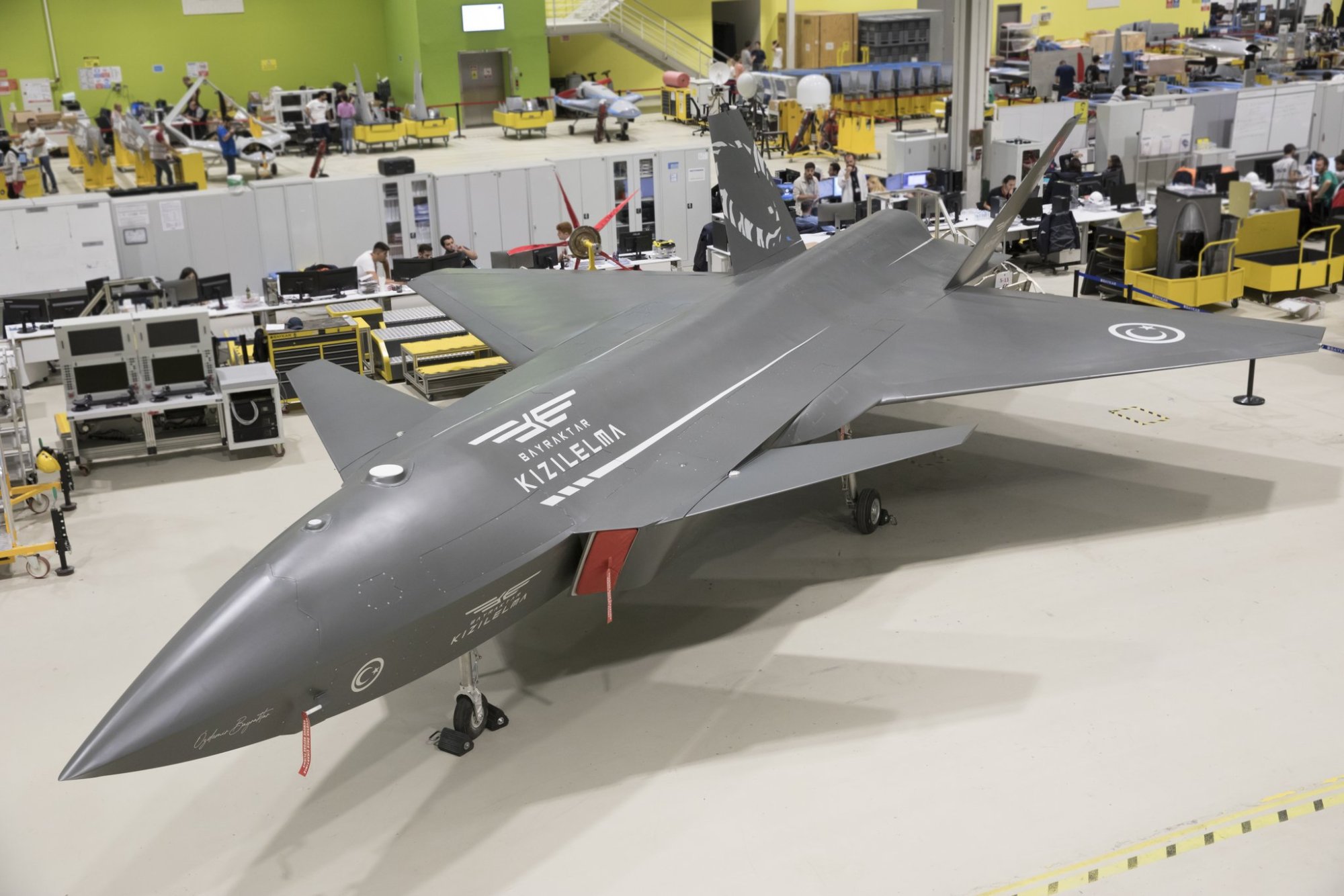

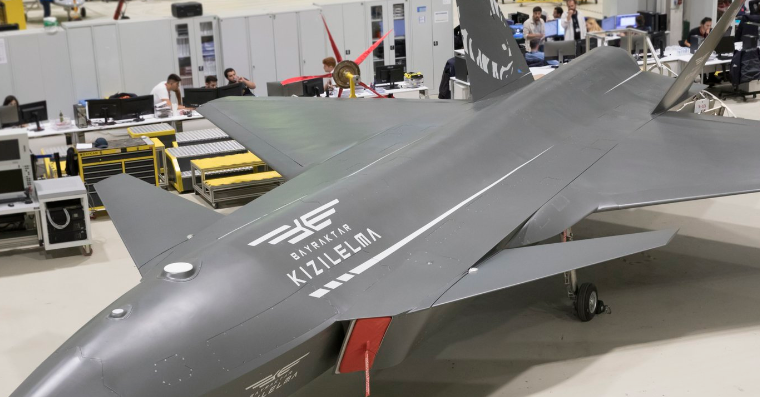

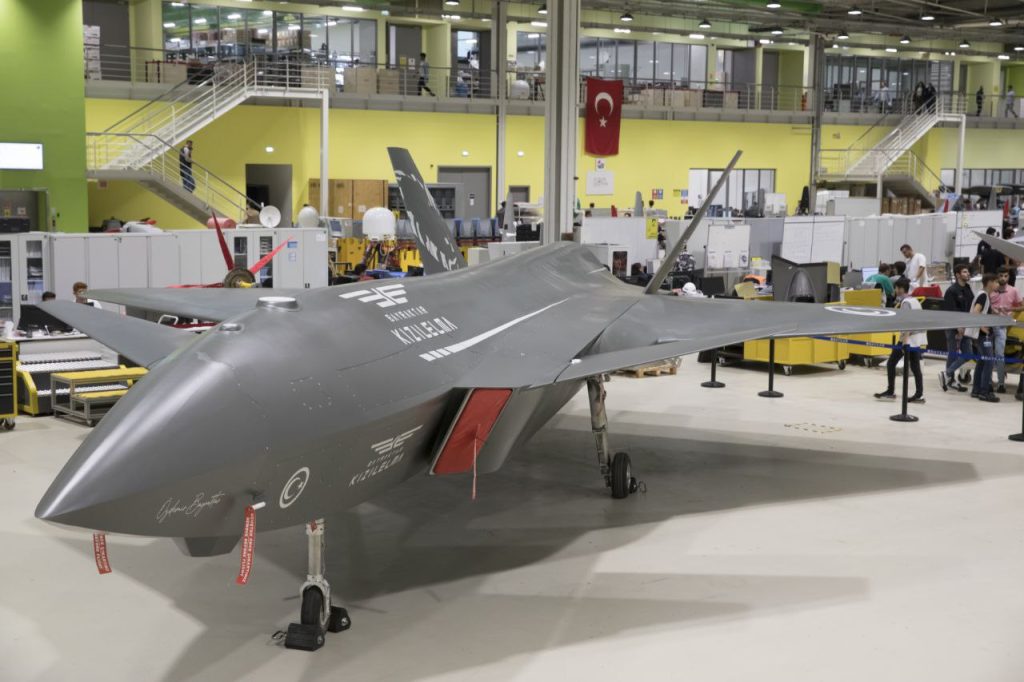

The 2nd prototype that will make the Kızılelma's maiden flight next year has been sent to Samsun to be exhibited at Teknofest!
Teknofest Samsun will open its doors on August 30. Big news.
Hold the door
FULL MEMBER
- Joined
- Jul 10, 2021
- Messages
- 280
- Reaction score
- 0
- Country
- Location
It will be the best unmanned combat aircraft in the world. Can't wait!
dBSPL
SENIOR MEMBER
- Joined
- Mar 2, 2018
- Messages
- 7,661
- Reaction score
- 28
- Country
- Location
TUSAŞ: Hold my beer
Oublious
SENIOR MEMBER
- Joined
- Jun 23, 2012
- Messages
- 7,567
- Reaction score
- -3
- Country
- Location
Another fine tuned design of Bayraktar, the angle shape of the nose. When you have a radar on the ground and you are flying high. Below of the nose is the first section what will come in contact with the radar. Look to the angle, dectlection of the radar...
dBSPL
SENIOR MEMBER
- Joined
- Mar 2, 2018
- Messages
- 7,661
- Reaction score
- 28
- Country
- Location
Is these are LERXes ?
Dude, they're not making drones right now. Or they've made an extraordinary breakthrough in autonomous capabilities, but they don't explain it. Because this is a pure dogfight airframe, you know.
Canards, chine along with fuselage, trapezoidal wings with LERX extensions. If Baykar can achieve what they thinks... anyway, I don't need to finish my sentence.
Ali_Baba
SENIOR MEMBER
- Joined
- May 27, 2018
- Messages
- 6,417
- Reaction score
- 1
- Country
- Location
Has Turkey developed and tested a FBW for an unstable aircraft before? Is Kızılelma the first turkish developed unstable airframe that requires a matching FBW?
