Wing Reinforcement Makes Thunder More Lethal !

[LKJ86]



[The Raven]

View attachment 691891

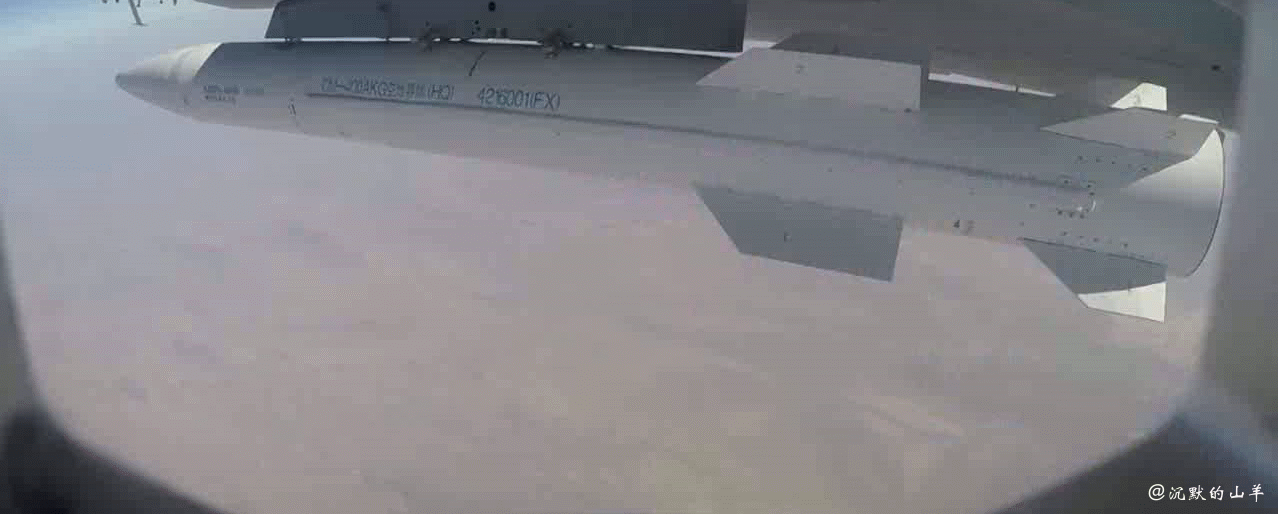

Thank you, I was looking for this. It was released about 10 years ago I think, showing the CM-400AKG being launched from the JF-17.



[maverick1977]

No wonder the PAF gave you the boot, you don't know anything about what you claim to know.

That is so low of you to say this, i lost all respect for you.



[White and Green with M/S]

Oh---you are one of the very few on my ignore list---. I don't do that unless the poster is totally worthless in his posts. So---here you go.

So you're better than those professional WORKING on these fields



[Mustang-87]

found this image of jf-17 carrying (mk-84?) unguided bomb on wing hardpont
but this is 5 years old



[Surya 1]

Generally any reimbursement comes with wright penalty. Does anybody knows about any weight increase?



[MastanKhan]

Hi,

Strengthening of wing roots would also mean that the aircraft would also be able to bear a higher G level---.



[Trango Towers]

Just get an engine with 70KN plus dry thrust and increase wing loading to 90 lbs per sq feet and JF17 will be an ammo truck... I can imagine block 3 has substaintial improvement in these terms, i still have to spend time on JF 17 block three thread, throwing it out there or folks to answer.

Consider it done....I will go to 6th Road pending. Pick up an engine from suzuki and put it in a jf17. Yaar not so simple is it



[maverick1977]

Consider it done....I will go to 6th Road pending. Pick up an engine from suzuki and put it in a jf17. Yaar not so simple is it

no at simple, agreed! but thats what engineering is all about..

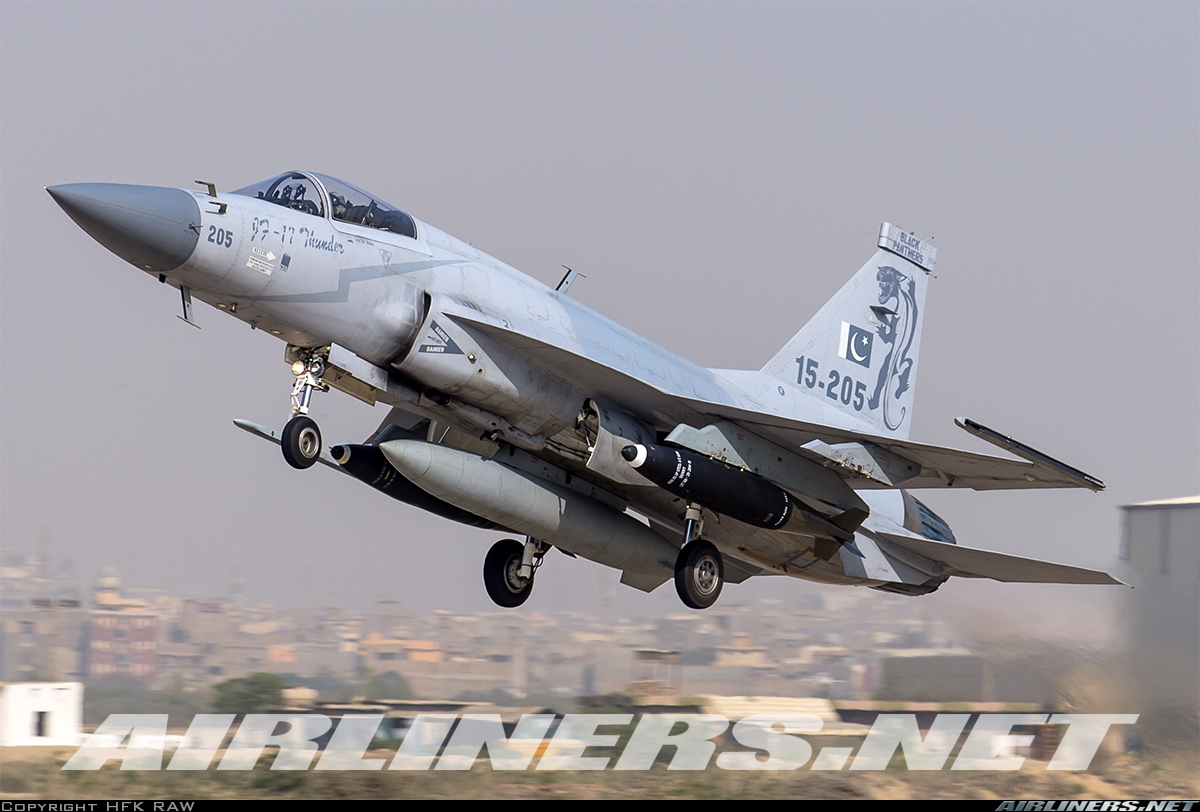

View attachment 698195
found this image of jf-17 carrying (mk-84?) unguided bomb on wing hardpont

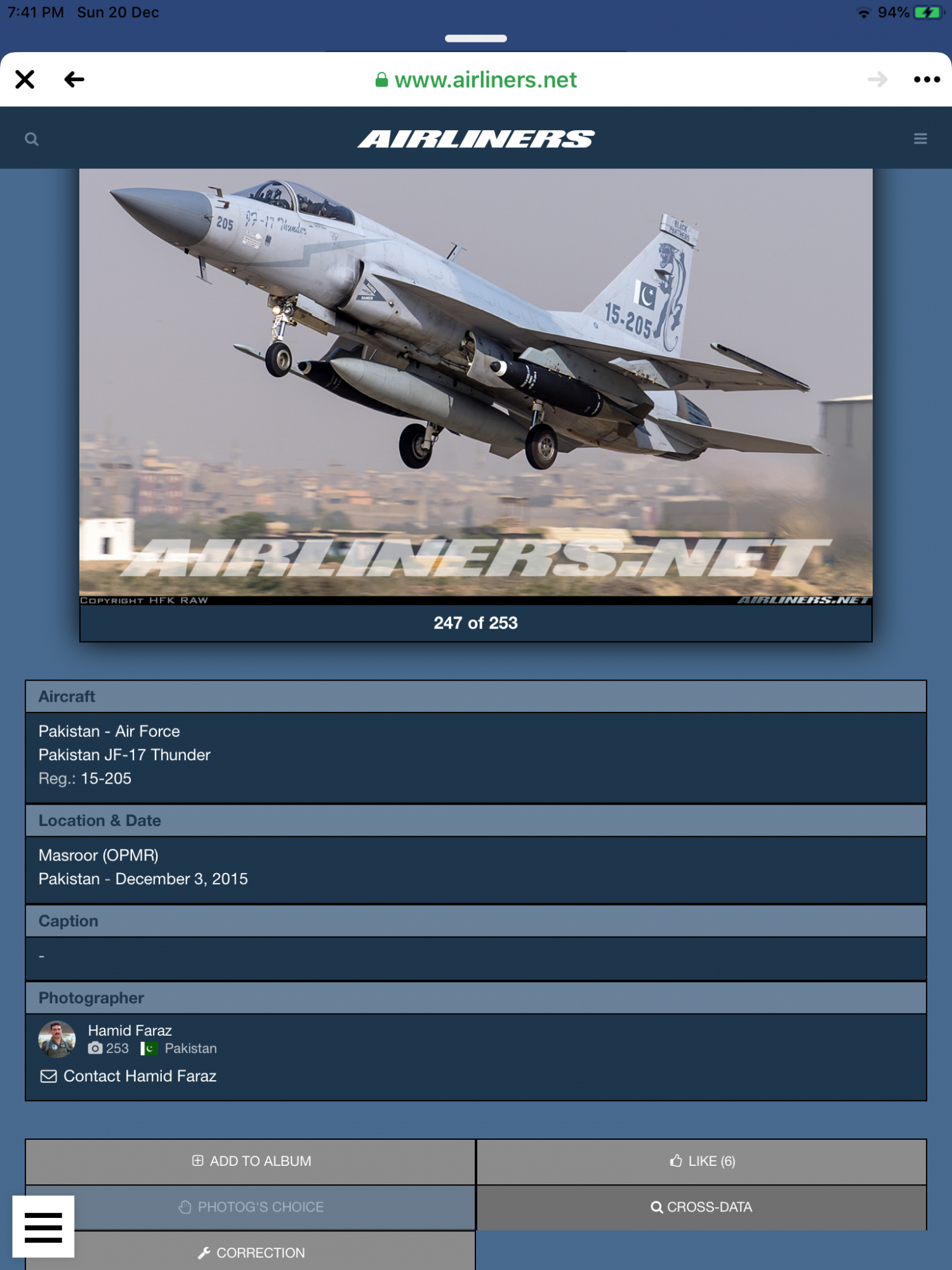

but this is 5 years old View attachment 698196

so a total or 3 MK84 with GBU kits on pylon 3 , 4 and 5. one MK83 on pylon 2 and 6 each and two WVR PL5s on wing tips will make this a lethal bombing machine



[Nomad40]

Hi,

Strengthening of wing roots would also mean that the aircraft would also be able to bear a higher G level---.

not really



[MastanKhan]

not really

Hi,

Really---!

Share why not---.

What is the physics behind it---?



[khanasifm]

Pakistan Aeronautical Complex (PAC) has reportedly reinforced the wing roots on JF-17s which enables these aircraft to carry a Mk-84 Bomb under each wing . Until now this capability was only available on F-16s. While most aircraft can carry MK-84 Bombs on centreline station under the belly, very few can boast of carrying same under wings.

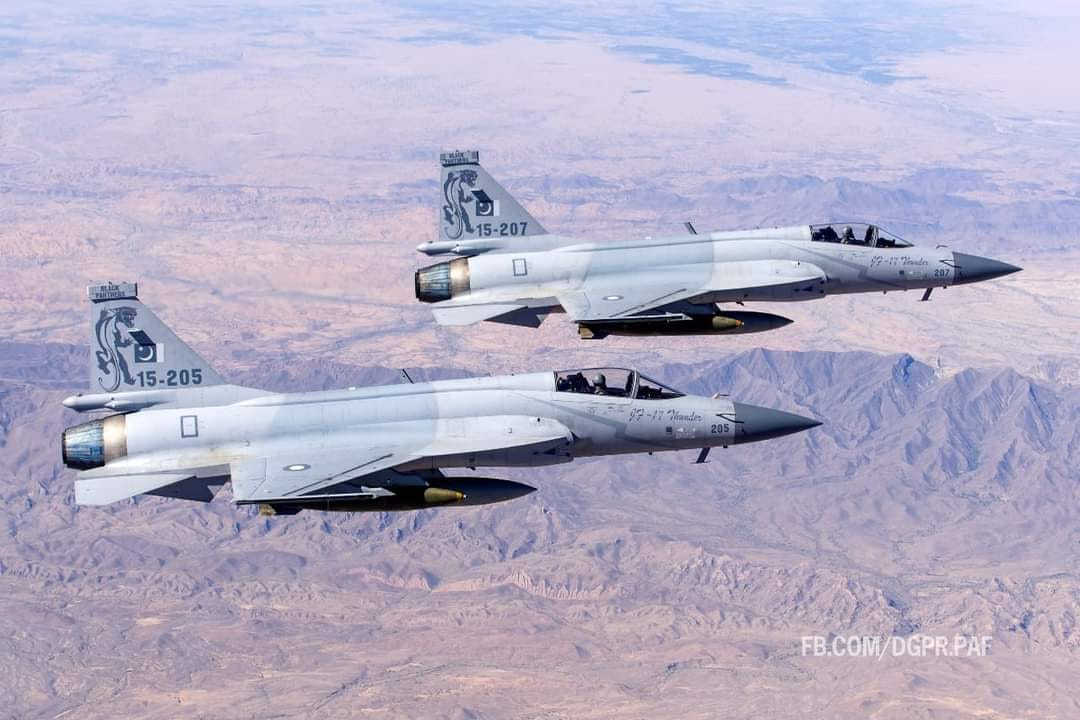

View attachment 689742

the 1100 liter drop tank weights about 1100 plus kg with fuel while 800 liters tank about 700 kg

I think it’s was overall external weight max load went up to 4300/4500 kg amd max takeoff to 13500 or 13.5 tons from 12.x tons , did the outer hp 2 and 6 also got higher rating say 900-1000 kg and from current 400-550 kg, what about wingtip ? Can they at least in block 3 will be able to carry sd-10 which are 199kg each ?



[khanasifm]

This combination is also a potent load out.

View attachment 690200

Perhaps a redesign under belly 1000 liter tank to enhance range by say Another 50 km or so added to this config

Mirage f-1 good example belly tanks redesigned to add more fuel ie range which will be dropped when Empty



View attachment 742355



[Signalian]

Firing AG missiles with delay is very very normal,if you think AG missiles are always fired in pair you don't know anything about fighter flying

Accepted I dont know anything about fighter flying Now if 2 x AShMs are fired simultaneously at a ship, the probability of interception by Ship's countermeasures would become lesser, wrong or right ? if wrong then explain plz. A delay of a few seconds between launch of both missiles can let the missiles hit different spots or ends of the ship ?



[GriffinsRule]

Accepted I dont know anything about fighter flying Now if 2 x AShMs are fired simultaneously at a ship, the probability of interception by Ship's countermeasures would become lesser, wrong or right ? if wrong then explain plz. A delay of a few seconds between launch of both missiles can let the missiles hit different spots or ends of the ship ?

Missiles can also be launched with different trajectories as well when approaching the target or different flight profiles. You can also mix and match different missiles (subsonic and supersonic) to increase the probability of a hit.
