DXM MRAP standing outside Islamabad Airport man f****** AWESOME MONSTER
You took any pics?
kolinsky
FULL MEMBER
- Joined
- Sep 5, 2014
- Messages
- 207
- Reaction score
- 0
- Country
- Location
this car is very cute, like a hello kitty.....
aziqbal
SENIOR MEMBER
- Joined
- Aug 26, 2010
- Messages
- 7,403
- Reaction score
- -10
- Country
- Location
I don't really see the big deal in Pakistan getting those MRAPs yeah they are American and big and bad looking but certainly not outside the scope of HIT to build a domestic one
There is no technology issue from stopping Pakistan to build its own MRAP
But then if you are getting them for a cheap price and in good condition then why reinvent the wheel
Only issue with these American units is the high fuel consumption certainly pakistan can not move land forces using them on mass it would be a logistical nightmare but for the limited operations I guess are ok
There is no technology issue from stopping Pakistan to build its own MRAP
But then if you are getting them for a cheap price and in good condition then why reinvent the wheel
Only issue with these American units is the high fuel consumption certainly pakistan can not move land forces using them on mass it would be a logistical nightmare but for the limited operations I guess are ok
Inception-06
SENIOR MEMBER
- Joined
- Aug 17, 2007
- Messages
- 4,172
- Reaction score
- 18
- Country
- Location
Old History and NOT posted before in this kinde of Information material:
I like this Idea and solution for the 1980s it was totally OK
Designation:
Cheeta
Manufactured by: Heavy Industry Taxila (HIT)
Type: Armoured Vehicles
Name: Armoured car
Development/Description
In the late 1980s, Pakistan modified a number of standard commercial 4x2 tractors for military applications.
These vehicles are intended to serve as training vehicles to reduce wear on actual combat equipment so saving significant operating costs.
The modifications included fitting a lightly armoured body to the chassis which covers the engine at the front and extends right to the rear.
The driver and commander are seated to the immediate rear of the engine and to their front is a large windscreen. To the rear of the driver and commander is space for a further two or three personnel, with the weapon installation mounted on the roof.
Normal means of entry and exit are believed to be via doors in the rear of the hull. There are minor differences between vehicles with some being provided with small hatches in the sides of the hull either side of the driver's compartment.
Mounted on either side of the hull, just forward of the driver's compartment, is a bank of three electrically operated smoke grenade dischargers that fire to the front of the vehicle. Most vehicles appear to be fitted with a single radio antenna mounted at the rear of the hull. As far as is known, these vehicles are not fitted with an NBC system or any night vision equipment.
Variants
This version is called Cheeta and is fitted with a roof-mounted US Raytheon Systems Company TOW ATGW launcher with additional missiles carried internally for manual reloading. The TOW missile has a maximum range of 3,750 m.
This is armed with the Swedish Bofors Missiles RBS 70 surface-to-air missile system with additional missiles carried internally for manual reloading.
This has a pedestal-type mount on which are mounted four Anza (Lance) surface-to-air missiles in the ready to launch position. The Anza has been developed in Pakistan and is based on the Chinese HN-5 surface-to-air missile system which is of the infra-red fire-and-forget type.
This has a simple open hatch on which is mounted the Chinese version of the Russian 14.5 mm KPVT heavy machine gun. Due to the limited depression of the weapon the main role of this version is probably air defence.
Status
Production complete. In service with the Pakistani Army. These were not offered on the export market.
I like this Idea and solution for the 1980s it was totally OK
Designation:
Cheeta
Manufactured by: Heavy Industry Taxila (HIT)
Type: Armoured Vehicles
Name: Armoured car
Development/Description
In the late 1980s, Pakistan modified a number of standard commercial 4x2 tractors for military applications.
These vehicles are intended to serve as training vehicles to reduce wear on actual combat equipment so saving significant operating costs.
The modifications included fitting a lightly armoured body to the chassis which covers the engine at the front and extends right to the rear.
The driver and commander are seated to the immediate rear of the engine and to their front is a large windscreen. To the rear of the driver and commander is space for a further two or three personnel, with the weapon installation mounted on the roof.
Normal means of entry and exit are believed to be via doors in the rear of the hull. There are minor differences between vehicles with some being provided with small hatches in the sides of the hull either side of the driver's compartment.
Mounted on either side of the hull, just forward of the driver's compartment, is a bank of three electrically operated smoke grenade dischargers that fire to the front of the vehicle. Most vehicles appear to be fitted with a single radio antenna mounted at the rear of the hull. As far as is known, these vehicles are not fitted with an NBC system or any night vision equipment.
Variants

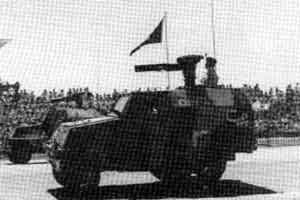

- Anti-Tank with TOW
This version is called Cheeta and is fitted with a roof-mounted US Raytheon Systems Company TOW ATGW launcher with additional missiles carried internally for manual reloading. The TOW missile has a maximum range of 3,750 m.
- RBS 70 SAM carrier
This is armed with the Swedish Bofors Missiles RBS 70 surface-to-air missile system with additional missiles carried internally for manual reloading.
- Anza SAM carrier
This has a pedestal-type mount on which are mounted four Anza (Lance) surface-to-air missiles in the ready to launch position. The Anza has been developed in Pakistan and is based on the Chinese HN-5 surface-to-air missile system which is of the infra-red fire-and-forget type.

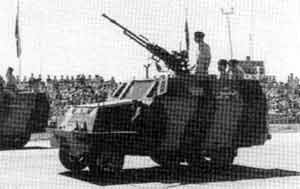

- MG carrier
This has a simple open hatch on which is mounted the Chinese version of the Russian 14.5 mm KPVT heavy machine gun. Due to the limited depression of the weapon the main role of this version is probably air defence.
Status
Production complete. In service with the Pakistani Army. These were not offered on the export market.
DESERT FIGHTER
ELITE MEMBER
- Joined
- Jan 1, 2010
- Messages
- 46,973
- Reaction score
- 95
- Country
- Location
DESERT FIGHTER
ELITE MEMBER
- Joined
- Jan 1, 2010
- Messages
- 46,973
- Reaction score
- 95
- Country
- Location
HIT
Uqaab (Pak Armouring)
Roll cage armoured Talha APC
Textron ASV:
Cougar EOD :
Mohafiz (HIT)
Dragoon (HIT)
Uqaab (Pak Armouring)
Roll cage armoured Talha APC
Textron ASV:
Cougar EOD :
Mohafiz (HIT)
Dragoon (HIT)
DESERT FIGHTER
ELITE MEMBER
- Joined
- Jan 1, 2010
- Messages
- 46,973
- Reaction score
- 95
- Country
- Location
MaxxPro MRAPS:
LAV:
fatman17
PDF THINK TANK: CONSULTANT
- Joined
- Apr 24, 2007
- Messages
- 32,563
- Reaction score
- 98
- Country
- Location
Armour protection was not very good on these vehicles in those days.
Rank
ELITE MEMBER
- Joined
- Apr 30, 2009
- Messages
- 10,771
- Reaction score
- 46
- Country
- Location
Complete List of MRAPs, APCs & IFVs used by Pakistan Military - Download HD Image.
Inventory:
- Textron Commando (U.S.A)
- Buffalo EOD (U.S.A)
- Cougar JERRV (U.S.A)
- MaxxPro (U.S.A)
- BTR-70/BTR-80 (Chinese/Russian)
- Lazar 2 MRAV (Serbia)
- Talha APC (Pakistan)
- M113 (U.S.A)
- Al-Saad (Pakistan)
- WZ551 (China)
- Dragoon (Pakistan)
- Talha (Pakistan)
- Land Cruiser Based AV (Pakistan)
- Muhafiz (Pakistan)
- Raad (Pakistan)
Coming Soon
- Uqaab APC (Pakistan)
- VN-01 IFV (China)
Last edited:
Selous
FULL MEMBER
- Joined
- Nov 5, 2014
- Messages
- 709
- Reaction score
- 1
- Country
- Location
What about the Caspir ? Someone told me they use Caspirs as well.
DESERT FIGHTER
ELITE MEMBER
- Joined
- Jan 1, 2010
- Messages
- 46,973
- Reaction score
- 95
- Country
- Location
We also use Maaz,Skot.Caspir,Panhard,Hamza IFV,PIFV (project frozen).... etc etc etc
Super Falcon
ELITE MEMBER
- Joined
- Jul 3, 2008
- Messages
- 15,816
- Reaction score
- -8
- Country
- Location
I think pakistan is doing well we need apcs like lazaar
fatman17
PDF THINK TANK: CONSULTANT
- Joined
- Apr 24, 2007
- Messages
- 32,563
- Reaction score
- 98
- Country
- Location
Italy has delivered nearly 650 M113 APC’S to the Pakistan Army as a gift from their excess stocks including VCC1 and VCC2 versions.
Meanwhile the US has supplied 369 M113 APC’S from their EDA stocks during 2014.
Meanwhile the US has supplied 369 M113 APC’S from their EDA stocks during 2014.
