Some of the pictures are of the Janbaz Force and not regular army. Janbaz force is similar to the territorial army or home guards. Their uniform is grey shalwar kameez, which is visible in the picture. Janbaz force has 37 mm ack acks. and they first to mobilize during a war because they are based close to their area of responsibility. The Army 37 mm ack acks are being upgraded and automated including laser range finders and they can potentially be linked directly to radars. See .24 sec in the Video below. These old guns can still be fairly effective in the modern context as unlike SAMs there are no counter measures. The quads and 37 mm are at the bottom rung of hierarchy of anti aircraft weapons which includes Oerlikon radar guided guns, Manpads and Medium SAMs. SA2s were retired many years ago.

Pakistan has changed anti aircraft gun. - JAAG TV



[Zarbe Momin]

My point of view is .....it would be cheap to run a Programm in the country to bring all AA Guns fully aoutomated with TV IR sensor and radar guidance because it will reduce man power and in war sistuation for point defences such as Airports, bridges and high value targets many AA Guns Systems can be interconnected and enemies standoff weaponss ......cruise missels.....TV IR guided missels an antiradiation missels can be counterd very effectively.



[Inception-06]

23mm AA Guns manned by Janbaz Forcers (National Guard):



[monitor]

23mm AA Guns manned by Janbaz Forcers (National Guard):

View attachment 302148 View attachment 302149 View attachment 302152

Upgraded 37 mm AA Guns :
View attachment 302150 View attachment 302151

How relevant this kind of manually operated gun today's battle field?



[DESERT FIGHTER]

How relevant this kind of manually operated gun today's battle field?

They older guns have been upgraded (the pic he posted are decades old -- mine the last/bottom 2)

AUTOMATIC FIRE CONTROL SYSTEM
Up-gradation of 37mm Anti Aircraft Gun

The original 37mm twin barrel AD gun has been upgraded in order to meet the present combat threats. The upgraded gun with its new firing system gives a unique combination of modern technology resulting in a very reliable weapon system. Capable to track high speed targets coupled with auto ranging. The gun can be operated in three modes, i.e. joystick, handheld fire control and laser aiming sight.

• Sunlight viewable alpha numeric displays
• Provision of interfacing with multiple guns (optional)
• Off Gun tracking of target for stability
• Computer aided leveling
• Smart electronics for gun control
• Power electronics for motors
• Limit switch for safety arc range
• Emergency stop
• Motors for azimuthal & elevation movements
• Horizontal and vertical shaft encoder
• Fire safety switch

http://gids.com.pk/automatic-fire-control-system



The 23mms have been phased out by army or are used as HMGs on posts by levies/khasadar forces (tribal cops) or at max FC.



[Inception-06]

gdf-005 oerlikon 35mm twin

How relevant this kind of manually operated gun today's battle field?

Take the time to read from page one of this topic !

AUTOMATIC FIRE CONTROL SYSTEM
Up-gradation of 37mm Anti Aircraft Gun



[optimisticlad]

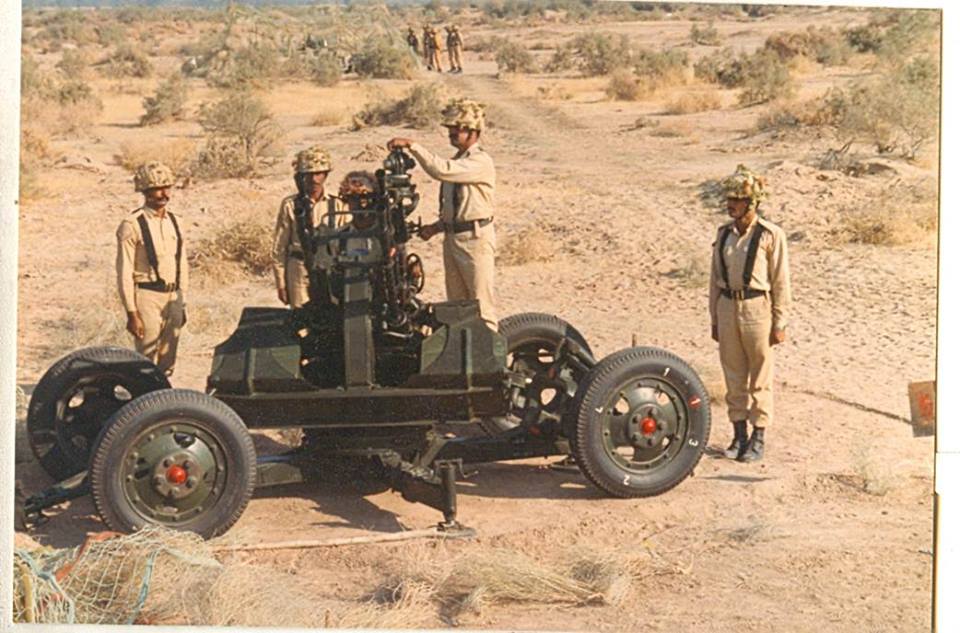

25mm AA Gun
View attachment 33042

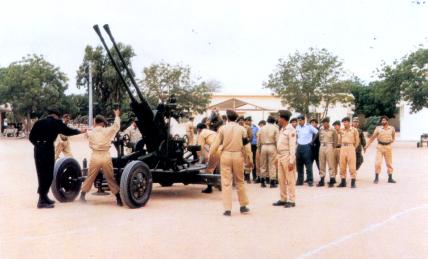

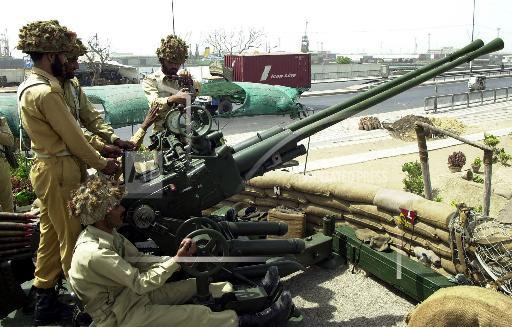

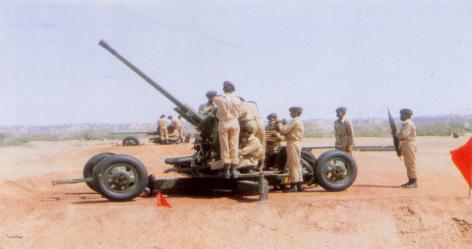

37mm AA Gun
View attachment 33043
View attachment 33045
View attachment 33046

yaar in k tires hi change krwa du
kse chalain gi ye rough terrain pe



[Inception-06]

yaar in k tires hi change krwa du
kse chalain gi ye rough terrain pe

It can be used in all terrains ! I have seen many Videos and pictures from Kargil war to exercises in Thar desert, this AA guns are deployed on every front line by the Pakistan Army, the AA guns are a integral part of our air, coastal and land defence !



[optimisticlad]

It can be used in all terrains ! I have seen many Videos and pictures from Kargil war to exercises in Thar desert, this AA guns are deployed on every front line by the Pakistan Army, the AA guns are a integral part of our air, coastal and land defence !

Thanx Sir.
but these are only effective against Helicopters and Drones...They cant hit a jet fighter or Missile ???????



[Inception-06]

Thanx Sir.
but these are only effective against Helicopters and Drones...They cant hit a jet fighter or Missile ???????

My friend please read the whole topic they can hit everything, what is in their range !



[optimisticlad]

My friend please read the whole topic they can hit everything, what is in their range !

okk



[PAKISTANFOREVER]

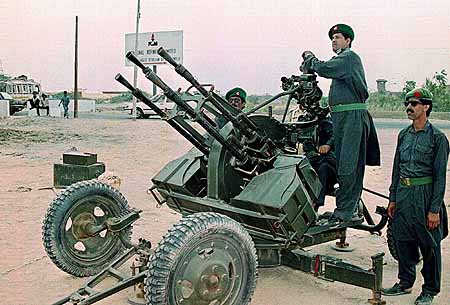

23mm AA Guns manned by Janbaz Forcers (National Guard):

View attachment 302152

My word. They look like the poor old Iraqi soldiers defending the gates of Baghdad from the american army and airforce back in 2003.



[risingsinga]

Accuracy..automation.. coordination.

may be reducing the response time and chances of error.



[Inception-06]

My word. They look like the poor old Iraqi soldiers defending the gates of Baghdad from the american army and airforce back in 2003.

A selam

I dont care how they look, we all know that this are retro pictures from 1998 and 1999 of the Janbaz Forces (National Guards in duty for local air defence), secondly we cant compare Pakistan with Iraq never and never again.

Our forces are doing the best with the available resources which our country gives us, sadly we dont have huge oil resources like IRAQ.

regards

good effort to collect these pics....

A selam thx a lot, I always try my best !



[Tipu7]

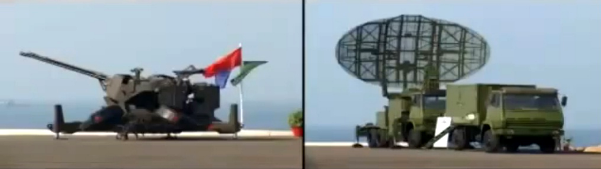

What is this?
KRL122?

And what is standing with SH1?

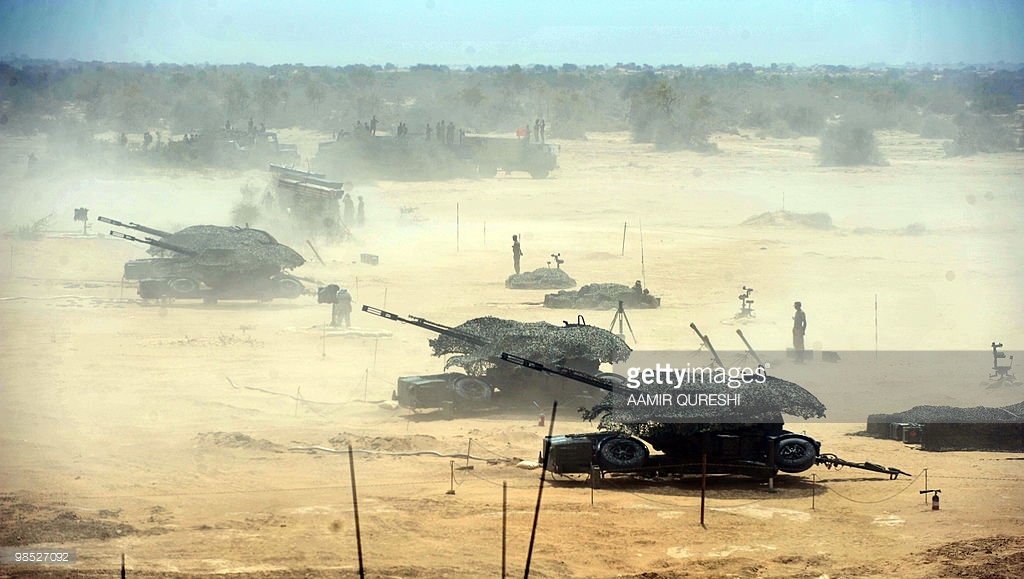

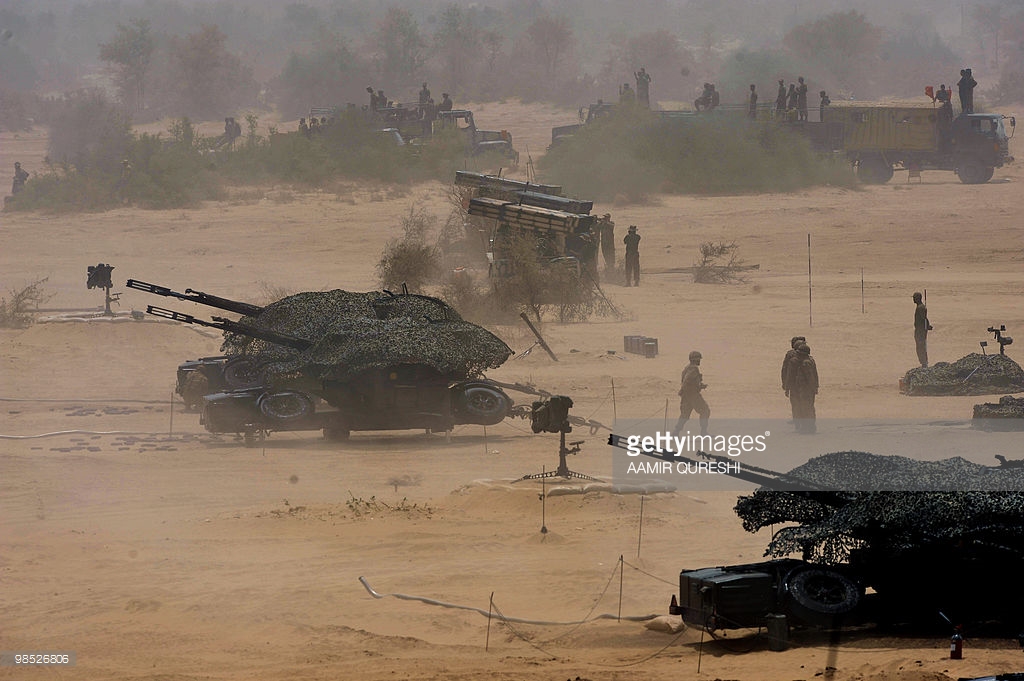

gdf-005 oerlikon 35mm twin
View attachment 302156 View attachment 302157 View attachment 302158




Take the time to read from page one of this topic !

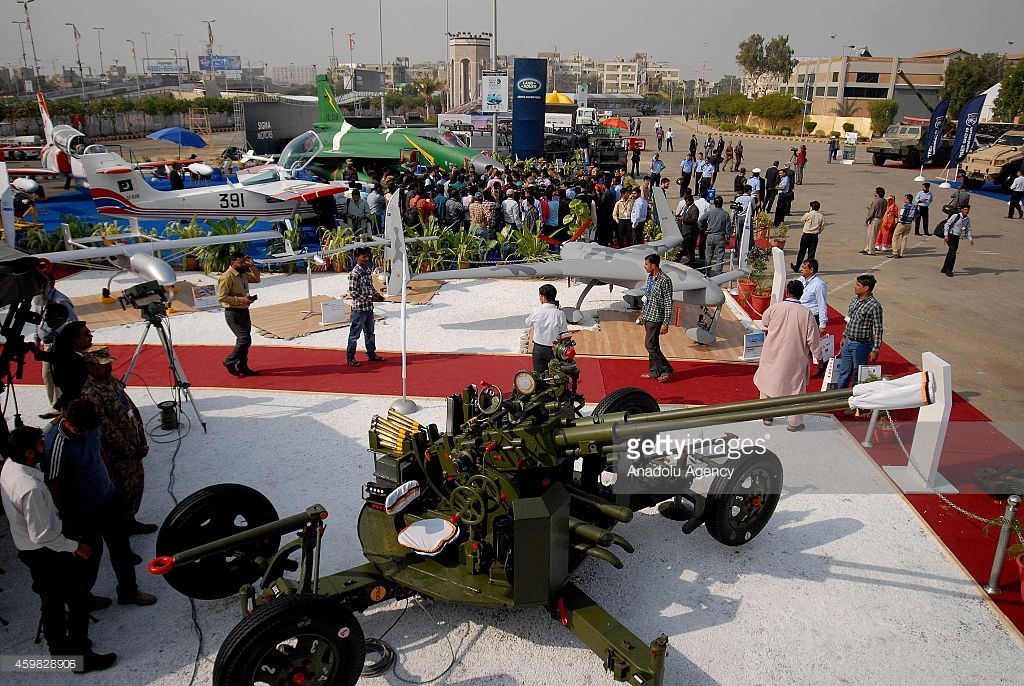

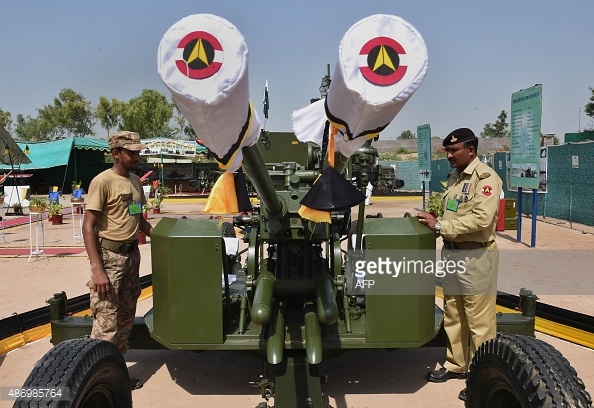

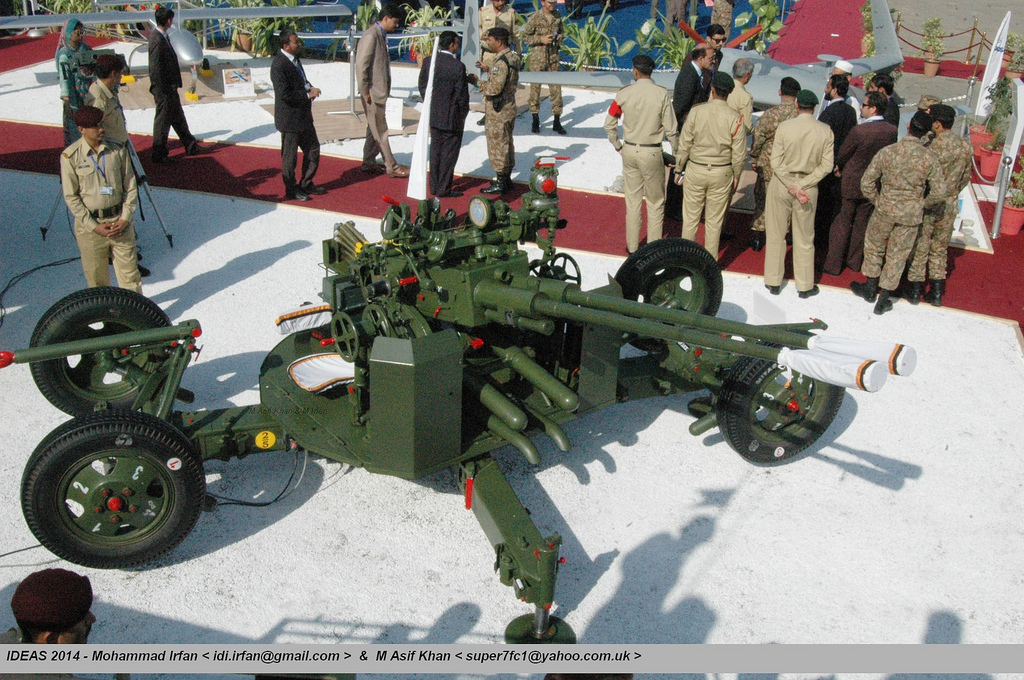

AUTOMATIC FIRE CONTROL SYSTEM
Up-gradation of 37mm Anti Aircraft Gun
View attachment 302159 View attachment 302160 View attachment 302161
