JF-17 Thunder Multirole Fighter [Thread 7]

[Jinn Baba]

Please ... to you even read before you post? ... just take a look to the following posts.

Had this thread open from yday, didnt see the next page of comments. Just saw now.



[Shane]

Nope, that's the FC-31 and it's from SAC.

And its FC31 Version 3.0 if Im not wrong. Bulkier engine and mid fuselage as well as larger intakes. Looks like the next version of current WS13E is a relatively larger engine and bigger fuselage means more fuel and larger internal weapon bays.



[Deino]

And its FC31 Version 3.0 if Im not wrong. Bulkier engine and mid fuselage as well as larger intakes. Looks like the next version of current WS13E is a relatively larger engine and bigger fuselage means more fuel and larger internal weapon bays.

Nope, its just the same misshaped wrong model we already know from other shows and not a true representative of any future real V3.



[Shane]

Nope, its just the same misshaped wrong model we already know from other shows and not a true representative of any future real V3.

El correcto.



[loanranger]

Jf17 Jammer patch

View attachment 565546

This here was the sole basis of Indian F16 downing misconception.



[blinder]

Yesterday at Le Bourget, Paris



[Tamiyah]

Yesterday at Le Bourget, Paris

Any HD picture with all that ordinance or payload

Any HD picture with all that ordinance or payload that is displayed



[blinder]

Only these:

To the starboard side there was more, but no good pic, sorry:



[Maxpane]

Only these:

To the starboard side there was more, but no good pic, sorry:

thank you sir



[Path-Finder]

https://twitter.com/x/status/1140908571036659717



[Dazzler]

Jf-17 is fitted the dual antenna version of ALR-400 RWR system..

Electronic Warfare Processor Contains all elements related with the process of EW data, Digital Receivers and processing board, and the necessary elements to interface with the platform. Provides EW suite controller functionality. Different mechanical and cooling variants are available.

in 2013 modp publication, we read the following:

Integration Activities: Following activities were executed by integration group. EW Suite Controller (EWSC): M/s Indra’s EW Suite Controller (EWSC) pre-integration was successfully accomplished in DSI Lab. Chaff & Flare Dispenser (CFD) made by Air Weapons Complex (AWC) has also been interfaced with EWSC, and pre-integration has been verified in DSI lab.
http://modp.gov.pk/modp/userfiles1/file/Year Book 2013-14 (1).pdf

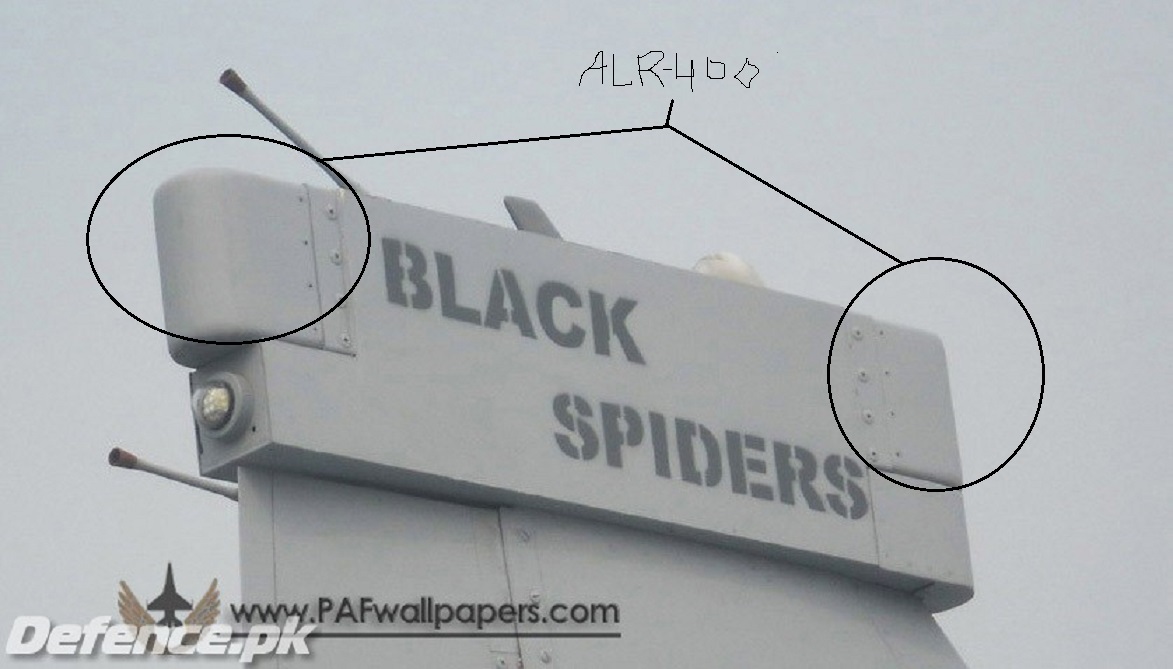

Dual antennas can be seen over the vertical tail..



[Path-Finder]

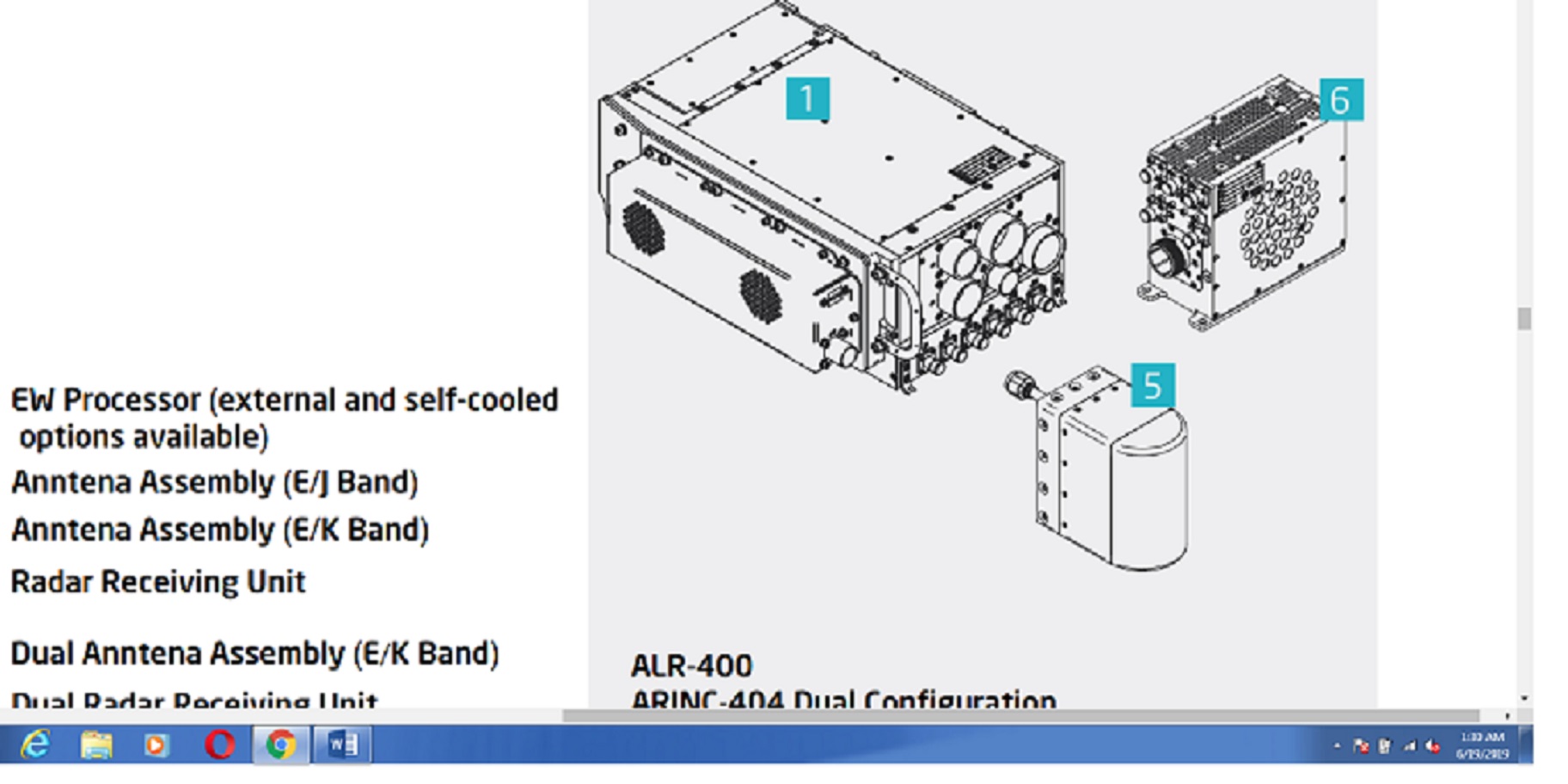

Jf-17 is fitted the dual antenna version of ALR-400 RWR system..

Dual antennas can be seen over the vertical tail..

View attachment 565817 View attachment 565819

https://www.indracompany.com/sites/default/files/indra_alr-400_rwr_9.pdf



[khanasifm]

If block 3 is based on dual seat model and has extra internal fuel tank so this means single seater version block 3 will have extra internal fuel tank leading to higher internal fuel capacity ?? 3000 vs say 34/3500 liters ??



[khanasifm]

Pl-5DE newer version??



[Aryeih Leib]

Sir will blk 3 have a redesigned nose (I don't know what's it called) the front part which houses
the radar
