JF-17 Thunder Multirole Fighter [Thread 6]

[DESERT FIGHTER]



[Max]



[Windjammer]

Ultimate Air superiority configuration.



[araz]

Ultimate Air superiority configuration.

Not yet. Needs dual ejector racks for BVRs. That will give you 4 BVRs and 2 WVRs. Now that would be sweet and would be achievable as well.



[Windjammer]

Not yet. Needs dual ejector racks for BVRs. That will give you 4 BVRs and 2 WVRs. Now that would be sweet and would be achievable as well.

You mean like the dual bomb racks.



[Sulman Badshah]

Ultimate Air superiority configuration.

We need to integrate multi racks for BVRAAM



[Windjammer]

We need to integrate multi racks for BVRAAM

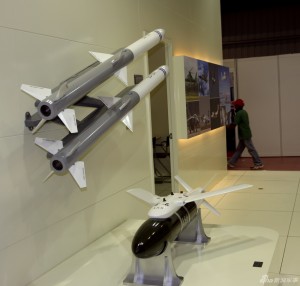

View attachment 263306

In a joint exercise the JF-17 was involved in ''shoot'n scoot'' tactics, it would see the bigger RCS adversary first, launch it weapon and break off before the other aircraft could acquire the smaller JF-17.....so it may be not intended to loiter around for longer periods.



[Basel]

Ultimate Air superiority configuration.

How about this configuration in future.



[Mrc]

Is that a real photo?



[MastanKhan]

How about this configuration in future.

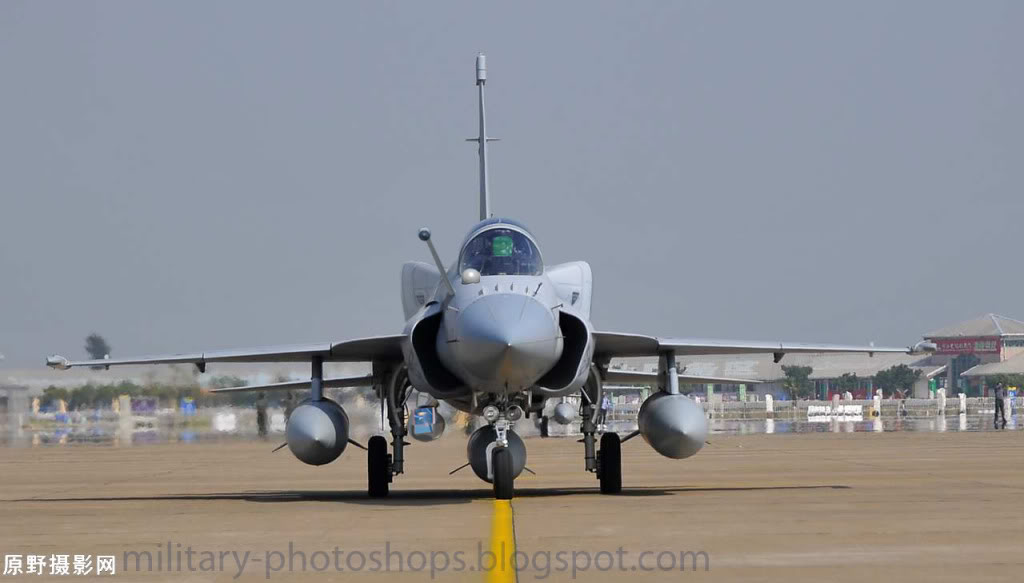

View attachment 263312

Hi,

This is a very good configuration and not too expensive---.

What they need to do is to move the wheels outwards towards the wings---like they did with the Grippen. You can have conformal tanks above the wings and body and also increase the storage capacity beneath the wing and body----add two extra hard point and with air refueling---you get a fair amount of loiter time.



[VCheng]

Hi,

What they need to do is to move the wheels outwards towards the wings---like they did with the Grippen. You can have mini conformal tanks above the wings and body and also increase the storage capacity beneath the wing and body----add two extra hard point and with air refueling---you get a fair amount of loiter time.

You mean redesign the whole wing assembly?



[araz]

How about this configuration in future.

View attachment 263312

Problem is if you utilize both chin mounted inlets where do you put the gun. This is why one chin mounted inlet will be designated for a POD while the gun stays where it is. As to CFT------AS SOMEONE SAID
"Andhay ko andhairay main bahut door ke soojgee".
In short too many bridges to cross before we get to that one.
A

You mean redesign the whole wing assembly?

The need to replace the legacy fighters is far too urgent to waste on redesigning anything too strenuous. Redesign could spoil what works best now and the changes and tests could set us back another couple of years which we cannot afford. My 2 paisas worth.
A



[alimobin memon]

is their possibility at the time of jf17 development it was not full fbw but now it is ? I think the later they might be updated to full fbw ?



[VCheng]

The need to replace the legacy fighters is far too urgent to waste on redesigning anything too strenuous. Redesign could spoil what works best now and the changes and tests could set us back another couple of years which we cannot afford. My 2 paisas worth.
A

Exactly. What was proposed is not trivial and surely lower in the list of priorities. I agree with you here.



[MastanKhan]

You mean redesign the whole wing assembly?

Exactly. What was proposed is not trivial and surely lower in the list of priorities. I agree with you here.

Hi,

In a technical engineering discussion---it does not work that way----. All options are put on the table at the one time---so that---if a change is needed---then you can decide which way to go.

If all the changes are not put on the table at the same time----then if you remember Pakistan road works---new road built---then torn up by telephone lines---rebuilt---then torn up by electric company----rebuilt and then torn up for plumbing.

So---if you decide to make a change---then you can plan which direction to take in a progressive manner.

In automobile design---when a new car design comes out---the design that is coming out after 4 years is also on the road being tested---and the one coming after 8 years is in the final stages of design.

As this aircraft has been touted as a modular design---then there maybe few options can be changed---. Moving the wheels outwards would be a major task----but still it should be considered for future changes.
