JF-17 Block-3 -- Updates, News & Discussion

[The Eagle]

@The Eagle please ban hatado bhai !!!

No more derailing. Ok.



[NA71]

Just a quarter photo and we have observed 4 to 5 maj changes ...MashaAllah



[Shabi1]

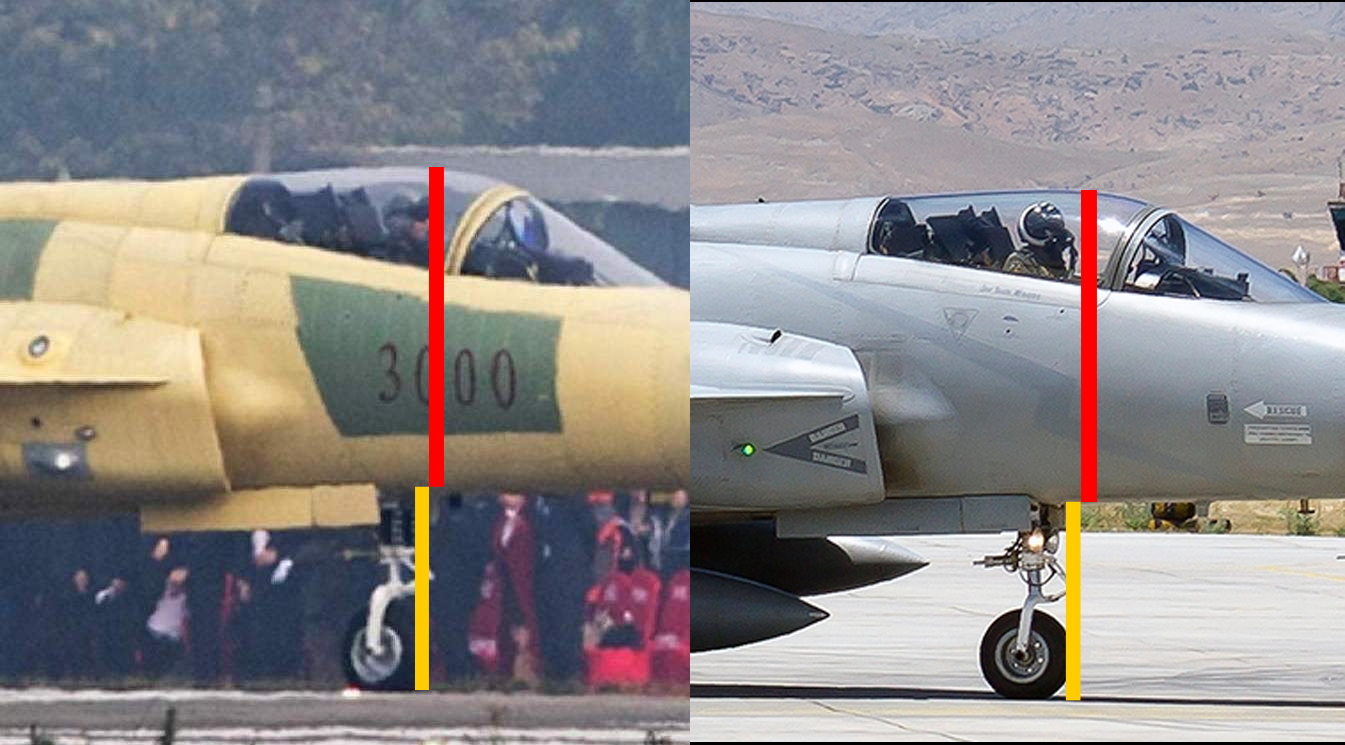

Justed measured ground clearance in proportion to body size and it doesn't look different.

View attachment 596214

Canopy looks taller,can you check. Pilot could be short but if you look at the distance from seat top that looks different in both pictures. If canopy is indeed taller then the proportions comparsion will be off from old picture.



[graphican]

We should be able to see the full photo. The person who took photos in portrait mode would have taken photos in landscape mode. I don't know what PAF is looking to do... why is this slow revelation any more helpful than the full disclosure?



[Ghessan]

Canopy looks taller,can you check. Pilot could be short but if you look at the distance from seat top that looks different in both pictures.

to me it seems pilot is taller if you see the top of his helmet and compare it to the back of the seat and then check the pilot in other cockpit.

We should be able to see the full photo. The person who took photos in portrait mode would have taken photos in landscape mode. I don't know what PAF is looking to do... why is this slow revelation any more helpful than the full disclosure?

yes and the person who took photo deliberately crop it although it is taken from far across the wall probably.



[Shah_Deu]

We should be able to see the full photo. The person who took photos in portrait mode would have taken photos in landscape mode. I don't know what PAF is looking to do... why is this slow revelation any more helpful than the full disclosure?

Nothing to do with landscape or portrait layout. The photo is intentionally cropped for reasons
unknown yet.



[Raider 21]

is this a question or you're trying to tell

Look at the picture. It clearly shows the harness locks and flying helmet. No sir, just telling. I'd leave a question mark if I would ask.

Cheers!!



[LKJ86]

Justed measured ground clearance in proportion to body size and it doesn't look different.

View attachment 596214



[PurpleButcher]

If the intakes size are equal, then as per my paint skills, ground clearance is similar to previous blocks



[GriffinsRule]

The hud is similar but not the same as on J-20.

Looks more like this one, displayed at Zhuhai Air Show in 2016, or a further development of it.
https://quwa.org/2016/11/06/avics-hmds-and-next-gen-cockpit-concepts/

Landing gear is the same as prior blocks, and only the landing lights are LED, similar to all dual-seat versions.



[loanranger]

I hope there were full hd cameras installed inside for the first flight with audio. Showing our capable PAF test pilot.



[GumNaam]

The hud is similar but not the same as on J-20.

Looks more like this one, displayed at Zhuhai Air Show in 2016, or a further development of it.
https://quwa.org/2016/11/06/avics-hmds-and-next-gen-cockpit-concepts/

Landing gear is the same as prior blocks, and only the landing lights are LED, similar to all dual-seat versions.

The flight helmet of the Blk3 pilot in SN#3000 looks nothing like helmet you posted...



[Ghessan]

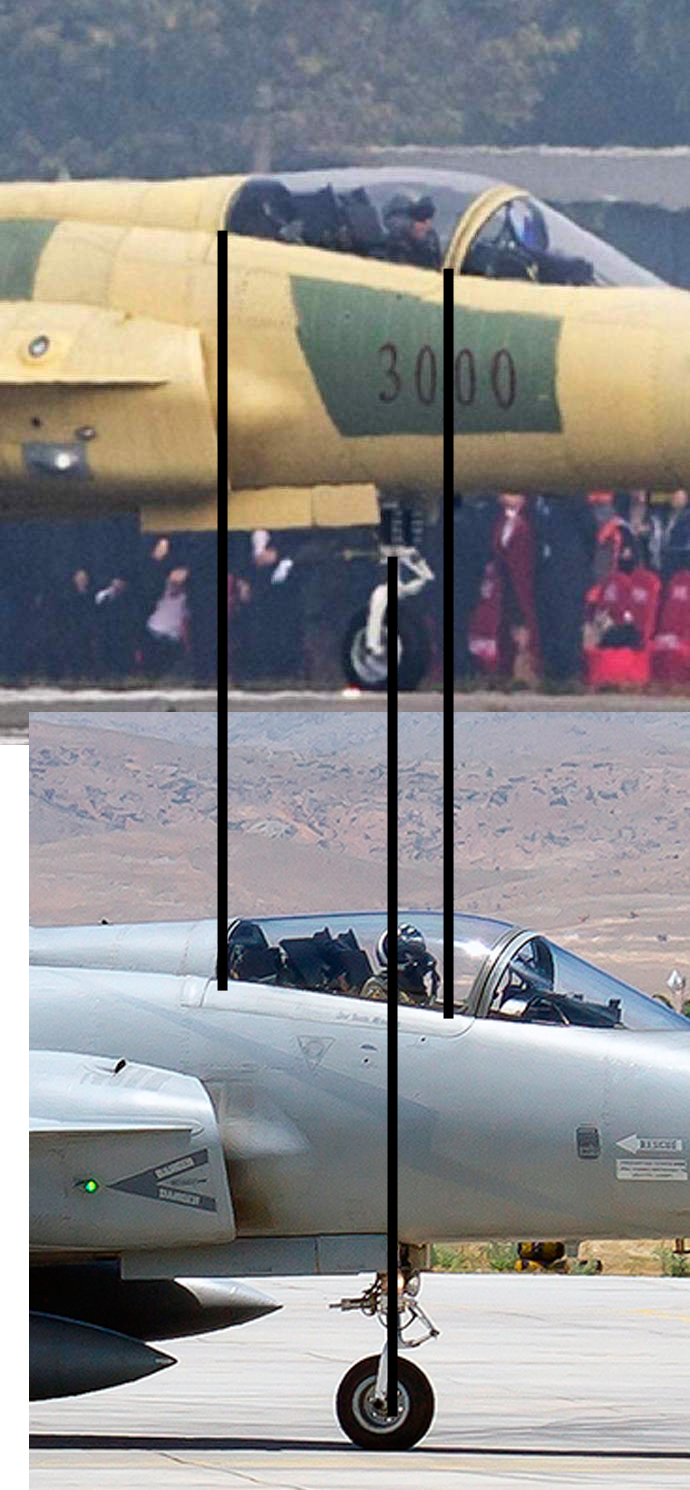

View attachment 596215

to all who are measuring the pictures, i would suggest not to. i cropped the block 1 picture resize it and may have our proportioned width or length wise. please catch the picture from below link and do your measurements.
regards
https://www.jetphotos.com/photo/9503228



[GriffinsRule]

The flight helmet of the Blk3 pilot in SN#3000 looks nothing like helmet you posted...

Post was for HUD not HMD



[graphican]

Can this new HMD be Trago made by SAAB?

https://www.defenseworld.net/news/1...isplay_For_Swedish__Brazilian_Gripen_Fighters
https://quwa.org/2016/09/06/analysis-process-acquiring-hmds-jf-17/
