In a now typical pattern of the Iranian authorities, news released about a loosely related GEO remote sensing satellite project, indicates that the Safir-2-e-Zafar rocket might have entered the final preparation stage and that a launch is to be expected in the coming couple of days if not hours!
Putting 'sensing satellite' into orbit of 36,000 kms on agenda
Sep 14, 2019, 5:34 PM
Khorramabad, Sept 14, IRNA - The head of Iran's Space Agency Morteza Barari said on Saturday that the launch of a sensing satellite in the orbit of 36,000 kilometers is on the agenda and three Iranian satellites will be ready to carry out the mission.
Morteza Barari met with faculty and top startups in the province of Lorestan province on Saturday, and noted that the Islamic Republic of Iran has reached a full cycle of space technology with the efforts of its youth, despite 40 years of sanctions.
...
http://web.archive.org/web/20190914...-satellite-into-orbit-of-36-000-kms-on-agenda
http://archive.is/Zbfff
Iran's First Altitude Rocket Propulsion Test Facility
Iran Tests First Sample of Home-Made Space Engine
Tue Dec 17, 2019 3:38
TEHRAN (FNA)- President of Iran's Space Research Center Hossein Samimi announced that the first sample of indigenized space engine was tested successfully.
"The new achievement of the Center includes the designing of the class of Arash space engines and the first sample of this space engine was tested successfully last month," Samimi told reporters in a press conference in Tehran on Tuesday.
He added that the engine should have been tested in vacuum, adding that the Iranian experts simulated a vacuum-like space for the test.
"The first sample of this engine has been tested and another test is due to take place soon," Samimi said.
http://web.archive.org/web/20191219101427/https://en.farsnews.com/newstext.aspx?nn=13980926000847
http://archive.ph/fhN85
Safir-2's Third Stage: Saman 1 Upper Stage
Wed Feb 01, 2017 12:59
Saman 1 space tug which has been manufactured for the first time in the country is used to transfer the satellites from Low Earth orbit (LEO) to higher orbits.
http://en.farsnews.com/newstext.aspx?nn=13951113000454
▲ 01/02/2017 -- The Interorbital System named ‘Saman 1’ was unveiled in a ceremony marking the ninth national space technology day in the presence of President Hassan Rouhani here on Wednesday.
▲ 01/02/2017 -- The Interorbital System named ‘Saman 1’ was unveiled in a ceremony marking the ninth national space technology day in the presence of President Hassan Rouhani here on Wednesday.
▲ 01/02/2017 -- The Interorbital System named ‘Saman 1’ was unveiled in a ceremony marking the ninth national space technology day in the presence of President Hassan Rouhani here on Wednesday.
▲ 01/02/2017 -- The Interorbital System named ‘Saman 1’ was unveiled in a ceremony marking the ninth national space technology day in the presence of President Hassan Rouhani here on Wednesday.
ISRC's Arash-22 solid propellant motor
The ISRC exhibited a new solid propellant motor showing differences with the previous Saman-1, notably in diameter (~ 10 cm smaller), and also the carbon fiber tanks for the cold gas are no longer spherical but more oblong.
▲ The new upper stage.
▲ SUS-M Upper Stage for comparison.
▲ Arash-22 solid fuel propellant main motor and carbon fiber tank for the cold gas vernier thrusters.
North Korean version of ISRC's Arash-22 solid propellant motor!
▲ Kim Jong Un giving on the spot field guidance at the Chemical Material Institute of the Academy of Defense Science on 22 August 2017.
The gray spherical object, like a basketball ball, is a casing for solid propellant of a ICBM third stage (Pukguksong-4?)
Next to it is a black and brown open truncated conical object, it is a new type of rocket engine nozzle developed by the institute.
▲ Kim Jong Un giving on the spot field guidance at the Chemical Material Institute of the Academy of Defense Science on 22 August 2017.
The enlarged photo below shows the product developed by the institute.
While zooming in on this photo, the focus is blurred and you can not identify the letter, other magnified pictures can identify the words "warhead tip" and "third stage spherical engine". In this photo, the right side of the warhead tip shows a spherical casing connected on top of a rocket engine nozzle.
A small solid propellant rocket engine mounted on the third stage of an intercontinental ballistic missile.
https://defence.pk/pdf/threads/iranian-space-program.291303/page-77#post-9817974
Altitude Rocket Propulsion Test Facilities also called Vacuum Test Stands allow sea level static test of an upper stage.
As we know that for the upper stages of the rocket, we need high propulsion efficiency thereby high specific impulse. For that we employ a nozzle with higher expansion ratios.
Now, if we conduct the static tests of such nozzles at sea-level, it will result into an over-expanded plume.
One needs a massive facility that can maintain a near vacuum while dealing with the engine exhaust. There are (were) only a couple in the U.S.:
• Plum Brook Station (Part of NASA Glenn) includes the In-Space Propulsion Facility
http://archive.ph/9vjIO/0d6151582aea42eb96c65fde810f724142342a48.jpg ; https://archive.ph/9vjIO/4473b55e29a063204b19865552935f6c9e0ea3f0/scr.png ; http://web.archive.org/web/20190729115046/https://i.stack.imgur.com/BbHov.jpg ; https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20180005322.pdf ; http://web.archive.org/web/20191222...-level-static-test-of-an-upper-stage-possible ; http://archive.ph/iqitY
▲ 1. U.S.' high altitude rocket propulsion test facility
• Arnold Engineering Development Center (run by the DOD) includes the J-6 Large Rocket Motor Test Facility
• The never-used A-3 altitude test stand at Stennis, completed to the tune of over $350 million,
These facilities typically use steam ejector systems to keep the test cell pumped down in the presence of huge amounts of exhaust entering it.
Note: these facilities typically don't claim to produce pure vacuum conditions. Commonly they advertise 100,000 ft (~30 km) altitude conditions (~ 0.2 psi or ~ 0.0014 MPa)
http://web.archive.org/web/20191222...-level-static-test-of-an-upper-stage-possible
http://archive.ph/iqitY
This means that although the Arash upper stage is not new, Iran has just made another major breakthrough, with its own indigenous Vacuum Test Stand, a milestone mastered only by a few space powers!
By unlocking ground testing of upper stage techologies, Iran will soon be able to send its first ever satellite in a geostationary orbit!
Messerschmitt
SENIOR MEMBER
- Joined
- Oct 27, 2019
- Messages
- 2,662
- Reaction score
- 1
- Country
- Location
^ Iranian Minister of Information and Communications Technology Mohammad Javad Azari Jahromi indicating the possibly imminent launch of the satellite Zafar
Arminkh
SENIOR MEMBER
- Joined
- Nov 20, 2014
- Messages
- 3,036
- Reaction score
- 15
- Country
- Location
Say what you like about this guy. But he definitely knows how to handle PR.^ Iranian Minister of Information and Communications Technology Mohammad Javad Azari Jahromi indicating the possibly imminent launch of the satellite Zafar
TruthHurtz
FULL MEMBER
- Joined
- Dec 25, 2016
- Messages
- 1,610
- Reaction score
- -21
- Country
- Location
Hopefully they've ironed out the kinks with this rocket.
skyshadow
SENIOR MEMBER
- Joined
- Sep 12, 2017
- Messages
- 5,056
- Reaction score
- 3
- Country
- Location
really really big big news for Iran missile power with the new Arash space engines which until last year (2019) only was built by US alone but now Iran ( by successfully testing its first Arash engine in 2019 ) is the second power to build that kind of engines.
Iran achieves knowledge of building space engines: ISRC head
He said the new achievement includes the design and development of various versions of “Arash space engine” the first sample of which was tested successfully late 2019.
“Arash space engine will be put in the orbital transfer system to help thrust satellites from the low orbit into the high orbit.”
https://en.mehrnews.com/news/154663/Iran-achieves-knowledge-of-building-space-engines-ISRC-head
Iran achieves knowledge of building space engines: ISRC head
He said the new achievement includes the design and development of various versions of “Arash space engine” the first sample of which was tested successfully late 2019.
“Arash space engine will be put in the orbital transfer system to help thrust satellites from the low orbit into the high orbit.”
https://en.mehrnews.com/news/154663/Iran-achieves-knowledge-of-building-space-engines-ISRC-head
skyshadow
SENIOR MEMBER
- Joined
- Sep 12, 2017
- Messages
- 5,056
- Reaction score
- 3
- Country
- Location
it dose not say
PeeD
FULL MEMBER
- Joined
- Nov 28, 2014
- Messages
- 1,510
- Reaction score
- 21
- Country
- Location
They talk about vacuum optimized small upper stage engines. In best case cryogenic, but given Iran's low publicised skills in developing indigenous liquid engines, that's rather unlikely.
However a vacuum testing stand on it's own is already a impressive job.
However a vacuum testing stand on it's own is already a impressive job.
Draco.IMF
FULL MEMBER
- Joined
- Jan 17, 2015
- Messages
- 1,345
- Reaction score
- 0
- Country
- Location
Iran says will soon launch Zafar satellites into orbit
https://www.presstv.com/Detail/2020/01/19/616563/Iran-Mohammad-Javad-Azari-Jahromi-zAfar-satellite
Fingers crossed it will be an success this time, the space programm is now under the ministry of defence...
https://www.presstv.com/Detail/2020/01/19/616563/Iran-Mohammad-Javad-Azari-Jahromi-zAfar-satellite
Fingers crossed it will be an success this time, the space programm is now under the ministry of defence...
Philosopher
SENIOR MEMBER
- Joined
- Jan 5, 2020
- Messages
- 3,683
- Reaction score
- 16
- Country
- Location
Do you have a source for this claim?
Galactic Penguin SST
BANNED
- Joined
- Aug 10, 2017
- Messages
- 1,454
- Reaction score
- 1
- Country
- Location
Zafar 1, 2 satellites ready for launch
19 January 2020 - 10:34
TEHRAN, Jan. 19 (MNA) – Iran's Information and Communications Technology Minister Mohammad Javad Azari Jahromi says the Zafar 1 and 2 satellites, have been delivered to Iran Space Agency and will be put into orbit in the near future.
He described the developments of these satellites and their launchers as a great step in the country’s space program, saying, “Two versions of Zafar have been built by young Iranian scientists, both of which are technologically superior to those we had built before.”
Zafar, designed by Iran University of Science and Technology, is a 90-kilogram remote-sensing satellite equipped with color cameras and can be used for surveying oil reserves, mines, jungles and natural disasters. If the launch is successful, it will orbit the earth at an altitude of 530 kilometers.
https://en.mehrnews.com/news/154696/Zafar-1-2-satellites-ready-for-launch-Telecoms-minister
http://archive.is/69WT3
19 January 2020 - 10:34
TEHRAN, Jan. 19 (MNA) – Iran's Information and Communications Technology Minister Mohammad Javad Azari Jahromi says the Zafar 1 and 2 satellites, have been delivered to Iran Space Agency and will be put into orbit in the near future.
He described the developments of these satellites and their launchers as a great step in the country’s space program, saying, “Two versions of Zafar have been built by young Iranian scientists, both of which are technologically superior to those we had built before.”
Zafar, designed by Iran University of Science and Technology, is a 90-kilogram remote-sensing satellite equipped with color cameras and can be used for surveying oil reserves, mines, jungles and natural disasters. If the launch is successful, it will orbit the earth at an altitude of 530 kilometers.
https://en.mehrnews.com/news/154696/Zafar-1-2-satellites-ready-for-launch-Telecoms-minister
http://archive.is/69WT3
Sun Jan 19, 2020 3:49
Satellite Zafar, built by Iranian universities' elites and scientists, will be delivered to the spaceport today and the process to launch it into the orbit will start immediately, Barari told FNA on Sunday.
https://en.farsnews.com/newstext.aspx?nn=13981029000204
http://archive.ph/wbPaH
Satellite Zafar, built by Iranian universities' elites and scientists, will be delivered to the spaceport today and the process to launch it into the orbit will start immediately, Barari told FNA on Sunday.
https://en.farsnews.com/newstext.aspx?nn=13981029000204
http://archive.ph/wbPaH
http://archive.ph/2O3Ay/40591dd0b02668040a28e0ac830dcd51ce1e0294.jpg ; https://archive.ph/2O3Ay/fd6073c211df7a4205de3a92269f0bac22009477/scr.png ; https://pbs.twimg.com/media/EOa_fRYW4AA4ahW.jpg ; https://twitter.com/barari_ir/status/1217871305455869954

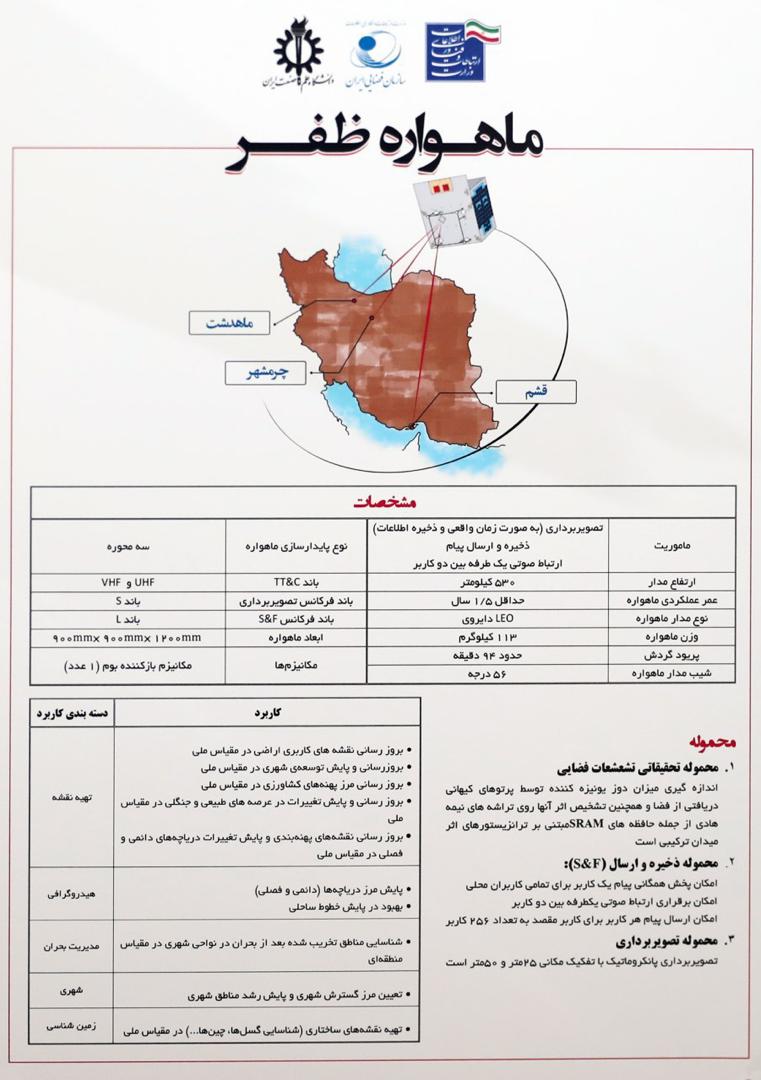

▲ 1. Zafar satellite specifications
http://archive.ph/nnyJ4/40b380e3dad7a473c6749c62dcd1d333946db946.jpg ; https://archive.ph/nnyJ4/5e4b0d09783427f30c87b32d80bd8ac26dd7c76d/scr.png ; https://pbs.twimg.com/media/EOof_J9U4AAYLvL.jpg ; https://twitter.com/barari_ir/status/1218821892909363204

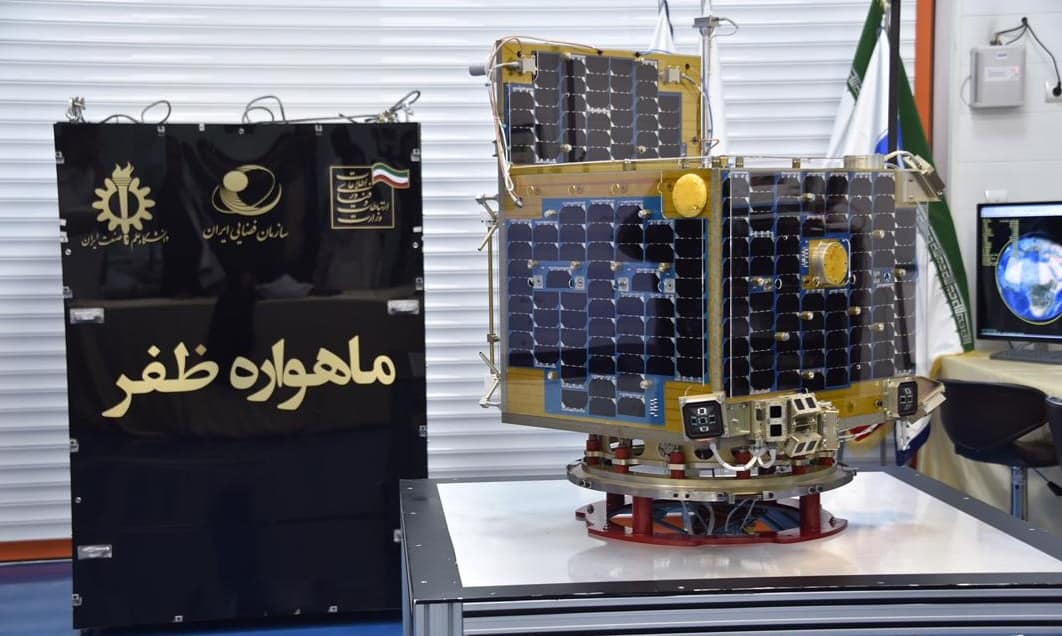

▲ 2. Zafar Satellite 1 and 2 from the University of Science and Technology.
http://archive.ph/CIKP7/88b188d73caef20cf1b3c29a968ca7daeeba8442.jpg ; https://archive.ph/CIKP7/c788b6e44c6658282ffc9a39f4371cc7bbecce38/scr.png ; https://pbs.twimg.com/media/EOogATJU4AA31gH.jpg ; https://twitter.com/barari_ir/status/1218821892909363204
▲ 3. Zafar Satellite 1 and 2 from the University of Science and Technology.
http://archive.ph/XSH8l/8e240ad61b18e5ccfbcfd31284fa4fadd5ef7a72.jpg ; https://archive.ph/XSH8l/d98e772171467cd75523ca2be59a22bf57b89181/scr.png ; https://pbs.twimg.com/media/EOogCguU8AESdDv.jpg ; https://twitter.com/barari_ir/status/1218821892909363204
▲ 4. Zafar Satellite 1 and 2 from the University of Science and Technology.
http://archive.ph/PnaL4/c7f98aae6a0e826aa56196d54b8a38dc1a5b03bf.jpg ; https://archive.ph/PnaL4/1bc7b577b47659f3ebb1b38acafe53560fc71d4c/scr.png ; https://pbs.twimg.com/media/EOo5pIvXkAAqsOd.jpg ; https://twitter.com/barari_ir/status/1218850042867585025

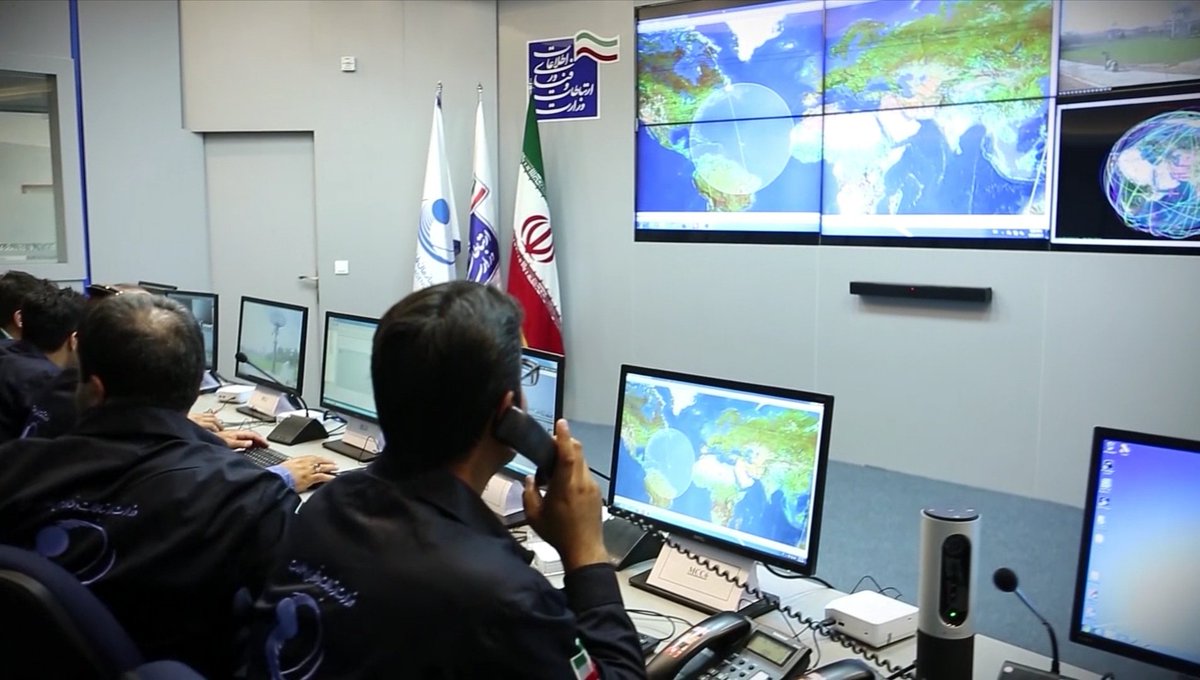

▲ 5. The Zafar satellite command and control station
From the Mission Control screen, seemingly a polar orbit. 530 km circular SSO is consistent with any remote-sensing satellite.
