impressive weapon loads

[500]

Since images in my posts are expired (I should have never used shitty ImageShack service), I'll reload them again:

Eurofighter:

6 AAMs + 4 1000 lb LGB + 3 1000 l fuel tanks

8 AAMs + 2 Storm Shadow + 2 1000 lb LGB + fuel tank

6 1000 lb LGB + 2 AAMs + 1000 l fuel tank (it could take another 4 AAMs)

Mirage 2000

6 AAMs + 1 Storm Shadow + 2 fuel tanks



[SOHEIL]

24 Mk-82



[500]

F-18 12 AAMs + Fuel tank

Su-30MKI with 12 AAMs:

and 11 AAMs:

F-15SA with 16 AAM:



[21 Dec 2012]

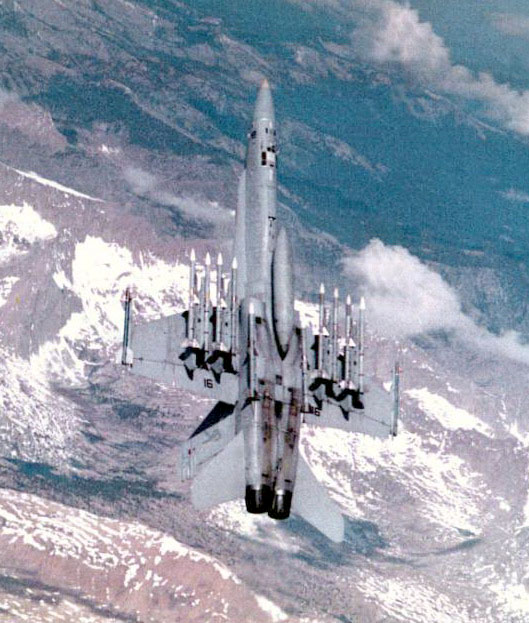

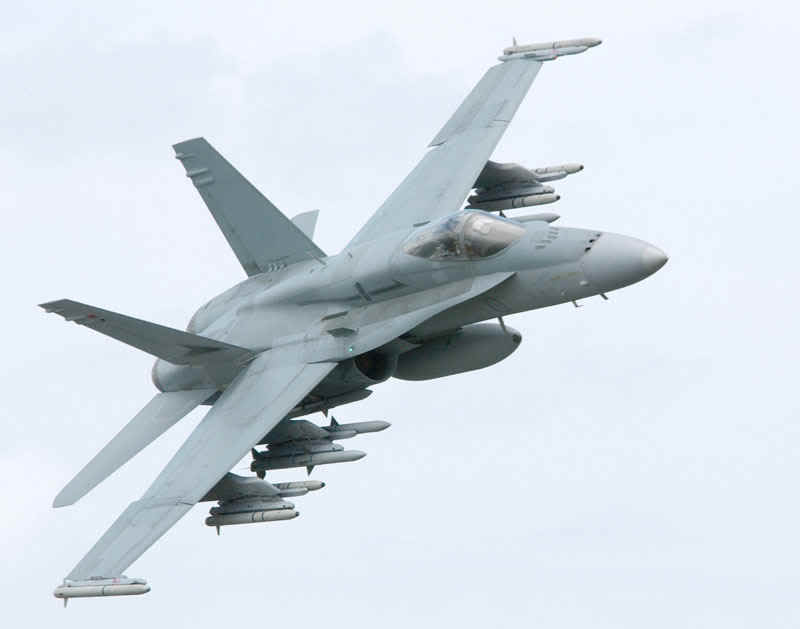

F-18 12 AAMs + Fuel tank

View attachment 259566 View attachment 259567

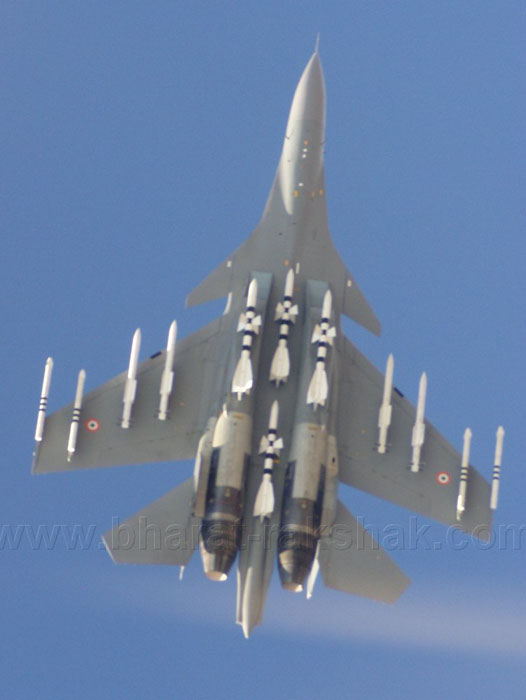

Su-30MKI with 12 AAMs:

View attachment 259593

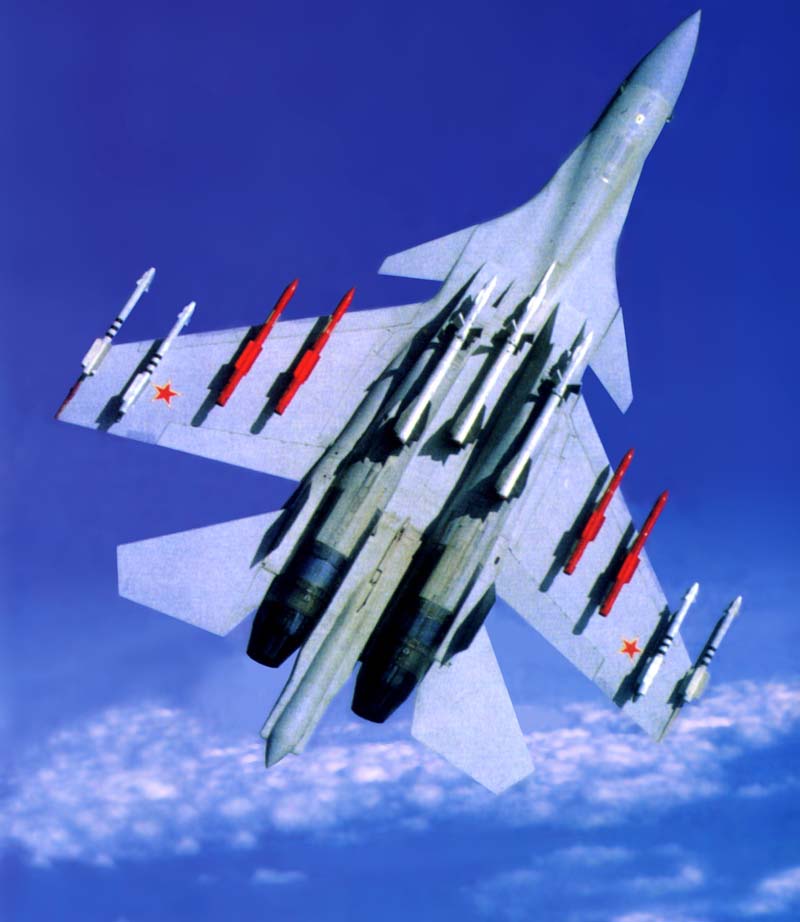

and 11 AAMs:
View attachment 259596

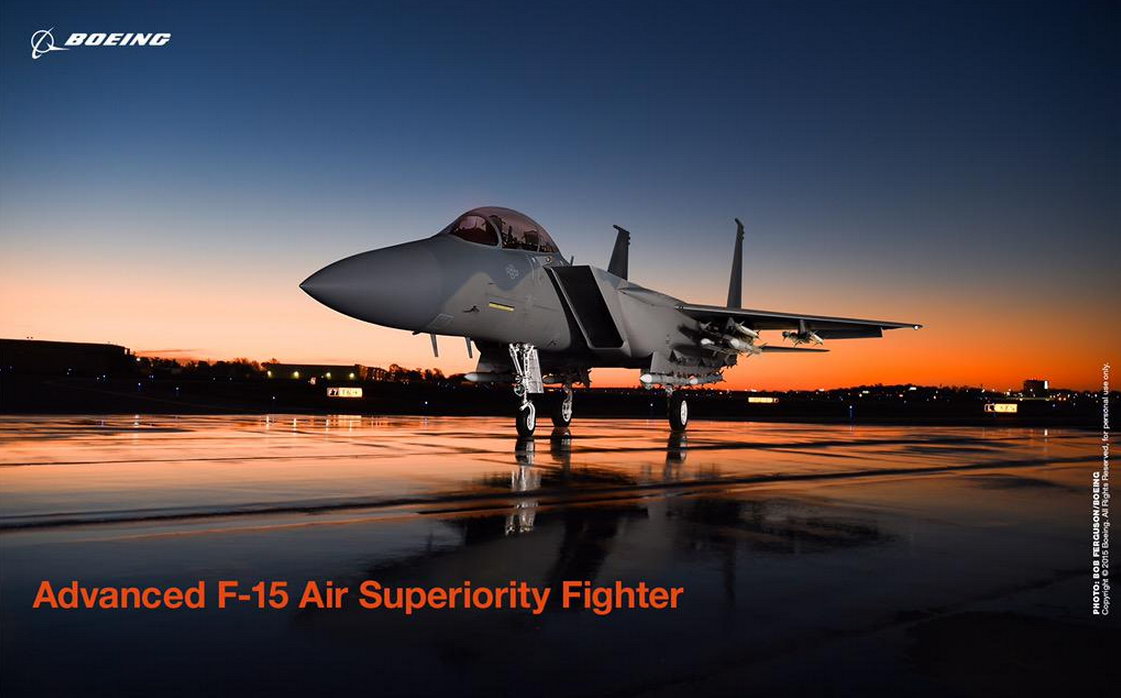

F-15SA with 16 AAM:

View attachment 259597

They have a lot of real estate on the flanker. Why don't they use dual racks?



[James David]

F-15SA

8x AIM-120
8x AIM-9X

16 AAM total

2x AIM-120 AMRAAM
2x AIM-9X Sidewinder
2x AGM-84 SLAM-ER
2x AGM-88 HARM
6x GBU-54/B Laser JDAM
8x GBU-39/B SDB

Ohhhh @500 , you are bragging with our F-15 again.. oh I forgot, its you guys who made our F-15 famous.. My mistake...



[Gabriel92]

6x AASM Hammer, 4x Mica A2A short to medium range, 2x METEOR A2A long range, 3x 2000 liter fuel tanks.



[LeslieEngel]

Great pics. Thanks for sharing.



[Sinnerman108]

Big Weapon load -> Big Wing Area -> Big wings -> Bigger Engine.

Russia Wins !



[Ultima Thule]

What do you mean these three fat things what they are ?

Those are fuel drop tank, not a weapon load
