IHS Jane's epic failure : Soumar running on a turbojet engine !

[-SINAN-]

Sorry but this is not R95-300

It's under the R95-300, in the link you gave.



[SOHEIL]

.
.
.

R95-300

.
.
.

ТРДД-50

@Sinan

ТРДД-50

Разработчик: ОМКБ/ НПО «Сатурн»

Изготовитель: НПО «Сатурн»

Год освоения: 2006

Применение: модификации Х-55, Х-35, Х-59М

Turbofan-50

Developer: OEDB / NPO "Saturn"

Manufacturer: "Saturn"

Year of development: 2006

Application: modification X-55, X-35, X-59M

Oh god.... it couldn't been more wrong....

For the people who don't know what a turbofan engine is, just watch this video.

Attention, this is a high bypass engine...as you can see from the bypass ratios.

Also change the topic to:
SOHEIL's epic failure : Soumar running on a turbojet engine !








Why nobody is swearing at me ??

So ... whose epic failure !?

@xenon54



[-SINAN-]

.
.
.

R95-300

.
.
.

ТРДД-50

@Sinan



Turbofan-50

Developer: OEDB / NPO "Saturn"

Manufacturer: "Saturn"

Year of development: 2006

Application: modification X-55, X-35, X-59M



So ... whose epic failure !?

@xenon54

Not mine.. you should have made your case clear.



[SOHEIL]

Not mine.. you should have made your case clear.

TurboFan without a fan.

You didn't ask !!!

just started attacking & joking !

When i did the same thing in your section !?

You don't remember my posts in Anka thread !?

You & your friends keep calling me an ignorant ... remember !?

Do you know who really am i !?

Please don't judge people ...



[-SINAN-]

You didn't ask !!!

just started attacking & joking !

When i did the same thing in your section !?

You don't remember my posts in Anka thread !?

You & your friends keep calling me an ignorant ... remember !?

Do you know who really am i !?

Please don't judge people ...

SOHEIL !!!

Who the fvck would, put a cable at the end of the nozzle ??? It would melt away.

I thought it was air intake.....and a weird one....



[SOHEIL]

SOHEIL !!!

Who the fvck would, put a cable in front of the nozzle ??? It would melt away.

I thought it was air intake.....

They removed some parts from the exhaust to show engine details !



[AUz]

@SOHEIL

Send your finds to Jane's in a professionally written email and see what they say?

Also, does Iran produce turbofan engines for Soumar Cruise Missiles or gets it from third party like Ukraine etc?



[SOHEIL]

@SOHEIL

Send your finds to Jane's in a professionally written email and see what they say?

Also, does Iran produce turbofan engines for Soumar Cruise Missiles or gets it from third party like Ukraine etc?

C'mon man ... do you really think they don't know !?

I won't do this ...

Completely Iranian ... reverse engineered !

I can prove it next year ...



[The SC]

SOHEIL !!!

Who the fvck would, put a cable at the end of the nozzle ??? It would melt away.

I thought it was air intake.....and a weird one....

That is not the nozzle, that is the exhaust! The "wire" conduit looks like some kind of injection, if you click the picture you'll see another small oil conduit in transparent plastic.



[-SINAN-]

That is not the nozzle, that is the exhaust!

No it is superman !!!!

The "wire" conduit looks like some kind of injection, if you click the picture you'll see another small oil conduit in transparent plastic.

Well i'm not sure..

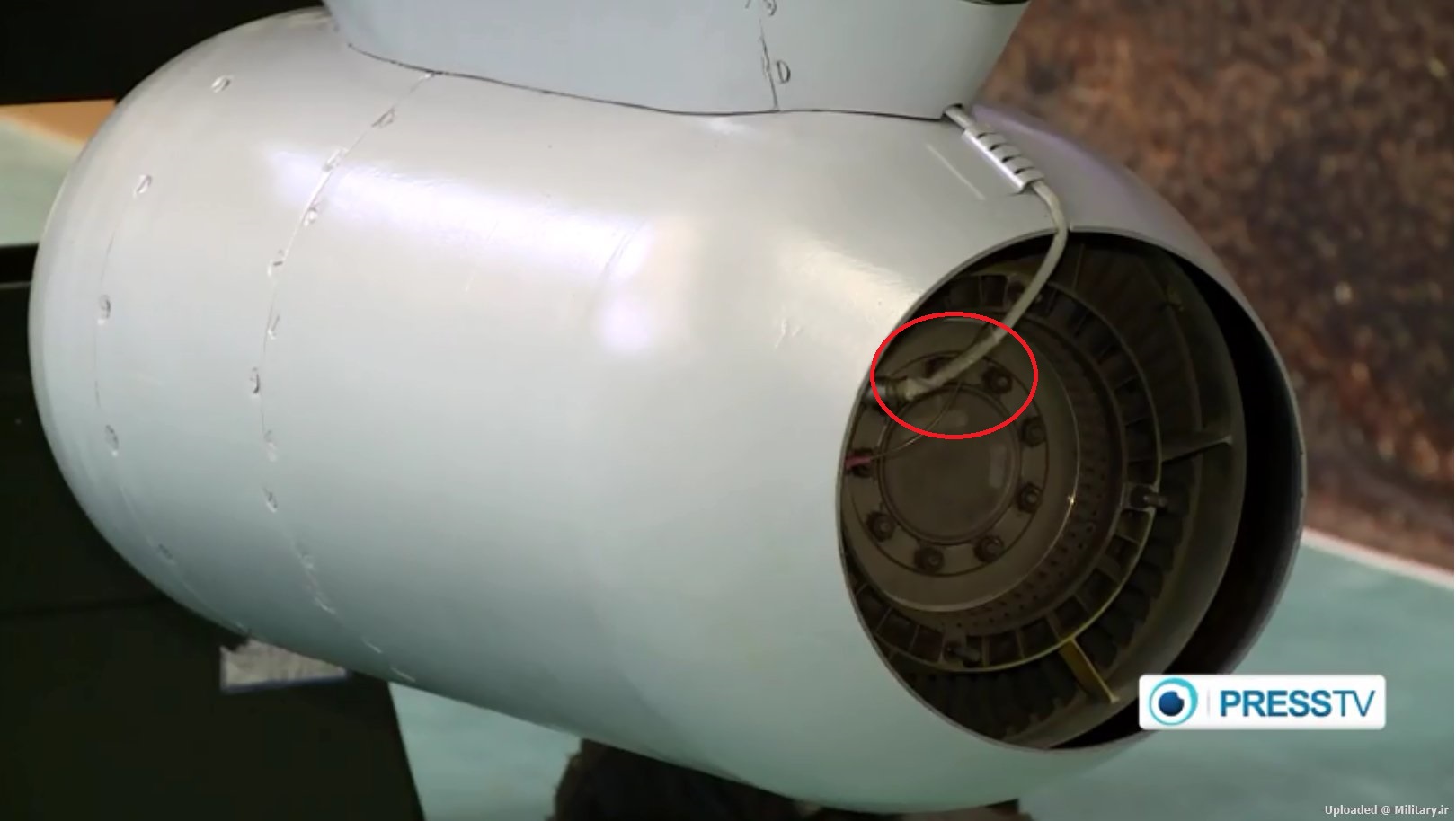

It seems like a ducttape (red circle) to me, that why i said cable...and looks like it has been coupled to the engine... I still can not understand how it is suppose to withstand the heat of the exhaust gases.

Edit: Maybe it's the auxiliary power to start the engine. Maybe It powers the Turbine, turbine starts to rotate the fan, Fan sucks in air, Combustion, After the combustion, cable would melt away but it's role to start up the engine is finished so, it is unimportant if it gets melted away or not.

@SOHEIL ? What do you think, i'm just running guesses.



[SOHEIL]

No it is superman !!!!



[yavar]

@SOHEIL

Send your finds to Jane's in a professionally written email and see what they say?

you make me laugh . you really think one Email with solve it ??
they been spreading lies on Iran for past few years and with one Email they just going to change there stand



[Syed Hussain]

No it is superman !!!!


Well i'm not sure..

View attachment 204737

It seems like a ducttape (red circle) to me, that why i said cable...and looks like it has been coupled to the engine... I still can not understand how it is suppose to withstand the heat of the exhaust gases.

Edit: Maybe it's the auxiliary power to start the engine. Maybe It powers the Turbine, turbine starts to rotate the fan, Fan sucks in air, Combustion, After the combustion, cable would melt away but it's role to start up the engine is finished so, it is unimportant if it gets melted away or not.

@SOHEIL ? What do you think, i'm just running guesses.

You just gave a much better explanation for your own objection



[Shams313]

Edit: Maybe it's the auxiliary power to start the engine. Maybe It powers the Turbine, turbine starts to rotate the fan, Fan sucks in air, Combustion, After the combustion, cable would melt away but it's role to start up the engine is finished so, it is unimportant if it gets melted away or not.

Hmn.May be.



[Hack-Hook]

No it is superman !!!!


Well i'm not sure..

View attachment 204737

It seems like a ducttape (red circle) to me, that why i said cable...and looks like it has been coupled to the engine... I still can not understand how it is suppose to withstand the heat of the exhaust gases.

Edit: Maybe it's the auxiliary power to start the engine. Maybe It powers the Turbine, turbine starts to rotate the fan, Fan sucks in air, Combustion, After the combustion, cable would melt away but it's role to start up the engine is finished so, it is unimportant if it gets melted away or not.

@SOHEIL ? What do you think, I'm just running guesses.

well , tome it looks a lot like a thermostat. But I'm not an expert on engines
