Wing Reinforcement Makes Thunder More Lethal !

[KaiserX]

I want to see Thunder Block 3 with a 200+km Range AESA and PL-15 missiles NOW

Technically the PL-15 would be possible to integrate onto the thunder now with these wing reinforcements! That is the bigger news.



[White and Green with M/S]

Hi,

You teaching me basics---? I have been teaching you kids for the last 15 years now and here you are talking about the basics---.

It is easier to say than show that stability can be maintained by trimming and auto pilot.

You kids like to talk without any PRINCIPAALS OF PHYSICS behind your claims. JF17 is a very small aircraft with a small wing area. Any shift in HEAVY weight closer to the fuselage---but away from it---or a sudden lack of weight on one side would put the aircraft in a non recoverable roll and dive and spin.

The delay is the death sentence---the moment the heavy missile is released on one side---the aircraft goes out of control instantly.



Son,

I have been teaching this forum about weapons for the past 15 years plus by now---. Don't give me flimsy excuses that you have overheard---.

Fuel management system does nothing in this case---the loss / shift of weight is too high.

Fuel management systems work when they have ample time to make the correction---and a large wing area. Over here there are only seconds and that is not enough and the wing is too small.

And you know all REAL PHYSIC and others knows nothing



[denel]

I want to see Thunder Block 3 with a 200+km Range AESA and PL-15 missiles NOW

Technically the PL-15 would be possible to integrate onto the thunder now with these wing reinforcements! That is the bigger news.

Friend.... cool it..

You want to put a turbo charger and weight on a light suzuki motor cycle.

It is just not possible; there are structural, electrical, integration restrictions. Range means nothing - everything in moderation and kaizen steps.



[Akh1112]

Hi,

You teaching me basics---? I have been teaching you kids for the last 15 years now and here you are talking about the basics---.

It is easier to say than show that stability can be maintained by trimming and auto pilot.

You kids like to talk without any PRINCIPAALS OF PHYSICS behind your claims. JF17 is a very small aircraft with a small wing area. Any shift in HEAVY weight closer to the fuselage---but away from it---or a sudden lack of weight on one side would put the aircraft in a non recoverable roll and dive and spin.

The delay is the death sentence---the moment the heavy missile is released on one side---the aircraft goes out of control instantly.



Son,

I have been teaching this forum about weapons for the past 15 years plus by now---. Don't give me flimsy excuses that you have overheard---.

Fuel management system does nothing in this case---the loss / shift of weight is too high.

Fuel management systems work when they have ample time to make the correction---and a large wing area. Over here there are only seconds and that is not enough and the wing is too small.

Hi mastan my love, you use a combination of trimming and the stick, alongside that, FBW should account for it. Beyond this, such a loadout is not actually designed to be launched long times after one another. You will usually drop one, then drop another within a matter of seconds, fortunately due to the advent of guidance, you don't need to point your aircraft towards two individual targets, therefore you can launch both in salvo very quickly, allowing for you to not to meet your maker in an unrecoverable stall. What i can assure you is that the engineer's at PAC and CAC are working hard, they also know what they are doing. Fortunately, a chimpanzee could probably realise that removing mass off of one side of a scale will cause an imbalance. Therefore i assure you, our engineers, who are probably smart humans, idk, maybe there's a few monkeys in there too, who knows, understand the whole mass/drag imbalance and realise, that you need to launch in some sort of salvo. A good example of this is when A7s would go on mining missions. They carried a massive draggy mine under each wing, there are numerous examples of pilots fighting with the stick until they dropped the second, however, mines were not guided therefore had to be dropped in the area they wanted, unlike the CM400AKG which can be dropped, then guided to where it needs to go, therefore that concern being a non issue. However, i am sure the engineers at PAC and CAC appreciate your posts on PDF, helping them correct the glaring issues of their bad design. Without you, the Chinese would be unable to innovate and AZM would not be a possibility. Maybe you can throw some posts about AZM so then the engineers at PAC can use your design advice for inspiration. Thank you grand wizard mastan.


P.S As part of weapons integration, asymmetric loads testing is a massive step before weapons are certified. If an aircraft cannot fly with an asymmetric load, the munition is not certified.

Source: Ask anybody who works on this.



[Thorough Pro]

they can but it compromises their maneuverability quite significantly

And modern Jets have no stabilization systems to carry one heavy weapon on one wing and no or minimal weapons on other wings during the flight, i can show you lots of pic of these

Taking off with a single missile at center hardpoint would not create any instability

Any source of this? (I know MK will puke again for this request and still not argue) but at least I gave a source - namely @Quwa - who questions this. IMO +2000 pound is way too heavy.



Oh well my old friend; you are indeed a hopeless case ... so you want to teach me that "only one can be carried because the launch of one missile induces instability in the flight of the aircraft---on the other side which has the second missile---which means that the aircraft could roll over to the side of the second missile on the wing"... but taking off with a single one of these heavy missiles, carrying it all along the way to its targets is possible without induced instability or rolling the other side is easily possible??

You are indeed so much funny...

Total 4000kg over 7 hardpoints, only the centerline and the two inner wing pylons (3, 4, & 5) are rated to carry 1000kg load.

JF-17 can be loaded with over 4000 kg of weapons, the three MK-84 have combined load of around 3000 kg....so technically it can carry the additional air to air missiles.



[Akh1112]

they can but it compromises their maneuverability quite significantly


Taking off with a single missile at center hardpoint would not create any instability

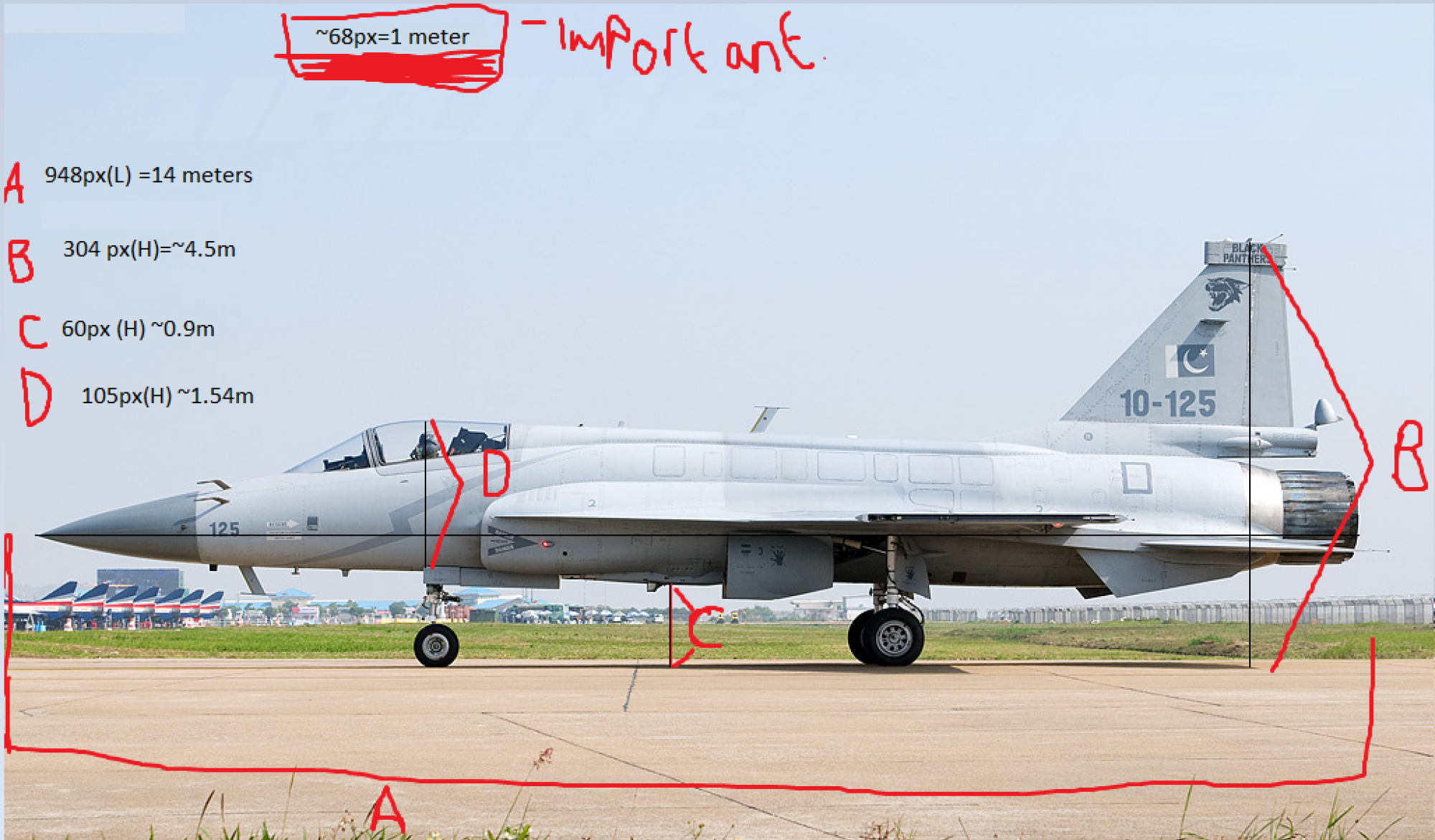

except you physically cannot take off with a CM400AKG on the centerline. Here is something i started but could not be bothered to complete.

peep the C value

That value is excluding the thick pylon needed to support a muniton on the center station.

The CM400 AKG would need to ditch its wings etc and also potentially need to have a smaller diameter. As i said though, i could not be bothered to complete this and add the CM400AKG in, if someone does want to, go ahead, my values are there. knock yourself out



[Windjammer]

3x900 MK84 + 4X 180Kg SD10A = 3420Kgs
3x900 MK84 + 6x 180Kgs SD10A (plyon 2 and 6 with dual racks) = 3780kgs. Depends on the wing loading of Pylon 2 and 6.
just to give an idea on how massive mk84 is

This combination is also a potent load out.



[Thorough Pro]

CM400's circumference is not more than that of the EFT's.
Check the pics already posted in the previous posts. EFTS's on wing pylons hang lower than the centerline, same would be the case with CM400.

except you physically cannot take off with a CM400AKG on the centerline. Here is something i started but could not be bothered to complete.

peep the C value View attachment 690199
That value is excluding the thick pylon needed to support a muniton on the center station.

The CM400 AKG would need to ditch its wings etc and also potentially need to have a smaller diameter. As i said though, i could not be bothered to complete this and add the CM400AKG in, if someone does want to, go ahead, my values are there. knock yourself out



[Akh1112]

CM400's circumference is not more than that of the EFT's.
Check the pics already posted in the previous posts. EFTS's on wing pylons hang lower than the centerline, same would be the case with CM400.

IDK, thats a bold claim with nothing to back it up + the CM400AKG has fins larger than those of the bags. +the cm400akg is straight, whereas the bag curves inward at the end to prevent a ground strike.



[maverick1977]

This combination is also a potent load out.

View attachment 690200

What do you have in this picture?



[Akh1112]

What do you have in this picture?

c802ak with sd10s and pl5e2



[Windjammer]

What do you have in this picture?

2X PL-5s....2X SD-10s .....2X C802 AshM....+ One drop tank.



[maverick1977]

2X PL-5s....2X SD-10s .....2X C802 AshM....+ One drop tank.

Whats the mission profile ?

long range anti ship with A2A BVR punch as first defense line before AsHM launch ? and 2 WVR incase dog fight ensues after the launch ?
trying to play out the scenario



[White and Green with M/S]

Taking off with a single missile at center hardpoint would not create any instability

No sir i am talking about one heavier weapons in one wing and lighter weapon in other wing fuel management system could compensate that



[KaiserX]

Friend.... cool it..

You want to put a turbo charger and weight on a light suzuki motor cycle.

It is just not possible; there are structural, electrical, integration restrictions. Range means nothing - everything in moderation and kaizen steps.

There is a 100% of PAF equipping JF-17s with AESA and PL-15 missiles. Even reputable sources accept this. This wing reinforcement will already be included in the Block 3 upgrade. The fact that PAF is upgrading block 1/2 variants with wing reinforcement is a big deal.

Pakistan’s PL-15 Missile Equipped JF-17 Block 3 is a Serious Game Changer - How India Can Respond to Regain Superiority
