Type 055 DDG News & Discussions

[waja2000]

1st-tier: HQ-9/9B
2nd-tier: HQ-16/B/C
3rd-tier: DK-10A or FM-3000 (or another quad-packed MRSAM)
4th tier: FL-3000N
5th tier: Type 1130 CIWS

tier 2-3 will be 1 type, by logic unlikely destroyer equip with 2 type medium SAM missile. currently using HQ16, and If not wrong DK10 and FM3000 is failed tender no select by PLAN, of couse still can sell/export. be i believe new quad-pack missile anyway will be come out to meet PLAN requirement



[MULUBJA]

Well, before Brahmos born out ... China already produced & served YJ series supersonic anti-ship missiles in PLAN, if u read carefully U.S National Defence White Paper from the Pentagon, u can find out it mostly emphasizes the threat from China Missiles not Brahmos ... my suggestion is try Brahmos to Type055, after that it's YJ missiles turn back and see who left on water surface.

YJ-18 serving in PLAN
View attachment 379201

YJ-12 serving in PLAN, watch the 'S' attack-track from China official news
View attachment 379204
View attachment 379205

It seems that missile is unable to hit the bottom of the ship and only did some damage on uper side.



[cirr]

055 has got itself a new generation medium range SAM.



[kuge]

It seems that missile is unable to hit the bottom of the ship and only did some damage on uper side.

what's next?
It seems that missile is unable to hit the top of the ship and only did some damage on bottom side.????



[MULUBJA]

what's next?
It seems that missile is unable to hit the top of the ship and only did some damage on bottom side.????

sorry my mistake. lower side of body where the hit can be fatal.



[kuge]

sorry my mistake. lower side of body where the hit can be fatal.

u didnt get my point did u? but nvm



[Penguin]

1st-tier: HQ-9/9B
2nd-tier: HQ-16/B/C
3rd-tier: DK-10A or FM-3000 (or another quad-packed MRSAM)
4th tier: FL-3000N
5th tier: Type 1130 CIWS

Don't forget the soft-kill tiers....



[Akasa]

Don't forget the soft-kill tiers....

Yes, although I think the other user's comment was more focused on supersonic, sea-skimming AShMs and countermeasures geared especially towards them.



[lcloo]

Latest photo (modified) from eyes in the sky. 055 #1 (blue) and #2 (red) in Shanghai.



[Penguin]

Yes, although I think the other user's comment was more focused on supersonic, sea-skimming AShMs and countermeasures geared especially towards them.

They too have guidance packages that can be fooled...



[Deino]

Type055

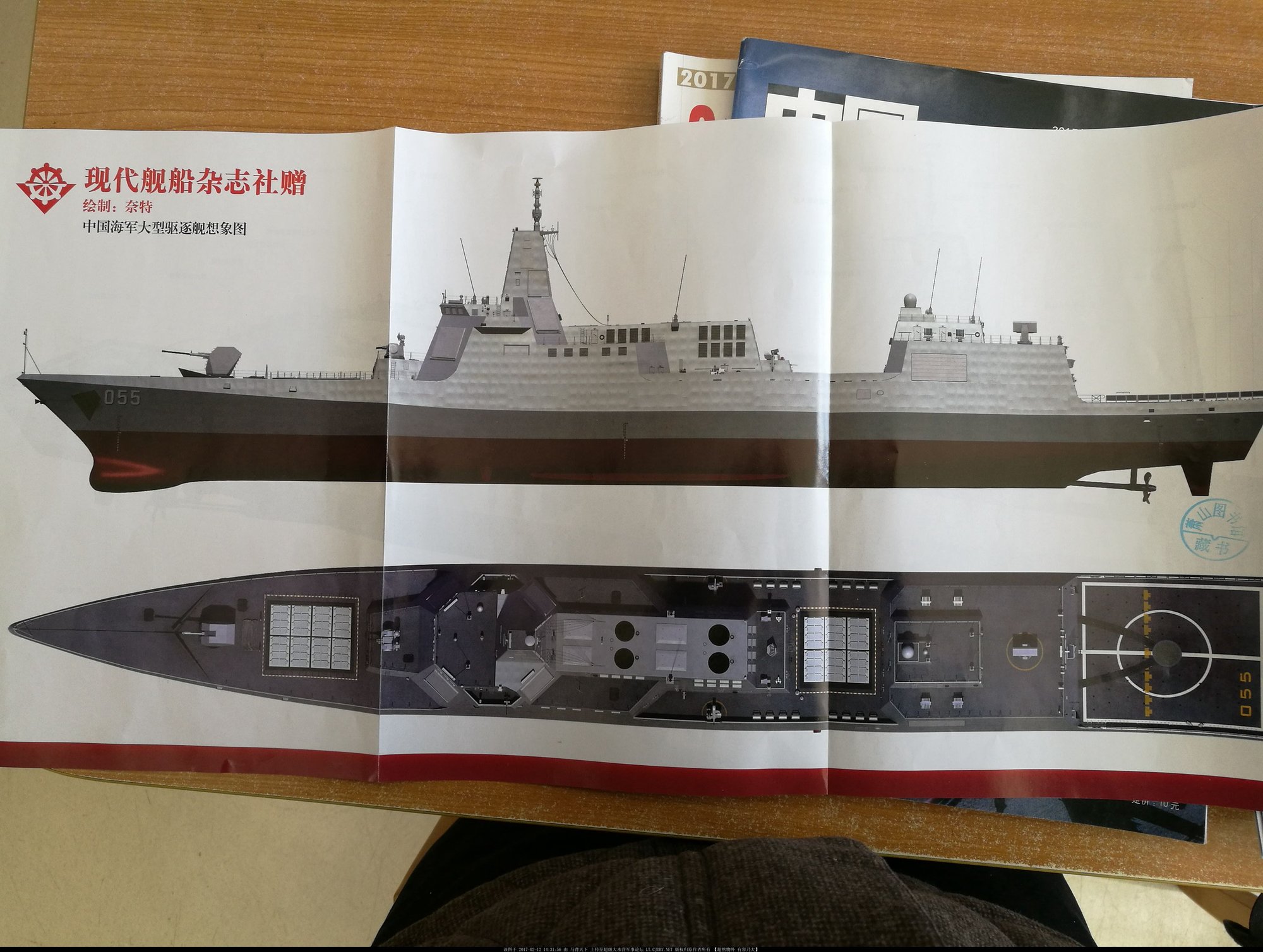

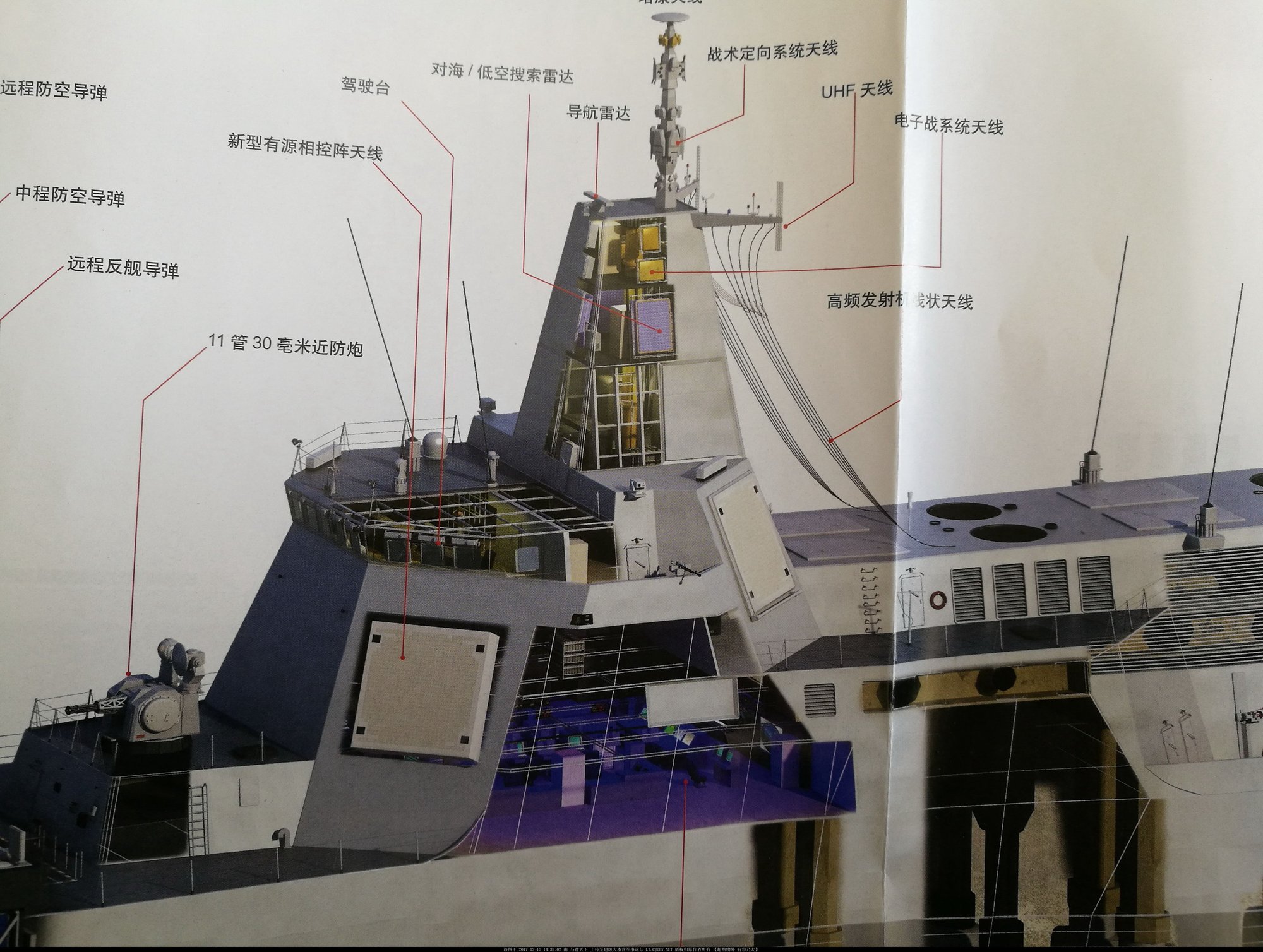

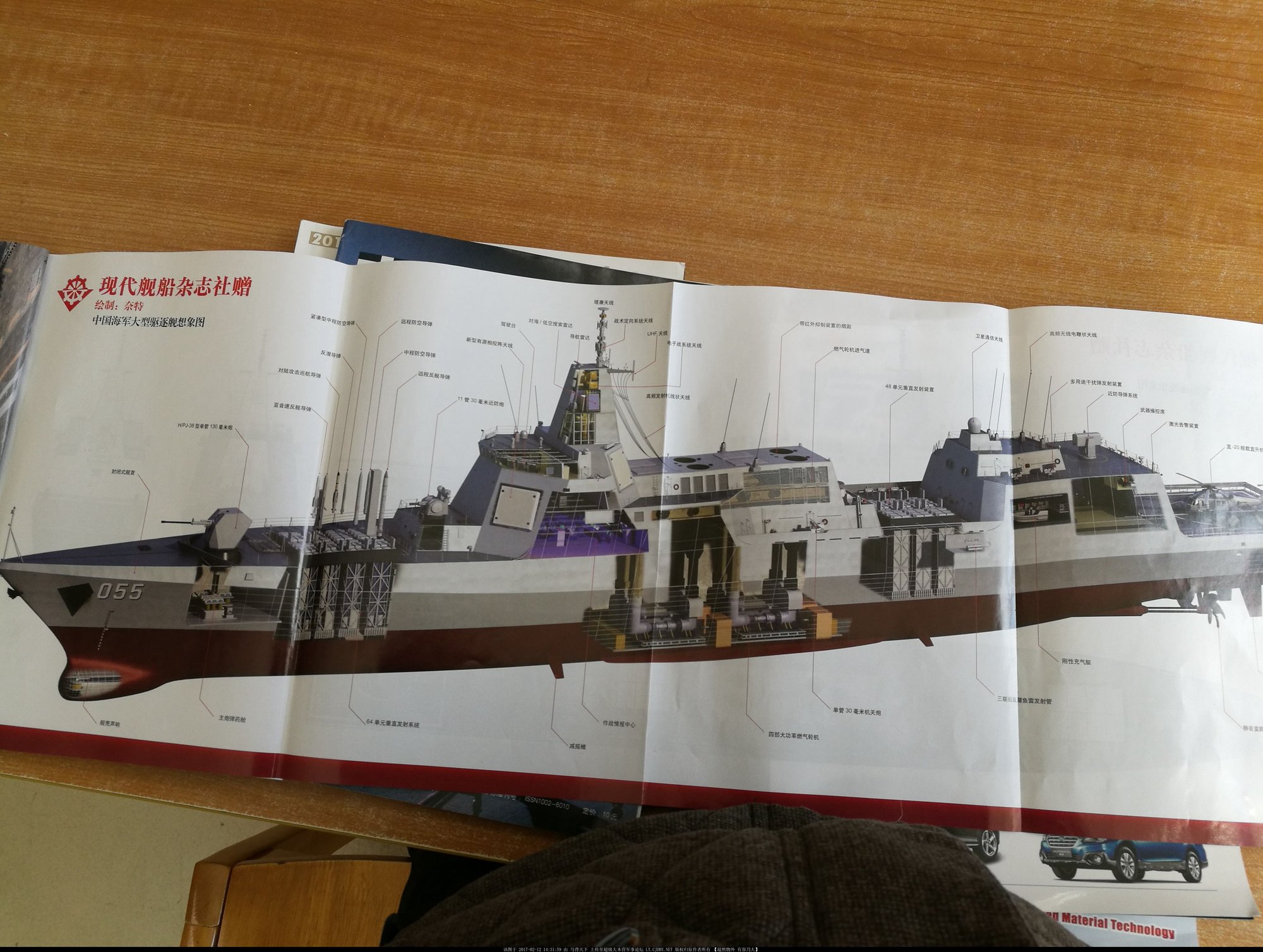

View attachment 376587 View attachment 376588 View attachment 376589


Most KD-III / Sejong DDG weapon & radar systems come from U.S techs including Mk41 VLS / SM-2 / AN/SPY-1 / CIWS/ RAM purchased from foreign weapon supporters, 4x LM2500 turbine engines from America General Dynamics. China type055 each systems 100% built by domestic supporters, building without any restrictions from outside. Soon u see China type055 numbers will more than 3x KD-III. PLAN can building type055 as many as we need, but ROKN not they need American ~!

Here not as a photo of an fold-out !



[samsara]

Here not as a photo of an fold-out !

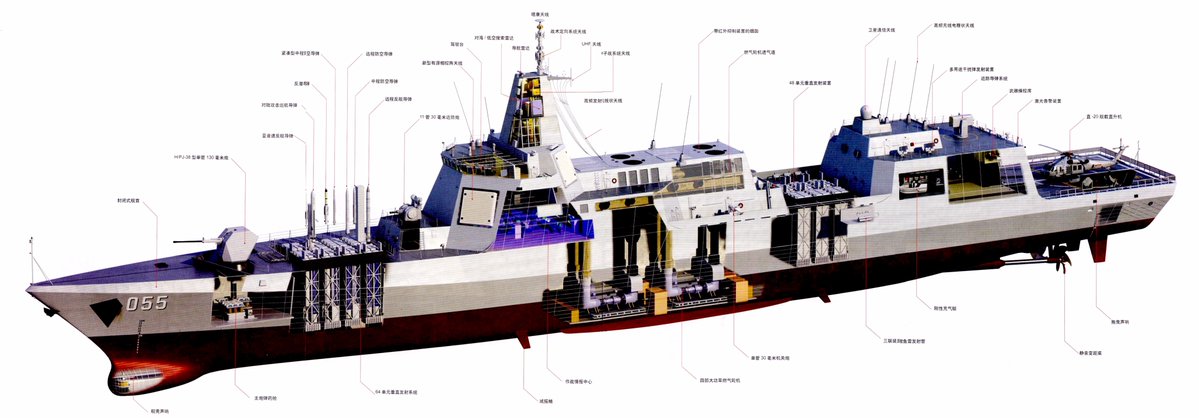

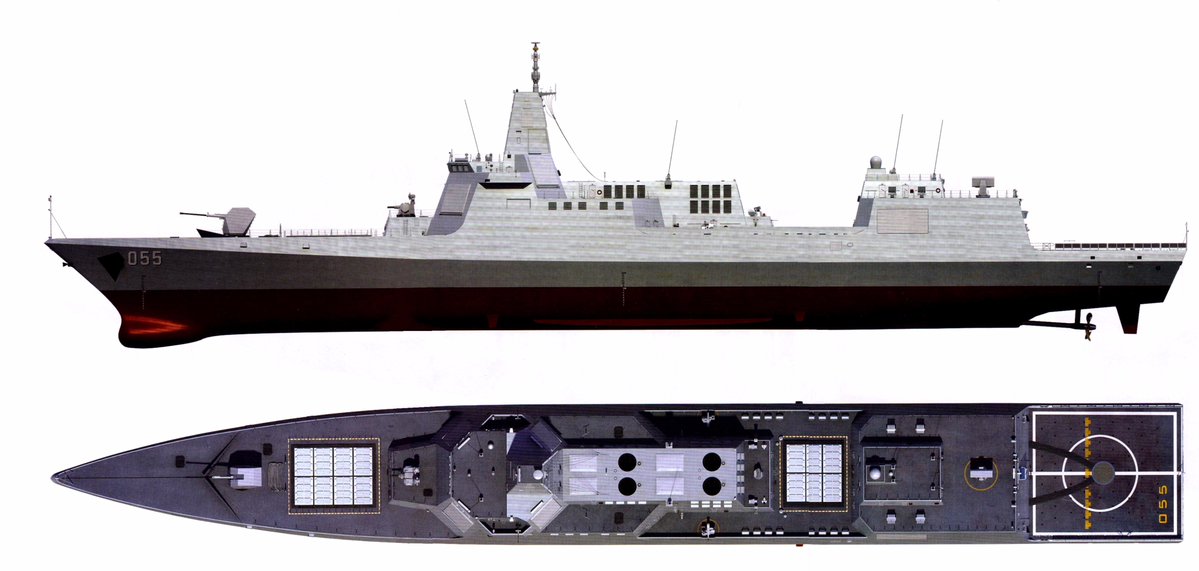

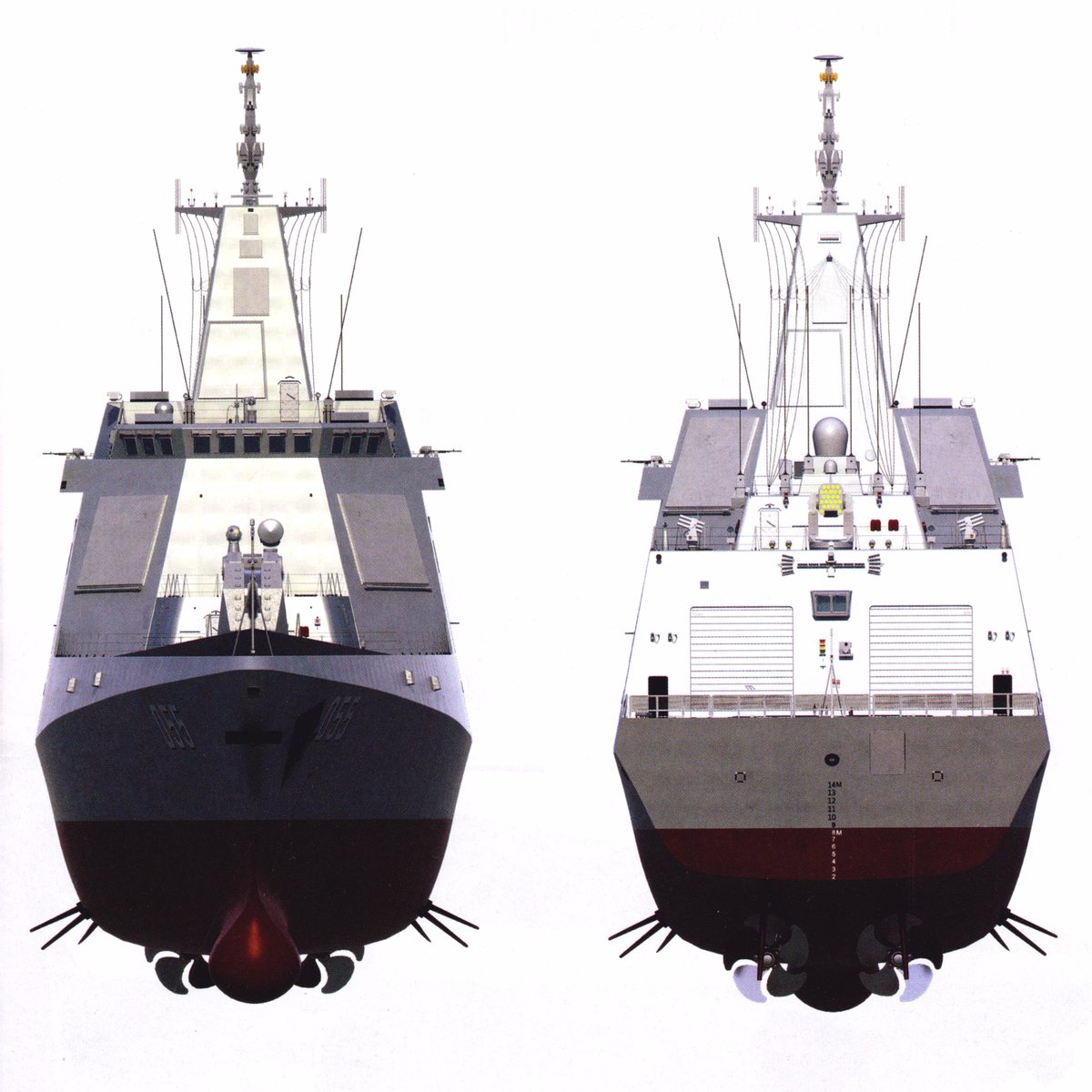

View attachment 380592 View attachment 380593 View attachment 380594

Nice CGIs though the resolution of the 1st pic is not high enough thus the labels in Chinese characters aren't readable.



[lcloo]

Update 2017 January 30th Dalian shipyard. One month ago's photo.



[Deino]

Nice CGIs though the resolution of the 1st pic is not high enough thus the labels in Chinese characters aren't readable.

Here in full-size:

PS: strange ... it does does not show up in full size !?? the original one has a size of 4300x1500 pixels



[samsara]

Here in full-size:

View attachment 381166

PS: strange ... it does does not show up in full size !?? the original one has a size of 4300x1500 pixels

Thank you Deino, now it's readable, with the help of magnifier

2000 x 698 Pixels (1.40 MPixels) , files size 191 KB (196,181 bytes)
