1- For a plant, the efficiency would generally mean its thermal efficiency (how much of the fuel it converts to electricity). The efficiency I meant was the maximum system efficiency. That is if you have 10 plants, each of 1000 MW installed capacity, in the most demanding situation how much these plants can produce (you can't reach 10,000 level because of various technical and economic reasons). In Pakistan's case the system is 69% efficient at its peak demand moment. That is these 10 plants produce 6,900 MW when they are pushed to their technical / economic limit because of availability factor, capacity factor and even various on the ground situation from security to God knows what..

Thank you for your detailed reply. I have few more questions
I have read a bit about Capacity factor. What is the maximum possible? How does 69% compare to other countries?
Thermal efficiency will not exceed 60% for a combined cycle power plant although it may be as high as 95% for a ‘combined heat and power’ (CHP) plant. You may be confusing the two?
How can I calculate the peak demand? I am happy to have a constructive discussion. Maybe we can start a new thread?
I have updated my analysis with the following:
17% line losses & 69% Capacity factor.
This is for base load only. 5% growth will mean that we will be on par with UK by 2055 for base load.

I agree that people in Pakistan complain about the problem but don't want to know the reasons behind it and don't want to change the situation collectively. I have many ideas and happy to discuss and scrutinize to get to a solution. The investment needed to change the situation is another problem but where there is a will there is a way.



[Daneshmand]

Thank you for your detailed reply. I have few more questions
I have read a bit about Capacity factor. What is the maximum possible? How does 69% compare to other countries?
Thermal efficiency will not exceed 60% for a combined cycle power plant although it may be as high as 95% for a ‘combined heat and power’ (CHP) plant. You may be confusing the two?
How can I calculate the peak demand? I am happy to have a constructive discussion. Maybe we can start a new thread?
I have updated my analysis with the following:
17% line losses & 69% Capacity factor.
This is for base load only. 5% growth will mean that we will be on par with UK by 2055 for base load.
View attachment 234696

I agree that people in Pakistan complain about the problem but don't want to know the reasons behind it and don't want to change the situation collectively. I have many ideas and happy to discuss and scrutinize to get to a solution. The investment needed to change the situation is another problem but where there is a will there is a way.

First let me compliment you on that beautiful graph you posted. Very illustrative.

I really appreciate your logical approach. I tried to use maximum potential figures for each technology to keep a bird's eye view of the problem. Yes, I did mean trigeneration system which in case of large plants is just a technical extension of an advanced combined cycle. The extra heat can be used either for heating purposes or for cooling for example in an ice making factory or to power cold storage facility which is important in an agricultural country like Pakistan. But as you yourself noted even without this, the efficiency can be 60% and will increase to 64% by 2020: https://setis.ec.europa.eu/system/files/4.Efficiencyofheatandelectricityproductiontechnologies.pdf

I do not know about the new thread. Let's see. If discussion continues and develops into something then perhaps a mod can make it into a thread. But right now I guess this is good enough.

The capacity factor is different for different technologies. For example capacity factor and availability of geothermal stations can be as high as 95%. And I think this is perhaps the maximum possible since the plant depends on a source of energy which is running all the time (the earth's internal core). I guess nuclear power plants come second or at a tie.

69% is actually average. There is room for improvement but it won't solve Pakistan's problem since Pakistan is suffering from shortage in installed capacity. At any rate too high a figure in this regard is not a good thing either, since it would mean the system is going to be fragile and not redundant. You would want to have some plants idling or maintain backup status so if something goes wrong, other plants can take over. If say you are running at 90% of nameplate capacity, and if something goes wrong in any plant for whatever reason, then the system collapses.

Peak demand for future is usually estimated based on historical pattern of usage, the growth in consumption, and other factors such as meteorological conditions, time of the day and even sometimes a unique event for instance a popular TV show or a televised sporting event can push up the peak demand. The power distribution companies use this estimation to plan their load management. But still there must be enough spare capacity in the system so that if load increases unexpectedly, the system can cope with it. That is why installed capacity is important.

In your graph it should be GW and not GWh since we are talking about power and not energy. UK has an installed capacity of 124 GW but it imports electricity too. Generally speaking, for an industrialized society with a comfortable living standard 1 KW installed capacity per person is required. The more the merrier but this is pretty much the minimum. If say Pakistan has the ambition to have a respectable living standard by 2055 then it must plan for such a capacity.

So what is your idea? How you think Pakistan should proceed?



[Shah01]

I have amended the chart title to GW. I think UK only has about 85GW of installed capacity and we do import but very little amount (~5%).
I think the following points are needed (Others can add or take away points which they think as problems)?

• Generation and distribution infrastructure need to be updated.
• Smart grid needs to be introduced. This will also help reduce the line losses.
• Need to predict the Base and Peak load with high accuracy. It will be easier with the smart grid.
• Future power needs to be understood and policies placed to grow the power generation and distribution infrastructure.
• Introduce power saving measures
• Bill collection needs to be improved/reformed/privatised
• Power sector should be partly privatise (maybe follow the PTCL model)
• Water management should be made into a separate institution (another thread is needed to discuss water shortage). See why it needs attention.



For generation we can adopt the following:
Short term measures:
Solar Panels: This should be done by private sector with some subsidy from government. Every household can buy and install panels on their roof so say 1kW-4kW. These houses should be grid connected with smart meters (net metering facility). These can have a hybrid system whereby if the grid is down then they can still use the power produced from the solar panels.
Power Plants at Grid Stations: As the power outages are very long and widespread each city can have its own small power plants producing the shortfall? Set-up these keeping in mind of future needs. So look at the population of the city, consumption and shortfall.
Benefits would be twofold: One the power plant will use less gas to produce the energy 2nd it will require less maintenance compared to small generators run by the households at the moment.
Power saving: People should update their electronics to save on power. Simple change of tube lights will make a very big difference.
Long Term measures:
We assume from the chart that a 4% growth in power consumption is our base load. To generate base load power the following should be built:

Nuclear, Coal, Gas and Hydro Power plants. These can be equally weighted for a good energy mix?
For the Peak load we can have Gas power plants?
Furthermore we can build power plants near the end user? These maybe impractical for Nuclear and Hydro.
For short term Coal and Gas power plants can be setup.
Use the coal in thar as well as imported. Use new technology which captures the fumes? Private and public sector can build these.
Nuclear power plants takes much longer to build but they are very economical in the long run. A private investor can build and distribute energy from these as the investment is very intensive.
Hydro power plants can be built by both private and public sector?
Any other ideas….



[Jzaib]

Now we have one more date . Trust me it will not even end it 2017. But yes we will have few more metros



[Daneshmand]

I have amended the chart title to GW. I think UK only has about 85GW of installed capacity and we do import but very little amount (~5%).
I think the following points are needed (Others can add or take away points which they think as problems)?

• Generation and distribution infrastructure need to be updated.
• Smart grid needs to be introduced. This will also help reduce the line losses.
• Need to predict the Base and Peak load with high accuracy. It will be easier with the smart grid.
• Future power needs to be understood and policies placed to grow the power generation and distribution infrastructure.
• Introduce power saving measures
• Bill collection needs to be improved/reformed/privatised
• Power sector should be partly privatise (maybe follow the PTCL model)
• Water management should be made into a separate institution (another thread is needed to discuss water shortage). See why it needs attention.

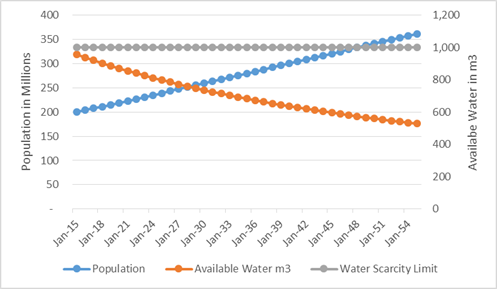

  View attachment 234749

For generation we can adopt the following:
Short term measures:
Solar Panels: This should be done by private sector with some subsidy from government. Every household can buy and install panels on their roof so say 1kW-4kW. These houses should be grid connected with smart meters (net metering facility). These can have a hybrid system whereby if the grid is down then they can still use the power produced from the solar panels.
Power Plants at Grid Stations: As the power outages are very long and widespread each city can have its own small power plants producing the shortfall? Set-up these keeping in mind of future needs. So look at the population of the city, consumption and shortfall.
Benefits would be twofold: One the power plant will use less gas to produce the energy 2nd it will require less maintenance compared to small generators run by the households at the moment.
Power saving: People should update their electronics to save on power. Simple change of tube lights will make a very big difference.
Long Term measures:
We assume from the chart that a 4% growth in power consumption is our base load. To generate base load power the following should be built:

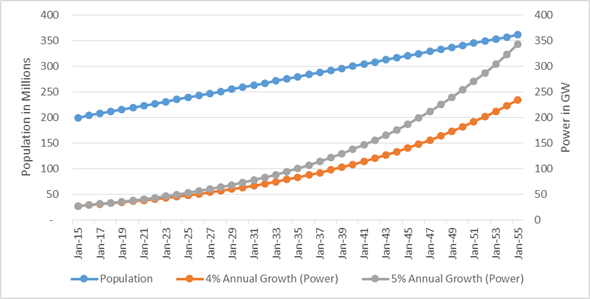

View attachment 234750
