Egypt is the first foreign customer of the unmanned aircraft CH-5 Rainbow

[masud]

It will be nice if this drone can use just like fighter jet as a AIR to AIR combat roll, may be those days are coming very soon...............



[HannibalBarca]

So the first customer was Egypt... interesting...



[Gomig-21]

So the first customer was Egypt... interesting...

EAF is also using the Chinese-built ASN-209 reco UAV.

This one had to make an emergency landing because of technical issues.

They're also building a huge military airport attached to the El Arish airport in northern Sinai where they'll operate several squadrons of UCAVs/UAVs and attack helicopters (most likely a combination of Apaches and the new Ka-52s) for counter terrorism ops in Sinai.

The CH-5 has some size to it and very respectable weapons load.



[HannibalBarca]

EAF is also using the Chinese-built ASN-209 reco UAV.

This one had to make an emergency landing because of technical issues.

They're also building a huge military airport attached to the El Arish airport in northern Sinai where they'll operate several squadrons of UCAVs/UAVs and attack helicopters (most likely a combination of Apaches and the new Ka-52s) for counter terrorism ops in Sinai.

The CH-5 has some size to it and very respectable weapons load.

But is there any official or pics or smthing that give credits to this article?
The past version wingloong have be shown...so why not this one? and it' snot really a secret now?
Any info on the size of the order?



[Gomig-21]

But is there any official or pics or smthing that give credits to this article?
The past version wingloong have be shown...so why not this one? and it' snot really a secret now?
Any info on the size of the order?

Not yet, but with the way they're crunching cretins left and right, west, east and south and now dedicating specific bases in 3 different sectors just for unmanned aircraft, we're bound to see them sooner or later. The WingLoong was actually operational for close to 6 months prior to them releasing any info on it. You know how secretive they are about this kinda stuff. We don't even know how many WingLoongs they've purchased if it wasn't for a satellite pic where we saw 8 of them on the tarmac.



[The SC]

CH-5

Range: 10 000 km with satellite communication

Load: 1000 kg .. can carry: 24 rockets

Ceiling Height: 10 km

Endurance in the air: 60 hours


For those who do not know:

The WING LOONG is produced by Chengdu Aircraft Industry Group

The CH-5 is produced by China Aerospace Science and Technology Corporation

The CH-5 is capable of carrying an early-warning system and electronic warfare tools to collect electronic information. The enemy's communications and radar can be disrupted, and underwater targets such as submarines are detected after preparation of some devices.

The CH-5 can also use high-resolution cameras, radars and radios to serve a wide range of civilian and public sectors.

http://arabic.china.org.cn/business/txt/2017-07/17/content_41230486.htm
http://arabic.china.org.cn/business/txt/2017-07/17/content_41230486.htm
The aircraft has a load of up to 1 ton of ammunition and missiles with up to 16 missiles distributed at 6 suspension points below the wings. It also allows the installation of reconnaissance and aerial survey systems with a range of up to 80 km. This is in addition to the ground penetrating radar systems Such as caves and thick walls to monitor and locate the hideouts of terrorist elements.

The aircraft also has a wireless data link to transmit information, transmit images and video to ground stations for up to 250 kilometers, and another satellite data link with a range of up to 2,000 kilometers.

The length of the aircraft is 11 meters, the distance between the two wings is 21 meters and the maximum weight to take off is 3.3 tons. Although it can actually carry up to 16 missiles, its large cargo of 1 ton makes it capable of increasing the payload of missiles to 24 missiles anti-armoured vehicles, personnel and trenches.

The endurance of the aircraft is up to 40 hours and extends to a maximum of 60 hours and ranges depending on the load are between 6500 km to 10000 km, and the ceiling of the maximum height is 9 km above sea level.

Chinese designers plan to increase the endurance of the aircraft to 120 hours and a range of up to 20,000 km, by providing external fuel tanks.


The M-9 Reaper, with a range of 1850 km and a maximum load of 14 hours, is superior to the CH-5 in cargo (1.7 tons) and the maximum height (15 km) given But the cost factor is in favor of the Chinese plane, which is less than half the cost of its American counterpart, which exceeds $ 16 million per plane, or about 8 million dollars or less.

* The aircraft can carry many types of missiles and bombs, including the following:

1) guided missiles:

- BA-7 anti-tank missile is derived from the AKD-10 missile, similar to the American Hellfire missile. It is laser-guided and weighs 47 kg. Its accuracy is more than 80% at its maximum range is 7 km.

- BRM1-90 anti-tank missile and personnel grouping, high-value targets such as air defenses and artillery as well as low-altitude, laser-guided targets weighing 16.8 kg and a range of 8 km.

- A TY-90 air-to-air missile originally intended to down helicopters and drones, is thermally oriented and reaches a maximum speed of Mach 2 (2470 km / h). It also has an Impact Fuze for killing targets with direct impact and a Proximity Fuze that explodes next to the target, it has a range of 8 km.

2) Guided and free bombs:

- 50-kg LS-6 bombs, which are intelligent GPS-guided bombs and with INS inertial navigation system, and have an electro-optical probe capable of hitting the target with the highest accurately possible.

- 100-kg GB-4/100 bombs and 50-kg GB-7/50 laser bombs.

- The family of cluster bombs YZ-200 with weights of 125 and 50 kg. The bomb itself is guided by laser beams, as well as the family of cluster bombs YZ-100 with weights of 100, 50 and 30 kg. The Cluster munitions use various guidance systems (inertia - satellites - lasers - infrared - radar).

- FT-7 free bombs with a weight of 130 kg and flat wings to increase accuracy of the hit, as well as FT-9 and FT-10 bombs weighing 50 and 25 kg.



[Clutch]

CH-5

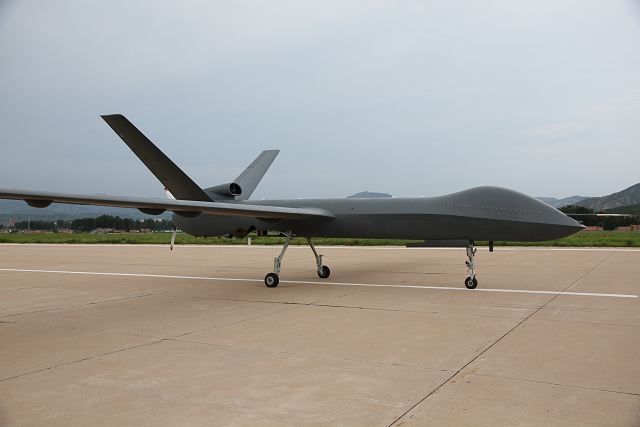

View attachment 441536

Range: 10 000 km with satellite communication

Load: 1000 kg .. can carry: 24 rockets

Ceiling Height: 10 km

Endurance in the air: 60 hours


For those who do not know:

The WING LOONG is produced by Chengdu Aircraft Industry Group

The CH-5 is produced by China Aerospace Science and Technology Corporation

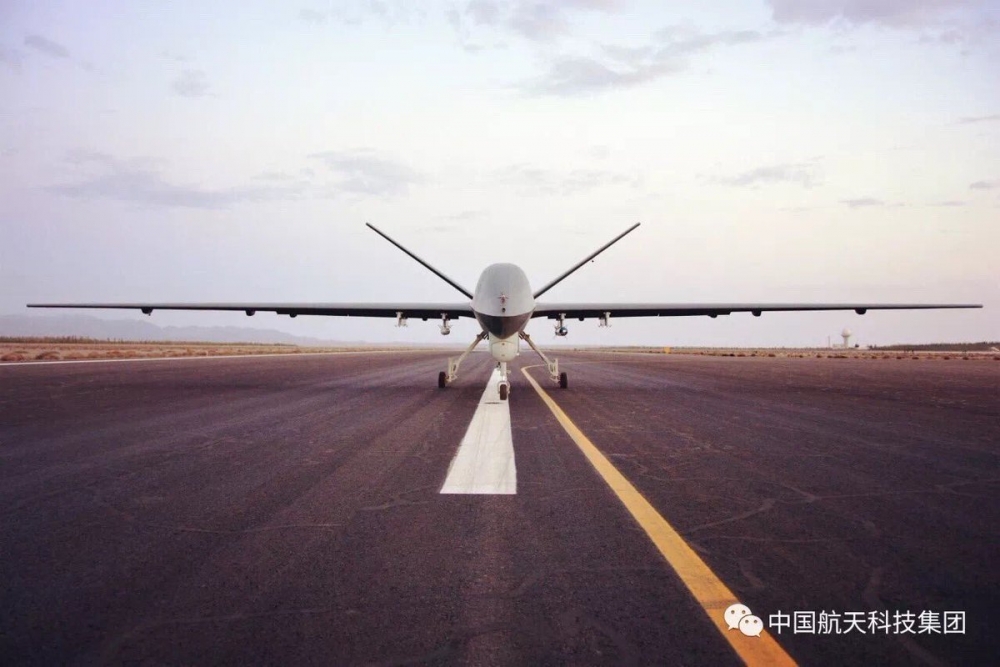

View attachment 441537

The CH-5 is capable of carrying an early-warning system and electronic warfare tools to collect electronic information. The enemy's communications and radar can be disrupted, and underwater targets such as submarines are detected after preparation of some devices.

The CH-5 can also use high-resolution cameras, radars and radios to serve a wide range of civilian and public sectors.

http://arabic.china.org.cn/business/txt/2017-07/17/content_41230486.htm
The aircraft has a load of up to 1 ton of ammunition and missiles with up to 16 missiles distributed at 6 suspension points below the wings. It also allows the installation of reconnaissance and aerial survey systems with a range of up to 80 km. This is in addition to the ground penetrating radar systems Such as caves and thick walls to monitor and locate the hideouts of terrorist elements.

The aircraft also has a wireless data link to transmit information, transmit images and video to ground stations for up to 250 kilometers, and another satellite data link with a range of up to 2,000 kilometers.

The length of the aircraft is 11 meters, the distance between the two wings is 21 meters and the maximum weight to take off is 3.3 tons. Although it can actually carry up to 16 missiles, its large cargo of 1 ton makes it capable of increasing the payload of missiles to 24 missiles anti-armoured vehicles, personnel and trenches.

The endurance of the aircraft is up to 40 hours and extends to a maximum of 60 hours and ranges depending on the load are between 6500 km to 10000 km, and the ceiling of the maximum height is 9 km above sea level.

Chinese designers plan to increase the endurance of the aircraft to 120 hours and a range of up to 20,000 km, by providing external fuel tanks.


The M-9 Reaper, with a range of 1850 km and a maximum load of 14 hours, is superior to the CH-5 in cargo (1.7 tons) and the maximum height (15 km) given But the cost factor is in favor of the Chinese plane, which is less than half the cost of its American counterpart, which exceeds $ 16 million per plane, or about 8 million dollars or less.

* The aircraft can carry many types of missiles and bombs, including the following:

1) guided missiles:

- BA-7 anti-tank missile is derived from the AKD-10 missile, similar to the American Hellfire missile. It is laser-guided and weighs 47 kg. Its accuracy is more than 80% at its maximum range is 7 km.

- BRM1-90 anti-tank missile and personnel grouping, high-value targets such as air defenses and artillery as well as low-altitude, laser-guided targets weighing 16.8 kg and a range of 8 km.

- A TY-90 air-to-air missile originally intended to down helicopters and drones, is thermally oriented and reaches a maximum speed of Mach 2 (2470 km / h). It also has an Impact Fuze for killing targets with direct impact and a Proximity Fuze that explodes next to the target, it has a range of 8 km.

2) Guided and free bombs:

- 50-kg LS-6 bombs, which are intelligent GPS-guided bombs and with INS inertial navigation system, and have an electro-optical probe capable of hitting the target with the highest accurately possible.

- 100-kg GB-4/100 bombs and 50-kg GB-7/50 laser bombs.

- The family of cluster bombs YZ-200 with weights of 125 and 50 kg. The bomb itself is guided by laser beams, as well as the family of cluster bombs YZ-100 with weights of 100, 50 and 30 kg. The Cluster munitions use various guidance systems (inertia - satellites - lasers - infrared - radar).

- FT-7 free bombs with a weight of 130 kg and flat wings to increase accuracy of the hit, as well as FT-9 and FT-10 bombs weighing 50 and 25 kg.

Pakistan desperately needs a boat load of these and place them along the pakistan afgunistan border.



[Crocodile]

We should make a tech transfer agreement with the chinese, build a factory or two and start pumping out these babies by the dozens. Our pilots' lives are far too valuable to lose to some lucky cockroach with a cheap shoulder-launched SAM. They can shoot down all the drones they want, we'll have plenty more where those came from.



[Gomig-21]

Pakistan desperately needs a boat load of these and place them along the pakistan afgunistan border.

If there is any border in the world that could use these, it's the very challenging Pakistan/Afghanistan one. Then there can be a beautiful traffic jam in the sky between Pakistani UAVs and US Predators roaming for cretins.

We should make a tech transfer agreement with the chinese, build a factory or two and start pumping out these babies by the dozens. Our pilots' lives are far too valuable to lose to some lucky cockroach with a cheap shoulder-launched SAM. They can shoot down all the drones they want, we'll have plenty more where those came from.

Especially after losing one of the Block 52's near Libya a while back. While it's not confirmed that it was a MANPAD, it's still a threat for sure.

If they've been building the ASN-209 since 2012, they can easily do what you just suggested.

From Wiki:
In May 2012 six Egyptian drones of ASN-209 were built in collaboration with a foreign defense manufacturer during the first phase and are fully operational under the Egyptian armed forces according to Hamdy Weheba,[10] the Chairman of the Arab Organization for Industrialization which he claimed that Egypt has started the production of the ASN-209 Multi-purpose UAV System and about 99.5% of the components are locally manufactured.[5] He also claimed that with the latest manufacturing venture, Egypt is entering into the second phase of mass ASN-209 production.[7][10]

https://en.wikipedia.org/wiki/Aisheng_ASN-209



[Incog_nito]

Soon Egypt might be able to produce these at home. I am sure JF-17 Block-II or Block-IIIs are also on the list with ToT.
