its mean that it has to carry total number of 6 air to air missiles, 2 less then F-22, am i right or wrong? someone please help me:angel:
6x missiles in bottom weapon-bay, 2x missiles in side weapon-bay ... u forget them.


. . . . .

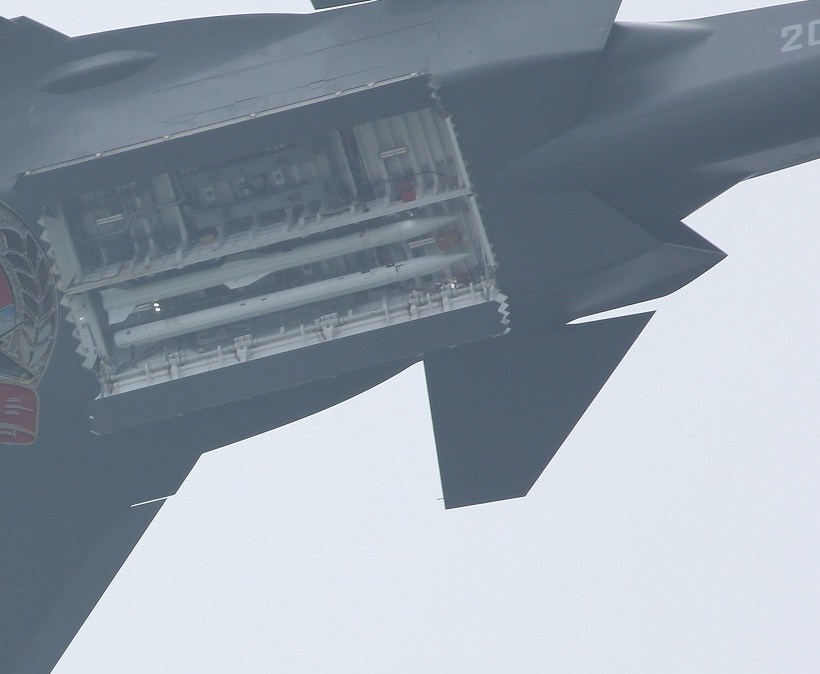

View attachment 161854 Sorry, but this image with the 3 PL-X-15 in one bay is PSed ... the original one shows only 2 AAMs !
Even more if You look at the missile pylons in the bay there are only two visible in the empty bay above.
Maybe they should develop a composite missile pylon

. .
View attachment 161854 Sorry, but this image with the 3 PL-X-15 in one bay is PSed ... the original one shows only 2 AAMs !
Even more if You look at the missile pylons in the bay there are only two visible in the empty bay above.

Your point about the picture being shopped might well be true but the pylons can be added and removed just like on, say, an F-16. Below you can see one side of the F-22's bay with just one pylon while the other has 3. These pylons can probably also be repositioned inside the bay due to the varying sizes and shapes of the different weapons to be carried.


.
Yes, ... that's what I hope for.

By the way a new image ....
J-20 2013 - 10.12.14.jpg


Even if small or actually verrrrrrry small for all with a sense to details it clearly confirms the J-20's IFR-probe ! (via A.Man SDF) !

J-20 2013 - 12.12.14 - IFR-probe confirmed.jpg

. . .

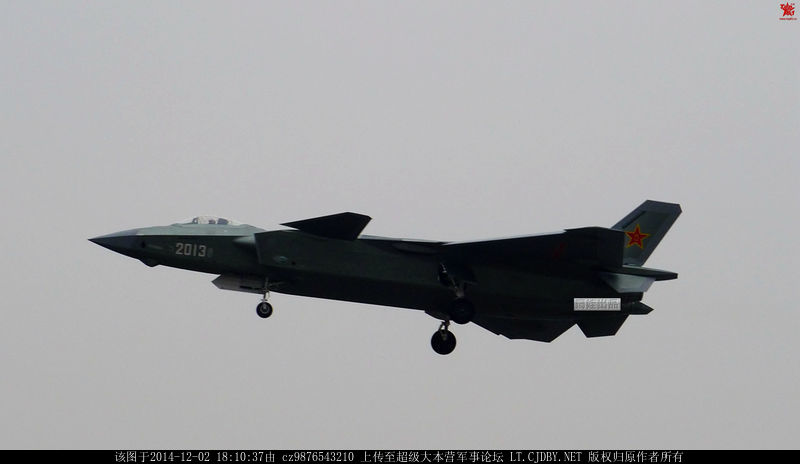

2013 or not 2013 ??? ... regarding the missing pitot I would say it could be.
J-20 2013 false colours - 13.12.14.jpg

. .
It is said that the 2015 prototype would cancel the ventral fin

.
