Babur Cruise Missile - Database

[Kompromat]



[Rafi]

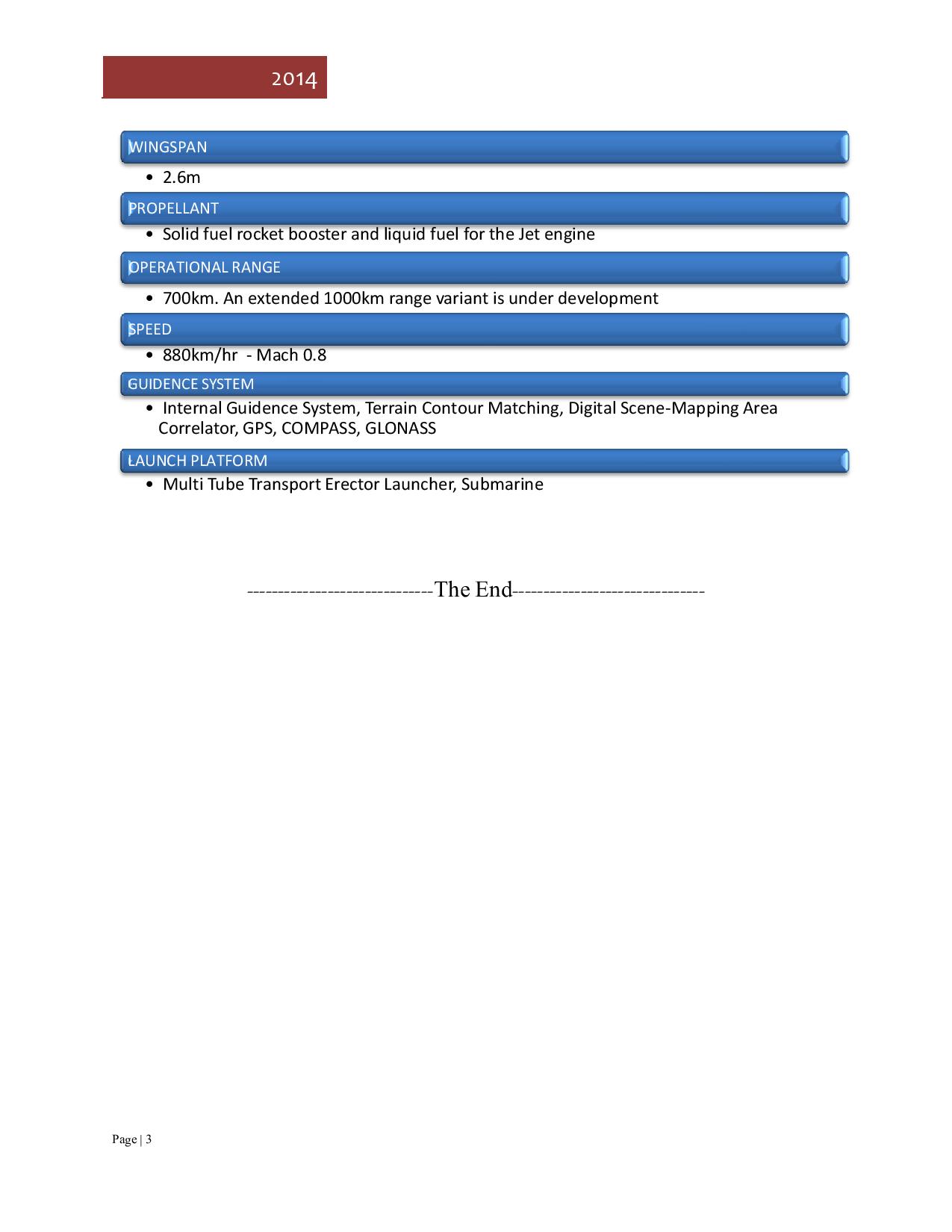

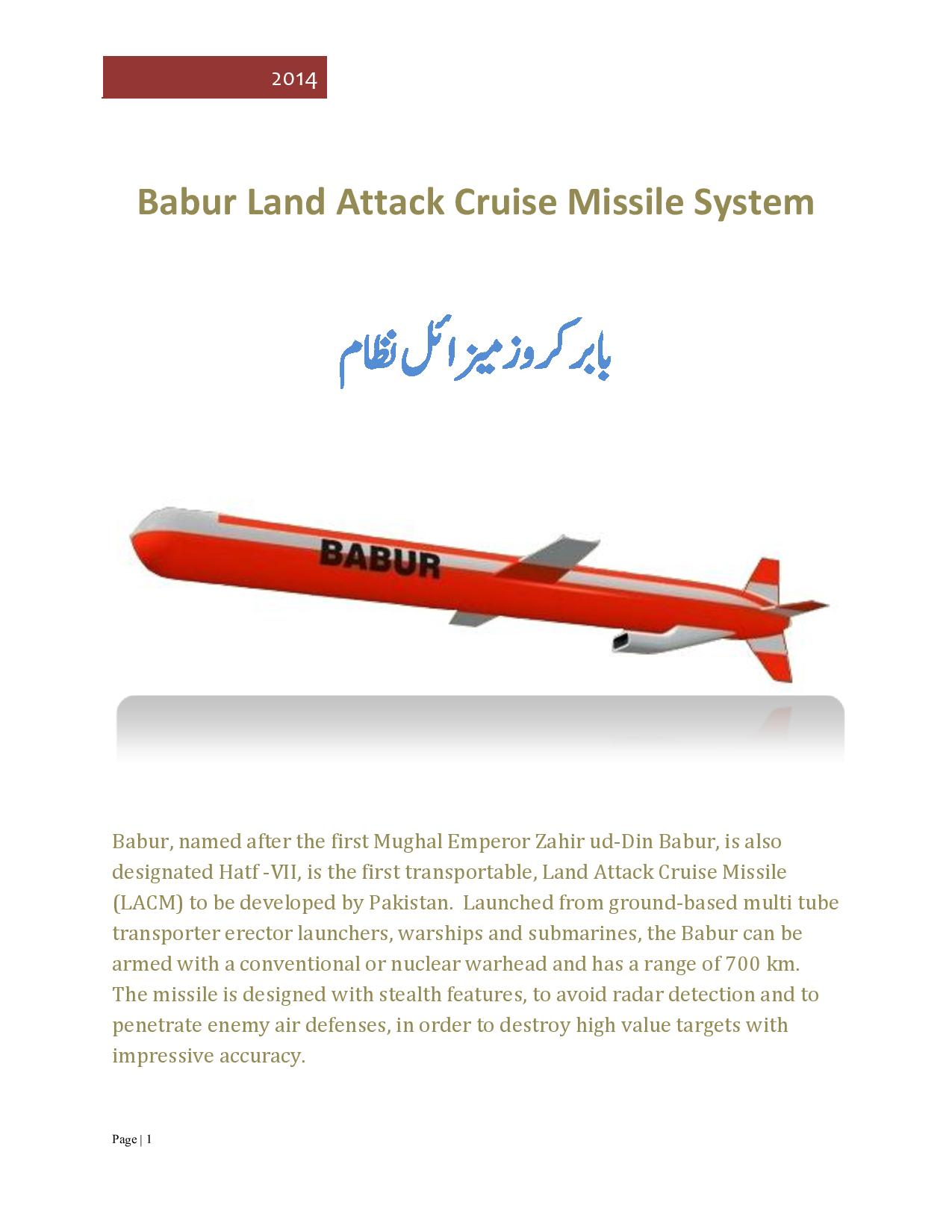

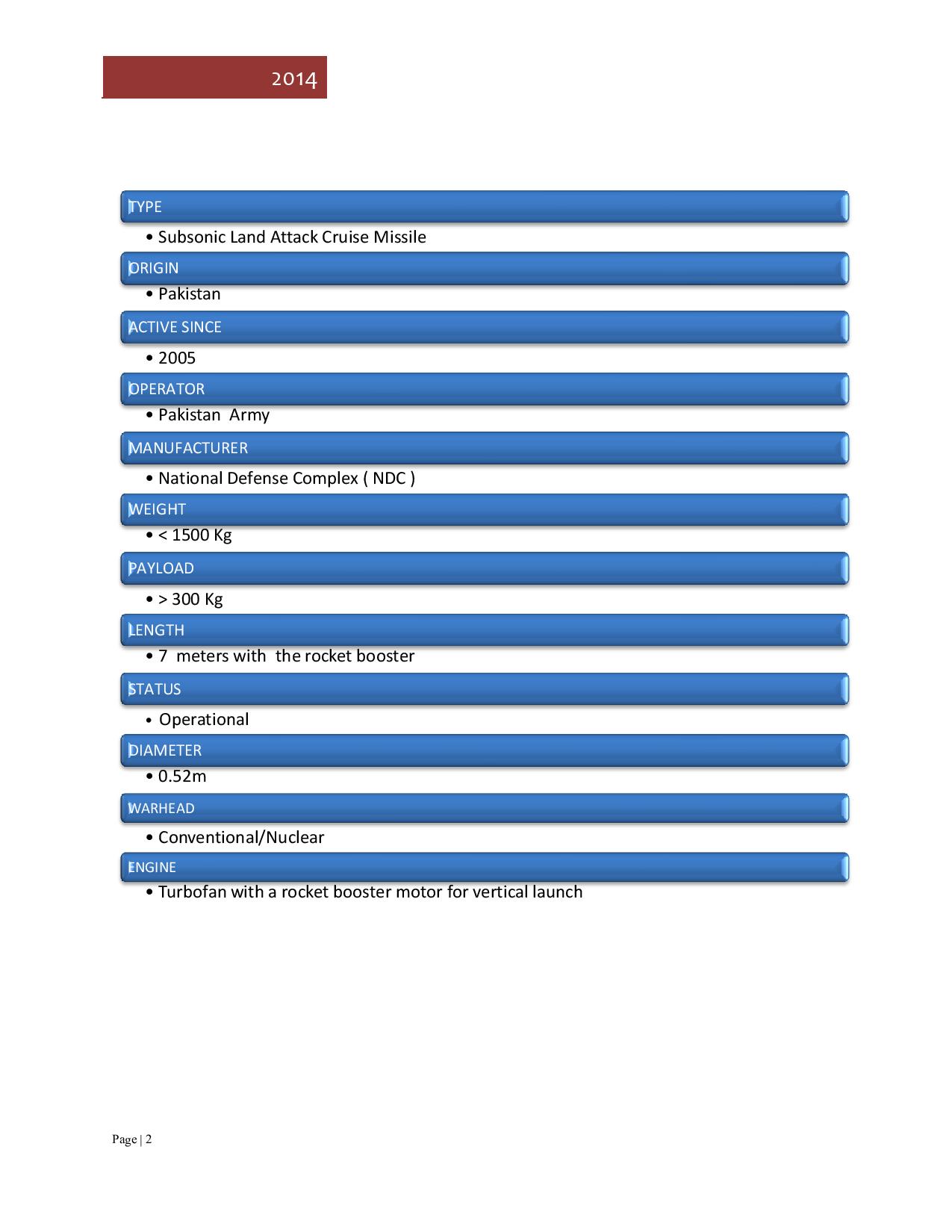

View attachment 36407 View attachment 36408 View attachment 36409

1,000 km range version, cannon - rumors about 1,500/2,000 range - next version, with new global positioning system and better engine coming online.



[Basel]

Our corrupt system is destroying every thing including military modernization.



[monitor]

picture is from Bangladesh navy

No i just checked its a picture of Pakistan navy maintaining C-802.



[fatman17]



[Arsalan]

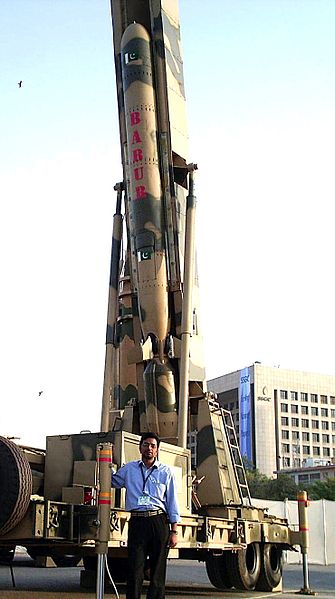

View attachment 37163

This one is taken at IDEAS right?
and who is this guy? you?



[fatman17]

This one is taken at IDEAS right?
and who is this guy? you?

yes at IDEAS and NO thats not me - i'm much older and you know what....



[Arsalan]

yes at IDEAS and NO thats not me - i'm much older and you know what....

yes sir i have an idea.
Thank for sharing the picture



[Informant]

Our corrupt system is destroying every thing including military modernization.

Regarding Military its the corrupt real estate gernails more like



[Basel]

Regarding Military its the corrupt real estate gernails more like

Corruption is in all places in Pakistan, but Military is less corrupt because they at least put money where its is needed, not like politicians, bureaucrats and others who just suck every thing out of the country.



[Informant]

Corruption is in all places in Pakistan, but Military is less corrupt because they at least put money where its is needed, not like politicians, bureaucrats and others who just suck every thing out of the country.

Baat to sahi hai jaani Army ke jarnail kam nahin chuuste. Seriously. Go to Pindi and see their movements. So much wastage, they are no better than politicians. Gernail bankay ihsaan nahin kia mujhe pe. Mere tax ka paisa porra karta hai in sab manhuuson ke akhrajaat woh bhi najaaiz. Niray sharaabi kabaabi all these generals and politiebureaus.



[Basel]

Baat to sahi hai jaani Army ke jarnail kam nahin chuuste. Seriously. Go to Pindi and see their movements. So much wastage, they are no better than politicians. Gernail bankay ihsaan nahin kia mujhe pe. Mere tax ka paisa porra karta hai in sab manhuuson ke akhrajaat woh bhi najaaiz. Niray sharaabi kabaabi all these generals and politiebureaus.

The sad problem in Pakistan is that whole nation is ready to do corruption if they had opportunity and those who oppose it and implement true honesty mostly called stupid. Also corruption and honesty talk in our society is like sugar coated chocolate in which one only find chocolate after going through sugar, here sugar is honesty talk in society & chocolate is corruption.



[shaheenmissile]

View attachment 37163

Did somebody notice the modules?



[Slav Defence]

Inspired by JF-17 Information pool by ANTIBODY, this is my effort to compile all available useful data on Pakistan's LACM Babur.
This is not for debate and arguments but an effort to concise information under one thread. any information related to missile, of the systems that it works on, such as the engine, the design characteristics, guidance systems etc is welcomed.

A cruise missile is a guided missile able to carry heavy warhead payload to long distances (Beyond the reach of stand-off bombs). Usually powered by a jet engine, these are able to fly at non-ballistic trajectory, under the radar range and able to carry out a pin point strike of targets.

Babur Cruise Missile
In August 2005 Pakistan carried out test of its first cruise missile, named Babur (Hatf VII). Babur is the first ever cruise missile, designed and developed by Pakistani scientist mainly from NESCOM and is able to carry around 450 Kg conventional or nuclear (10 to 30kT) payloads. The first test was of 500 Km range from but a newer version was available in 2007 with an extended range of 700Km. The missile was launched from a land based transporter erector launcher (TEL) and now a multi tube launcher is also available.

The Babur is described as a subsonic, low-level terrain hugging missile, which has the most advanced and modern navigation and guidance system and a high degree of maneuverability. The technology enables the missile to avoid radar detection and penetrate undetected through any hostile defensive system. It is a highly effective and trustworthy weapon due to its extraordinary characteristics.

With the capability of designing and developing Babur cruise missile Pakistan has joined an exclusive group of ten countries that operate cruise missiles, and an even more exclusive group of countries that can develop and manufacture them.

Design:
Babur Missile has a tubular shaped fuselage with a pair of folded wings attached to the middle section and Tail assembly at the rear along with the propulsion system. It is propelled by a Turbo fan engine and has a maximum speed of approximately 880 Km/h (high sub-sonic speed). The missile has a booster rocket provides additional thrust to accelerate the missile away from the launch vehicle and ground. After the launch the middle section flight wings unfold, the booster rocket is jettisoned and the jet engine takes on for the rest of flight path. The air inlet also pops out after launch.

The missile is powered by 700lb thrust engine with a thrust-to-weight ratio of 4.8:1 comprises a single-stage centrifugal compressor, two-stage fan with a two-stage low-pressure booster, a reverse-flow annular combustor with rotary injection, a turbine section with one high-pressure and two low-pressure stages. It uses a special high-density blended aviation turbine fuel that has more energy for a given volume than standard fuels, and can endure harsh weather conditions and long storage periods.

The missile has a high degree of maneuverability and terrain hugging capability, allowing it to "hug" the terrain. Terrain hugging ability helps the missile avoid enemy radar detection by utilizing "terrain masking", giving Babur the capability to penetrate enemy air defense systems undetected and survive until reaching the target. The design is also said to possess stealth features making it difficult for enemy radar to detect and track the missile. Since RAM paint coating is not known to exist with Pakistan Defense forces, it may be assumed that the stealth features refer to use of composites in main fuselage reducing the radar signature. Moreover most of this “Stealth Capability” is attributed to the low level terrain hugging flight parameter. The capabilities can be matched to American forces Tomahawk Missiles.

Guidance:
The Babur's guidance system uses a combination of inertial navigation systems, terrain contour matching (TERCOM), Digital Scene Matching and Area Co-relation (DSMAC) and GPS satellite guidance

It is steered by an inertial navigation system (INS). INS measures every movement of the missile and every change of speed, constantly calculating the missile’s position. It enables the missile to know where it is compared to its launch position all the time, enabling the mission computer to steer the missile to the designated target.

The basic components of an inertial guidance system are gyroscopes, accelerometers, and a computer. The gyroscopes provide fixed reference directions or turning rate measurements, and accelerometers measure changes in the velocity of the system. The computer processes information on changes in direction and acceleration and feeds its results to the vehicle’s navigation system.

Babur is also equipped with Terrain Contour Matching or TERCOM system to further increase the accuracy. TERCOM is an automated navigation system used primarily by an unmanned aerial vehicle such as a long-range cruise missile. The system uses a predefined contour map of the flight path which acts as a comparison master image.

The missile is equipped with a sophisticated radar altimeter which constantly reads the terrain it is crossing and compares the readings to the master image. When deviations are detected, the missile's guidance system makes the necessary corrections to its flight path. This makes extremely accurate navigation and collision avoidance possible. The high degree of accuracy possible in terms of exact altitude above all terrain profiles allows TERCOM-equipped missiles to maintain low altitude flight paths while avoiding obstacles. This ground hugging ability confounds enemy ground radar systems
The missile also has a GPS guidance system.

Launch Platform:
Babur was initially test fired from a single missile TEL but later on multiple tube launch system. The current launch platform is mobile three tube assembly mounted on truck. This motorized 8 x 8 transporter-erector-launcher (TEL) is reportedly a Chinese reverse-engineered variants of the Russian MAZ-543TLM vehicle. The TEL has a length of 13.36 meters, width of 3.02 meters, maximum road speed of 55kph, unrefueled range of 650km, and is powered by a 600hp Deutsch diesel engine with all four axles driven. There is a separate 10kW electrical generator to power the missile’s pre-launch operations and two hydraulic pumps to raise the missile canisters to their launch positions before launch. The TEL is supported by four hydraulic jacks during the missile launch.


The missiles are transported on vehicle, carrying four missiles at a time. This is not a launch platform but just a transport vehicle.

History and current Status:
Pakistan have publicly tested the Babur missile 7 times since its existence was announced

August 12, 2005: Pakistan first time successfully test fired Babur cruise missile with a range of 500 km
March 22, 2007: upgraded version with extended range of 700 Km was test fired
July 26, 2007: Test firing of same version
December 11, 2007: Test firing of same version
May 6, 2009: Test firing of same version
October 28, 2011: First test firing from Multiple Tube Missile Launch Vehicle
June 06, 2012: Latest test, validating the Multiple Tube Missile Launch Vehicle

The missile is in production with and is reportedly equipping the 23rd and 26th missile group of PA strategic force.

Future:
It is reported that Pakistan is also working on more advanced variants of the missile with the range extended to 1000 km.
Also a sea launched variant is under development and the French made Agosta submarines and/or the PN probable future QINQ submarines will carry this missile to give Pakistan a second strike capability.

Specs:
Designation: Land Attack Cruise Missile, Medium Range Sub-Sonic Cruise missile
Status: Operational
Length: 7.2 meter (with booster)
Diameter: 0.52 meters
Wing Span: 2.67 meter
Weight: 1500 Kg
Warhead: 450Kg conventional, 10 to 35 kT nuclear
Speed: 880Km/hr.
Propulsion: Turbo Fan engine
Guidance: GPS, INS, TERCOM, DSMAC

Reference:
Online defence security magazine industry military technology news exhibition world land forces*-*Army Recognition
Army Technology
Extrusion Deposition Systems | Emerging Technologies | Extrusion Coating | Automated Optical Inspection Systems| nTact
www.warfare.ru
Pakistan Defence
Military Asia
Written and Compiled by Arsalan Aslam

Babur Specs Chart {Edited by AERONAUT}

Babur - Transportable Land Attack Cruise Missile System

23390, member: 11327"]Inspired by JF-17 Information pool by ANTIBODY, this is my effort to compile all available useful data on Pakistan's LACM Babur.
This is not for debate and arguments but an effort to concise information under one thread. any information related to missile, of the systems that it works on, such as the engine, the design characteristics, guidance systems etc is welcomed.

A cruise missile is a guided missile able to carry heavy warhead payload to long distances (Beyond the reach of stand-off bombs). Usually powered by a jet engine, these are able to fly at non-ballistic trajectory, under the radar range and able to carry out a pin point strike of targets.

Babur Cruise Missile
In August 2005 Pakistan carried out test of its first cruise missile, named Babur (Hatf VII). Babur is the first ever cruise missile, designed and developed by Pakistani scientist mainly from NESCOM and is able to carry around 450 Kg conventional or nuclear (10 to 30kT) payloads. The first test was of 500 Km range from but a newer version was available in 2007 with an extended range of 700Km. The missile was launched from a land based transporter erector launcher (TEL) and now a multi tube launcher is also available.


The Babur is described as a subsonic, low-level terrain hugging missile, which has the most advanced and modern navigation and guidance system and a high degree of maneuverability. The technology enables the missile to avoid radar detection and penetrate undetected through any hostile defensive system. It is a highly effective and trustworthy weapon due to its extraordinary characteristics.

With the capability of designing and developing Babur cruise missile Pakistan has joined an exclusive group of ten countries that operate cruise missiles, and an even more exclusive group of countries that can develop and manufacture them.

Design:
Babur Missile has a tubular shaped fuselage with a pair of folded wings attached to the middle section and Tail assembly at the rear along with the propulsion system. It is propelled by a Turbo fan engine and has a maximum speed of approximately 880 Km/h (high sub-sonic speed). The missile has a booster rocket provides additional thrust to accelerate the missile away from the launch vehicle and ground. After the launch the middle section flight wings unfold, the booster rocket is jettisoned and the jet engine takes on for the rest of flight path. The air inlet also pops out after launch.

The missile is powered by 700lb thrust engine with a thrust-to-weight ratio of 4.8:1 comprises a single-stage centrifugal compressor, two-stage fan with a two-stage low-pressure booster, a reverse-flow annular combustor with rotary injection, a turbine section with one high-pressure and two low-pressure stages. It uses a special high-density blended aviation turbine fuel that has more energy for a given volume than standard fuels, and can endure harsh weather conditions and long storage periods.

The missile has a high degree of maneuverability and terrain hugging capability, allowing it to "hug" the terrain. Terrain hugging ability helps the missile avoid enemy radar detection by utilizing "terrain masking", giving Babur the capability to penetrate enemy air defense systems undetected and survive until reaching the target. The design is also said to possess stealth features making it difficult for enemy radar to detect and track the missile. Since RAM paint coating is not known to exist with Pakistan Defense forces, it may be assumed that the stealth features refer to use of composites in main fuselage reducing the radar signature. Moreover most of this “Stealth Capability” is attributed to the low level terrain hugging flight parameter. The capabilities can be matched to American forces Tomahawk Missiles.

Guidance:
The Babur's guidance system uses a combination of inertial navigation systems, terrain contour matching (TERCOM), Digital Scene Matching and Area Co-relation (DSMAC) and GPS satellite guidance

It is steered by an inertial navigation system (INS). INS measures every movement of the missile and every change of speed, constantly calculating the missile’s position. It enables the missile to know where it is compared to its launch position all the time, enabling the mission computer to steer the missile to the designated target.

The basic components of an inertial guidance system are gyroscopes, accelerometers, and a computer. The gyroscopes provide fixed reference directions or turning rate measurements, and accelerometers measure changes in the velocity of the system. The computer processes information on changes in direction and acceleration and feeds its results to the vehicle’s navigation system.

Babur is also equipped with Terrain Contour Matching or TERCOM system to further increase the accuracy. TERCOM is an automated navigation system used primarily by an unmanned aerial vehicle such as a long-range cruise missile. The system uses a predefined contour map of the flight path which acts as a comparison master image.

The missile is equipped with a sophisticated radar altimeter which constantly reads the terrain it is crossing and compares the readings to the master image. When deviations are detected, the missile's guidance system makes the necessary corrections to its flight path. This makes extremely accurate navigation and collision avoidance possible. The high degree of accuracy possible in terms of exact altitude above all terrain profiles allows TERCOM-equipped missiles to maintain low altitude flight paths while avoiding obstacles. This ground hugging ability confounds enemy ground radar systems
The missile also has a GPS guidance system.

Launch Platform:
Babur was initially test fired from a single missile TEL but later on multiple tube launch system. The current launch platform is mobile three tube assembly mounted on truck. This motorized 8 x 8 transporter-erector-launcher (TEL) is reportedly a Chinese reverse-engineered variants of the Russian MAZ-543TLM vehicle. The TEL has a length of 13.36 meters, width of 3.02 meters, maximum road speed of 55kph, unrefueled range of 650km, and is powered by a 600hp Deutsch diesel engine with all four axles driven. There is a separate 10kW electrical generator to power the missile’s pre-launch operations and two hydraulic pumps to raise the missile canisters to their launch positions before launch. The TEL is supported by four hydraulic jacks during the missile launch.

The missiles are transported on vehicle, carrying four missiles at a time. This is not a launch platform but just a transport vehicle.

History and current Status:
Pakistan have publicly tested the Babur missile 7 times since its existence was announced

August 12, 2005: Pakistan first time successfully test fired Babur cruise missile with a range of 500 km
March 22, 2007: upgraded version with extended range of 700 Km was test fired
July 26, 2007: Test firing of same version
December 11, 2007: Test firing of same version
May 6, 2009: Test firing of same version
October 28, 2011: First test firing from Multiple Tube Missile Launch Vehicle
June 06, 2012: Latest test, validating the Multiple Tube Missile Launch Vehicle

The missile is in production with and is reportedly equipping the 23rd and 26th missile group of PA strategic force.

Future:
It is reported that Pakistan is also working on more advanced variants of the missile with the range extended to 1000 km.
Also a sea launched variant is under development and the French made Agosta submarines and/or the PN probable future QINQ submarines will carry this missile to give Pakistan a second strike capability.

Specs:
Designation: Land Attack Cruise Missile, Medium Range Sub-Sonic Cruise missile
Status: Operational
Length: 7.2 meter (with booster)
Diameter: 0.52 meters
Wing Span: 2.67 meter
Weight: 1500 Kg
Warhead: 450Kg conventional, 10 to 35 kT nuclear
Speed: 880Km/hr.
Propulsion: Turbo Fan engine
Guidance: GPS, INS, TERCOM, DSMAC

Reference:
Online defence security magazine industry military technology news exhibition world land forces*-*Army Recognition
Army Technology
Extrusion Deposition Systems | Emerging Technologies | Extrusion Coating | Automated Optical Inspection Systems| nTact
www.warfare.ru
Pakistan Defence
Military Asia
Written and Compiled by Arsalan Aslam

Babur Specs Chart {Edited by AERONAUT}

Babur - Transportable Land Attack Cruise Missile System[/quote]
It is a fantastic article arsalan.However,I request you to place citations,so that after slight modifications it can be uploaded to wiki pdf wiki page.
Regards



[Mujahid Memon]

why am i seeing "You have to like this post in order to see this link" all over the PDF ??
