Z-10 & Z-19 Combat Helicopter News & Discussion

[LKJ86]

Via @Ds走近哈佛 from Weibo



[luciferdd]



[Corax]

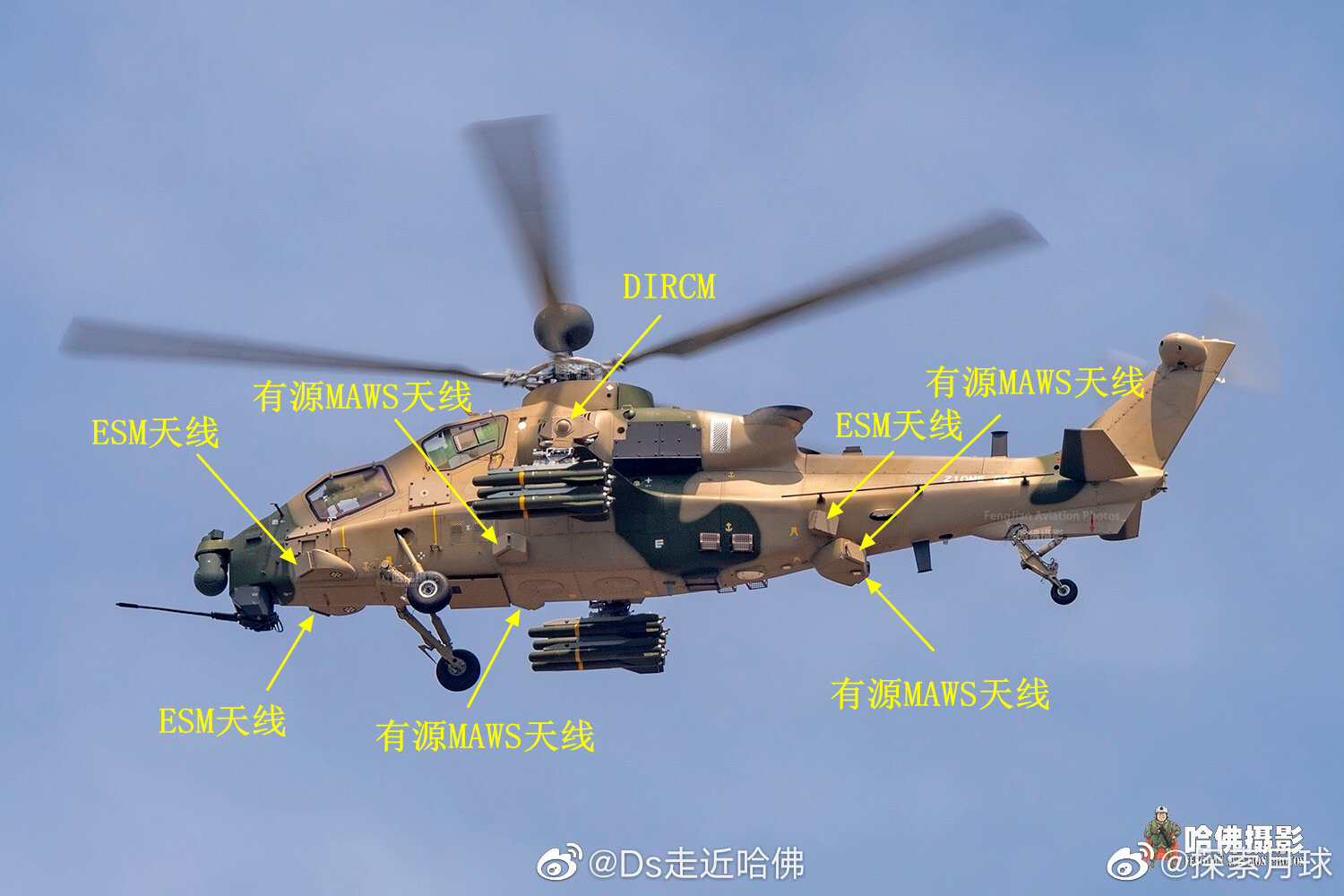

View attachment 866916

Are the MAWS based on radar rather than EOP? typically MAWS are UV or IR based sensors, but those look like radar emitters.



[ozranger]

Are the MAWS based on radar rather than EOP? typically MAWS are UV or IR based sensors, but those look like radar emitters.

It was reported that they all are AESA radar based MAWS.



[luciferdd]

Are the MAWS based on radar rather than EOP? typically MAWS are UV or IR based sensors, but those look like radar emitters.

Yes,they are all based on active radar array.



[Corax]

But won't the active emitting AESA based MAWS give away the position of the Z-10, especially to ground based air defence systems? At least with passive EOP based MAWS it doesn't emit any signals and therefore less prone to being detected by air defence systems?



[Princeps Senatus]

But won't the active emitting AESA based MAWS give away the position of the Z-10, especially to ground based air defence systems? At least with passive EOP based MAWS it doesn't emit any signals and therefore less prone to being detected by air defence systems?

Detection by ESM is the least of an Attack Helicopter like Z-10's concerns.



[luciferdd]

But won't the active emitting AESA based MAWS give away the position of the Z-10, especially to ground based air defence systems? At least with passive EOP based MAWS it doesn't emit any signals and therefore less prone to being detected by air defence systems?

You forgot the mm-radar on top,comprare to it those mm-radar based maws are not a problem .



[ozranger]

But won't the active emitting AESA based MAWS give away the position of the Z-10, especially to ground based air defence systems? At least with passive EOP based MAWS it doesn't emit any signals and therefore less prone to being detected by air defence systems?

If you fly the helicopter so low, millimeter band radars facing mostly downward won't trigger any detector in far distance. You only need to worry about the MANPADS launchers probably only tens of meters below, while the rotor noise already reveals your location in such a close distance.



[LKJ86]

Via @白给_ from Weibo



[Beast]

If you fly the helicopter so low, millimeter band radars facing mostly downward won't trigger any detector in far distance. You only need to worry about the MANPADS launchers probably only tens of meters below, while the rotor noise already reveals your location in such a close distance.

Z-10 noise emission is the lowest among all Gunship.



[LKJ86]

View attachment 866826
Via @Ds走近哈佛 from Weibo

Via @Ds走近哈佛



[ozranger]

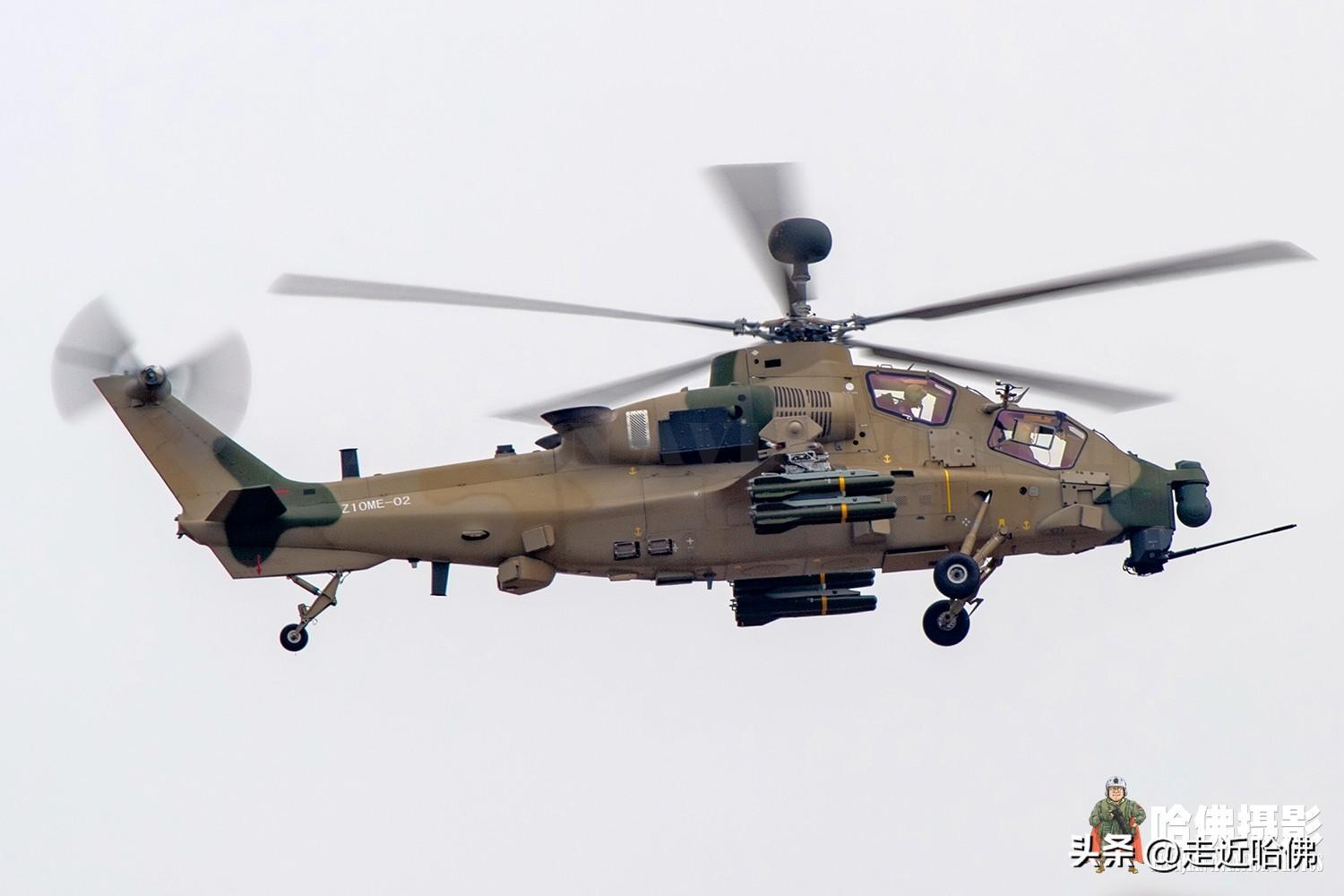

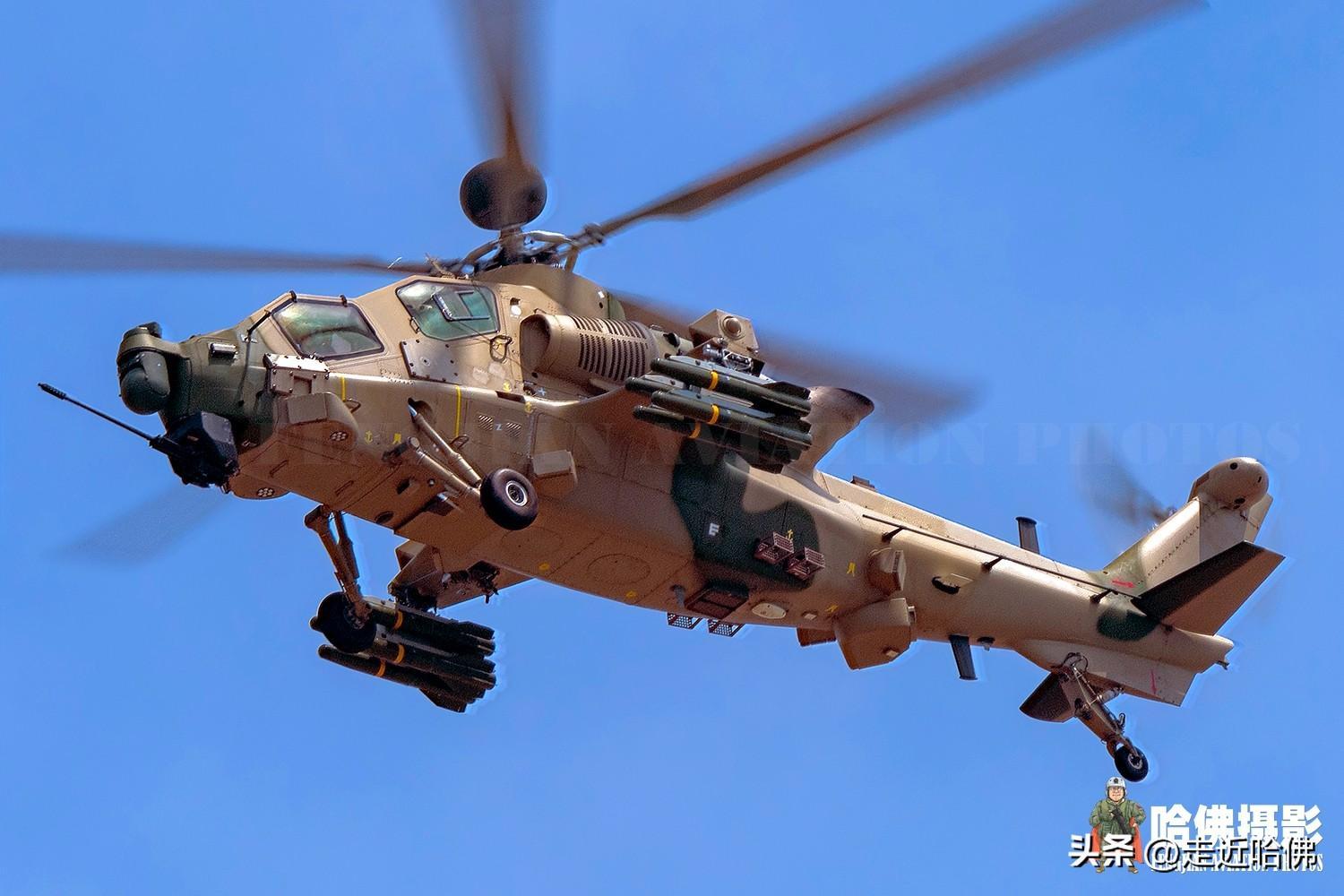

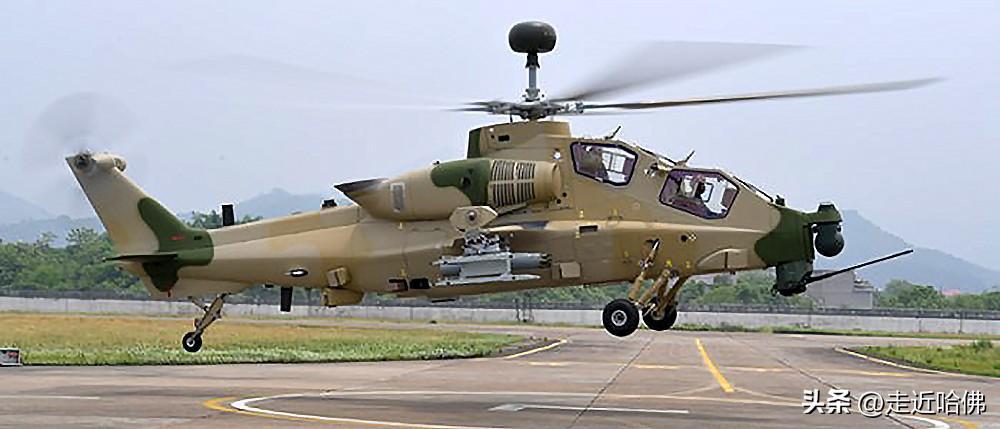

View attachment 870069View attachment 870070View attachment 870071
Via @Ds走近哈佛

It might be the world's first helicopter which equips AESA radars, including the mast mount one, all around the fuselage.



[johncliu88]

Oh man, this baby is fully of teeth. Is this the Z-10ME that was talking about? For Pakistani Army?



[LKJ86]

A new variant of Z-10 to make maiden flight.

Via @航空工业昌飞 from Weixin
