KLJ-7A AESA radar being considered for China’s J-20 fighter aircraft | Janes

[LKJ86]

We'll get both.

So, PAF has made its choice?



[serenity]

These two new radars will be great for JF-17. The cheaper air cooled version to upgrade on the first JF-17 and later ones with newest type that shares many components and technology with J-10 and J-20. Can keep costs under control and offer high technology.



[Kompromat]

It seems that way, but we'll have to wait for a proper announcement.

So, PAF has made its choice?



[Goku-kun]

It seems that way, but we'll have to wait for a proper announcement.

1st pic is of klj-7a
While 2nd is of Klj-7av2
#klj_7a is going to replace klj-7 of Block I and Block ii( #JF_17Thunders) of #Pakistan_Air_Force
While #klj_7Av2 is to be selected for #Jf_17 block iii
#KLJ_7av2 is a very major upgrade to block iii standard...
More details would be presented in detailed article in few days.
Note: both are #AESA_RADARS



[AndrewJin]

Approved



[LKJ86]

It seems that way, but we'll have to wait for a proper announcement.

Any idea about the AESA radar of India's Rafale?



[HRK]

Any idea about the AESA radar of India's Rafale?

RBE2-AESA with possibility of Tracking range around +170 KM (link, link-2)



[Kompromat]

PAF guys are having a shit time finding Thunders at those ranges.

RBE2-AESA with possibility of Tracking range around +170 KM (link, link-2)



[LKJ86]

RBE2-AESA with possibility of Tracking range around +170 KM (link, link-2)

PAF guys are having a shit time finding Thunders at those ranges.

Maybe, JF-17 Blk I & II upgraded with the air cooled LKF601E AESA radar and Rafale can find each other almost at the same time. (The number of LKF601E's T/R modules is 864, while the one of Rafale's REB2-AA is 836.)
And JF-17 Blk III with the KLJ-7A AESA radar should have a better performance.



[HRK]

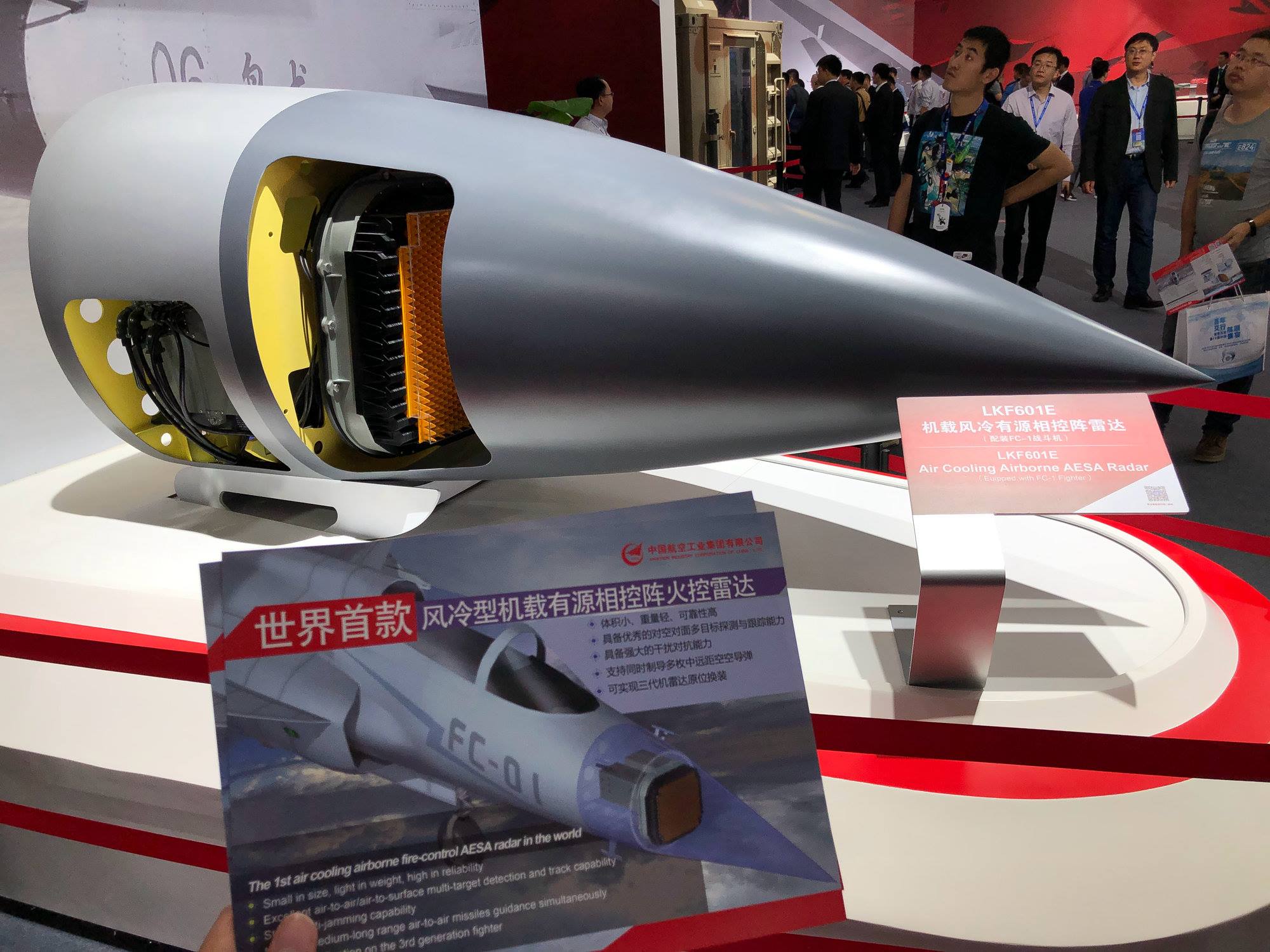

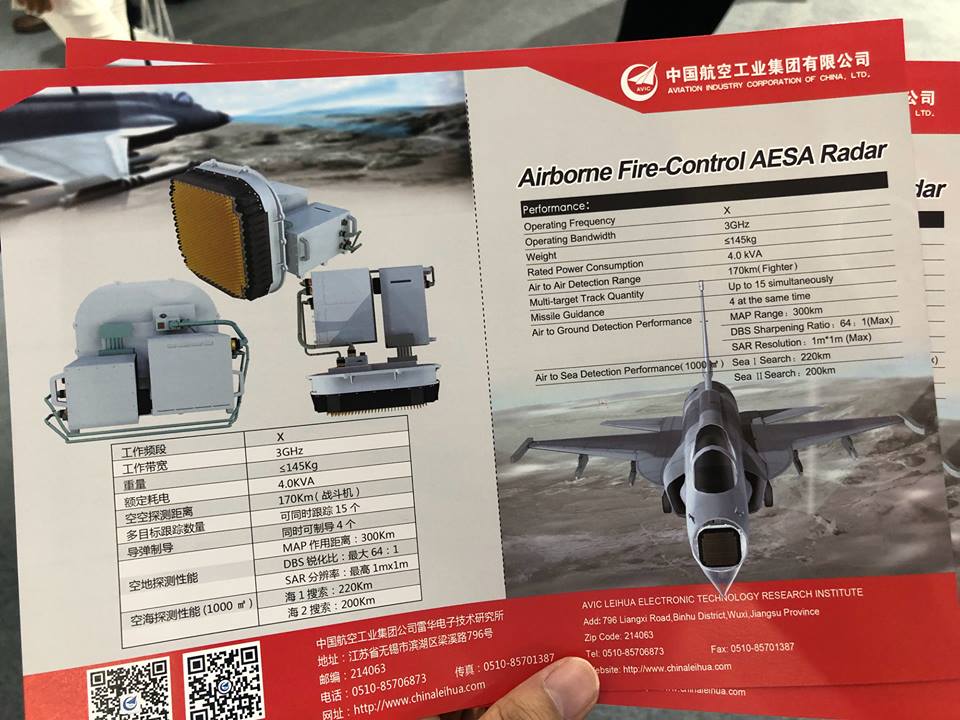

View attachment 520011 View attachment 520012

Maybe, JF-17 Blk I & II upgraded with the air cooled LKF601E AESA radar and Rafale can find each other almost at the same time. (The number of LKF601E's T/R modules is 864, while the one of Rafale's REB2-AA is 836.)
And JF-17 Blk III with the KLJ-7A AESA radar should have a better performance.

keep in mind I was quoting Tracking range of RBE2-AESA radar its detection range is approximately +200 KM and it is superior to LKF-601E in this aspect which is having 170 KM detection range as quoted in its brochure

but achieving this range with light and compact air cool AESA is a great achievement and it will give a definitive edge to blk-I and blk-II JF-17 against any other fighter jet of Indian Air force if coupled with LRAAM



[siegecrossbow]

There are multiple elements. The T/R modules, the computing architecture, the software. KLJ-7A will definitely benefit if the same teams are involved in the computing architecture and software. Thunder will be small brother for J-20

keep in mind I was quoting Tracking range of RBE2-AESA radar its detection range is approximately +200 KM and it is superior to LKF-601E in this aspect which is having 170 KM detection range as quoted in its brochure

Do we know what the RCS of the detected aircraft is?

East Pendulum reported citing NRIET deputy director Wang Hongzhe that the KLJ-7A has a range of 170 km against aerial target with 3m² RCS (radar cross-section) or 200 km against aerial target with 5m² RCS. It can track 15 targets and engage four simultaneously. Though equipped with 1,000 TRMs, it is not known if the KLJ-7A’s TRMs are built from gallium arsenide (GaA) or gallium nitride (GaN).



[HRK]

Do we know what the RCS of the detected aircraft is?

two things
1- I was responding to a post related to LKF601E AESA radar
2- Your post is about KLJ-7A radar

two different AESA radar for different blocks of JF-17 with different T/R counts

Now your query about the RCS of targets in this case Rafale jet

- Different sources have estimated different RCS figure for Rafale jet some estimated it as low as 0.5 m/sq in clean configuration but for me it is very difficult to believe that Rafale with all the weapon load will have RCS below 2 m/sq (I may be wrong)

If we consider RCS for JF-17 with all weapon load equivalent to 3 m/sq (standard)

- than RBE2-AESA radar of Rafale Jet should detect it around +200 KM as estimated previously again tracking range would be approximately 170 KM (calculated range is +165 KM)

- KLJ-7A with 1000+ TR modules (reportedly GaN base TR modules) should also have at least same same range if not better (ideally KLJ-7A should have better range) so the reported range of 170 Km must be considered as Tracking range for a target having RCS of 3m/sq.

In this case the both KLJ-7A and RBE2-AESA should be considered equivalent.



[Muhammad Omar]

Is PAF selecting 3 Array KLJ-7A??



[khanasifm]

Per 192 wing, Virginia air national guard which hosted French and raf in an exercise

Rest who knows
