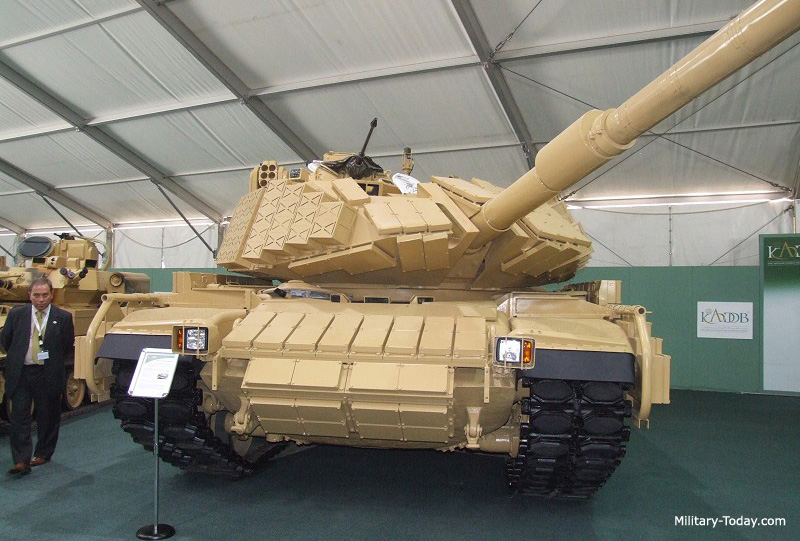

Jordanian M60 Phoenix with LEDS-100/150
LEDS-150 – Hard-kill

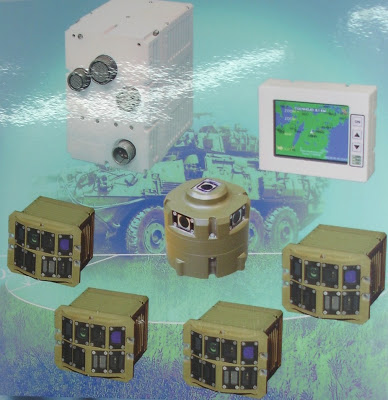

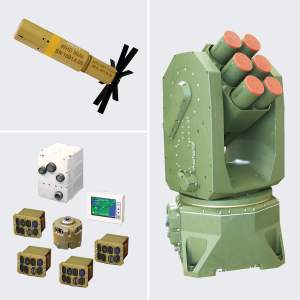

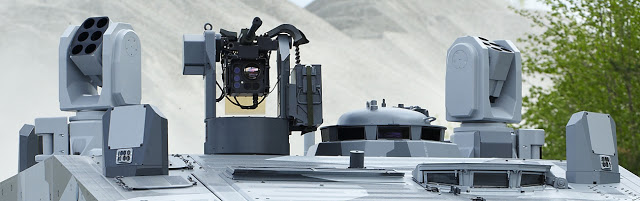

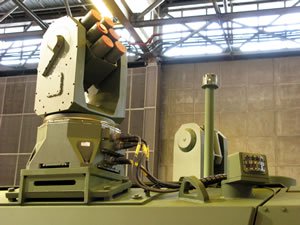

LEDS-150 is a progression of the LEDS-100 active defence system. It typically consists of laser-warning sensors (LWS), an Active Defence Controller (ADC-150), a combination of passive and active Sensors and High-Speed Directed Launchers (HSDL). This allows the combined application of active signature management, soft- and hard-kill countermeasure deployment capability to the platform. Also included in the suite are optional displays and special-to-installation interconnecting harnesses.
The hard-kill feature of the LEDS-150 product is characterised by its capability to physically destroy the efficiency of the terminal ballistic capability of attacking munitions without residual penetration of the protected vehicle.
The hard-kill system detects and tracks multiple threats and calculates whether the attacking munitions will hit the platform or not. The system determines the best inertial intercept position and provides the slew and firing commands to the launchers.

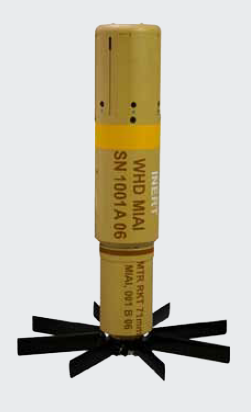

The Mongoose-1 countermeasure missile is launched at a predetermined time to intercept and neutralise the detected munitions off-board at a distance of between 5–15 m from the vehicle to minimise collateral damage to own forces..
https://saab.com/globalassets/comme...active-protection/leds/leds-product-sheet.pdf
LEDS-150 (Land Electronic Defense System)
The system is capable of confronting known threats against armored vehicles with soft and hard kill methods.
LEDS-150 – Hard-kill
LEDS-150 is a progression of the LEDS-100 active defence system. It typically consists of laser-warning sensors (LWS), an Active Defence Controller (ADC-150), a combination of passive and active Sensors and High-Speed Directed Launchers (HSDL). This allows the combined application of active signature management, soft- and hard-kill countermeasure deployment capability to the platform. Also included in the suite are optional displays and special-to-installation interconnecting harnesses.
The hard-kill feature of the LEDS-150 product is characterised by its capability to physically destroy the efficiency of the terminal ballistic capability of attacking munitions without residual penetration of the protected vehicle.
The hard-kill system detects and tracks multiple threats and calculates whether the attacking munitions will hit the platform or not. The system determines the best inertial intercept position and provides the slew and firing commands to the launchers.
The Mongoose-1 countermeasure missile is launched at a predetermined time to intercept and neutralise the detected munitions off-board at a distance of between 5–15 m from the vehicle to minimise collateral damage to own forces..
https://saab.com/globalassets/comme...active-protection/leds/leds-product-sheet.pdf
LEDS-150 (Land Electronic Defense System)
The system is capable of confronting known threats against armored vehicles with soft and hard kill methods.
