Fairchild Republic A-10 Thunderbolt II

The A-10 Thunderbolt is also known as the Warthog, the 'flying gun' and the Tankbuster. The aircraft was used extensively during Operation Desert Storm, in support of Nato operations in response to the Kosovo crisis, in Operation Enduring Freedom in Afghanistan and in Operation Iraqi Freedom.

The A-10 is a high-survivability and versatile aircraft, popular with pilots for the 'get home' effectiveness.

The mission of the aircraft is ground attack against tanks, armoured vehicles and installations, and close air support of ground forces.

The A-10 is suitable for operation from forward air bases, with short take-off and landing capability. The aircraft has a long range (800 miles), high endurance and can loiter in the battle area.

The manoeuvrability at low speed and low altitude (below 1,000ft) allows accurate and effective targeting and weapon delivery over all types of terrain.
A-10 Thunderbolt development
"The A-10 Thunderbolt is also known as the Warthog."
The first flight of the A-10 was in May 1972, and a total of 713 aircraft were produced. The production of A-10 aircraft came to an end in 1984. Originally manufactured by Fairchild, since 1987 the prime contractor for the A-10 has been Northrop Grumman, which carries out support and structural upgrade programmes from the Integrated Systems and Aerostructures Divisions at Bethpage, New York and at St Augustine in Florida.

Over 367 A-10 aircraft are in service with the US Air Force, Air Combat Command, the US Air Force Reserve and the Air National Guard. The aircraft variants currently in service in the US Air force are A-10 (143), and A-10C (70); Reserve A-10 (46) and OA-10 (6); ANG, A-10 (84) and OA-10 (18).

In June 2007, Boeing was awarded a $2bn contract for the A-10 wing replacement programme. Boeing will supply 242 replacement wing sets by 2018.

In September 2009, the US Air Force awarded two contracts worth $4.2m to Boeing for modernising its fleet of 365 A-10 Thunderbolt II aircraft for a period of three to 18 months. The contract was awarded as part of the total $1.6bn A-10 Thunderbolt life-cycle programme support (TLPS) contract.

The two contracts included A-10 Aircraft Structural Integrity Program (ASIP) which involves providing engineering services to the aircraft and upgraded data transfer unit (UDTU) which include trade study analysis and operational assessment / proof of concept. Both the contracts aim at upgrading the aircraft with avionics architecture to improve memory and data capability.
A-10C – precision engagement upgrade programme
The precision engagement upgrade programme for the A-10 includes enhanced precision target engagement capabilities, which will allow the deployment of precision weapons such as JDAM (joint direct attack munition) and wind-corrected munitions dispenser (WCMD), as well as enabling an extension of the aircraft's service life to 2028.

Improvements include: hands-on throttle and stick control, two new Raytheon Technical Services 5in×5in multifunction cockpit displays, situational awareness datalinks (SADL), digital stores management system, integrated flight and fire control computer (IFFCC) from BAE Systems Platform Solutions for automated continuously computed weapons delivery, Sniper XR or Litening targeting pods for precision-guided weapons and helmet-mounted sighting system.

"Up to 125 A-10 aircraft are to be upgraded by 2009."
Lockheed Martin Systems Integration-Owego is prime contractor for the program. First flight of the upgraded A-10C was in January 2005. A contract for low-rate initial production (LRIP) of 72 units was awarded in March 2005. The first was delivered to Baltimore Air National Guard in August 2006.

A contract for full-rate production of 107 units was placed in August 2006. The A-10C achieved initial operating capability in August 2007. 100 A-10s had been upgraded by January 2008. The A10C began operational deployment in Iraq in September 2007. 356 A-10 aircraft have been upgraded in the contract.

In February 2004, Lockheed Martin was awarded a contract for the integration of the Sniper XR targeting pod on the A-10 as part of the PE programme. Sniper XR includes mid-wave FLIR (forward-looking infrared), dual mode laser, CCD-TV, laser spot tracker and IR marker.

Cockpit
The single-seat cockpit is protected by all-round armour, with a titanium 'bathtub' structure to protect the pilot that is up to 3.8cm thick. The cockpit has a large bulletproof bubble canopy, which gives good all-round vision.

The cockpit is equipped with a head-up display, which is used for targeting and weapon aiming, a Have-Quick secure radio communications system, inertial navigation and a tactical air navigation (TACAN) system.

"The single-seat cockpit is protected by all-round armor, with a titanium 'bathtub' structure."
Lockheed Martin has begun delivery of 21 USAF A-10 aircraft with the embedded global positioning system / inertial navigation system (EGI), which pinpoints the exact location of the aircraft. The aircraft are also to be fitted with BAE Systems terrain profile matching systems (TERPROM).

The pilot is equipped with night-vision goggles and also the infrared imaging display of the Maverick AGM-65.

Weapons
The aircraft has 11 stores pylons, providing an external load capacity of 7,260kg. There are three pylons under the fuselage and the loads can be configured to use either the centre-line pylon or the two flanking fuselage pylons.

For weapon guidance, the aircraft can be fitted with Pave Penny laser guidance / electronic support measures, pod installed on the starboard fuselage pylon. Each wing carries four stores pylons: three outboard and one inboard of the wheel fairing.

The A-10 can carry up to ten Maverick air-to-surface missiles. The Raytheon Maverick AGM-65 missile uses a variety of guidance systems, including imaging infrared guidance and warheads, including a high-penetration, 57kg conical-shaped charge warhead. Range is more than 45km. The A-10 can also carry the Sidewinder air-to-air missile, which is an all-aspect short-range missile with maximum speed over Mach 2.

The A10 is capable of deploying a wide range of ordnance: for example, the LDGP mk82 226kg, 500lb general-purpose bombs, BLU-1 and BLU-27/B Rockeye II cluster bombs and the cluster bomb unit CBU-52/71.

The Northrop Grumman Litening ER (extended range) targeting pod has been successfully integrated on an A-10. Litening ER features a 640×512 pixel thermal imager, CCD TV, laser spot tracker / rangefinder, IR marker and laser designator.

The aircraft is armed with a General Dynamics GAU-8/A Avenger 30mm cannon, mounted in the nose of the aircraft.

"The A-10 has 11 stores pylons, providing an external load capacity of 7,260kg."
Using the cannon, the A-10 is capable of disabling a main battle tank from a range of over 6,500m. The cannon can fire a range of ammunition, including armour-piercing incendiary rounds (API) weighing up to 0.75kg, or uranium-depleted 0.43kg API rounds.

The magazine can hold 1,350 rounds of ammunition. The pilot can select a firing rate of 2,100 or 4,200 rounds a minute.

Engines
The two non-afterburning turbo fan engines, TF34-GE-100, supplied by General Electric, each supply 9,065lb thrust. The location of the engines, high on the fuselage, allows the pilot to fly the aircraft fairly easily with one engine inoperable.

Source:
Youtube
Wikipedia
Airforce Technology



[Maarkhoor]

@WAJsal @Slav Defence @Khafee @Desertfalcon @Rashid Mahmood

@Tipu7 @Windjammer @Zarvan @The Eagle

Why the A-10 Warthog Is Such a Badass Plane
How a slow, simple airplane became an icon.

General Herbert "Hawk" Carlisle, chief of the Air Force's Air Combat Command, said earlier this week that he would deploy A-10s to Incirlik Air Base in Turkey, where these bruisers would join the fight against Islamic State. Able to fly for long periods and pick out small ground targets with precision, the A-10s are simply too effective and too tough to leave out of the battle against ISIS.

"I have A-10s and I will use them, because they're fantastic airplanes," he said. "Their guys are incredibly well-trained and they do fantastic work in support of the joint warfight."

And with that, the venerable attack aircraft was back in the battle—again—its retirement pushed back because the Pentagon needs a rugged machine gun of a plane that isn't afraid to get too close to the action. It seems the A-10 program is harder to shoot down than an A-10 itself.

It wasn't always this way. When the last of more than 700 A-10s was built in 1984, the aircrews and maintainers who worked on this lumbering plane thought it was so ugly they called it the "Warthog." Today, after decades of wear and tear and blood and toil, that nickname carries with it a nickname of affection and respect, even if there are still Warthog haters who can't wait for it to retire.

GIF
The Thunderbolt II's story starts with America's experience in Vietnam. The United States had a fleet of expensive, multipurpose jets like the F-105 Thunderchief and F-4 Phantom. But over the jungles of that conflict, those fancier warplanes ceded much of the close air support mission to simple, propeller-driven aircraft like the Korean War-era A-1 Skyraider, and to Army helicopters. Such aircraft could more easily maneuver at low altitudes and had the range and loitering time to do air support for infantry operations.

By the 1970s, the Pentagon had learned its lesson. The A-X program, which sought a new attack aircraft, asked for something that could complete that kind of mission but was much harder to shoot down and could survive shots from anti-armor weaponry. Fairchild's A-10 went up against the Northrop YA-9A, which also employed a twin-engine, straight wing configuration, but its wing-root mounted engines and single tail were considered more vulnerable. In 1972, the Air Force picked the Warthog.

What America got with the A-10 was a single-seat, low-wing, straight-wing aircraft with two non-afterburning turbofan engines mounted high—behind the wing and in front of an empennage with twin vertical stabilizers. The plane carries 10,000 pounds of internal fuel near the wing roots.
In later years, people would say the A-10 was a plane designed around a gun—its 30 mm GAU-8 Avenger rotary cannon, to be specific. But the design logic dictating its configuration goes well beyond that mean machine gun in its nose. The A-10's large, unswept high-aspect ratio wing and large ailerons give it excellent low-speed, low-altitude maneuverability. The wing also allows short takeoffs and landings. That's handy, because this plane frequently needs to operate from primitive forward airfields near the front lines. The wing skin isn't load-bearing, so damaged skin sections can be replaced easily in the field, and with makeshift materials if necessary.
Those General Electric TF-34-GE-100 engines produce 9000 pounds of thrust each. Their position not only protects them from being damaged by foreign objects flying up from unprepared runways, but also directs their exhaust over the tailplane, helping to shield them from detection by infrared surface-to-air missiles. The fact that they're both close to the aircraft's centerline makes it easier to fly the thing when one fails.



The A-10's cockpit and portions of its flight control system are protected by 1,200 pounds of titanium aircraft armor, called the "bathtub." The bathtub can withstand direct hits from armor-piercing projectiles up 23 mm. The front windscreen and canopy are resistant to small arms fire. This protection combines with double-redundant hydraulic flight systems, and a mechanical system that still works even if hydraulics are lost.

The armor and redundancy has allowed pilots to safely return with big-time battle damage, like in 2003 when Capt. Kim Campbell successfully brought her Warthog back from a close air support mission near Baghdad. Her 75th Fighter Squadron A-10 was hit by ground fire, taking extensive damage to the starboard vertical stabilizer, horizontal stabilizer, aft fuselage, and engine. Upon sustaining the hit, the airplane became uncontrollable—rolling left, nose-down. After trying several ways to regain control, she engaged the backup mechanical flight control system. The jet responded, and with some help from her wingman, she landed back at her forward base.

Capt. Campbell and her A-10.
USAF
Capt. Campbell's adventure is one of many illustrating the Warthog's toughness. But when the plane first entered service in 1976, many in the Air Force brass didn't foresee an unbreakable beast that would keep flying for decades. They saw a clunker that flew strikes at 300 knots or less.

Contemporary Air Force F-15 and F-16 pilots liked to joke that, "A-10s don't have instrument panel clocks; they have calendars."At the time, the Air Force's "high-tech" fighter faction—which included most of USAF leadership—considered the twin-engined, straight-wing attack airplane an anachronistic dud, unfit to operate in the modern battlefield where it was supposed to kill Russian tanks.

"I HAVE A-10S AND I WILL USE THEM, BECAUSE THEY'RE FANTASTIC AIRPLANES."

Whether you're talking about a sophisticated stealth bomber or a flying machine gun, it's never easy to bring a new warplane into being. How the A-10 program survived its first few years is a complicated story. Former A-10 pilot and author Col. Arden B. Dahl (Ret.) contends that the Thunderbolt II made it to production by prevailing in two key political battles.

The first fight, one ongoing since the end of WWII, was over who would was responsible for the close air support mission—the Air Force or the Army. The Armu was doing it with UH-1 Hueys in Vietnam, and it had a new attack helicopter, the Cheyenne, in development in the late 1960s. Reluctantly, the A-10 became the Air Force's champion and counterargument, a dedicated attack airplane that became the Air Force's ways to convince Congress it could do Close Air Support. It succeeded.
The second battle happened inside the Air Force, pitting the high-ranking officers who saw fast, sophisticated air superiority fighters as the only thing the service should fly ("not a pound for air to ground," was their mantra) against advocates for a slow, simple CAS airplane. Here, the A-10 prevailed thanks to a few effective supporters in Congress, and a 1973 deal in which Secretary of Defense James Schlesinger offered to remove a cap on the number of Air Force fighter wings if Air Force Gen. George S. Brown, then the USAF Chief of Staff, would support the A-10 and the Light Weight Fighter Program (which would later produce the F-16). Gen. Brown took the deal and the A-10 lived on.

Having survived the halls of power, the A-10 would soon prove it critics wrong with its survival skills on the battlefield. No, the Warthog isn't fast—not by a longshot. Pilots say it has three practical throttle settings: full-throttle, 50 percent, and off. And when the plane came out, its detractors cited its 450 mph top speed as a detriment to its survivability. But in its decades of service the Warthog has yet to operate in an environment where the U.S. has not enjoyed air superiority, largely negating that disadvantage.

Here's the other good thing about a relatively simple aircraft: It's adaptable. Because the A-10 was designed for austere bases with limited facilities, many of the aircraft's parts are interchangeable, including the engines, main landing gear, and vertical stabilizers. A wide range of armament has been adapted to the A-10, which carries conventional munitions on 11 wing stations, including general purpose bombs, cluster bomb units, laser guided bombs, joint direct attack munitions (JDAM), wind corrected munitions dispenser (WCMD), AGM-65 Maverick and AIM-9 Sidewinder missiles, 2.75 inch rockets, and illumination flares.

Even today, though, its reputation-maker is the gun.

The seven-barrel GAU-8 Avenger measures nine feet long and fires 30mm armor-piercing shells housed in six-foot-diameter drum. The Gatling gun hoses shells at a rate of 3900 rounds per minute. It represents about 16 percent of the aircraft's weight. When the gun is removed for maintenance, the A-10's tail must be supported to keep the nose from tipping up.

Two A-10 Thunderbolt IIs flown by Lt. Col. Michael Millen and Col. John Cherrey taxi down the runway after completing 10,000 hours of flying during a six-month deployment Jan. 1, 2010, at Kandahar Airfield, Afghanistan.
USAF
"A-10S DON'T HAVE INSTRUMENT PANEL CLOCKS; THEY HAVE CALENDARS."

As the Cold War wound down in the late 1980s, it felt like the Warthog's days were numbered. Who needs an ugly Soviet tank-killer if there's no more Soviet Union?

Then came the first Iraq War. As the conflict unfolded, A-10s destroyed more than 900 Iraqi tanks, 2,000 other military vehicles, and 1,200 artillery pieces. Warthogs shot down two Iraqi helicopters with the GAU-8. On the second day of the Persian Gulf War, a pair of Warthogs destroyed 23 tanks over the course of three sorties, using Maverick missiles as well as the cannon. Iraqi troops called the A-10 the "Cross of Death," a reference to its shape and lethality.

The A-10 has seen in action in every major U.S. conflict since and approximately 350 remain in service. It served in the Balkans flying sorties over Bosnia and Herzegovina, and finding a downed F-117 pilot in Kosovo. The planes flew again in Operation Iraqi Freedom and in Afghanistan, flying 32 percent of the combat sorties in both theaters. From 2006 to late 2013, A-10s flew 19 percent of close air operations in Iraq and Afghanistan. That's more than the F-15E Strike Eagle or B-1B Lancer. Only the F-16 flew more. As of early 2015, Warthogs had flown 11 percent of USAF sorties against ISIS in Iraq and Syria.



Advertisement - Continue Reading Below
By the early 2000s, no one could argue about the A-10's effectiveness. And in the decades since the first production A-10A was delivered to Davis-Monthan Air Force Base in October 1975, the simple aircraft has gotten smarter. The A-10 received upgrades including an early laser receiver pod and the latest Litening targeting pods. The inertial navigation system added in 1980 was replaced by GPS in the late 1990s. Analog gauges were replaced by multi-function displays. In 2005, the entire A-10 fleet began receiving Precision Engagement upgrades including an improved fire control system and electronic countermeasures. These improvements mean the Warthog can deliver smart bombs. A moving map display, hands-on throttle and stick, situational awareness data link, GPS-guided weapons, and upgraded DC power have changed the way the aircraft is flown.

Today, most A-10 operations are flown at medium to high altitudes, but the "Hawgs" still go low when needed. On the deck, pilots say the airplane is rock steady. The big bubble canopy offers an unrestricted view of terrain just below. Despite all the advanced gear, much of the low-level flying and attacking is still done using the old-fashioned eyeball, with A-10 drivers performing the same pop-up, roll over, and dive maneuver they did in the 1970s. Firing the Avenger cannon still shakes the entire airplane. Pulling off a run, the pilot pitches up into a four-to-five-G turn, ejecting chaff and flares to foil missiles and anti-aircraft fire. Leaving the target area, pilots bob and weave the Warthog to dodge enemy fire.

An A-10 Thunderbolt II, fires the 30 mm gun at a low angle strafe, as part of the 2006 Hawgsmoke competition, Thursday, March 23, 2006, at the Barry-Goldwater Range, Gila Bend Air Force Auxiliary Field.
USAF
In Washington, the war over the Warthog goes on.

Since 2012, the Air Force has argued that it cannot afford the A-10, and that the trusty old hog must be retired in part to pay for acquisition of the F-35, which will assume its close air support mission among all the other things the Joint Strike Fighter is supposed to do. Critics and the A-10's Congressional supporters have sternly challenged the notion, leading to a tense pitched battle.

In January of this year, for example, Major General James Post, Vice Commander of Air Combat Command, reportedly told junior officers that passing favorable information about the A-10 to Congress was tantamount to "committing treason." More recently, F-35 program chief Lt. Gen Christopher Bogdan dismissed a potential close-air support fly-off test between the A-10 and F-35 as unnecessary.

LONG LIVE THE HUMVEE: A VETERAN'S EULOGY
How little things change. Forty years later, some Air Force leaders still see the A-10 as too rudimentary for the battlefield of the future, preferring in this case the supposedly do-it-all F-35. And yet, at this moment A-10s are flying from Incirlik Air Base in Turkey, taking the fight to ISIS. If General Carlisle has his way, the A-10, the plane that wouldn't die, won't be put out to pasture anytime soon.

As usual, the Warthog isn't popular until it's needed.

USAFE
Why the A-10 Warthog Is Such a Badass Plane



[Zarvan]

This Kind of Jet is best suited to provide Air Support against enemy Armor and infantry soldiers.



[Penguin]

Just google 'brrrrrt'

As we find them along our Northern coast ....

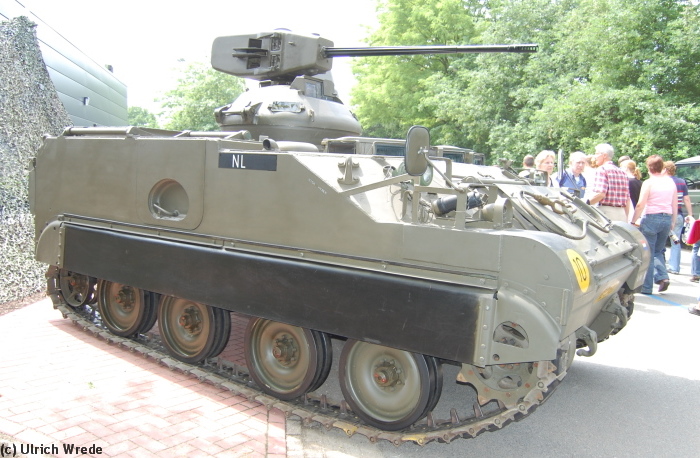

Originally looked like....
