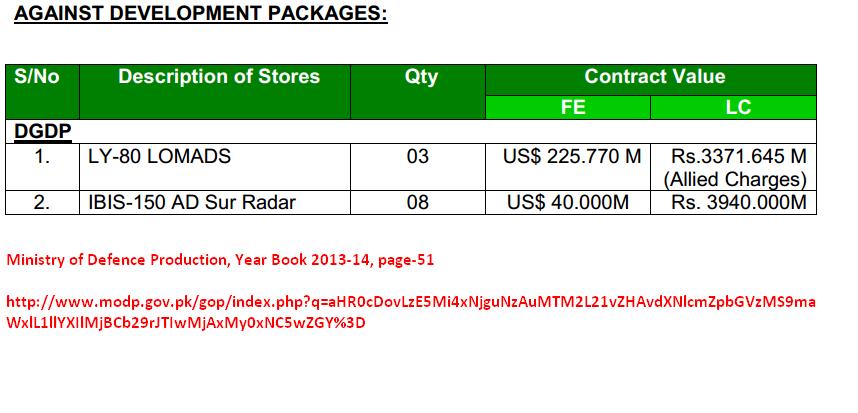

If there are 8 radars then there must be equal number of launchers or more. Since the search range is 100km+ for the radar, LY-80 should have aroud 60-80km range.......good addition for medium range defense.
Missile
The HQ16A (LY-80) missile can intercept an aerial flying target from an
15 m to 18 km of altitude, while its maximum interception range for combat aircraft is
40km, and between 3.5 km and 12 km for cruise missiles flying at an altitude of 50 meters at a speed of 300 meters/second. Single-shot kill probability is a claimed figure of 85 per cent against combat aircraft, and 60 per cent against cruise missiles. The missile guidance system is of the composite type, comprising initial independent inertial guidance and intermittent illumination and semi-active homing terminal guidance.
Control and command systems The HQ16A (LY-80) SAM components comprise a searching radar vehicle, command vehicle, radar tracking and guidance vehicle, launcher unit vehicle, and missiles canister. Technical support equipment includes missile transportation and loading vehicle, power supply vehicle, maintenance vehicle, and missile-test equipment.
A single radar guidance vehicle controls two to four launcher units with six missiles ready to launch. The command vehicle is responsible to send target information and combat orders.
The searching radar vehicle is equipped with solid-state S-band 3-D passive phased-array radar mounted on the top of a mast. When the target is detected, the searching radar vehicle performs automatic IFF (Identification Friend-or-Foe), threat judgment, flight path processing and provide target engagement information for the tracking-and-guidance radar.
The S-band radar has a range of 140 km and can detect targets flying at an altitude of 20 km.
The tracking and guidance radar vehicle performs target acquisition and tracking, and identification of target types.
It also controls the missile launching and illuminates the target after the missile is fired. L-band passive phased-array radar is mounted at the rear of the vehicle and has a range of 85 km. The L-band radar can detect up to six targets and track four of them, and provide fire-control/guidance for up to eight missiles.
