Iran unveils manportable Tube launched loitering munition "Meraj-5xx" series​



  • Meraj-5xx has a range of 5 km,
  • Endurance of 5–15 minutes
  • Can carry warheads weighing 500, 700, and 1,000 g.
  • Designed for Special Forces

Launchable from Helicopter


Last edited:
TURKIYE





ALPAGU-II Tactical Kamikaze Drone


Warhead : 1,3 kg
Range : 10 km







DELI Tactical Kamikaze Drone

Warhead : 3,1 kg
Range : 85 km

GNNS Anti-Jam System
Autonomous and manuel operation capability






ALPAGUT Loitering Munition

It will be a game changer on the battlefield with its artificial intelligence algorithms and superior sensor technologies.

Lenght : 2.3 m
Weight : 45 kg
Warhead : 11 kg
Range : 60+ km
Guidance : TV , IIR , GPS , INS

Platforms :Land , Air , Naval




Iran unveils manportable Tube launched loitering munition "Meraj-5xx" series​

View attachment 898658

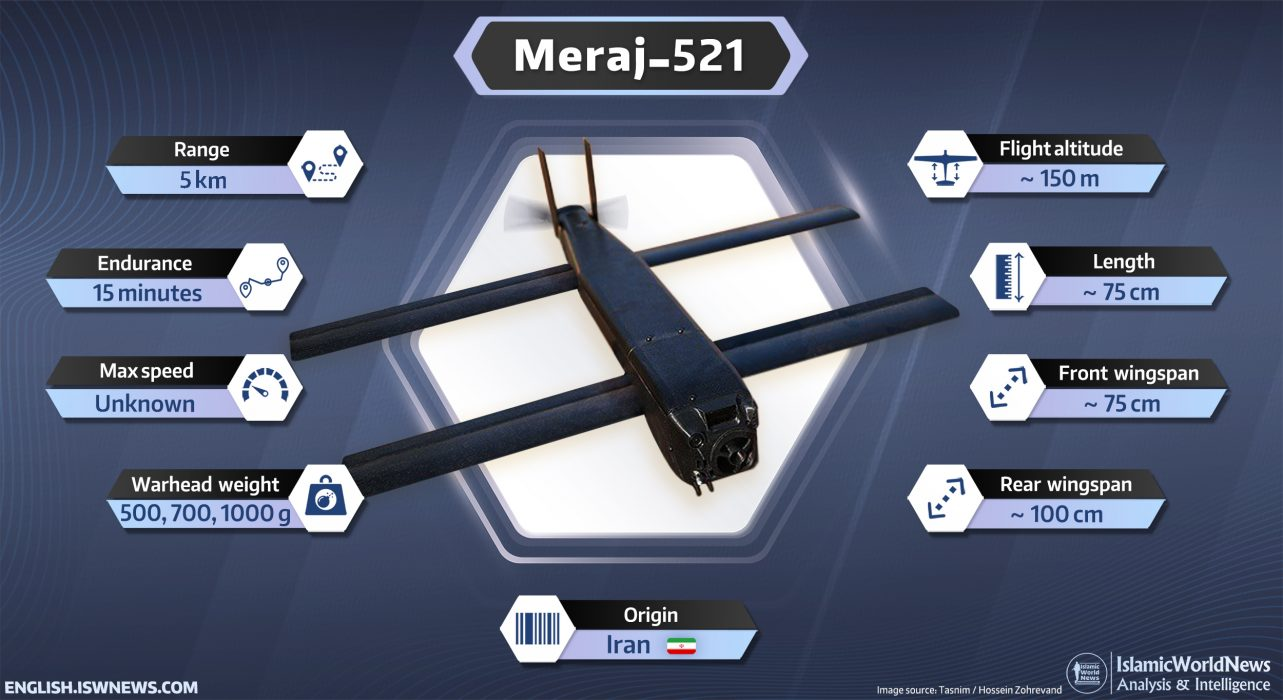

  • Meraj-5xx has a range of 5 km,
  • Endurance of 5–15 minutes
  • Can carry warheads weighing 500, 700, and 1,000 g.
  • Designed for Special Forces

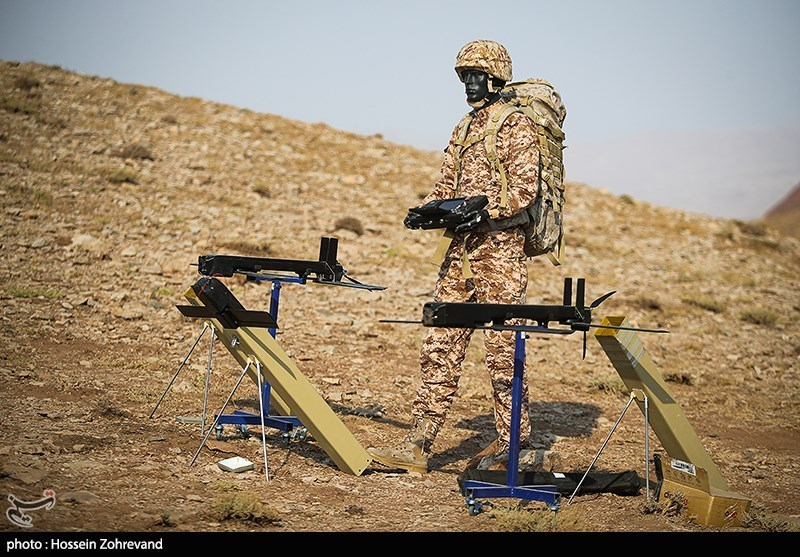

View attachment 898661

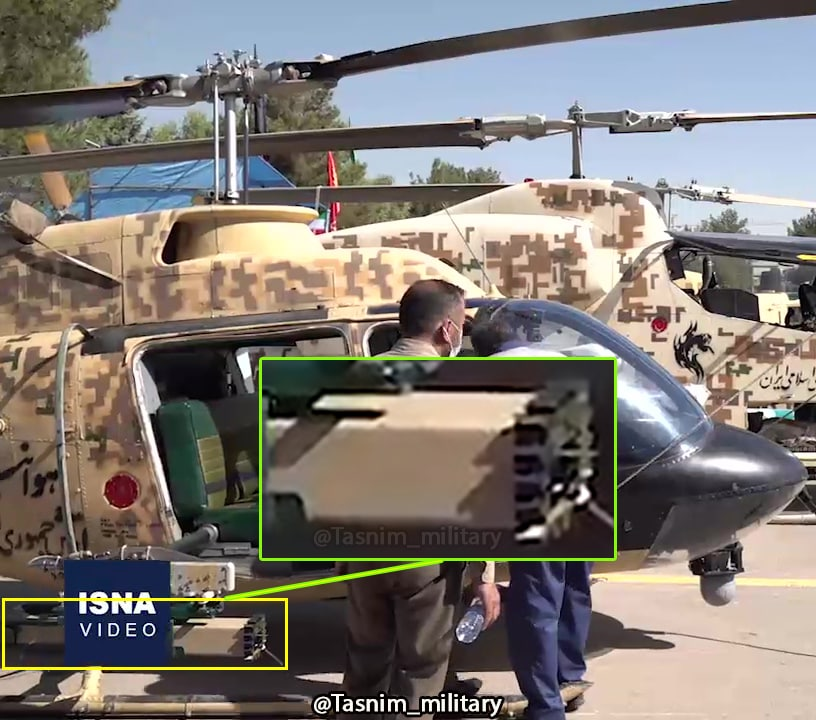

Launchable from Helicopter
View attachment 898663
View attachment 898664
TURKIYE

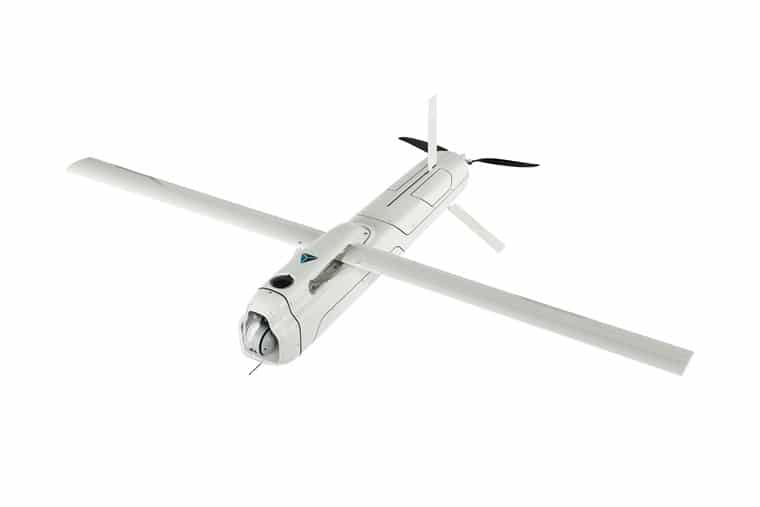

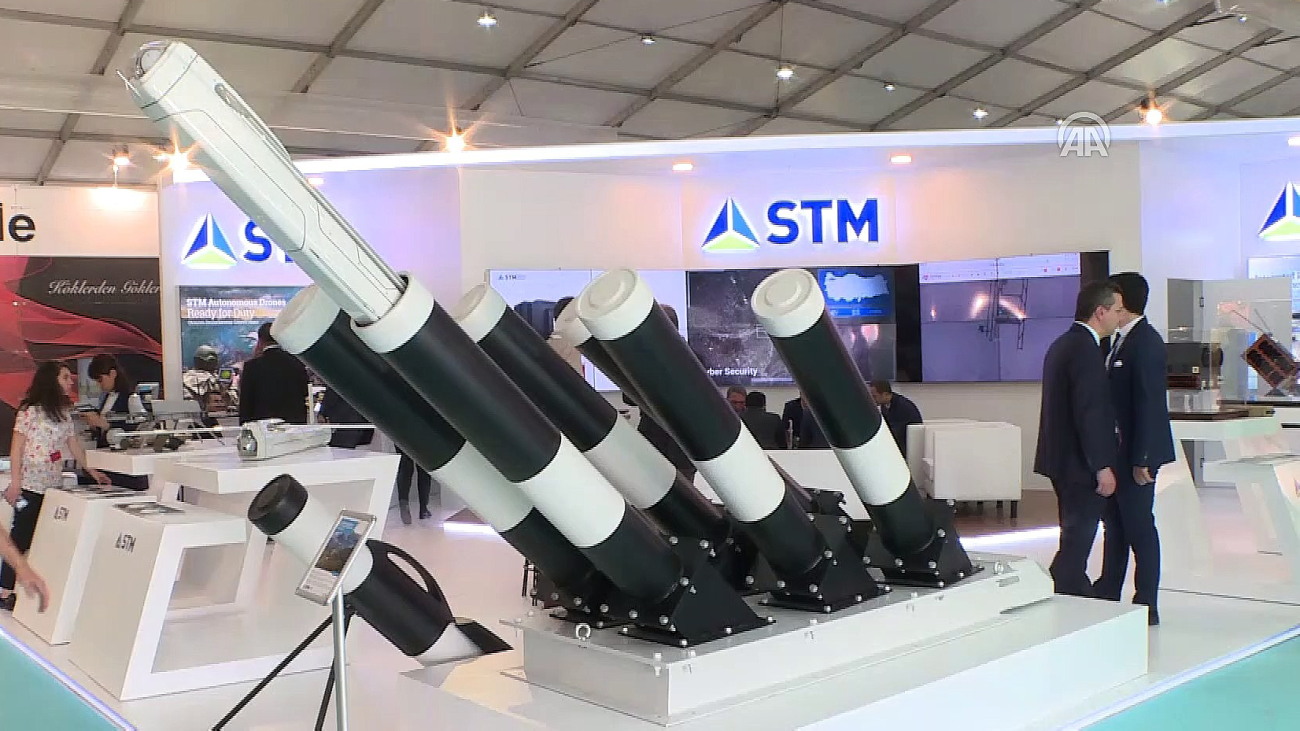

ALPAGU-II Tactical Kamikaze Drone


Warhead : 1,3 kg
Range : 10 km

View attachment 898738
View attachment 898744
View attachment 898743

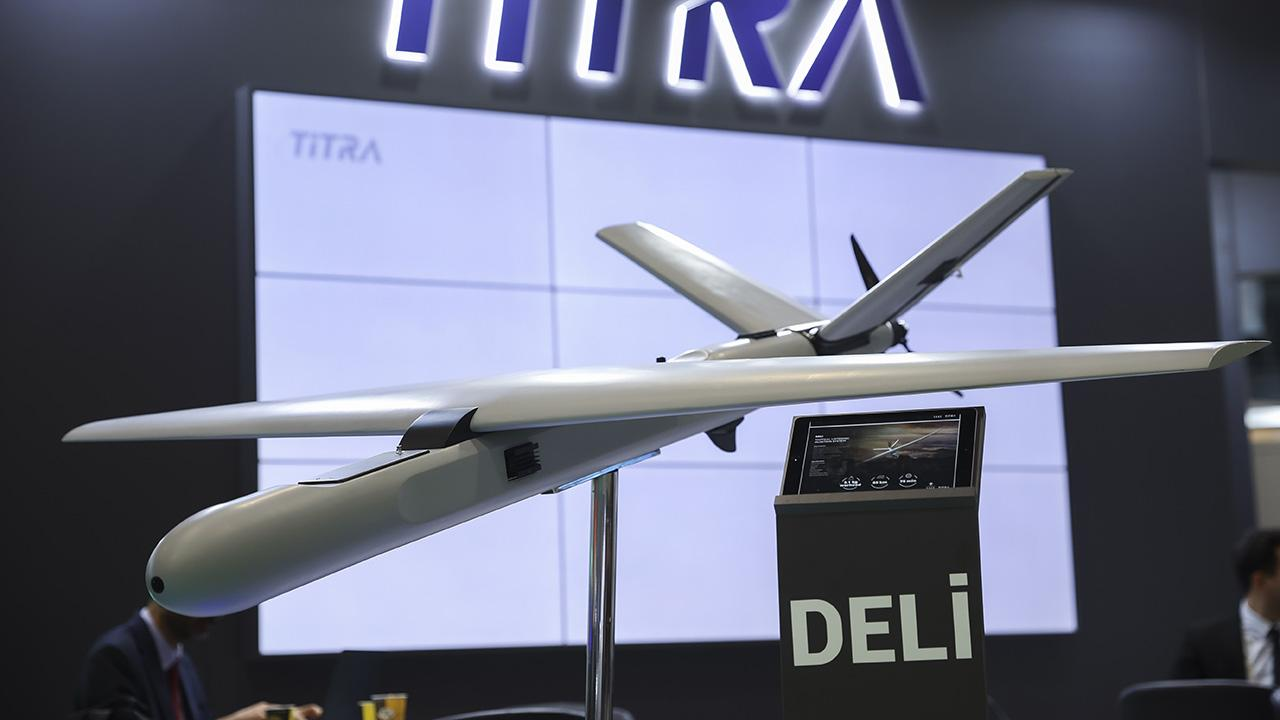

DELI Tactical Kamikaze Drone

Warhead : 3,1 kg
Range : 85 km

GNNS Anti-Jam System
Autonomous and manuel operation capability

View attachment 898727

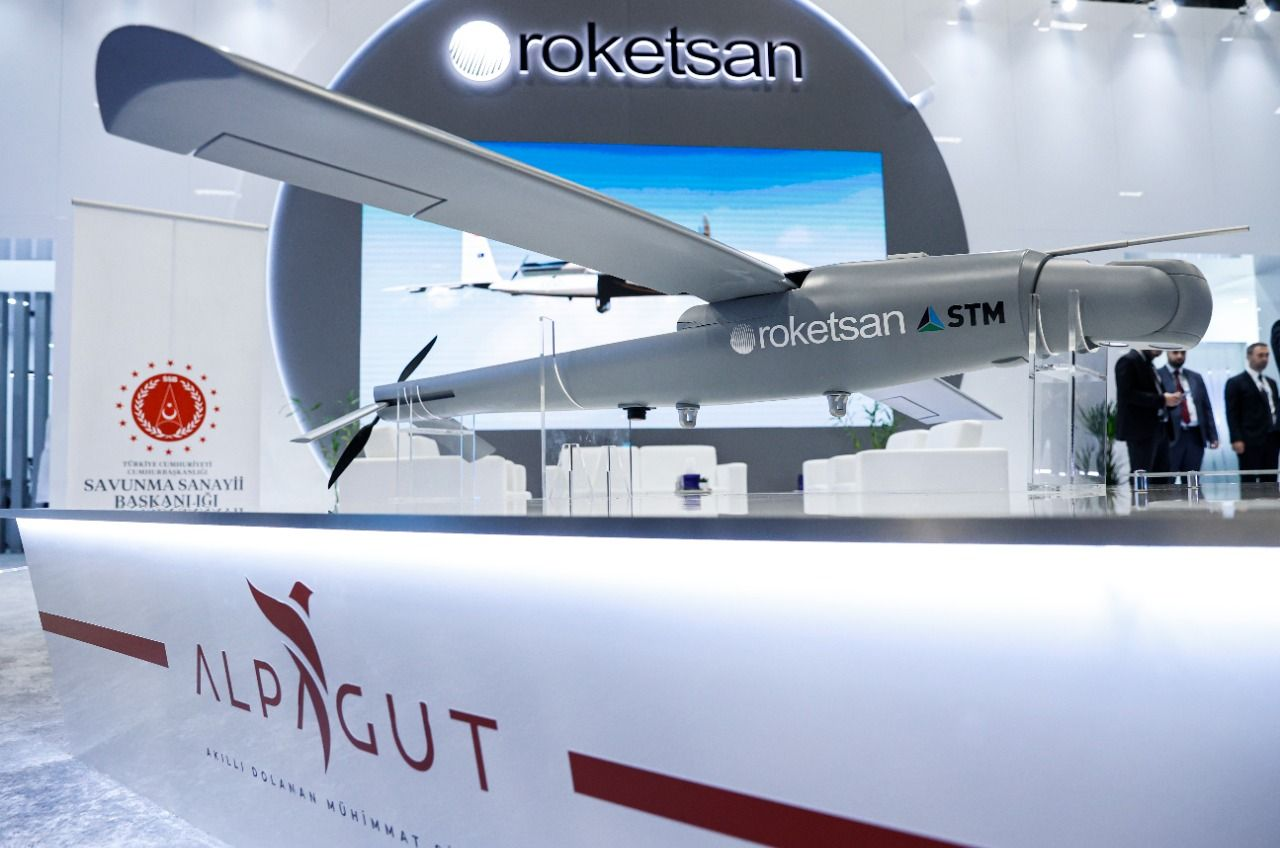

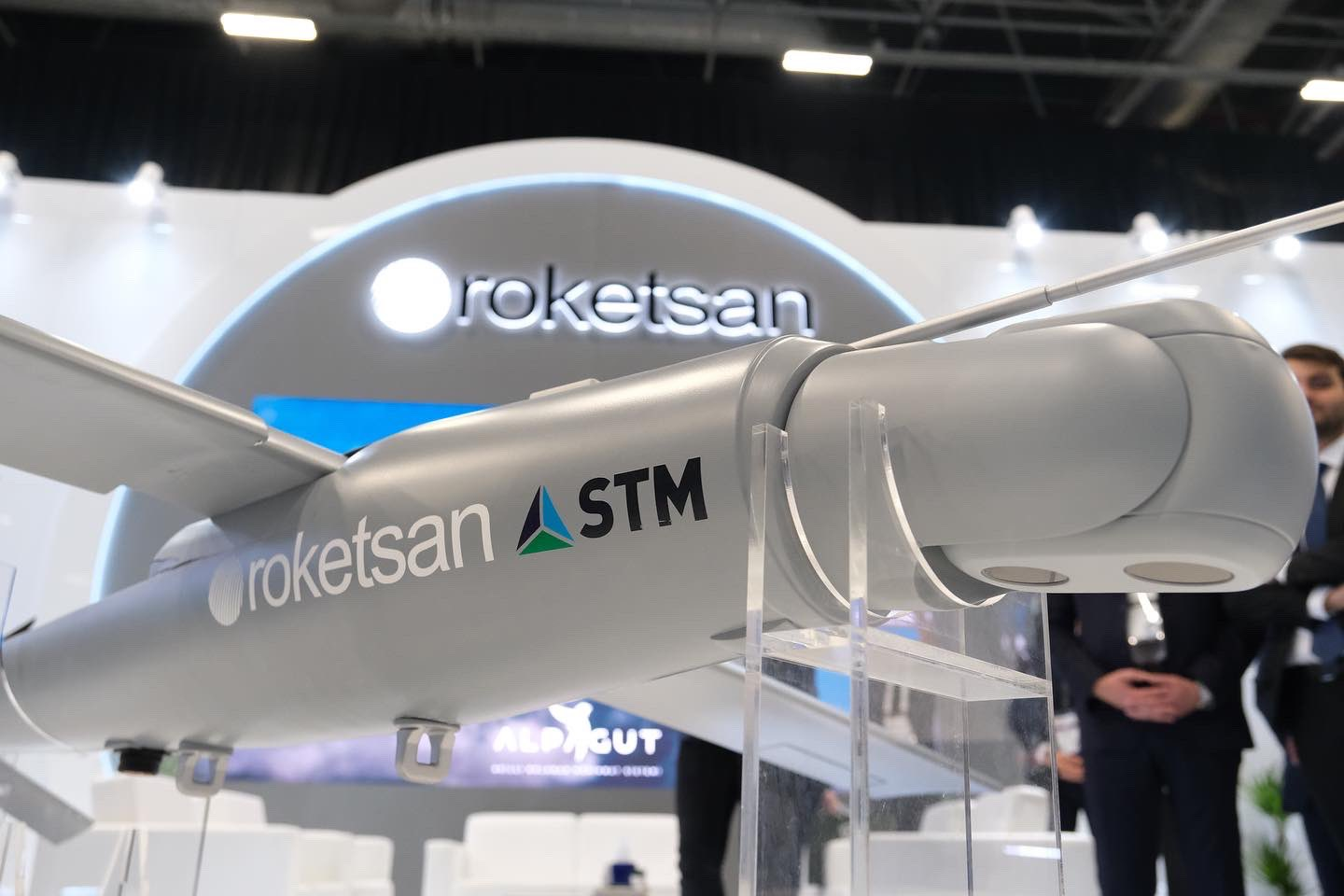

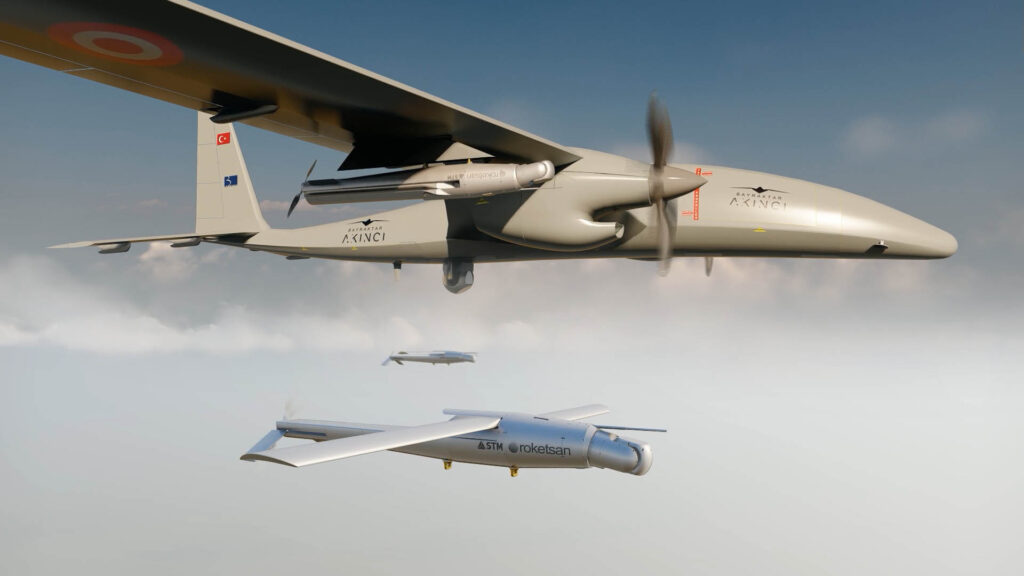

ALPAGUT Loitering Munition

It will be a game changer on the battlefield with its artificial intelligence algorithms and superior sensor technologies.

Lenght : 2.3 m
Weight : 45 kg
Warhead : 11 kg
Range : 60+ km
Guidance : TV , IIR , GPS , INS

Platforms :Land , Air , Naval
View attachment 898731
View attachment 898732
View attachment 898733

:welcome: to :pdf:


:pop::coffee::pop::coffee:

TURKIYE




KIZILELMA unmanned stealth Fighter Jet


First flight : In the first quarter of 2023
Mass production : 2025

Lenght : 14.7 m
Wingspan : 10 m
Height : 3.3 m

Endurance : 5 Hours
Combat radius : 500 nm
Service ceiling : 35,000 - 45.000 ft
Cruise speed : mach 0,6 - 0,9 ... ( supersonic variant mach 1,4 )
MTOW: 6000 kg
Payload : 1.500 kg

Engine : 1x AI-25TLT or 1x AI--322F turbofan ... ( 2x AI-322F )

-- AESA Radar , EOTS , sensor fusion
-- Stealth design
-- Internal weapon stations
-- Stealth flight capability
-- The ability to hide from Radars
-- Aggressive maneuverability with delta canard and vertical stabilizers
-- Smart fleet autonomy equipped with artificial intelligence

-- SATCOM + 3 redundant LOS
-- Independent navigation
-- Operational capability from TCG ANADOLU light Aircraft Carrier



TURKIYE




KIZILELMA unmanned stealth Fighter Jet


First flight : In the first quarter of 2023
Mass production : 2025

Lenght : 14.7 m
Wingspan : 10 m
Height : 3.3 m

Endurance : 5 Hours
Combat radius : 500 nm
Service ceiling : 35,000 - 45.000 ft
Cruise speed : mach 0,6 - 0,9 ... ( supersonic variant mach 1,4 )
MTOW: 6000 kg
Payload : 1.500 kg

Engine : 1x AI-25TLT or 1x AI--322F turbofan ... ( 2x AI-322F )

-- AESA Radar , EOTS , sensor fusion
-- Stealth design
-- Internal weapon stations
-- Stealth flight capability
-- The ability to hide from Radars
-- Aggressive maneuverability with delta canard and vertical stabilizers
-- Smart fleet autonomy equipped with artificial intelligence

-- SATCOM + 3 redundant LOS
-- Independent navigation
-- Operational capability from TCG ANADOLU light Aircraft Carrier


View attachment 898974
I heard 3-4 day ago some Geran-2 hit the factory that was supposed to build the engine for it , there was big explosion . wonder if you guys can source European or Chinese engine for it?

I heard 3-4 day ago some Geran-2 hit the factory that was supposed to build the engine for it , there was big explosion . wonder if you guys can source European or Chinese engine for it?

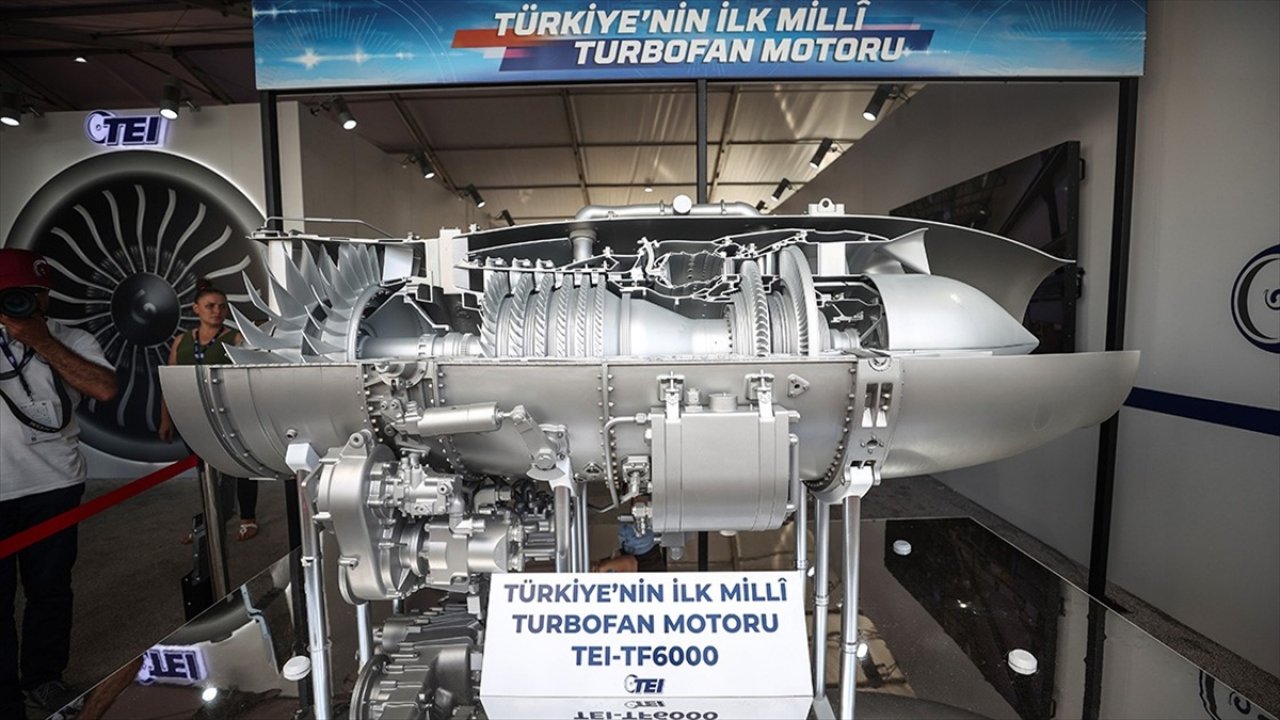

Turkish TF6000 Turbofan Engine under development for KIZILELMA

Turkish TF6000 Turbofan Engine under development for KIZILELMA
View attachment 899520
as you say under development . the problem is you always face problem during that phase that delay project for some times , for example look at China WS-10 , or the problems and delays F-35 faced during development phases

as you say under development . the problem is you always face problem during that phase that delay project for some times , for example look at China WS-10 , or the problems and delays F-35 faced during development phases

No problem
Turkiye has its own agenda to finish all major military projects ... sooner or later

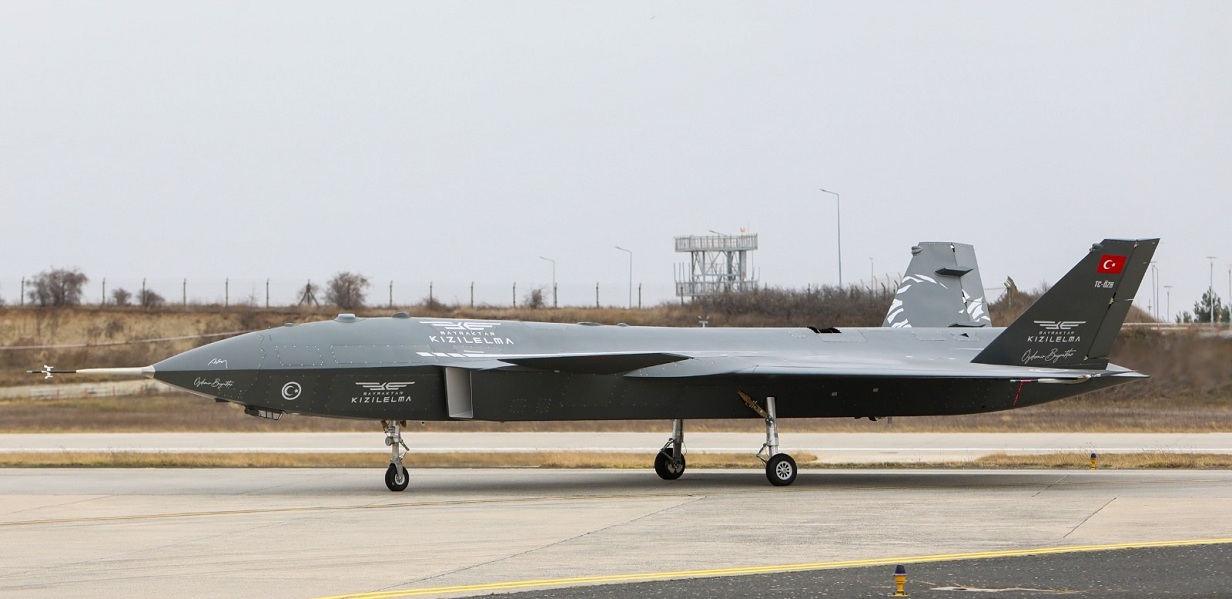

KIZILELMA unmanned stealth Fighter Jet




With consideration of a future where air combat will be dominated by unmanned technology,
and KIZILELMA is an unmanned stealth Fighter Jet

KIZILELMA will be a force to be reckoned with, specifically given its aggressive maneuvering capability and stealthiness against Radars


Origin : Turkiye
First flight : 14.12.2022
Mass production : 2023


Lenght : 14.7 m
Wingspan : 10 m
Height : 3.3 m

Basic Flight Performance Criteria
  • 500 Nm Combat Radius
  • 35.000 Feet Operational Altitude
  • 5 Hours Endurance
  • 6 Tons Maximum Take-Off Weight
  • 0.6 - 1,35 Mach Cruise Speed
  • 1.5 Tons Payload Capacity
Advanced Features
  • Fully Autonomous Take Off and Landing
  • Low RCS
  • Internal weapon bay for stealth flight capability
  • High Maneuverability
  • Smart fleet autonomy equipped with artificial intelligence
  • LOS and BLOS ( SATCOM )
  • Take Off and Landing Capability from Short-Runway Aircraft Carriers
  • High Situational Awareness with AESA Radar , EOTS
  • SATCOM + 3 redundant LOS
  • Independent navigation





AESA RADAR - EOTS

Aselsan MURAD GaN based AESA Radar with 1.000 T/R modules


EOTS



STEALTH CAPABILITY


in BVR combat , stealth KIZILELMA will advantage against Rafale , F-15 , F-16. Fighter Jets because of 4th gen Fighter Jets with bigger RCS ( 1m2 to 5m2 even 15m2 )


The RCS value for KIZILELMA could be less than 0.1m2

-- KIZILELMA has a monocoque composite body. It means the body is a single piece without any rough surfaces. This improves stealth capability incredibly

-- The RAM paint reduce the RCS value of the KIZILELMA

-- KIZILELMA will carry air missiles in the internal weapon stations for stealth flight capability


if KIZILELMA with RCS of 0.1 m2

F-16V with AN-APG-83 AESA Radar can detect KIZILELMA from 60-65 km away
RAFALE with RBE2 AESA Radar can detect KIZILELMA from 60-70 km away

on the other hand KIZILELMA with MURAD AESA Radar can detect F-16V and RAFALE from 120+ km away

first-look, first-shot, first-kill capability
That means KIZILELMA can see an enemy plane first, fire a missile and destroy the target without the other pilot ever knowing about it




ENGINE

Indigenous TF-6000 and TF-10.000 Turbofan Engine under development to power KIZILELMA



WEAPONS

Strategic offensives
Missile offensives
Close air support (CAS)
Suppression of enemy air defenses (SEAD)
Destruction of enemy air defenses (DEAD)

CAKIR and SOM Cruise Missiles ( 150-280 km ) land attack and anti-ship capabilities




Air to Air Missiles
25 km BOZDOGAN
100+ km GOKDOGAN
RAMJET powered long range GOKHAN air to air missile which is similar to METEOR

100+ km GOKDOGAN air to air missile ... ( speed of mach 4 .. two way datalink )



KIZILELMA could revolutionize the battlefield with its key landing and take-off capabilities on Ships with short runways as like TCG ANADOLU


Oil and gas exploration requires many drilling operations and drilling requires "drilling rigs" which in turn require "TOP DRIVES".
US sanction prevented Iran from purchasing this crucial piece of equipment so Iran went to work and 6 years later a privately owned company TIECO produced Iran's
TOP machinery. 15 ordered by Iran's national Oil company..Two already delivered.
Drills up to 4 kilometer down

diagram of a typical Top Drive equipment
