A turret with an automatic 30mm cannon and Trophy APS, a similar turret will be installed on the Namer IFV
Namer Heavy Armoured Infantry Fighting Vehicle, Israel
- Thread starter DavidSling
- Start date
DavidSling
SENIOR MEMBER
- Joined
- Oct 25, 2013
- Messages
- 4,826
- Reaction score
- 0
- Country
- Location
New turret for the Namer with an integrated APS. Will provide updates as soon as I get home. This is Zuk time!
Namer with Trophy APS
http://sturgeonshouse.ipbhost.com/topic/1499-israeli-afvs/?tab=comments#comment-105436
DavidSling
SENIOR MEMBER
- Joined
- Oct 25, 2013
- Messages
- 4,826
- Reaction score
- 0
- Country
- Location
DavidSling
SENIOR MEMBER
- Joined
- Oct 25, 2013
- Messages
- 4,826
- Reaction score
- 0
- Country
- Location

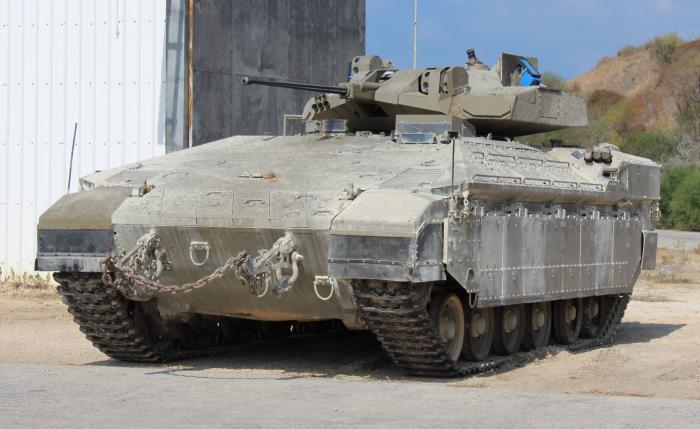

Watch: IMOD's Namer APC Fitted with 30mm Turret
The Tank Program Administration at the Israeli Ministry of Defense has completed the development of the first Namer APC equipped with a 30mm unmanned turret. In the future, the turret will also be mounted on the "Eitan" – IDF's first wheeled APC
IsraelDefense | 31/07/2017
Send to a friend
A+A-Size
Share on
Share on
Photo Credit: MANTAK, IMOD
IMOD's Tank Program Administration (MANTAK), together with the IDF Ground Arm, has recently begun the first series of tests on the Namer armored personnel carrier (APC), equipped with a 30mm turret. The turret was developed in order to be installed on two of the Tank Program Administration's APCs, namely the Namer and the IDF's first wheeled APC – the "Eitan," which is currently undergoing tests.
"The APC equipped with the gun turret provides a better response to urban combat," said Brig. Gen. Baruch Matzliah, Head of the Tank Program Administration. "The 30mm turret is designed to provide significant firepower to infantry units, to allow fighters to be more independent on the battlefield, and to reduce dependence on assistance from other units.
"The turret is unmanned and does not penetrate the combat cell so that the ability to carry the soldiers is not harmed. Its operation is expected to be simple and will be performed by the APC's crew. The turret will also incorporate an active defense system and additional systems that will greatly contribute to its capabilities."
http://www.israeldefense.co.il/en/node/30541
The Tank Program Administration at the Israeli Ministry of Defense has completed the development of the first Namer APC equipped with a 30mm unmanned turret. In the future, the turret will also be mounted on the "Eitan" – IDF's first wheeled APC
IsraelDefense | 31/07/2017
Send to a friend
A+A-Size
Share on
Share on
Photo Credit: MANTAK, IMOD
IMOD's Tank Program Administration (MANTAK), together with the IDF Ground Arm, has recently begun the first series of tests on the Namer armored personnel carrier (APC), equipped with a 30mm turret. The turret was developed in order to be installed on two of the Tank Program Administration's APCs, namely the Namer and the IDF's first wheeled APC – the "Eitan," which is currently undergoing tests.
"The APC equipped with the gun turret provides a better response to urban combat," said Brig. Gen. Baruch Matzliah, Head of the Tank Program Administration. "The 30mm turret is designed to provide significant firepower to infantry units, to allow fighters to be more independent on the battlefield, and to reduce dependence on assistance from other units.
"The turret is unmanned and does not penetrate the combat cell so that the ability to carry the soldiers is not harmed. Its operation is expected to be simple and will be performed by the APC's crew. The turret will also incorporate an active defense system and additional systems that will greatly contribute to its capabilities."
http://www.israeldefense.co.il/en/node/30541
Penguin
ELITE MEMBER
- Joined
- Jan 11, 2009
- Messages
- 13,047
- Reaction score
- 56
Penguin
ELITE MEMBER
- Joined
- Jan 11, 2009
- Messages
- 13,047
- Reaction score
- 56
Beny Karachun
SENIOR MEMBER
- Joined
- May 30, 2016
- Messages
- 6,521
- Reaction score
- -37
- Country
- Location
I made it before him :/
DavidSling
SENIOR MEMBER
- Joined
- Oct 25, 2013
- Messages
- 4,826
- Reaction score
- 0
- Country
- Location
Namer Heavy Armoured Infantry Fighting Vehicle, Israel
Discussion in 'Land Warfare' started by DavidSling, Jun 29, 2016.
Penguin
ELITE MEMBER
- Joined
- Jan 11, 2009
- Messages
- 13,047
- Reaction score
- 56
I don't care. I posted in both your threads. @mods to sort out.
DavidSling
SENIOR MEMBER
- Joined
- Oct 25, 2013
- Messages
- 4,826
- Reaction score
- 0
- Country
- Location
In January this year, with great excitement I reported on the planned testing of a turret on the Namer, and today, July 31st. it finally arrived.
The turret is not an off-the-shelf design, but dedicated for the needs of the Israeli ground army.
Background
For years, a "war" has been raging on whether the Namer should have a turret. Both in defense related forums and defense analysis companies, and within the IDF's multiple branches related to the topic. The "Turret" camp has won, and rightfully so.
Namer with Samson 30 Mk 1 turret by RAFAEL
Features
It's very clear that this turret is not like anything I've seen before, because it has a very distinct feature of having a turret-mounted APS, not as applique but integrated into it.
Work was not finalized on it, and it may see some additions in the future in the form of an RWS and ATGM launcher.
Clockwise from the top:
1) Commander's sight.
2) Dual missile launcher.
3) 4x Trophy radar.
4) 60mm mortar.
5) Gunner's sight.
6) 30-40mm cannon with dual feed, 400 bullets.
7) Smoke grenades.
8) Coaxial machine gun 7.62mm, 700 bullets.
1)It is equipped with a powerful array of optics. Elbit has a long record of supplying top of the line FCS (Fire Control System) and optics to the IDF through its subsidiary El-Op, who won its first Israel Defense Prize in 1997 for creating the Baz FCS for the Merkava 3 tank.
Elbit's COAPS sight, same as the one used on Singapore's Leopard 2 EVO tanks. It appears the gunner's sight is a static version of the COAPS.
2)Geared with Trophy HV Active Protection System, similar to the one fielded on Merkava 4M tanks and Namer CEV. The difference between this one and the CEV which already rolls with a Trophy system, is that this one is turret-mounted, and does it as an integrated system rather than applique.
Certain applications of APS on existing vehicles require mounting the APS on the hull, as it would otherwise be impossible on the turret without reaching tremendous costs, or breaching the upper limit of capabilities of the turret systems.
An APS is an immensely valuable asset on every vehicle, and is currently revolutionizing ground combat vehicles in multiple countries such as the US's MAPS effort which currently seeks an off-the-shelf system before going into a self-developed one, and Russia's Afghanit.
Training Trophy munitions in ready position.
3)Unfortunately it currently does not possess an Iron Vision system. It was hinted very vaguely that it might get it, but at the moment I'll just list it as a possibility. What indicates this is the lack of external sighting systems dedicated for that system. The COAPS cannot be used for that purpose as it is a rotating system, and the Iron Vision's application (at least 2 users per vehicle) requires a special static panoramic sight, to feed different footage to two recipients via one sight system.
However, the Eitan was said to eventually have this system by its production (in 2020, or earlier), and it is now also said that the Namer's new turret was designed for the Eitan as well, not just for the Namer.
Note the "clean" turret top
4)Something rather unexpected that caught my eye was the mortar. Yep, the iconic Merkava's feature of having a 60mm light mortar in its roof was copied into the new turret. That definitely testifies on what its operators and MANTAK as a whole think of the mortar's contributions throughout its very long service. It lays smoke at day, illuminates at night, marks targets with colored smoke, or fires HE on concealed targets to avoid exposing the vehicle. What is there not to love?
I believe it's not just a lovely gesture, but some original thinking. And although not new, it adds a new level of support the Namer can provide to its infantry. It could lay smoke for them, serve as artillery pocket for them, or the commander could even mark specific targets for them if they're not currently watching the BMS or have difficulty with precision spotting.
Mortar visible on the left side. This is reminiscent of the Merkava which houses a 60mm mortar on every variant.
5)Spike LR II missiles. They are located at the rear section in the center below a hatch and in a dual launcher.
The Spike is known for its ability to conduct precision strikes in manual guidance. This capability is further enhanced in the Spike LR II missile. It is not yet known whether it is indeed the Spike LR II missile, but judging by its schedule for production in 2018, and the Israeli Army's wish to equip its units with it, it would only make sense to use the new one.
Retracting on my previous claim, the missiles could be a great addition to the vehicle. Not because of its ability to defeat tanks, even advanced ones equipped with APS, but because of its precision strike and supportive capabilities for the infantry around the Namer.
It will be nay useless against Hamas in the Gaza strip, where the Namer will be positioned very close to the infantry, but it will shine in a hybrid warfare scenario against Hezbollah, where infantry will deploy a certain distance from the targets, and allow the Namer to use its array of weaponry from a distance while the infantry are advancing at their own pace.
Hatch for elevating dual missile launcher
Conclusion
This is an amazing improvement. Ad-hoc formations using infantry and armor from various brigades to create new "brigades" (or battalion-sized formations) were common practice, to provide battle taxis with strong firepower. Now, Namer formations can be independent in terms of firepower, and can also act as mechanized infantry thus attached to armored units. In the era of information and big data, data management is important and having to improvise on a regular basis is bad.
The infantry will be less reliant on artillery and air power, and won't have to wait for armor whenever they have to deal with heavily fortified enemies that are out of reach for MATADOR rockets, or too numerous.
As for the turret itself, its rather unorthodox conceptual design brings about several improvements that are not entirely abundant.
Other than providing the infantry with active protection, it can support them with an exceptional and diverse array of weapons, that do anything from direct engagement, precision engagement, to artillery work, all within immediate reach for the squad commander via direct comms to the vehicle commander.
http://sturgeonshouse.ipbhost.com/topic/1499-israeli-afvs/
@Penguin @500 @Natan @Archdemon @GBU-28 @F-15I @mike2000 is back @Blue Marlin @Mountain Jew @Beny Karachun @Adir-M @Ilay
The turret is not an off-the-shelf design, but dedicated for the needs of the Israeli ground army.
Background
For years, a "war" has been raging on whether the Namer should have a turret. Both in defense related forums and defense analysis companies, and within the IDF's multiple branches related to the topic. The "Turret" camp has won, and rightfully so.
Namer with Samson 30 Mk 1 turret by RAFAEL
Features
It's very clear that this turret is not like anything I've seen before, because it has a very distinct feature of having a turret-mounted APS, not as applique but integrated into it.
Work was not finalized on it, and it may see some additions in the future in the form of an RWS and ATGM launcher.
Clockwise from the top:
1) Commander's sight.
2) Dual missile launcher.
3) 4x Trophy radar.
4) 60mm mortar.
5) Gunner's sight.
6) 30-40mm cannon with dual feed, 400 bullets.
7) Smoke grenades.
8) Coaxial machine gun 7.62mm, 700 bullets.
1)It is equipped with a powerful array of optics. Elbit has a long record of supplying top of the line FCS (Fire Control System) and optics to the IDF through its subsidiary El-Op, who won its first Israel Defense Prize in 1997 for creating the Baz FCS for the Merkava 3 tank.
Elbit's COAPS sight, same as the one used on Singapore's Leopard 2 EVO tanks. It appears the gunner's sight is a static version of the COAPS.
2)Geared with Trophy HV Active Protection System, similar to the one fielded on Merkava 4M tanks and Namer CEV. The difference between this one and the CEV which already rolls with a Trophy system, is that this one is turret-mounted, and does it as an integrated system rather than applique.
Certain applications of APS on existing vehicles require mounting the APS on the hull, as it would otherwise be impossible on the turret without reaching tremendous costs, or breaching the upper limit of capabilities of the turret systems.
An APS is an immensely valuable asset on every vehicle, and is currently revolutionizing ground combat vehicles in multiple countries such as the US's MAPS effort which currently seeks an off-the-shelf system before going into a self-developed one, and Russia's Afghanit.
Training Trophy munitions in ready position.
3)Unfortunately it currently does not possess an Iron Vision system. It was hinted very vaguely that it might get it, but at the moment I'll just list it as a possibility. What indicates this is the lack of external sighting systems dedicated for that system. The COAPS cannot be used for that purpose as it is a rotating system, and the Iron Vision's application (at least 2 users per vehicle) requires a special static panoramic sight, to feed different footage to two recipients via one sight system.
However, the Eitan was said to eventually have this system by its production (in 2020, or earlier), and it is now also said that the Namer's new turret was designed for the Eitan as well, not just for the Namer.
Note the "clean" turret top
4)Something rather unexpected that caught my eye was the mortar. Yep, the iconic Merkava's feature of having a 60mm light mortar in its roof was copied into the new turret. That definitely testifies on what its operators and MANTAK as a whole think of the mortar's contributions throughout its very long service. It lays smoke at day, illuminates at night, marks targets with colored smoke, or fires HE on concealed targets to avoid exposing the vehicle. What is there not to love?
I believe it's not just a lovely gesture, but some original thinking. And although not new, it adds a new level of support the Namer can provide to its infantry. It could lay smoke for them, serve as artillery pocket for them, or the commander could even mark specific targets for them if they're not currently watching the BMS or have difficulty with precision spotting.
Mortar visible on the left side. This is reminiscent of the Merkava which houses a 60mm mortar on every variant.
5)Spike LR II missiles. They are located at the rear section in the center below a hatch and in a dual launcher.
The Spike is known for its ability to conduct precision strikes in manual guidance. This capability is further enhanced in the Spike LR II missile. It is not yet known whether it is indeed the Spike LR II missile, but judging by its schedule for production in 2018, and the Israeli Army's wish to equip its units with it, it would only make sense to use the new one.
Retracting on my previous claim, the missiles could be a great addition to the vehicle. Not because of its ability to defeat tanks, even advanced ones equipped with APS, but because of its precision strike and supportive capabilities for the infantry around the Namer.
It will be nay useless against Hamas in the Gaza strip, where the Namer will be positioned very close to the infantry, but it will shine in a hybrid warfare scenario against Hezbollah, where infantry will deploy a certain distance from the targets, and allow the Namer to use its array of weaponry from a distance while the infantry are advancing at their own pace.
Hatch for elevating dual missile launcher
Conclusion
This is an amazing improvement. Ad-hoc formations using infantry and armor from various brigades to create new "brigades" (or battalion-sized formations) were common practice, to provide battle taxis with strong firepower. Now, Namer formations can be independent in terms of firepower, and can also act as mechanized infantry thus attached to armored units. In the era of information and big data, data management is important and having to improvise on a regular basis is bad.
The infantry will be less reliant on artillery and air power, and won't have to wait for armor whenever they have to deal with heavily fortified enemies that are out of reach for MATADOR rockets, or too numerous.
As for the turret itself, its rather unorthodox conceptual design brings about several improvements that are not entirely abundant.
Other than providing the infantry with active protection, it can support them with an exceptional and diverse array of weapons, that do anything from direct engagement, precision engagement, to artillery work, all within immediate reach for the squad commander via direct comms to the vehicle commander.
http://sturgeonshouse.ipbhost.com/topic/1499-israeli-afvs/
@Penguin @500 @Natan @Archdemon @GBU-28 @F-15I @mike2000 is back @Blue Marlin @Mountain Jew @Beny Karachun @Adir-M @Ilay
Last edited:
Beny Karachun
SENIOR MEMBER
- Joined
- May 30, 2016
- Messages
- 6,521
- Reaction score
- -37
- Country
- Location
The Batallion's flag not an Ukranian one.Why it was with Ukrainian flag?
